TPC Mechatronics NST Series Stopper Cylinder (Lever Type, Bore 50/63/80 mm)

TPC Mechatronics NST Series Stopper Cylinder (Lever Type, Bore 50/63/80 mm)

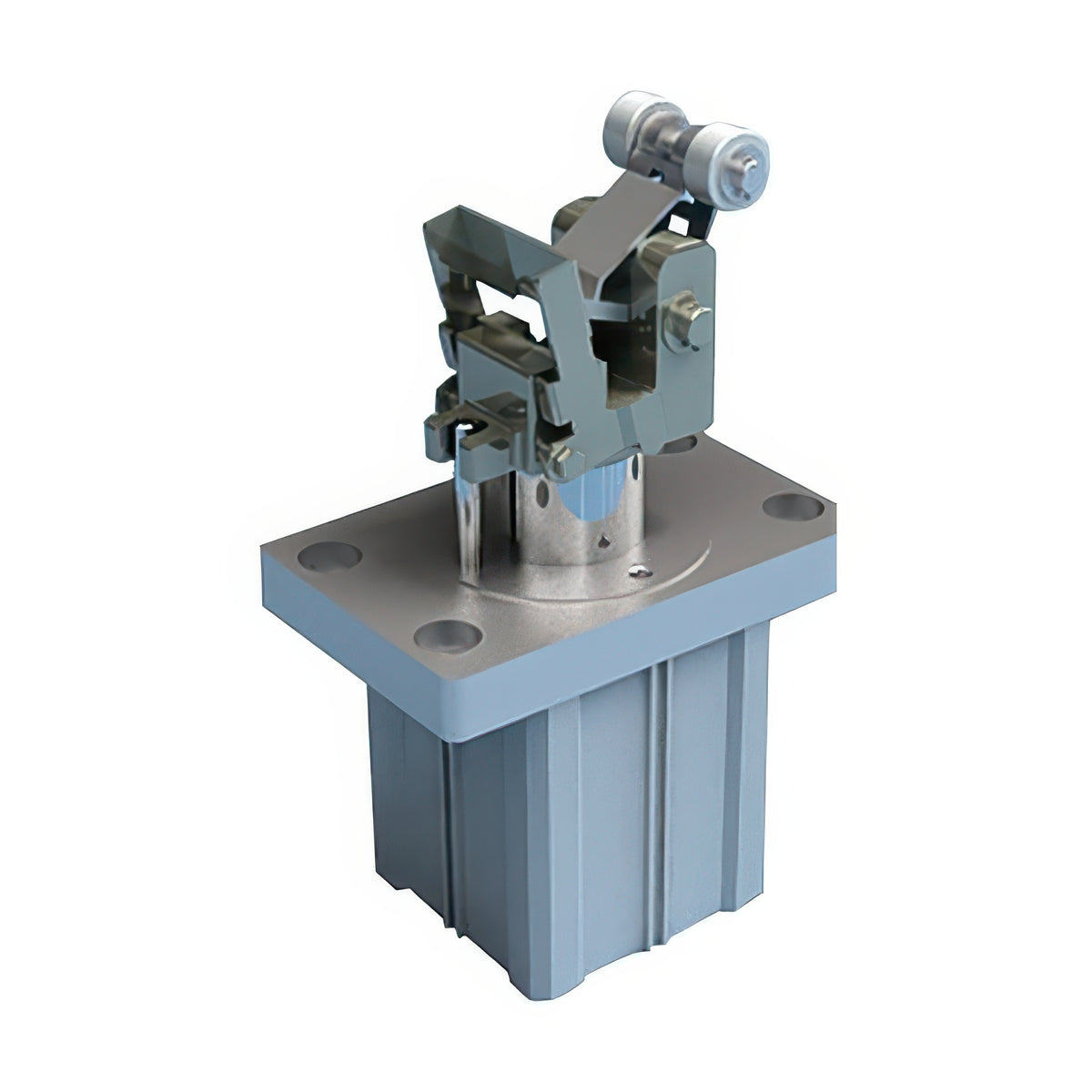

The NST series is a lever-type stopper cylinder for stopping pallets and workpieces on conveyor lines, in 50, 63 and 80 mm bores.

Key features

  • The lever position can be changed in 90 degree steps to four directions, and a built-in shock absorber absorbs impact and is easy to maintain or replace
  • It is available as single acting, double acting or double acting with spring return, with a resin or rolled steel roller and optional lever lock or pass functions
  • A high-rigidity rod and through-hole or double-end tapped mounting are provided, and auto switches can be mounted
  • Maximum operating pressure is 1.0 MPa, temperature -5 to 60 C, non-lubricated
  • Lever assembly spare parts are available individually
NSTLA50 Type: Lever, standard rod cover | Bore: 50 mm | Rod dia: 32 mm | Strokes: 25, 30, 40 mm | Acting: Single acting retract, double acting, double acting with spring return | Proof pressure: 1.5 MPa | Max. pressure: 1.0 MPa | Min. pressure: 0.1 MPa | Temperature: -5 to 60 C | Cushion: Rubber | Lubrication: Not required | Mass: 2.178 kg (30 mm stroke)
NSTLB50 Type: Lever, slim rod cover | Bore: 50 mm | Rod dia: 32 mm | Strokes: 25, 30 mm | Acting: Single acting retract, double acting, double acting with spring return | Proof pressure: 1.5 MPa | Max. pressure: 1.0 MPa | Min. pressure: 0.1 MPa | Temperature: -5 to 60 C | Cushion: Rubber | Lubrication: Not required | Mass: 2.194 kg (30 mm stroke)
NSTLC50 Type: Lever, square rod cover | Bore: 50 mm | Rod dia: 32 mm | Stroke: 30 mm | Acting: Single acting retract, double acting, double acting with spring return | Proof pressure: 1.5 MPa | Max. pressure: 1.0 MPa | Min. pressure: 0.1 MPa | Temperature: -5 to 60 C | Cushion: Rubber | Lubrication: Not required
NSTLA63 Type: Lever, standard | Bore: 63 mm | Rod dia: 40 mm | Strokes: 30, 40 mm | Acting: Single acting retract, double acting, double acting with spring return | Proof pressure: 1.5 MPa | Max. pressure: 1.0 MPa | Min. pressure: 0.1 MPa | Temperature: -5 to 60 C | Cushion: Rubber | Lubrication: Not required | Mass: 3.998 kg (30 mm stroke)
NSTLA80 Type: Lever, standard | Bore: 80 mm | Rod dia: 50 mm | Strokes: 30, 40 mm | Acting: Single acting retract, double acting, double acting with spring return | Proof pressure: 1.5 MPa | Max. pressure: 1.0 MPa | Min. pressure: 0.1 MPa | Temperature: -5 to 60 C | Cushion: Rubber | Lubrication: Not required | Mass: 5.528 kg (30 mm stroke)
NST050-57-1980-PL Type: Lever (lever assembly spare part) | For bore: 50 mm
NST050-23B1980-PL Type: Lever pin (lever assembly spare part) | For bore: 50 mm
NST050-09A1980-PL Type: Lever spring (lever assembly spare part) | For bore: 50 mm
NST050-58-1980-PL Type: Roller (lever assembly spare part) | For bore: 50 mm
NST050-23A1980-PL Type: Roller pin (lever assembly spare part) | For bore: 50 mm
#2-12L-PL Type: Cotter pin (lever assembly spare part) | For bore: 50 mm
#2-16L-PL Type: Cotter pin (lever assembly spare part) | For bore: 50, 63, 80 mm
8.5X17X1.6T-PL Type: Flat washer (lever assembly spare part) | For bore: 50 mm
NST050-61-1980-PL Type: Flat washer (white zinc) (lever assembly spare part) | For bore: 50 mm
NST063-57-1985-PL Type: Lever (lever assembly spare part) | For bore: 63 mm
NST063-23B1985-PL Type: Lever pin (lever assembly spare part) | For bore: 63 mm
NST063-09D1985-PL Type: Lever spring (lever assembly spare part) | For bore: 63, 80 mm
NST063-58-1985-PL Type: Roller (lever assembly spare part) | For bore: 63, 80 mm
NST063-23A1985-PL Type: Roller pin (lever assembly spare part) | For bore: 63 mm
NST063-61-1985-PL Type: Flat washer (lever assembly spare part) | For bore: 63, 80 mm
10.5X21X1.6T-PL Type: Flat washer (lever assembly spare part) | For bore: 63, 80 mm
NST080-057-001-PL Type: Lever (lever assembly spare part) | For bore: 80 mm
NST080-023-002-PL Type: Lever pin (lever assembly spare part) | For bore: 80 mm
NST080-023-001-PL Type: Roller pin (lever assembly spare part) | For bore: 80 mm
