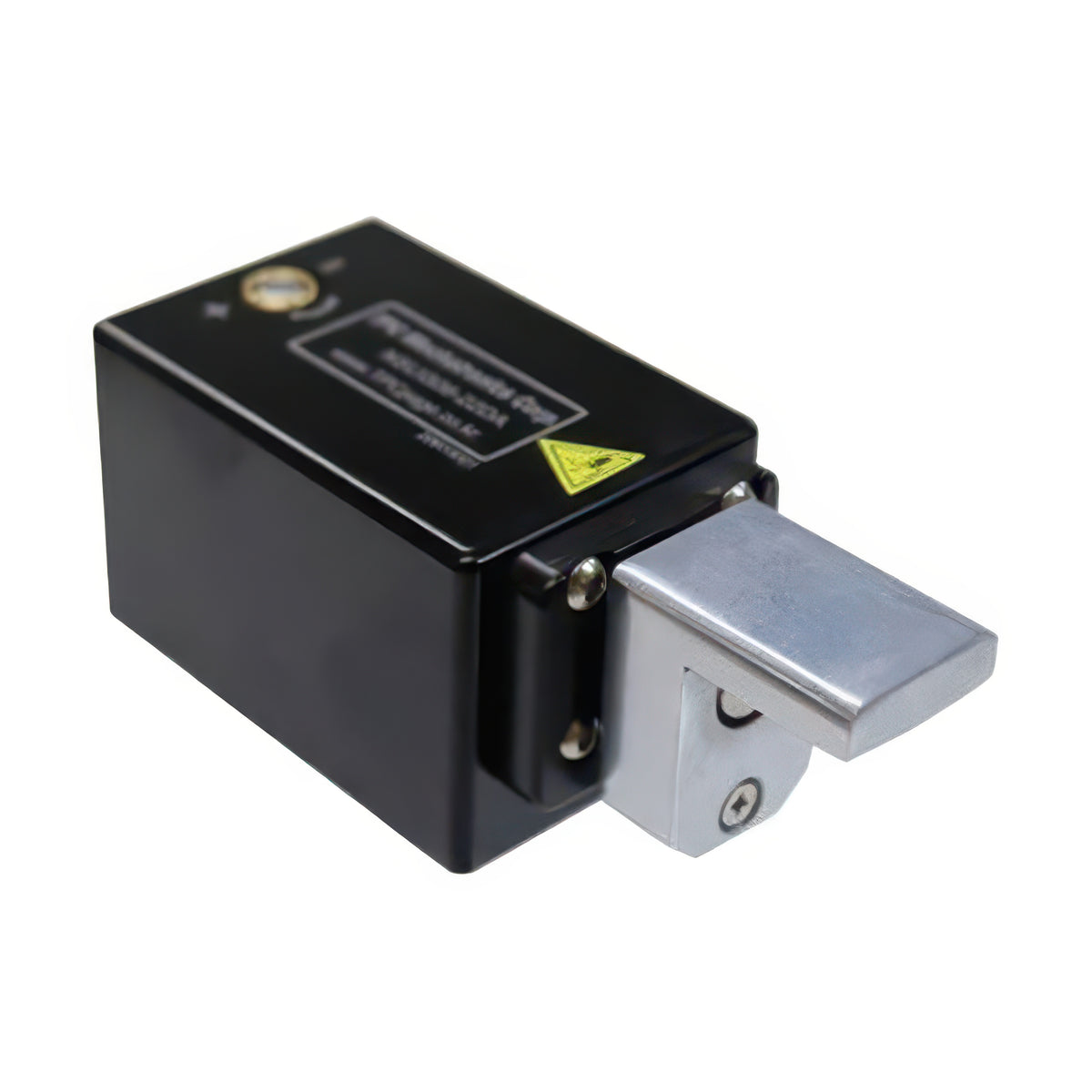

TPC Mechatronics NSUG Series Angle Damper Stopper Cylinder

TPC Mechatronics NSUG Series Angle Damper Stopper Cylinder

The NSUG series is a pneumatic angle damper cylinder used on conveyor and pallet transfer lines to cushion and redirect work pallets that are sensitive to shock.

Key features

  • It absorbs impact with an adjustable damper so pallets stop smoothly without rebound, and damping force is set with an adjusting spindle to match pallet mass and conveyor speed
  • Single-acting and double-acting versions are offered with A-type or B-type stopper heads and a 22 mm damping stroke
  • The unit handles pallet loads up to 60 kg, operates at 0.4 to 0.6 MPa on non-lubricated air, and mounts with M6 bolts at an ambient temperature of 5 to 60 C

Specifications

Type Angle damper stopper
Max. transported load 60 kg
Damping stroke 22 mm
Port M5
Allowable load vs conveyor speed 20 kg at 18 m/min, 25 kg at 15 m/min, 30 kg at 12 m/min, 40 kg at 9 m/min, 60 kg at 6 m/min
Medium Air
Proof pressure 0.9 MPa
Operating pressure 0.4-0.6 MPa
Ambient temperature 5-60 C
Lubrication Not required
TPC Mechatronics NSUG Series Angle Damper Stopper Cylinder reference 2
NSUG06-22TA Type: Angle damper stopper | Acting: Single | Stopper type: A | Max. transported load: 60 kg | Damping stroke: 22 mm | Port: M5 | Allowable load vs conveyor speed: 20 kg at 18 m/min, 25 kg at 15 m/min, 30 kg at 12 m/min, 40 kg at 9 m/min, 60 kg at 6 m/min | Medium: Air | Proof pressure: 0.9 MPa | Operating pressure: 0.4-0.6 MPa | Ambient temperature: 5-60 C | Lubrication: Not required
NSUG06-22TB Type: Angle damper stopper | Acting: Single | Stopper type: B | Max. transported load: 60 kg | Damping stroke: 22 mm | Port: M5 | Allowable load vs conveyor speed: 20 kg at 18 m/min, 25 kg at 15 m/min, 30 kg at 12 m/min, 40 kg at 9 m/min, 60 kg at 6 m/min | Medium: Air | Proof pressure: 0.9 MPa | Operating pressure: 0.4-0.6 MPa | Ambient temperature: 5-60 C | Lubrication: Not required
NSUG06-22DA Type: Angle damper stopper | Acting: Double | Stopper type: A | Max. transported load: 60 kg | Damping stroke: 22 mm | Port: M5 | Allowable load vs conveyor speed: 20 kg at 18 m/min, 25 kg at 15 m/min, 30 kg at 12 m/min, 40 kg at 9 m/min, 60 kg at 6 m/min | Medium: Air | Proof pressure: 0.9 MPa | Operating pressure: 0.4-0.6 MPa | Ambient temperature: 5-60 C | Lubrication: Not required
NSUG06-22DB Type: Angle damper stopper | Acting: Double | Stopper type: B | Max. transported load: 60 kg | Damping stroke: 22 mm | Port: M5 | Allowable load vs conveyor speed: 20 kg at 18 m/min, 25 kg at 15 m/min, 30 kg at 12 m/min, 40 kg at 9 m/min, 60 kg at 6 m/min | Medium: Air | Proof pressure: 0.9 MPa | Operating pressure: 0.4-0.6 MPa | Ambient temperature: 5-60 C | Lubrication: Not required
