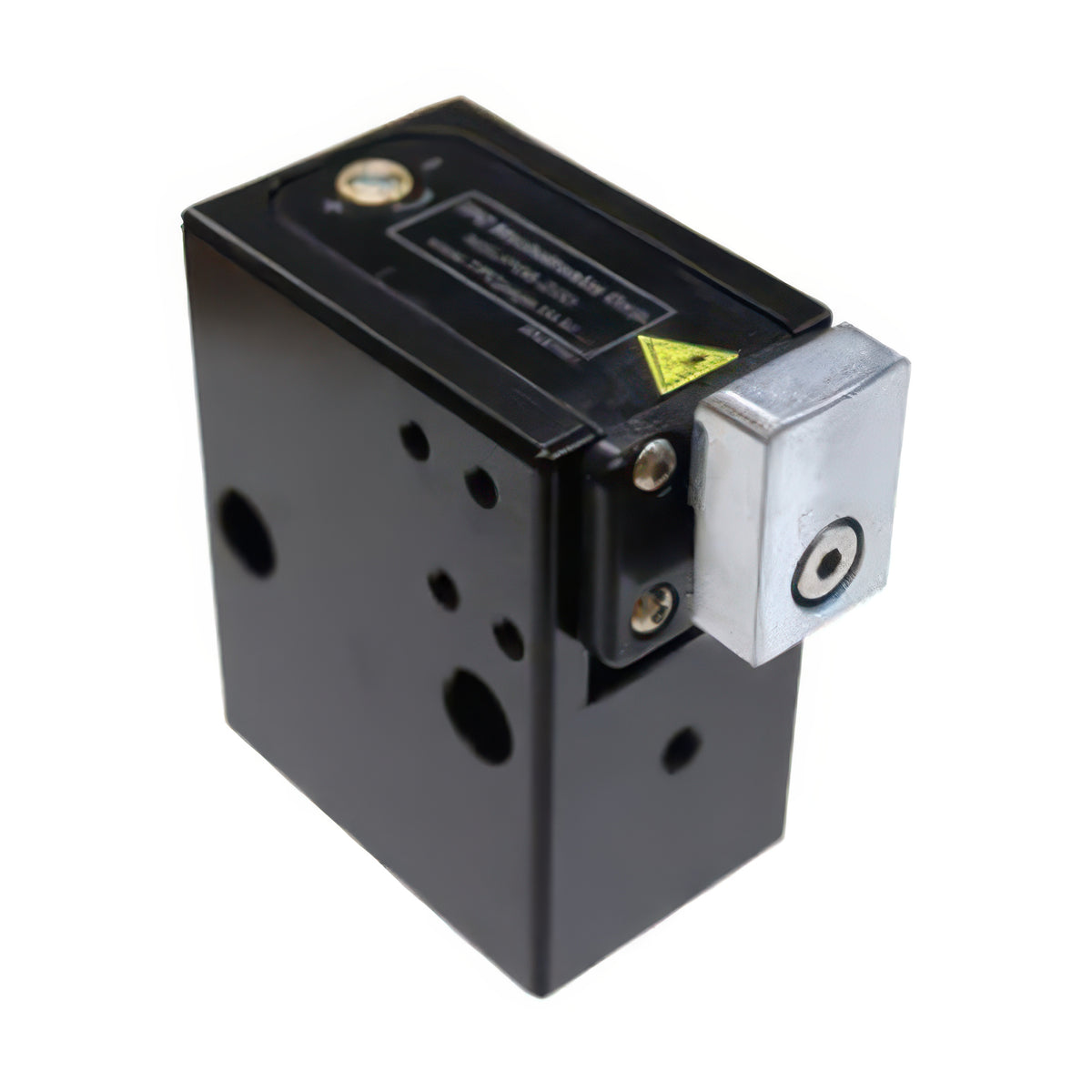

TPC Mechatronics NSUP Series Damper Stopper Cylinder (Lift-Down Type)
TPC Mechatronics NSUP Series Damper Stopper Cylinder (Lift-Down Type)
The NSUP series is a pneumatic damper stopper cylinder that stops pallets on a conveyor at a work station and then lowers so the pallet can continue to the next process.
Key features
- An adjustable damper brings the pallet to a smooth stop without rebound, giving accurate positioning, and the damping force is set with an adjusting spindle
- Sizes cover pallet loads of 60, 70 and 100 kg with 22 mm or 35 mm damping stroke and 8 to 9 mm lowering stroke, single-acting with spring return
- The body can be mounted from either side, and versions with a built-in magnet accept auto switches; optional proximity sensor brackets are available
- Operating pressure is 0.4 to 0.6 MPa on non-lubricated air at 5 to 60 C
| NSUP06-22TB | Type: Damper stopper (lift-down) | Acting: Single (spring return) | Stopper type: B | Auto switch magnet: No | Max. transported load: 60 kg | Damping stroke: 22 mm | Lowering stroke: 8 mm | Allowable load vs conveyor speed: 20 kg at 18 m/min, 25 kg at 15 m/min, 30 kg at 12 m/min, 40 kg at 9 m/min, 60 kg at 6 m/min | Port: M5 | Medium: Air | Proof pressure: 0.9 MPa | Operating pressure: 0.4-0.6 MPa | Ambient temperature: 5-60 C | Lubrication: Not required | |
| NDSUP06-22TB | Type: Damper stopper (lift-down) | Acting: Single (spring return) | Stopper type: B | Auto switch magnet: Built-in | Max. transported load: 60 kg | Damping stroke: 22 mm | Lowering stroke: 8 mm | Allowable load vs conveyor speed: 20 kg at 18 m/min, 25 kg at 15 m/min, 30 kg at 12 m/min, 40 kg at 9 m/min, 60 kg at 6 m/min | Port: M5 | Medium: Air | Proof pressure: 0.9 MPa | Operating pressure: 0.4-0.6 MPa | Ambient temperature: 5-60 C | Lubrication: Not required | |
| NSUP07-22TB | Type: Damper stopper (lift-down) | Acting: Single (spring return) | Stopper type: B | Auto switch magnet: No | Max. transported load: 70 kg | Damping stroke: 22 mm | Lowering stroke: 9 mm | Allowable load vs conveyor speed: 30 kg at 18 m/min, 40 kg at 15 m/min, 50 kg at 12 m/min, 60 kg at 9 m/min, 70 kg at 6 m/min | Port: M5 | Medium: Air | Proof pressure: 0.9 MPa | Operating pressure: 0.4-0.6 MPa | Ambient temperature: 5-60 C | Lubrication: Not required | |
| NDSUP07-22TB | Type: Damper stopper (lift-down) | Acting: Single (spring return) | Stopper type: B | Auto switch magnet: Built-in | Max. transported load: 70 kg | Damping stroke: 22 mm | Lowering stroke: 9 mm | Allowable load vs conveyor speed: 30 kg at 18 m/min, 40 kg at 15 m/min, 50 kg at 12 m/min, 60 kg at 9 m/min, 70 kg at 6 m/min | Port: M5 | Medium: Air | Proof pressure: 0.9 MPa | Operating pressure: 0.4-0.6 MPa | Ambient temperature: 5-60 C | Lubrication: Not required | |
| NSUP10-35TB | Type: Damper stopper (lift-down) | Acting: Single (spring return) | Stopper type: B | Auto switch magnet: No | Max. transported load: 100 kg | Damping stroke: 35 mm | Lowering stroke: 9 mm | Allowable load vs conveyor speed: 50 kg at 18 m/min, 60 kg at 15 m/min, 70 kg at 12 m/min, 80 kg at 9 m/min, 100 kg at 6 m/min | Port: M5 | Medium: Air | Proof pressure: 0.9 MPa | Operating pressure: 0.4-0.6 MPa | Ambient temperature: 5-60 C | Lubrication: Not required | |
| NDSUP10-35TB | Type: Damper stopper (lift-down) | Acting: Single (spring return) | Stopper type: B | Auto switch magnet: Built-in | Max. transported load: 100 kg | Damping stroke: 35 mm | Lowering stroke: 9 mm | Allowable load vs conveyor speed: 50 kg at 18 m/min, 60 kg at 15 m/min, 70 kg at 12 m/min, 80 kg at 9 m/min, 100 kg at 6 m/min | Port: M5 | Medium: Air | Proof pressure: 0.9 MPa | Operating pressure: 0.4-0.6 MPa | Ambient temperature: 5-60 C | Lubrication: Not required | |
| NSUP-PA8 | Type: Proximity sensor bracket A | Sensor size: M8 | Applicable: NSUP series | Quantity: 1 pc | Sensor not included | |
| NSUP-PB8 | Type: Proximity sensor bracket B | Sensor size: M8 | Applicable: NSUP series | Quantity: 1 pc | Sensor not included | |
| NSUP-PB12 | Type: Proximity sensor bracket B | Sensor size: M12 | Applicable: NSUP series | Quantity: 1 pc | Sensor not included |
