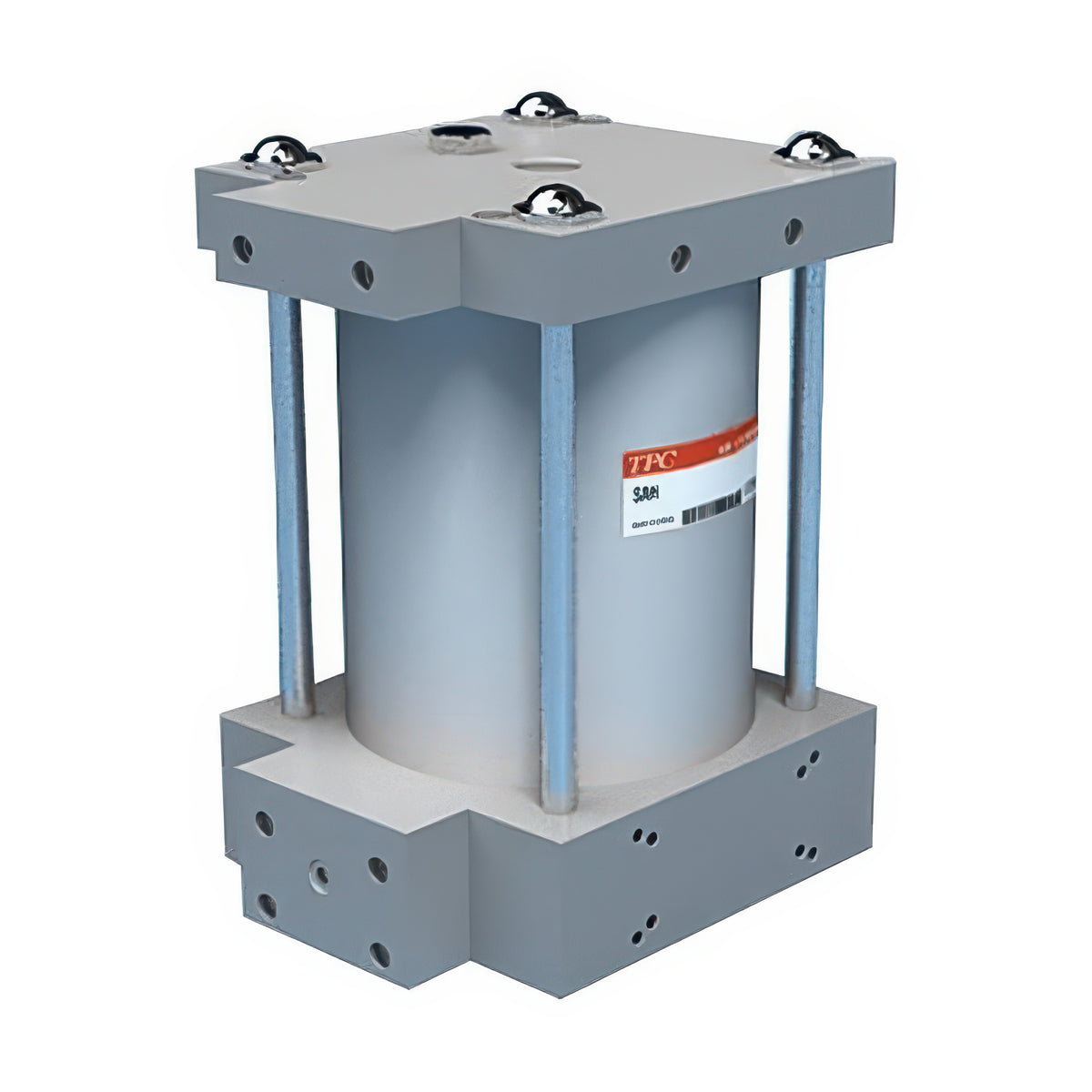

TPC Mechatronics SAH-100 Air-Hydro Converter

TPC Mechatronics SAH-100 Air-Hydro Converter

The SAH-100 is the 100 mm nominal-bore size of the SAH series air-hydro converter.

Key features

  • It converts compressed air pressure into hydraulic oil pressure to drive cylinders with smooth, low-speed motion
  • The unit must be installed vertically and should hold at least 1.25 times the oil volume required by the actuator
  • A sight gauge shows the oil level for easy inspection and replenishment

Specifications

Nominal bore 100 mm
Effective oil-level strokes 50, 100, 150, 200, 250, 300, 400, 500, 600 mm (table values 370-4520)
Flow limit 88 L/min (oil surface speed 0.2 m/s or less)
Operating pressure 0-0.7 MPa
Max operating pressure 1.0 MPa
Temperature 5-50 C
Fluid hydraulic oil (40-100 cSt)
Air port Rc 1/2
Oil port Rc 3/4
SAH-100 Nominal bore: 100 mm | Effective oil-level strokes: 50, 100, 150, 200, 250, 300, 400, 500, 600 mm (table values 370-4520) | Flow limit: 88 L/min (oil surface speed 0.2 m/s or less) | Operating pressure: 0-0.7 MPa | Max operating pressure: 1.0 MPa | Temperature: 5-50 C | Fluid: hydraulic oil (40-100 cSt) | Air port: Rc 1/2 | Oil port: Rc 3/4
Air-Hydro ConvertersTPC Mechatronics
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics SAH-100 Air-Hydro Converter

Brand TPC Mechatronics·Air-Hydro Converters

Available part numbers (1)

SAH-100

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SAH-100Nominal bore: 100 mm | Effective oil-level strokes: 50, 100, 150, 200, 250, 300, 400, 500, 600 mm (table values 370-4520) | Flow limit: 88 L/min (oil surface speed 0.2 m/s or less) | Operating pressure: 0-0.7 MPa | Max operating pressure: 1.0 MPa | Temperature: 5-50 C | Fluid: hydraulic oil (40-100 cSt) | Air port: Rc 1/2 | Oil port: Rc 3/4
