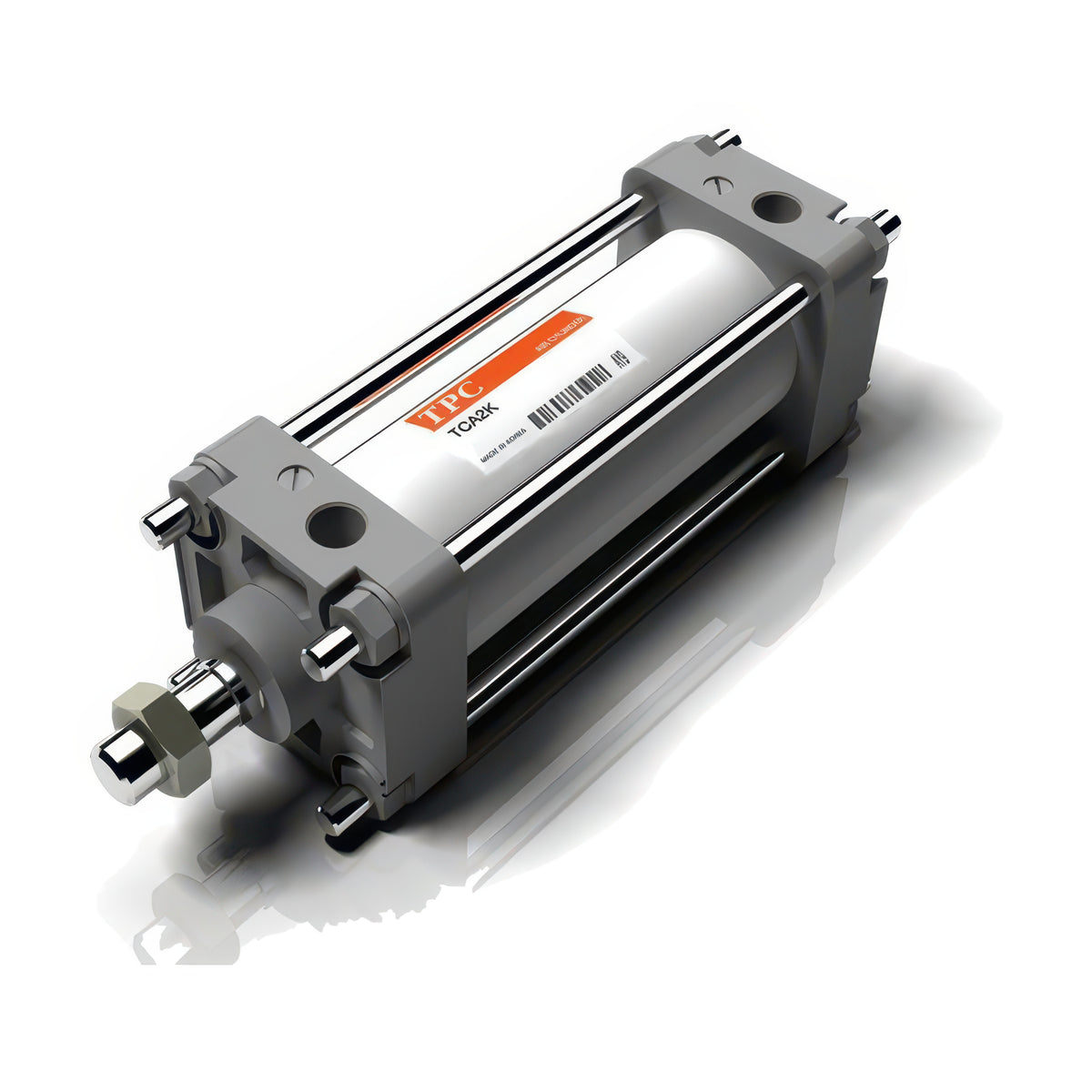

TPC Mechatronics TCA2K Series Rod Non-Rotating Pneumatic Cylinder (Basic Mount)

TPC Mechatronics TCA2K Series Rod Non-Rotating Pneumatic Cylinder (Basic Mount)

The TCA2K series is a rod non-rotating version of the TCA2 medium tie-rod pneumatic cylinder, offered in bores 40, 50 and 63 mm.

Key features

  • The flat-sided piston rod holds a non-rotating accuracy of +/-0.5 degrees
  • It supports high-speed operation with long life, runs without lubrication and shares mounting dimensions with the standard TCA2
  • Codes TCA2KB and TCDA2KB denote the basic mount without and with a built-in magnet; tie-rod mounted auto switches can be fitted

Specifications

Acting Double
Non-rotating accuracy +/-0.5 deg
Allowable rotating torque 4.5 kgf.cm or less
Mounting options B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion
Operating pressure 0.05-1.0 MPa (proof 1.5 MPa)
Piston speed 50-500 mm/s
Cushion Yes
Lubrication Not required
Ambient/fluid temperature 5-60 C
TCA2KB40 Bore: 40 mm | Rod diameter: 16 mm | Rod end thread: M14x1.5 | Port: Rc1/4 | Stroke range: up to 500 mm (stroke tolerance +1.4 mm, 25-500 mm) | Acting: Double | Magnet: without auto switch magnet | Non-rotating accuracy: +/-0.5 deg | Allowable rotating torque: 4.5 kgf.cm or less | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Piston speed: 50-500 mm/s | Cushion: Yes | Lubrication: Not required | Ambient/fluid temperature: 5-60 C
TCA2KB50 Bore: 50 mm | Rod diameter: 20 mm | Rod end thread: M18x1.5 | Port: Rc3/8 | Stroke range: up to 600 mm (stroke tolerance +1.4 mm, 25-600 mm) | Acting: Double | Magnet: without auto switch magnet | Non-rotating accuracy: +/-0.5 deg | Allowable rotating torque: 4.5 kgf.cm or less | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Piston speed: 50-500 mm/s | Cushion: Yes | Lubrication: Not required | Ambient/fluid temperature: 5-60 C
TCA2KB63 Bore: 63 mm | Rod diameter: 20 mm | Rod end thread: M18x1.5 | Port: Rc3/8 | Stroke range: up to 600 mm (stroke tolerance +1.4 mm, 25-600 mm) | Acting: Double | Magnet: without auto switch magnet | Non-rotating accuracy: +/-0.5 deg | Allowable rotating torque: 4.5 kgf.cm or less | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Piston speed: 50-500 mm/s | Cushion: Yes | Lubrication: Not required | Ambient/fluid temperature: 5-60 C
TCDA2KB40 Bore: 40 mm | Rod diameter: 16 mm | Rod end thread: M14x1.5 | Port: Rc1/4 | Stroke range: up to 500 mm (stroke tolerance +1.4 mm, 25-500 mm) | Acting: Double | Magnet: with built-in magnet (auto switch ready) | Non-rotating accuracy: +/-0.5 deg | Allowable rotating torque: 4.5 kgf.cm or less | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Piston speed: 50-500 mm/s | Cushion: Yes | Lubrication: Not required | Ambient/fluid temperature: 5-60 C
TCDA2KB50 Bore: 50 mm | Rod diameter: 20 mm | Rod end thread: M18x1.5 | Port: Rc3/8 | Stroke range: up to 600 mm (stroke tolerance +1.4 mm, 25-600 mm) | Acting: Double | Magnet: with built-in magnet (auto switch ready) | Non-rotating accuracy: +/-0.5 deg | Allowable rotating torque: 4.5 kgf.cm or less | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Piston speed: 50-500 mm/s | Cushion: Yes | Lubrication: Not required | Ambient/fluid temperature: 5-60 C
TCDA2KB63 Bore: 63 mm | Rod diameter: 20 mm | Rod end thread: M18x1.5 | Port: Rc3/8 | Stroke range: up to 600 mm (stroke tolerance +1.4 mm, 25-600 mm) | Acting: Double | Magnet: with built-in magnet (auto switch ready) | Non-rotating accuracy: +/-0.5 deg | Allowable rotating torque: 4.5 kgf.cm or less | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Piston speed: 50-500 mm/s | Cushion: Yes | Lubrication: Not required | Ambient/fluid temperature: 5-60 C
