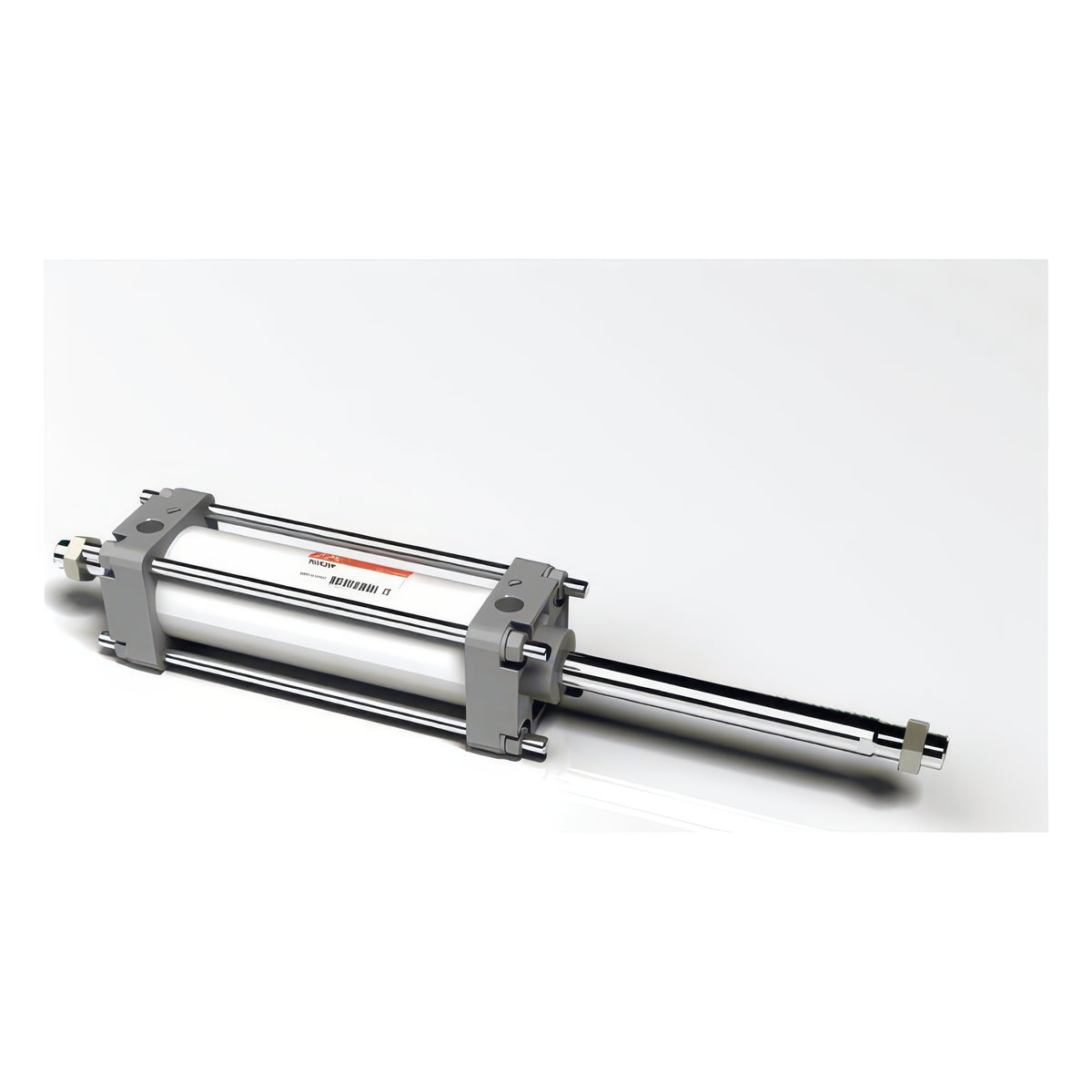

TPC Mechatronics TCA2W Series Double-Rod Tie-Rod Pneumatic Cylinder (Basic Mount)

TPC Mechatronics TCA2W Series Double-Rod Tie-Rod Pneumatic Cylinder (Basic Mount)

The TCA2W series is the double-rod version of the TCA2 medium tie-rod pneumatic cylinder, in bores 40 to 100 mm.

Key features

  • Codes TCA2WBN and TCDA2WBN denote the basic mount, non-lube type without and with a built-in magnet for auto switches
  • It supports high-speed operation with long service life and can be used without lubrication
  • Tie-rod mounted auto switches can be fitted, and one-side or both-side bellows are available

Specifications

Standard strokes 25, 50, 75, 100, 125, 150, 175, 200, 300, 350, 400, 450, 500 mm
Acting Double
Rod double rod (both ends)
Type N non-lube
Mounting options B basic, L foot, F rod flange, T center trunnion
Operating pressure 0.08-1.0 MPa (proof 1.5 MPa)
Piston speed 50-500 mm/s
Cushion Yes
Ambient/fluid temperature 5-60 C
TCA2WBN40 Bore: 40 mm | Rod diameter: 16 mm | Rod end thread: M14x1.5 | Port: Rc1/4 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 300, 350, 400, 450, 500 mm | Max stroke: 500 mm (stroke range without bellows) | Acting: Double | Rod: double rod (both ends) | Type: N non-lube | Magnet: without auto switch magnet | Mounting options: B basic, L foot, F rod flange, T center trunnion | Operating pressure: 0.08-1.0 MPa (proof 1.5 MPa) | Piston speed: 50-500 mm/s | Cushion: Yes | Ambient/fluid temperature: 5-60 C
TCA2WBN50 Bore: 50 mm | Rod diameter: 20 mm | Rod end thread: M18x1.5 | Port: Rc3/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 300, 350, 400, 450, 500 mm | Max stroke: 600 mm (stroke range without bellows) | Acting: Double | Rod: double rod (both ends) | Type: N non-lube | Magnet: without auto switch magnet | Mounting options: B basic, L foot, F rod flange, T center trunnion | Operating pressure: 0.08-1.0 MPa (proof 1.5 MPa) | Piston speed: 50-500 mm/s | Cushion: Yes | Ambient/fluid temperature: 5-60 C
TCA2WBN63 Bore: 63 mm | Rod diameter: 20 mm | Rod end thread: M18x1.5 | Port: Rc3/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 300, 350, 400, 450, 500 mm | Max stroke: 600 mm (stroke range without bellows) | Acting: Double | Rod: double rod (both ends) | Type: N non-lube | Magnet: without auto switch magnet | Mounting options: B basic, L foot, F rod flange, T center trunnion | Operating pressure: 0.08-1.0 MPa (proof 1.5 MPa) | Piston speed: 50-500 mm/s | Cushion: Yes | Ambient/fluid temperature: 5-60 C
TCA2WBN80 Bore: 80 mm | Rod diameter: 25 mm | Rod end thread: M22x1.5 | Port: Rc1/2 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 300, 350, 400, 450, 500 mm | Max stroke: 750 mm (stroke range without bellows) | Acting: Double | Rod: double rod (both ends) | Type: N non-lube | Magnet: without auto switch magnet | Mounting options: B basic, L foot, F rod flange, T center trunnion | Operating pressure: 0.08-1.0 MPa (proof 1.5 MPa) | Piston speed: 50-500 mm/s | Cushion: Yes | Ambient/fluid temperature: 5-60 C
TCA2WBN100 Bore: 100 mm | Rod diameter: 30 mm | Rod end thread: M26x1.5 | Port: Rc1/2 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 300, 350, 400, 450, 500 mm | Max stroke: 750 mm (stroke range without bellows) | Acting: Double | Rod: double rod (both ends) | Type: N non-lube | Magnet: without auto switch magnet | Mounting options: B basic, L foot, F rod flange, T center trunnion | Operating pressure: 0.08-1.0 MPa (proof 1.5 MPa) | Piston speed: 50-500 mm/s | Cushion: Yes | Ambient/fluid temperature: 5-60 C
TCDA2WBN40 Bore: 40 mm | Rod diameter: 16 mm | Rod end thread: M14x1.5 | Port: Rc1/4 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 300, 350, 400, 450, 500 mm | Max stroke: 500 mm (stroke range without bellows) | Acting: Double | Rod: double rod (both ends) | Type: N non-lube | Magnet: with built-in magnet (auto switch ready) | Mounting options: B basic, L foot, F rod flange, T center trunnion | Operating pressure: 0.08-1.0 MPa (proof 1.5 MPa) | Piston speed: 50-500 mm/s | Cushion: Yes | Ambient/fluid temperature: 5-60 C
TCDA2WBN50 Bore: 50 mm | Rod diameter: 20 mm | Rod end thread: M18x1.5 | Port: Rc3/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 300, 350, 400, 450, 500 mm | Max stroke: 600 mm (stroke range without bellows) | Acting: Double | Rod: double rod (both ends) | Type: N non-lube | Magnet: with built-in magnet (auto switch ready) | Mounting options: B basic, L foot, F rod flange, T center trunnion | Operating pressure: 0.08-1.0 MPa (proof 1.5 MPa) | Piston speed: 50-500 mm/s | Cushion: Yes | Ambient/fluid temperature: 5-60 C
TCDA2WBN63 Bore: 63 mm | Rod diameter: 20 mm | Rod end thread: M18x1.5 | Port: Rc3/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 300, 350, 400, 450, 500 mm | Max stroke: 600 mm (stroke range without bellows) | Acting: Double | Rod: double rod (both ends) | Type: N non-lube | Magnet: with built-in magnet (auto switch ready) | Mounting options: B basic, L foot, F rod flange, T center trunnion | Operating pressure: 0.08-1.0 MPa (proof 1.5 MPa) | Piston speed: 50-500 mm/s | Cushion: Yes | Ambient/fluid temperature: 5-60 C
TCDA2WBN80 Bore: 80 mm | Rod diameter: 25 mm | Rod end thread: M22x1.5 | Port: Rc1/2 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 300, 350, 400, 450, 500 mm | Max stroke: 750 mm (stroke range without bellows) | Acting: Double | Rod: double rod (both ends) | Type: N non-lube | Magnet: with built-in magnet (auto switch ready) | Mounting options: B basic, L foot, F rod flange, T center trunnion | Operating pressure: 0.08-1.0 MPa (proof 1.5 MPa) | Piston speed: 50-500 mm/s | Cushion: Yes | Ambient/fluid temperature: 5-60 C
TCDA2WBN100 Bore: 100 mm | Rod diameter: 30 mm | Rod end thread: M26x1.5 | Port: Rc1/2 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 300, 350, 400, 450, 500 mm | Max stroke: 750 mm (stroke range without bellows) | Acting: Double | Rod: double rod (both ends) | Type: N non-lube | Magnet: with built-in magnet (auto switch ready) | Mounting options: B basic, L foot, F rod flange, T center trunnion | Operating pressure: 0.08-1.0 MPa (proof 1.5 MPa) | Piston speed: 50-500 mm/s | Cushion: Yes | Ambient/fluid temperature: 5-60 C
