TPC Mechatronics TCM Compact Pneumatic Cylinder, Bore 20-40 mm

TPC Mechatronics TCM Compact Pneumatic Cylinder, Bore 20-40 mm

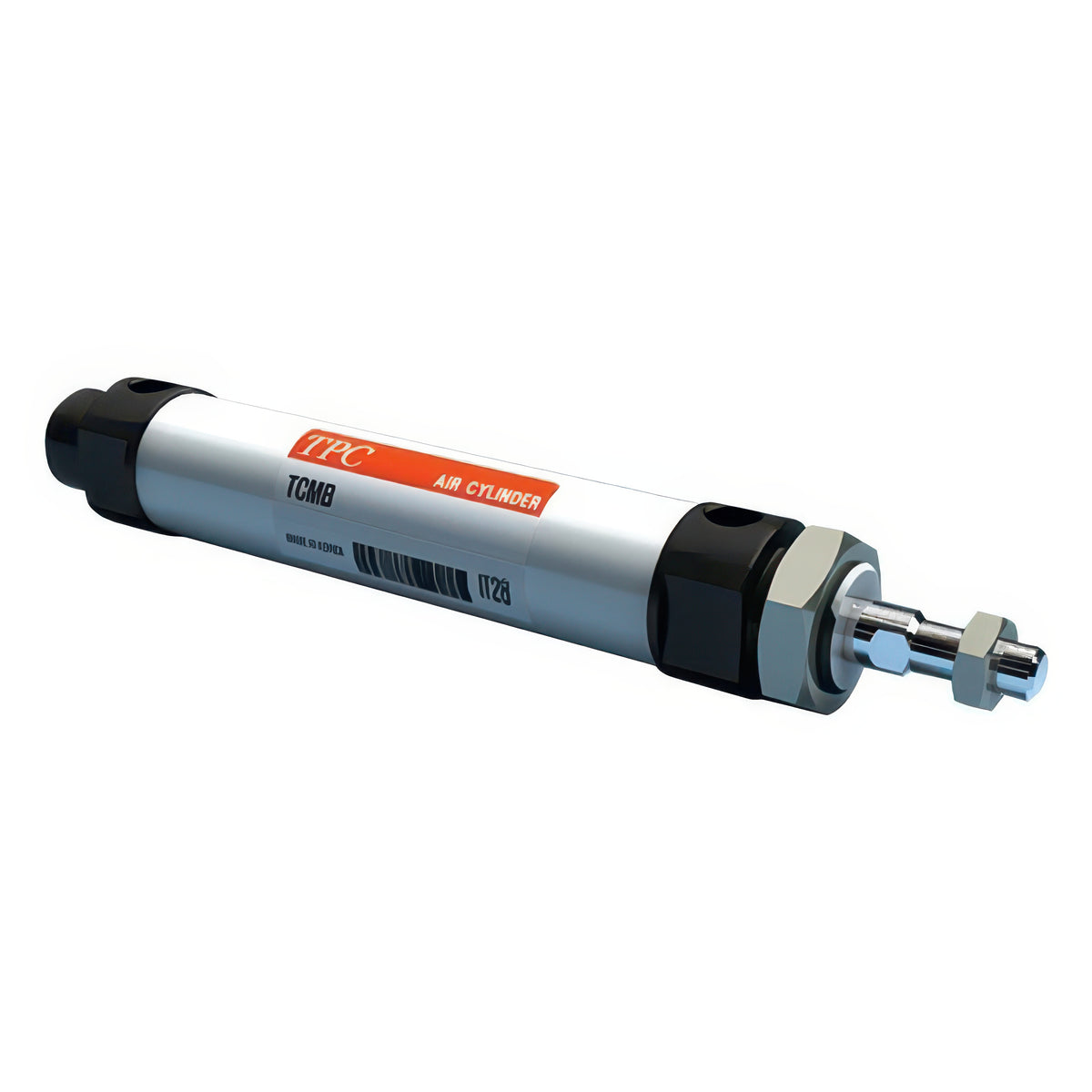

The TCM series is a standard compact round-body pneumatic cylinder in bores of 20, 25, 30 and 40 mm.

Key features

  • It is available in lubricated, non-lube (N) and low-hydraulic (H) types, with double-acting and spring-return or spring-extend single-acting versions
  • Eight mounting styles are offered, including basic, axial foot, rod and head flange, clevis and trunnion
  • Rubber or air cushions, nylon or neoprene bellows and knuckle joints can be specified as options
  • The TCDM prefix denotes the auto-switch-ready model for D-C73K reed switches
  • Codes are base model numbers (series, mounting, bore); stroke and options are added when ordering

Specifications

Standard strokes 25, 50, 75, 100, 125, 150, 200, 250, 300 mm (double acting)
Max stroke 300 mm
Acting Double (S/T single-acting options)
Mounting options B basic, L axial foot, F rod flange, G head flange, C single clevis, D double clevis, T head trunnion, U rod trunnion
Type lubricated (standard), N non-lube, H low-hydraulic
Operating pressure 0.05-1.0 MPa double acting (0.18 MPa min for single acting and H type)
Proof pressure 1.5 MPa
Piston speed 50-500 mm/s
Cushion none (standard), C rubber, A air (non-lube only)
TCMB20 Bore: 20 mm | Rod diameter: 10 mm | Rod end thread: M8x1.25 | Port: Rc(PT) 1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm (double acting) | Single acting (S spring return / T spring extend) strokes: 25-150 mm | Max stroke: 300 mm | Acting: Double (S/T single-acting options) | Mounting options: B basic, L axial foot, F rod flange, G head flange, C single clevis, D double clevis, T head trunnion, U rod trunnion | Type: lubricated (standard), N non-lube, H low-hydraulic | Operating pressure: 0.05-1.0 MPa double acting (0.18 MPa min for single acting and H type) | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: none (standard), C rubber, A air (non-lube only) | Auto switch: none (TCDM prefix for auto-switch type)
TCMB25 Bore: 25 mm | Rod diameter: 12 mm | Rod end thread: M10x1.25 | Port: Rc(PT) 1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm (double acting) | Single acting (S spring return / T spring extend) strokes: 25-150 mm | Max stroke: 300 mm | Acting: Double (S/T single-acting options) | Mounting options: B basic, L axial foot, F rod flange, G head flange, C single clevis, D double clevis, T head trunnion, U rod trunnion | Type: lubricated (standard), N non-lube, H low-hydraulic | Operating pressure: 0.05-1.0 MPa double acting (0.18 MPa min for single acting and H type) | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: none (standard), C rubber, A air (non-lube only) | Auto switch: none (TCDM prefix for auto-switch type)
TCMB30 Bore: 30 mm | Rod diameter: 12 mm | Rod end thread: M10x1.25 | Port: Rc(PT) 1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm (double acting) | Single acting (S spring return / T spring extend) strokes: 25-200 mm | Max stroke: 300 mm | Acting: Double (S/T single-acting options) | Mounting options: B basic, L axial foot, F rod flange, G head flange, C single clevis, D double clevis, T head trunnion, U rod trunnion | Type: lubricated (standard), N non-lube, H low-hydraulic | Operating pressure: 0.05-1.0 MPa double acting (0.18 MPa min for single acting and H type) | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: none (standard), C rubber, A air (non-lube only) | Auto switch: none (TCDM prefix for auto-switch type)
TCMB40 Bore: 40 mm | Rod diameter: 16 mm | Rod end thread: M14x1.5 | Port: Rc(PT) 1/4 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm (double acting) | Single acting (S spring return / T spring extend) strokes: 50-250 mm | Max stroke: 300 mm | Acting: Double (S/T single-acting options) | Mounting options: B basic, L axial foot, F rod flange, G head flange, C single clevis, D double clevis, T head trunnion, U rod trunnion | Type: lubricated (standard), N non-lube, H low-hydraulic | Operating pressure: 0.05-1.0 MPa double acting (0.18 MPa min for single acting and H type) | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: none (standard), C rubber, A air (non-lube only) | Auto switch: none (TCDM prefix for auto-switch type)
TCDMB20 Bore: 20 mm | Rod diameter: 10 mm | Rod end thread: M8x1.25 | Port: Rc(PT) 1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm (double acting) | Single acting (S spring return / T spring extend) strokes: 25-150 mm | Max stroke: 300 mm | Acting: Double (S/T single-acting options) | Mounting options: B basic, L axial foot, F rod flange, G head flange, C single clevis, D double clevis, T head trunnion, U rod trunnion | Type: lubricated (standard), N non-lube, H low-hydraulic | Operating pressure: 0.05-1.0 MPa double acting (0.18 MPa min for single acting and H type) | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: none (standard), C rubber, A air (non-lube only) | Auto switch: TCD prefix = auto-switch-ready (D-C73K reed switch, band mount)
TCDMB25 Bore: 25 mm | Rod diameter: 12 mm | Rod end thread: M10x1.25 | Port: Rc(PT) 1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm (double acting) | Single acting (S spring return / T spring extend) strokes: 25-150 mm | Max stroke: 300 mm | Acting: Double (S/T single-acting options) | Mounting options: B basic, L axial foot, F rod flange, G head flange, C single clevis, D double clevis, T head trunnion, U rod trunnion | Type: lubricated (standard), N non-lube, H low-hydraulic | Operating pressure: 0.05-1.0 MPa double acting (0.18 MPa min for single acting and H type) | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: none (standard), C rubber, A air (non-lube only) | Auto switch: TCD prefix = auto-switch-ready (D-C73K reed switch, band mount)
TCDMB30 Bore: 30 mm | Rod diameter: 12 mm | Rod end thread: M10x1.25 | Port: Rc(PT) 1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm (double acting) | Single acting (S spring return / T spring extend) strokes: 25-200 mm | Max stroke: 300 mm | Acting: Double (S/T single-acting options) | Mounting options: B basic, L axial foot, F rod flange, G head flange, C single clevis, D double clevis, T head trunnion, U rod trunnion | Type: lubricated (standard), N non-lube, H low-hydraulic | Operating pressure: 0.05-1.0 MPa double acting (0.18 MPa min for single acting and H type) | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: none (standard), C rubber, A air (non-lube only) | Auto switch: TCD prefix = auto-switch-ready (D-C73K reed switch, band mount)
TCDMB40 Bore: 40 mm | Rod diameter: 16 mm | Rod end thread: M14x1.5 | Port: Rc(PT) 1/4 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm (double acting) | Single acting (S spring return / T spring extend) strokes: 50-250 mm | Max stroke: 300 mm | Acting: Double (S/T single-acting options) | Mounting options: B basic, L axial foot, F rod flange, G head flange, C single clevis, D double clevis, T head trunnion, U rod trunnion | Type: lubricated (standard), N non-lube, H low-hydraulic | Operating pressure: 0.05-1.0 MPa double acting (0.18 MPa min for single acting and H type) | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: none (standard), C rubber, A air (non-lube only) | Auto switch: TCD prefix = auto-switch-ready (D-C73K reed switch, band mount)
Pneumatic CylindersTPC Mechatronics
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics TCM Compact Pneumatic Cylinder, Bore 20-40 mm

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (8)

TCMB20, TCMB25, TCMB30, TCMB40, TCDMB20, TCDMB25, TCDMB30, TCDMB40

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TCMB20Bore: 20 mm | Rod diameter: 10 mm | Rod end thread: M8x1.25 | Port: Rc(PT) 1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm (double acting) | Single acting (S spring return / T spring extend) strokes: 25-150 mm | Max stroke: 300 mm | Acting: Double (S/T single-acting options) | Mounting options: B basic, L axial foot, F rod flange, G head flange, C single clevis, D double clevis, T head trunnion, U rod trunnion | Type: lubricated (standard), N non-lube, H low-hydraulic | Operating pressure: 0.05-1.0 MPa double acting (0.18 MPa min for single acting and H type) | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: none (standard), C rubber, A air (non-lube only) | Auto switch: none (TCDM prefix for auto-switch type)
TCMB25Bore: 25 mm | Rod diameter: 12 mm | Rod end thread: M10x1.25 | Port: Rc(PT) 1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm (double acting) | Single acting (S spring return / T spring extend) strokes: 25-150 mm | Max stroke: 300 mm | Acting: Double (S/T single-acting options) | Mounting options: B basic, L axial foot, F rod flange, G head flange, C single clevis, D double clevis, T head trunnion, U rod trunnion | Type: lubricated (standard), N non-lube, H low-hydraulic | Operating pressure: 0.05-1.0 MPa double acting (0.18 MPa min for single acting and H type) | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: none (standard), C rubber, A air (non-lube only) | Auto switch: none (TCDM prefix for auto-switch type)
TCMB30Bore: 30 mm | Rod diameter: 12 mm | Rod end thread: M10x1.25 | Port: Rc(PT) 1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm (double acting) | Single acting (S spring return / T spring extend) strokes: 25-200 mm | Max stroke: 300 mm | Acting: Double (S/T single-acting options) | Mounting options: B basic, L axial foot, F rod flange, G head flange, C single clevis, D double clevis, T head trunnion, U rod trunnion | Type: lubricated (standard), N non-lube, H low-hydraulic | Operating pressure: 0.05-1.0 MPa double acting (0.18 MPa min for single acting and H type) | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: none (standard), C rubber, A air (non-lube only) | Auto switch: none (TCDM prefix for auto-switch type)
TCMB40Bore: 40 mm | Rod diameter: 16 mm | Rod end thread: M14x1.5 | Port: Rc(PT) 1/4 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm (double acting) | Single acting (S spring return / T spring extend) strokes: 50-250 mm | Max stroke: 300 mm | Acting: Double (S/T single-acting options) | Mounting options: B basic, L axial foot, F rod flange, G head flange, C single clevis, D double clevis, T head trunnion, U rod trunnion | Type: lubricated (standard), N non-lube, H low-hydraulic | Operating pressure: 0.05-1.0 MPa double acting (0.18 MPa min for single acting and H type) | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: none (standard), C rubber, A air (non-lube only) | Auto switch: none (TCDM prefix for auto-switch type)
TCDMB20Bore: 20 mm | Rod diameter: 10 mm | Rod end thread: M8x1.25 | Port: Rc(PT) 1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm (double acting) | Single acting (S spring return / T spring extend) strokes: 25-150 mm | Max stroke: 300 mm | Acting: Double (S/T single-acting options) | Mounting options: B basic, L axial foot, F rod flange, G head flange, C single clevis, D double clevis, T head trunnion, U rod trunnion | Type: lubricated (standard), N non-lube, H low-hydraulic | Operating pressure: 0.05-1.0 MPa double acting (0.18 MPa min for single acting and H type) | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: none (standard), C rubber, A air (non-lube only) | Auto switch: TCD prefix = auto-switch-ready (D-C73K reed switch, band mount)
TCDMB25Bore: 25 mm | Rod diameter: 12 mm | Rod end thread: M10x1.25 | Port: Rc(PT) 1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm (double acting) | Single acting (S spring return / T spring extend) strokes: 25-150 mm | Max stroke: 300 mm | Acting: Double (S/T single-acting options) | Mounting options: B basic, L axial foot, F rod flange, G head flange, C single clevis, D double clevis, T head trunnion, U rod trunnion | Type: lubricated (standard), N non-lube, H low-hydraulic | Operating pressure: 0.05-1.0 MPa double acting (0.18 MPa min for single acting and H type) | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: none (standard), C rubber, A air (non-lube only) | Auto switch: TCD prefix = auto-switch-ready (D-C73K reed switch, band mount)
TCDMB30Bore: 30 mm | Rod diameter: 12 mm | Rod end thread: M10x1.25 | Port: Rc(PT) 1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm (double acting) | Single acting (S spring return / T spring extend) strokes: 25-200 mm | Max stroke: 300 mm | Acting: Double (S/T single-acting options) | Mounting options: B basic, L axial foot, F rod flange, G head flange, C single clevis, D double clevis, T head trunnion, U rod trunnion | Type: lubricated (standard), N non-lube, H low-hydraulic | Operating pressure: 0.05-1.0 MPa double acting (0.18 MPa min for single acting and H type) | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: none (standard), C rubber, A air (non-lube only) | Auto switch: TCD prefix = auto-switch-ready (D-C73K reed switch, band mount)
TCDMB40Bore: 40 mm | Rod diameter: 16 mm | Rod end thread: M14x1.5 | Port: Rc(PT) 1/4 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm (double acting) | Single acting (S spring return / T spring extend) strokes: 50-250 mm | Max stroke: 300 mm | Acting: Double (S/T single-acting options) | Mounting options: B basic, L axial foot, F rod flange, G head flange, C single clevis, D double clevis, T head trunnion, U rod trunnion | Type: lubricated (standard), N non-lube, H low-hydraulic | Operating pressure: 0.05-1.0 MPa double acting (0.18 MPa min for single acting and H type) | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: none (standard), C rubber, A air (non-lube only) | Auto switch: TCD prefix = auto-switch-ready (D-C73K reed switch, band mount)
