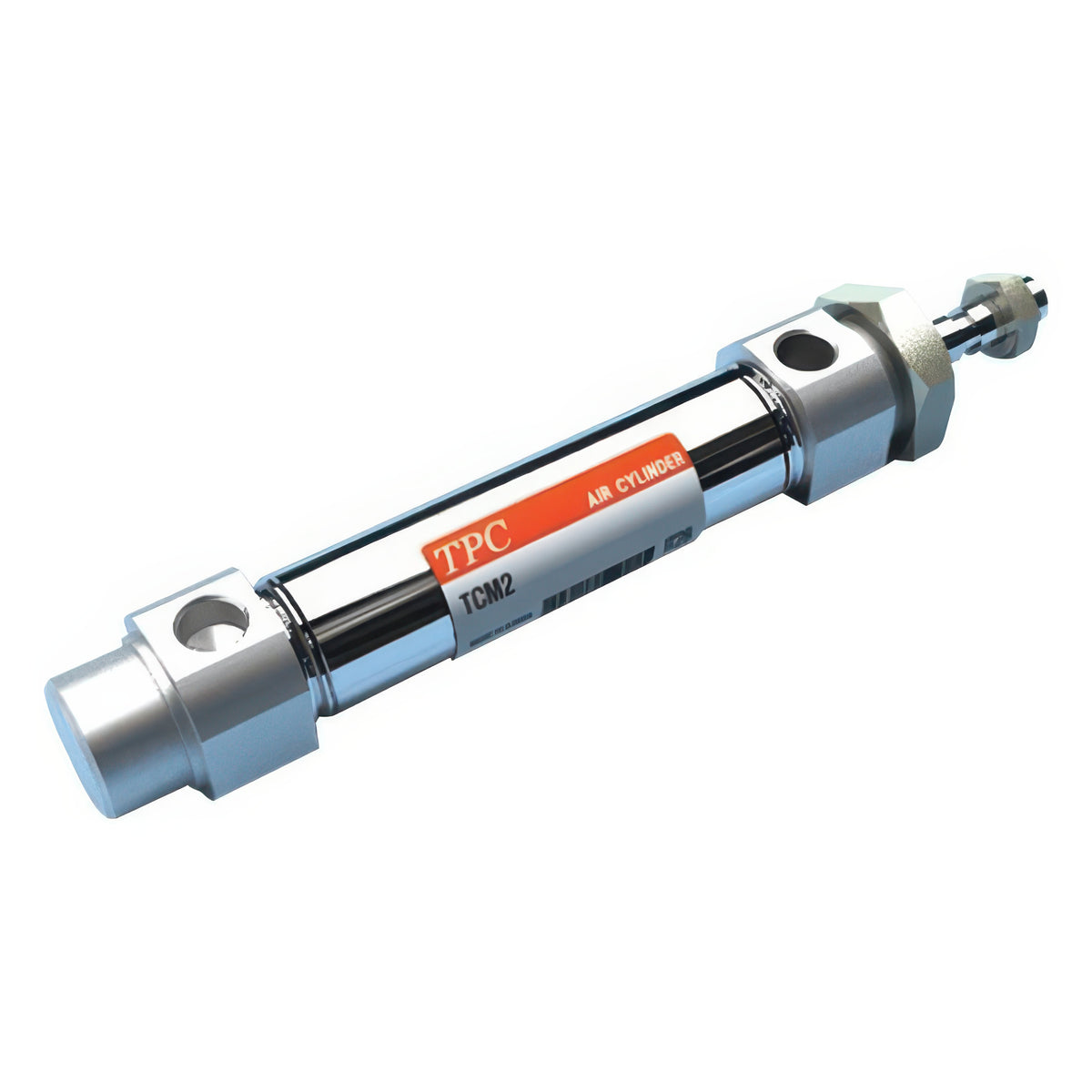

TPC Mechatronics TCM2 Compact Pneumatic Cylinder, Bore 20-40 mm

TPC Mechatronics TCM2 Compact Pneumatic Cylinder, Bore 20-40 mm

The TCM2 series is a compact, lightweight round-body pneumatic cylinder with a stainless steel tube and built-in magnet, in bores of 20, 25, 32 and 40 mm.

Key features

  • It supports high-speed operation up to 750 mm/s, reduced rod deflection and more than 1.5 times longer service life
  • Twelve mounting styles are offered, including clevis-integrated and compact boss-cut types that shorten overall length
  • Rubber cushion is standard and air cushion is optional; bellows, female rod thread and knuckle joints can be specified
  • Single-acting spring-return (S) and spring-extend (T) versions use the same base model with an S or T suffix
  • Codes are base model numbers (series, mounting, bore); stroke and options are added when ordering

Specifications

Standard strokes 25, 50, 75, 100, 125, 150, 200, 250, 300 mm
Max made-to-order stroke 1000 mm
Acting Double (single acting S/T available)
Operating pressure 0.05-1.0 MPa double acting (single acting min 0.18 MPa S / 0.23 MPa T)
Proof pressure 1.5 MPa
Piston speed 50-750 mm/s
Cushion rubber (standard), A air
Magnet built in
Auto switch D-C73K
Lubrication not required
TCM2B20 Bore: 20 mm | Rod diameter: 8 mm | Rod end thread: M8x1.25 (F: female thread option) | Port: Rc(PT) 1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm | Long stroke: 400 mm | Max made-to-order stroke: 1000 mm | Single acting (S spring return / T spring extend) strokes: 25-150 mm | Acting: Double (single acting S/T available) | Mounting options: B basic, L axial foot, F rod flange, G head flange, C single clevis, D double clevis, T head trunnion, U rod trunnion, E clevis integrated, BZ/FZ/UZ compact boss-cut | Operating pressure: 0.05-1.0 MPa double acting (single acting min 0.18 MPa S / 0.23 MPa T) | Proof pressure: 1.5 MPa | Piston speed: 50-750 mm/s | Cushion: rubber (standard), A air | Magnet: built in | Auto switch: D-C73K | Lubrication: not required
TCM2B25 Bore: 25 mm | Rod diameter: 10 mm | Rod end thread: M10x1.25 (F: female thread option) | Port: Rc(PT) 1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm | Long stroke: 450 mm | Max made-to-order stroke: 1000 mm | Single acting (S spring return / T spring extend) strokes: 25-150 mm | Acting: Double (single acting S/T available) | Mounting options: B basic, L axial foot, F rod flange, G head flange, C single clevis, D double clevis, T head trunnion, U rod trunnion, E clevis integrated, BZ/FZ/UZ compact boss-cut | Operating pressure: 0.05-1.0 MPa double acting (single acting min 0.18 MPa S / 0.23 MPa T) | Proof pressure: 1.5 MPa | Piston speed: 50-750 mm/s | Cushion: rubber (standard), A air | Magnet: built in | Auto switch: D-C73K | Lubrication: not required
TCM2B32 Bore: 32 mm | Rod diameter: 12 mm | Rod end thread: M10x1.25 (F: female thread option) | Port: Rc(PT) 1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm | Long stroke: 450 mm | Max made-to-order stroke: 1000 mm | Single acting (S spring return / T spring extend) strokes: 25-200 mm | Acting: Double (single acting S/T available) | Mounting options: B basic, L axial foot, F rod flange, G head flange, C single clevis, D double clevis, T head trunnion, U rod trunnion, E clevis integrated, BZ/FZ/UZ compact boss-cut | Operating pressure: 0.05-1.0 MPa double acting (single acting min 0.18 MPa S / 0.23 MPa T) | Proof pressure: 1.5 MPa | Piston speed: 50-750 mm/s | Cushion: rubber (standard), A air | Magnet: built in | Auto switch: D-C73K | Lubrication: not required
TCM2B40 Bore: 40 mm | Rod diameter: 14 mm | Rod end thread: M14x1.5 (F: female thread option) | Port: Rc(PT) 1/4 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm | Long stroke: 500 mm | Max made-to-order stroke: 1000 mm | Single acting (S spring return / T spring extend) strokes: 25-250 mm | Acting: Double (single acting S/T available) | Mounting options: B basic, L axial foot, F rod flange, G head flange, C single clevis, D double clevis, T head trunnion, U rod trunnion, E clevis integrated, BZ/FZ/UZ compact boss-cut | Operating pressure: 0.05-1.0 MPa double acting (single acting min 0.18 MPa S / 0.23 MPa T) | Proof pressure: 1.5 MPa | Piston speed: 50-750 mm/s | Cushion: rubber (standard), A air | Magnet: built in | Auto switch: D-C73K | Lubrication: not required
