TPC Mechatronics TCM2KW Rod Non-Rotating Double Rod Cylinder, Bore 20-40 mm

TPC Mechatronics TCM2KW Rod Non-Rotating Double Rod Cylinder, Bore 20-40 mm

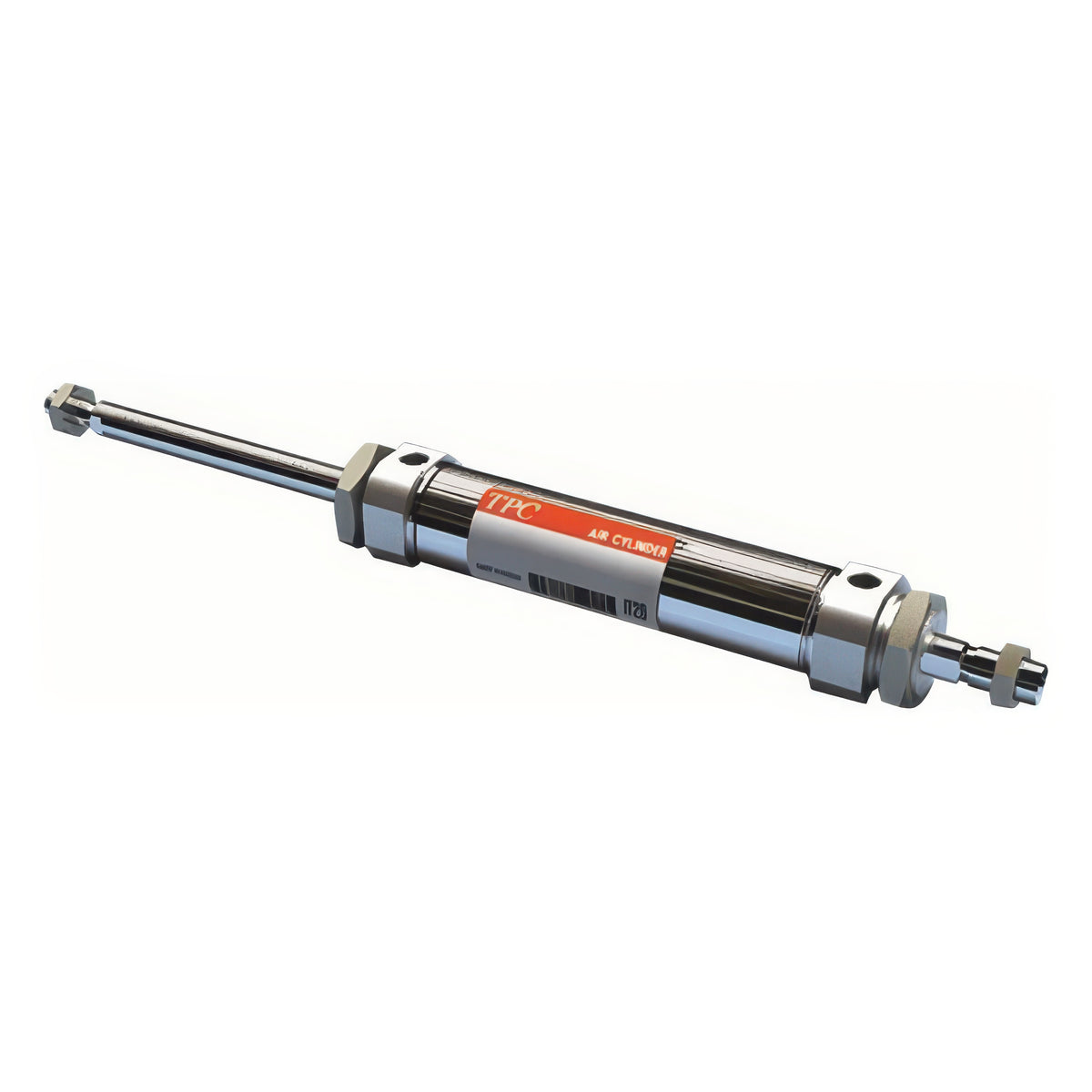

The TCM2KW series is a double-rod compact pneumatic cylinder with non-rotating piston rods, in bores of 20, 25, 32 and 40 mm.

Key features

  • Rod anti-rotation accuracy is +/-0.8 deg for 20 and 25 mm and +/-0.5 deg for 32 and 40 mm
  • It features high-speed capability, reduced rod deflection, compact light construction and good dust resistance
  • A magnet and bumper are standard and the cylinder runs without lubrication
  • Codes are base model numbers (series, mounting, bore); stroke and options are added when ordering

Specifications

Standard strokes 25, 50, 75, 100, 125, 150, 200, 250, 300 mm
Max made-to-order stroke 500 mm
Acting Double, double rod, non-rotating
Mounting options B basic, L foot, F flange, U trunnion
Operating pressure 0.05-1.0 MPa
Proof pressure 1.5 MPa
Piston speed 50-500 mm/s
Cushion rubber
Magnet built in
Bellows J/K one side, JJ/KK both sides
Auto switch D-C73K
TCM2KWB20 Bore: 20 mm | Port: Rc(PT) 1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm | Long stroke: 400 mm | Max made-to-order stroke: 500 mm | Acting: Double, double rod, non-rotating | Mounting options: B basic, L foot, F flange, U trunnion | Rod non-rotation accuracy: +/-0.8 deg | Operating pressure: 0.05-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: rubber | Magnet: built in | Bellows: J/K one side, JJ/KK both sides | Auto switch: D-C73K
TCM2KWB25 Bore: 25 mm | Port: Rc(PT) 1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm | Long stroke: 450 mm | Max made-to-order stroke: 500 mm | Acting: Double, double rod, non-rotating | Mounting options: B basic, L foot, F flange, U trunnion | Rod non-rotation accuracy: +/-0.8 deg | Operating pressure: 0.05-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: rubber | Magnet: built in | Bellows: J/K one side, JJ/KK both sides | Auto switch: D-C73K
TCM2KWB32 Bore: 32 mm | Port: Rc(PT) 1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm | Long stroke: 450 mm | Max made-to-order stroke: 500 mm | Acting: Double, double rod, non-rotating | Mounting options: B basic, L foot, F flange, U trunnion | Rod non-rotation accuracy: +/-0.5 deg | Operating pressure: 0.05-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: rubber | Magnet: built in | Bellows: J/K one side, JJ/KK both sides | Auto switch: D-C73K
TCM2KWB40 Bore: 40 mm | Port: Rc(PT) 1/4 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm | Long stroke: 500 mm | Max made-to-order stroke: 500 mm | Acting: Double, double rod, non-rotating | Mounting options: B basic, L foot, F flange, U trunnion | Rod non-rotation accuracy: +/-0.5 deg | Operating pressure: 0.05-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: rubber | Magnet: built in | Bellows: J/K one side, JJ/KK both sides | Auto switch: D-C73K
