TPC Mechatronics TCM2RK Rod Non-Rotating Direct Mount Cylinder, Bore 20-40 mm

TPC Mechatronics TCM2RK Rod Non-Rotating Direct Mount Cylinder, Bore 20-40 mm

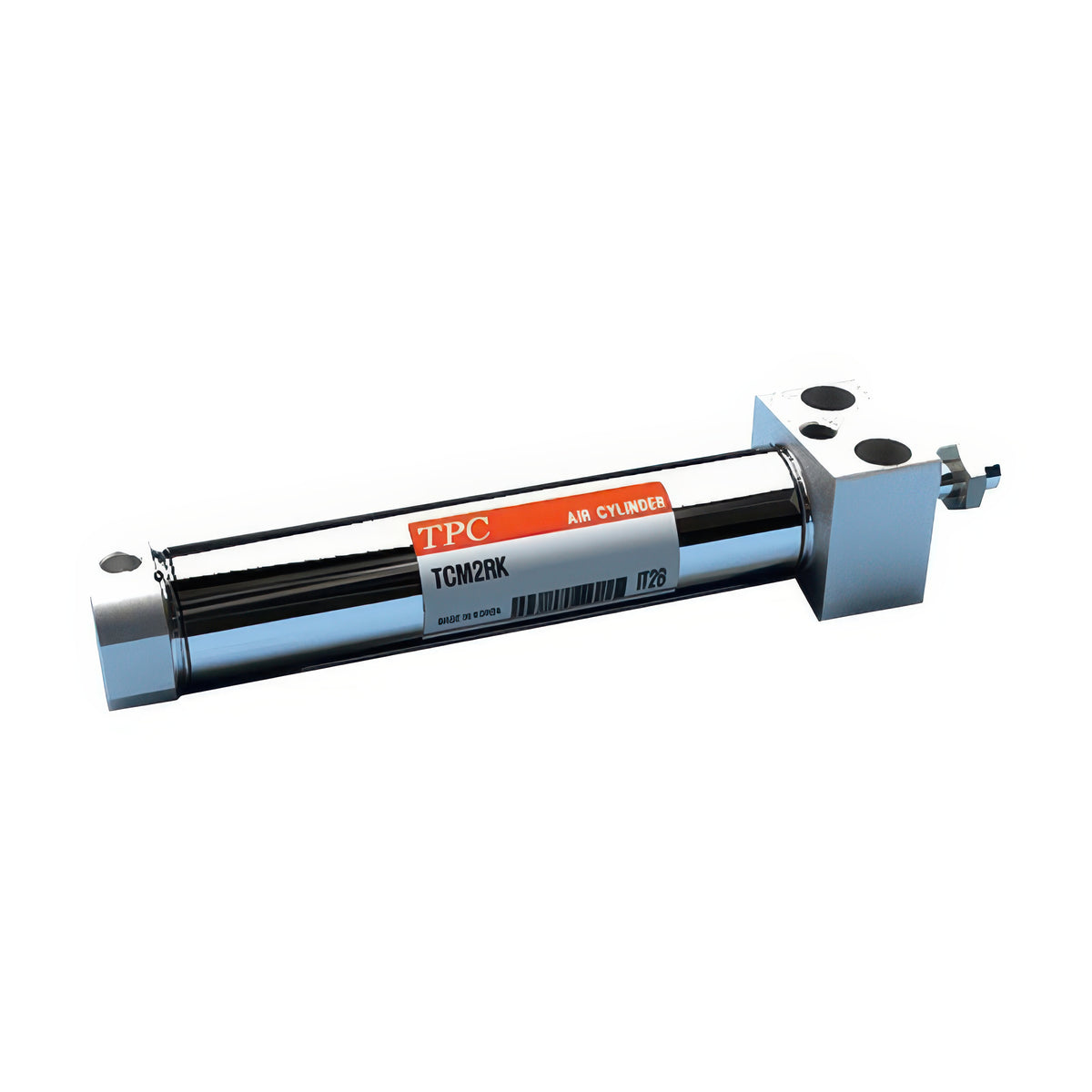

The TCM2RK series is a direct-mount compact pneumatic cylinder with a non-rotating piston rod, in bores of 20, 25, 32 and 40 mm.

Key features

  • The square rod cover allows mounting without a bracket, reducing overall length and installation space
  • Rod anti-rotation accuracy is +/-0.8 deg for 20 and 25 mm and +/-0.5 deg for 32 and 40 mm
  • Two mounting styles are available: A bottom mount and B front mount
  • A magnet and rubber cushion are standard
  • Codes are base model numbers (series, mounting, bore); stroke and options are added when ordering

Specifications

Acting Double, single rod
Operating pressure 0.05-1.0 MPa
Proof pressure 1.5 MPa
Piston speed 50-500 mm/s
Cushion rubber
Magnet built in
Auto switch D-C73K
TCM2RKA20 Bore: 20 mm | Mounting: A bottom mount (A bottom mount / B front mount) | Port: Rc(PT) 1/8 | Standard strokes: 25, 50, 75, 100, 125, 150 mm | Max stroke: 150 mm | Acting: Double, single rod | Rod non-rotation accuracy: +/-0.8 deg | Operating pressure: 0.05-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: rubber | Magnet: built in | Auto switch: D-C73K
TCM2RKA25 Bore: 25 mm | Mounting: A bottom mount (A bottom mount / B front mount) | Port: Rc(PT) 1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200 mm | Max stroke: 200 mm | Acting: Double, single rod | Rod non-rotation accuracy: +/-0.8 deg | Operating pressure: 0.05-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: rubber | Magnet: built in | Auto switch: D-C73K
TCM2RKA32 Bore: 32 mm | Mounting: A bottom mount (A bottom mount / B front mount) | Port: Rc(PT) 1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200 mm | Max stroke: 200 mm | Acting: Double, single rod | Rod non-rotation accuracy: +/-0.5 deg | Operating pressure: 0.05-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: rubber | Magnet: built in | Auto switch: D-C73K
TCM2RKA40 Bore: 40 mm | Mounting: A bottom mount (A bottom mount / B front mount) | Port: Rc(PT) 1/4 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double, single rod | Rod non-rotation accuracy: +/-0.5 deg | Operating pressure: 0.05-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: rubber | Magnet: built in | Auto switch: D-C73K
TCM2RKB20 Bore: 20 mm | Mounting: B front mount (A bottom mount / B front mount) | Port: Rc(PT) 1/8 | Standard strokes: 25, 50, 75, 100, 125, 150 mm | Max stroke: 150 mm | Acting: Double, single rod | Rod non-rotation accuracy: +/-0.8 deg | Operating pressure: 0.05-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: rubber | Magnet: built in | Auto switch: D-C73K
TCM2RKB25 Bore: 25 mm | Mounting: B front mount (A bottom mount / B front mount) | Port: Rc(PT) 1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200 mm | Max stroke: 200 mm | Acting: Double, single rod | Rod non-rotation accuracy: +/-0.8 deg | Operating pressure: 0.05-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: rubber | Magnet: built in | Auto switch: D-C73K
TCM2RKB32 Bore: 32 mm | Mounting: B front mount (A bottom mount / B front mount) | Port: Rc(PT) 1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200 mm | Max stroke: 200 mm | Acting: Double, single rod | Rod non-rotation accuracy: +/-0.5 deg | Operating pressure: 0.05-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: rubber | Magnet: built in | Auto switch: D-C73K
TCM2RKB40 Bore: 40 mm | Mounting: B front mount (A bottom mount / B front mount) | Port: Rc(PT) 1/4 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double, single rod | Rod non-rotation accuracy: +/-0.5 deg | Operating pressure: 0.05-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: rubber | Magnet: built in | Auto switch: D-C73K
