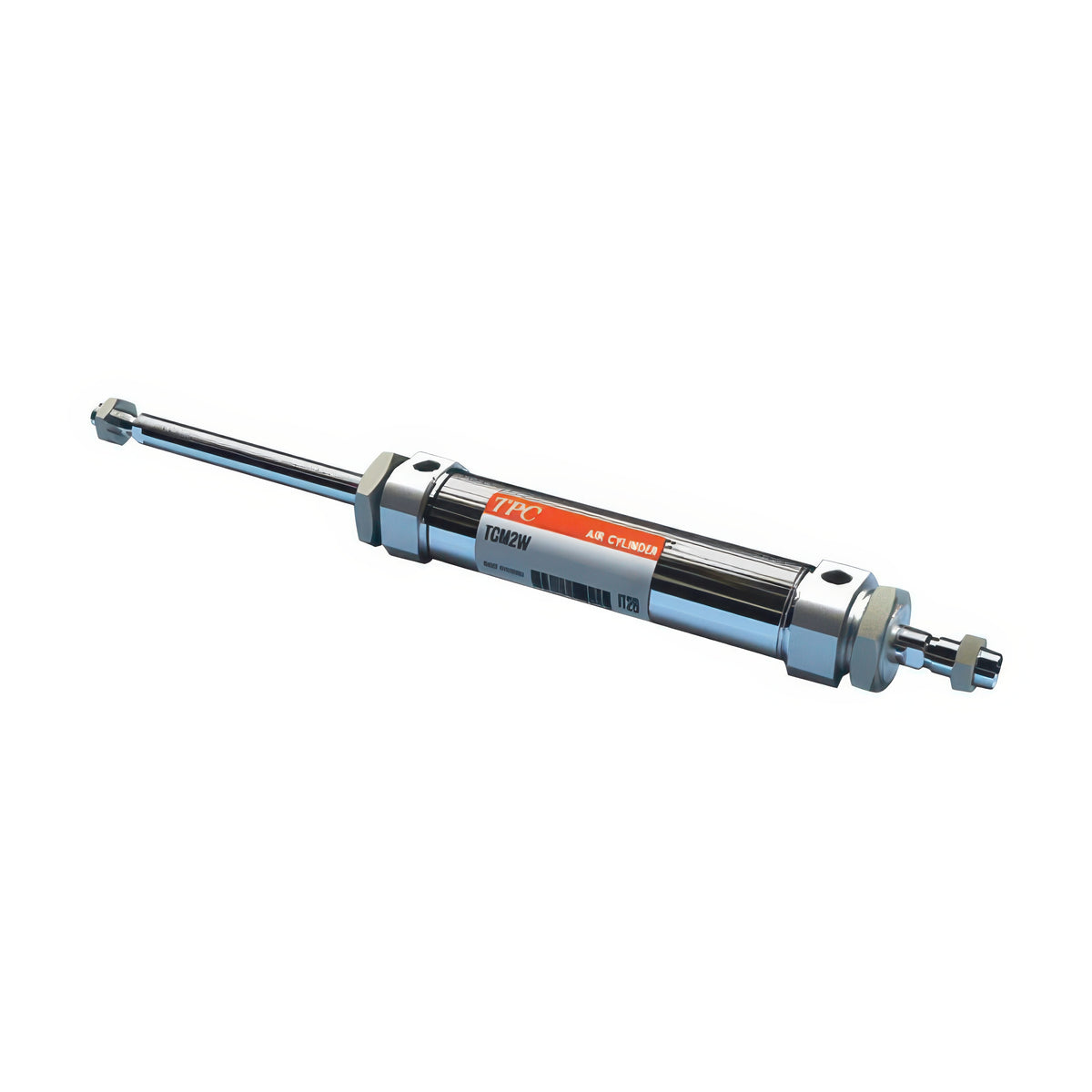

TPC Mechatronics TCM2W Double Rod Compact Cylinder, Bore 20-40 mm

TPC Mechatronics TCM2W Double Rod Compact Cylinder, Bore 20-40 mm

The TCM2W series is a double-acting, double-rod compact pneumatic cylinder with piston rods on both sides of the piston, in bores of 20, 25, 32 and 40 mm.

Key features

  • It features a stainless steel tube, built-in magnet and high-speed operation up to 750 mm/s
  • Reduced rod deflection and good dust resistance give more than 1.5 times longer service life
  • Basic, foot, flange and trunnion mountings are available, with rubber cushion standard and air cushion optional
  • Codes are base model numbers (series, mounting, bore); stroke and options are added when ordering

Specifications

Standard strokes 25, 50, 75, 100, 125, 150, 200, 250, 300 mm
Max made-to-order stroke 500 mm
Acting Double, double rod
Mounting options B basic, L foot, F flange, U trunnion
Operating pressure 0.05-1.0 MPa
Proof pressure 1.5 MPa
Piston speed 50-750 mm/s
Cushion rubber (standard), A air
Magnet built in
Bellows J/K one side, JJ/KK both sides
Auto switch D-C73K
TCM2WB20 Bore: 20 mm | Rod diameter: 8 mm (both ends) | Rod end thread: M8x1.25 | Port: Rc(PT) 1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm | Long stroke: 400 mm | Max made-to-order stroke: 500 mm | Acting: Double, double rod | Mounting options: B basic, L foot, F flange, U trunnion | Operating pressure: 0.05-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-750 mm/s | Cushion: rubber (standard), A air | Magnet: built in | Bellows: J/K one side, JJ/KK both sides | Auto switch: D-C73K
TCM2WB25 Bore: 25 mm | Rod diameter: 10 mm (both ends) | Rod end thread: M10x1.25 | Port: Rc(PT) 1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm | Long stroke: 450 mm | Max made-to-order stroke: 500 mm | Acting: Double, double rod | Mounting options: B basic, L foot, F flange, U trunnion | Operating pressure: 0.05-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-750 mm/s | Cushion: rubber (standard), A air | Magnet: built in | Bellows: J/K one side, JJ/KK both sides | Auto switch: D-C73K
TCM2WB32 Bore: 32 mm | Rod diameter: 12 mm (both ends) | Rod end thread: M10x1.25 | Port: Rc(PT) 1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm | Long stroke: 450 mm | Max made-to-order stroke: 500 mm | Acting: Double, double rod | Mounting options: B basic, L foot, F flange, U trunnion | Operating pressure: 0.05-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-750 mm/s | Cushion: rubber (standard), A air | Magnet: built in | Bellows: J/K one side, JJ/KK both sides | Auto switch: D-C73K
TCM2WB40 Bore: 40 mm | Rod diameter: 14 mm (both ends) | Rod end thread: M14x1.5 | Port: Rc(PT) 1/4 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm | Long stroke: 500 mm | Max made-to-order stroke: 500 mm | Acting: Double, double rod | Mounting options: B basic, L foot, F flange, U trunnion | Operating pressure: 0.05-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-750 mm/s | Cushion: rubber (standard), A air | Magnet: built in | Bellows: J/K one side, JJ/KK both sides | Auto switch: D-C73K
