TPC Mechatronics TCM3R Series Direct Mount Compact Air Cylinder (Bore 20-40 mm)

TPC Mechatronics TCM3R Series Direct Mount Compact Air Cylinder (Bore 20-40 mm)

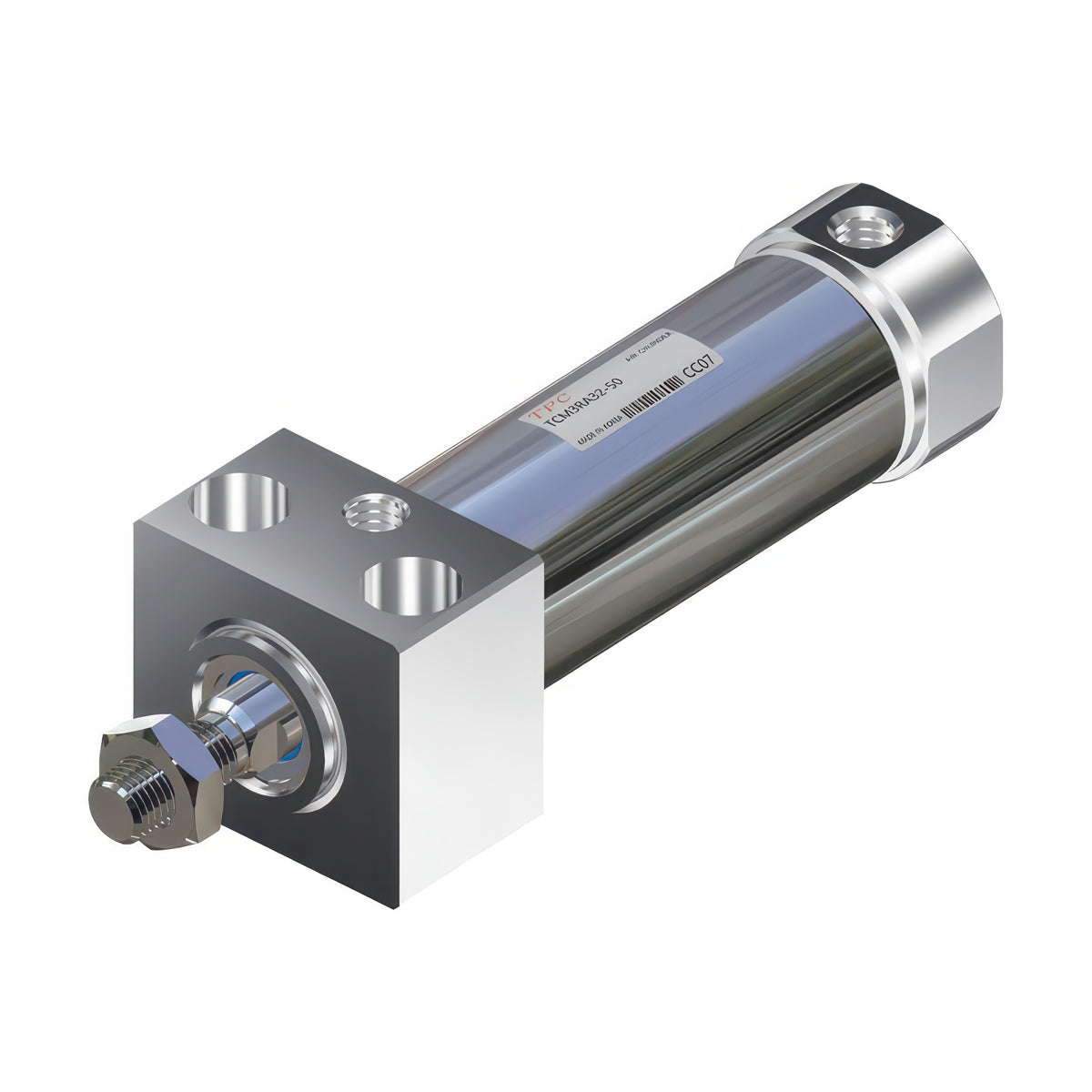

The TCM3R is a direct-mount compact pneumatic cylinder whose square rod cover bolts straight onto the machine without a bracket.

Key features

  • Codes cover both mounting styles, A bottom mount and B front mount, in 20, 25, 32 and 40 mm bores; stroke and options are added when ordering
  • Direct mounting shortens overall length and mounting pitch, and a spigot improves mounting accuracy and strength
  • A built-in magnet is standard for band-mount D-C73K/D-C73TN auto switches
  • Rubber or air cushioning is available

Specifications

Acting Double, single rod
Mounting options A bottom mount, B front mount
Operating pressure 0.05-1.0 MPa (proof 1.5 MPa)
Cushion rubber (standard) or A air cushion
Piston speed 50-750 mm/s
Ambient/fluid temperature -10 to +70 C
Auto switch band-mount D-C73K (reed) / D-C73TN (solid state), magnet built in
Options F female rod end, XC16 non-freezing
TCM3RA20 Bore: 20 mm | Mounting: A bottom mount | Rod diameter: 8 mm (rod thread M8x1.25) | Port: Rc(PT)1/8 | Standard strokes: 25, 50, 75, 100, 125, 150 mm | Max stroke: 150 mm | Acting: Double, single rod | Mounting options: A bottom mount, B front mount | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber (standard) or A air cushion | Piston speed: 50-750 mm/s | Ambient/fluid temperature: -10 to +70 C | Auto switch: band-mount D-C73K (reed) / D-C73TN (solid state), magnet built in | Options: F female rod end, XC16 non-freezing
TCM3RA25 Bore: 25 mm | Mounting: A bottom mount | Rod diameter: 10 mm (rod thread M10x1.25) | Port: Rc(PT)1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200 mm | Max stroke: 200 mm | Acting: Double, single rod | Mounting options: A bottom mount, B front mount | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber (standard) or A air cushion | Piston speed: 50-750 mm/s | Ambient/fluid temperature: -10 to +70 C | Auto switch: band-mount D-C73K (reed) / D-C73TN (solid state), magnet built in | Options: F female rod end, XC16 non-freezing
TCM3RA32 Bore: 32 mm | Mounting: A bottom mount | Rod diameter: 12 mm (rod thread M10x1.25) | Port: Rc(PT)1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200 mm | Max stroke: 200 mm | Acting: Double, single rod | Mounting options: A bottom mount, B front mount | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber (standard) or A air cushion | Piston speed: 50-750 mm/s | Ambient/fluid temperature: -10 to +70 C | Auto switch: band-mount D-C73K (reed) / D-C73TN (solid state), magnet built in | Options: F female rod end, XC16 non-freezing
TCM3RA40 Bore: 40 mm | Mounting: A bottom mount | Rod diameter: 14 mm (rod thread M14x1.5) | Port: Rc(PT)1/4 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double, single rod | Mounting options: A bottom mount, B front mount | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber (standard) or A air cushion | Piston speed: 50-750 mm/s | Ambient/fluid temperature: -10 to +70 C | Auto switch: band-mount D-C73K (reed) / D-C73TN (solid state), magnet built in | Options: F female rod end, XC16 non-freezing
TCM3RB20 Bore: 20 mm | Mounting: B front mount | Rod diameter: 8 mm (rod thread M8x1.25) | Port: Rc(PT)1/8 | Standard strokes: 25, 50, 75, 100, 125, 150 mm | Max stroke: 150 mm | Acting: Double, single rod | Mounting options: A bottom mount, B front mount | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber (standard) or A air cushion | Piston speed: 50-750 mm/s | Ambient/fluid temperature: -10 to +70 C | Auto switch: band-mount D-C73K (reed) / D-C73TN (solid state), magnet built in | Options: F female rod end, XC16 non-freezing
TCM3RB25 Bore: 25 mm | Mounting: B front mount | Rod diameter: 10 mm (rod thread M10x1.25) | Port: Rc(PT)1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200 mm | Max stroke: 200 mm | Acting: Double, single rod | Mounting options: A bottom mount, B front mount | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber (standard) or A air cushion | Piston speed: 50-750 mm/s | Ambient/fluid temperature: -10 to +70 C | Auto switch: band-mount D-C73K (reed) / D-C73TN (solid state), magnet built in | Options: F female rod end, XC16 non-freezing
TCM3RB32 Bore: 32 mm | Mounting: B front mount | Rod diameter: 12 mm (rod thread M10x1.25) | Port: Rc(PT)1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200 mm | Max stroke: 200 mm | Acting: Double, single rod | Mounting options: A bottom mount, B front mount | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber (standard) or A air cushion | Piston speed: 50-750 mm/s | Ambient/fluid temperature: -10 to +70 C | Auto switch: band-mount D-C73K (reed) / D-C73TN (solid state), magnet built in | Options: F female rod end, XC16 non-freezing
TCM3RB40 Bore: 40 mm | Mounting: B front mount | Rod diameter: 14 mm (rod thread M14x1.5) | Port: Rc(PT)1/4 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double, single rod | Mounting options: A bottom mount, B front mount | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber (standard) or A air cushion | Piston speed: 50-750 mm/s | Ambient/fluid temperature: -10 to +70 C | Auto switch: band-mount D-C73K (reed) / D-C73TN (solid state), magnet built in | Options: F female rod end, XC16 non-freezing
Pneumatic CylindersTPC Mechatronics
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics TCM3R Series Direct Mount Compact Air Cylinder (Bore 20-40 mm)

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (8)

TCM3RA20, TCM3RA25, TCM3RA32, TCM3RA40, TCM3RB20, TCM3RB25, TCM3RB32, TCM3RB40

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TCM3RA20Bore: 20 mm | Mounting: A bottom mount | Rod diameter: 8 mm (rod thread M8x1.25) | Port: Rc(PT)1/8 | Standard strokes: 25, 50, 75, 100, 125, 150 mm | Max stroke: 150 mm | Acting: Double, single rod | Mounting options: A bottom mount, B front mount | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber (standard) or A air cushion | Piston speed: 50-750 mm/s | Ambient/fluid temperature: -10 to +70 C | Auto switch: band-mount D-C73K (reed) / D-C73TN (solid state), magnet built in | Options: F female rod end, XC16 non-freezing
TCM3RA25Bore: 25 mm | Mounting: A bottom mount | Rod diameter: 10 mm (rod thread M10x1.25) | Port: Rc(PT)1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200 mm | Max stroke: 200 mm | Acting: Double, single rod | Mounting options: A bottom mount, B front mount | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber (standard) or A air cushion | Piston speed: 50-750 mm/s | Ambient/fluid temperature: -10 to +70 C | Auto switch: band-mount D-C73K (reed) / D-C73TN (solid state), magnet built in | Options: F female rod end, XC16 non-freezing
TCM3RA32Bore: 32 mm | Mounting: A bottom mount | Rod diameter: 12 mm (rod thread M10x1.25) | Port: Rc(PT)1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200 mm | Max stroke: 200 mm | Acting: Double, single rod | Mounting options: A bottom mount, B front mount | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber (standard) or A air cushion | Piston speed: 50-750 mm/s | Ambient/fluid temperature: -10 to +70 C | Auto switch: band-mount D-C73K (reed) / D-C73TN (solid state), magnet built in | Options: F female rod end, XC16 non-freezing
TCM3RA40Bore: 40 mm | Mounting: A bottom mount | Rod diameter: 14 mm (rod thread M14x1.5) | Port: Rc(PT)1/4 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double, single rod | Mounting options: A bottom mount, B front mount | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber (standard) or A air cushion | Piston speed: 50-750 mm/s | Ambient/fluid temperature: -10 to +70 C | Auto switch: band-mount D-C73K (reed) / D-C73TN (solid state), magnet built in | Options: F female rod end, XC16 non-freezing
TCM3RB20Bore: 20 mm | Mounting: B front mount | Rod diameter: 8 mm (rod thread M8x1.25) | Port: Rc(PT)1/8 | Standard strokes: 25, 50, 75, 100, 125, 150 mm | Max stroke: 150 mm | Acting: Double, single rod | Mounting options: A bottom mount, B front mount | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber (standard) or A air cushion | Piston speed: 50-750 mm/s | Ambient/fluid temperature: -10 to +70 C | Auto switch: band-mount D-C73K (reed) / D-C73TN (solid state), magnet built in | Options: F female rod end, XC16 non-freezing
TCM3RB25Bore: 25 mm | Mounting: B front mount | Rod diameter: 10 mm (rod thread M10x1.25) | Port: Rc(PT)1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200 mm | Max stroke: 200 mm | Acting: Double, single rod | Mounting options: A bottom mount, B front mount | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber (standard) or A air cushion | Piston speed: 50-750 mm/s | Ambient/fluid temperature: -10 to +70 C | Auto switch: band-mount D-C73K (reed) / D-C73TN (solid state), magnet built in | Options: F female rod end, XC16 non-freezing
TCM3RB32Bore: 32 mm | Mounting: B front mount | Rod diameter: 12 mm (rod thread M10x1.25) | Port: Rc(PT)1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200 mm | Max stroke: 200 mm | Acting: Double, single rod | Mounting options: A bottom mount, B front mount | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber (standard) or A air cushion | Piston speed: 50-750 mm/s | Ambient/fluid temperature: -10 to +70 C | Auto switch: band-mount D-C73K (reed) / D-C73TN (solid state), magnet built in | Options: F female rod end, XC16 non-freezing
TCM3RB40Bore: 40 mm | Mounting: B front mount | Rod diameter: 14 mm (rod thread M14x1.5) | Port: Rc(PT)1/4 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double, single rod | Mounting options: A bottom mount, B front mount | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber (standard) or A air cushion | Piston speed: 50-750 mm/s | Ambient/fluid temperature: -10 to +70 C | Auto switch: band-mount D-C73K (reed) / D-C73TN (solid state), magnet built in | Options: F female rod end, XC16 non-freezing
