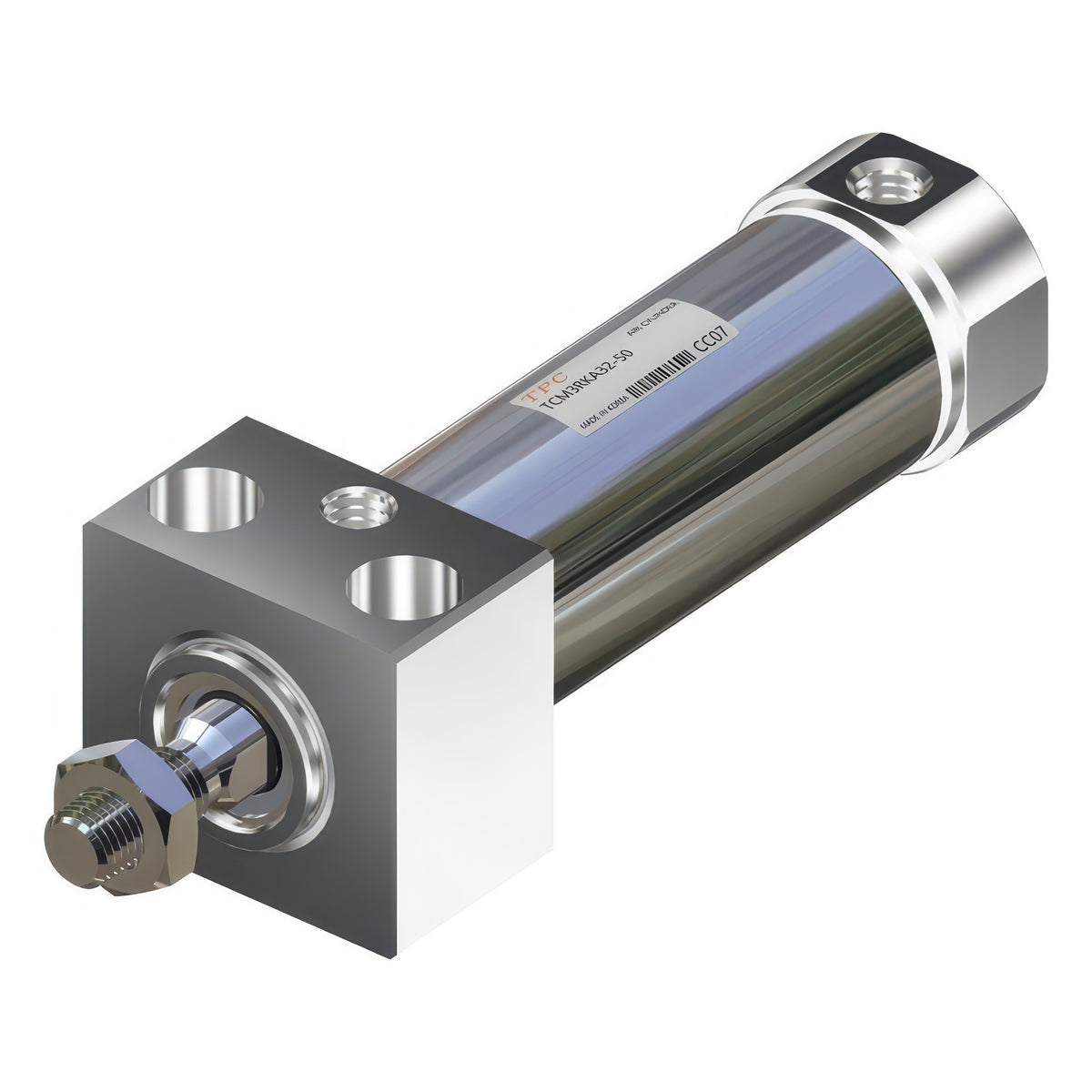

TPC Mechatronics TCM3RK Series Non-Rotating Direct Mount Compact Air Cylinder (Bore 20-40 mm)

TPC Mechatronics TCM3RK Series Non-Rotating Direct Mount Compact Air Cylinder (Bore 20-40 mm)

The TCM3RK is a direct-mount compact pneumatic cylinder with a non-rotating piston rod.

Key features

  • Codes cover A bottom-mount and B front-mount bodies in 20, 25, 32 and 40 mm bores; stroke and options are added when ordering
  • Rod rotation is held to +/-0.8 deg on 20/25 mm and +/-0.5 deg on 32/40 mm bores
  • Bolting directly through the square rod cover saves space and raises mounting accuracy and strength
  • A built-in magnet is standard for band-mount D-C73K/D-C73TN auto switches

Specifications

Acting Double, single rod
Mounting options A bottom mount, B front mount
Operating pressure 0.05-1.0 MPa (proof 1.5 MPa)
Cushion rubber (standard)
Piston speed 50-500 mm/s
Ambient/fluid temperature -10 to +70 C
Auto switch band-mount D-C73K (reed) / D-C73TN (solid state), magnet built in
Options F female rod end, XC16 non-freezing
TCM3RKA20 Bore: 20 mm | Mounting: A bottom mount | Rod diameter: 10 mm non-rotating rod (rod thread M8x1.25) | Port: Rc(PT)1/8 | Standard strokes: 25, 50, 75, 100, 125, 150 mm | Max stroke: 150 mm | Acting: Double, single rod | Rod non-rotating accuracy: +/-0.8 deg | Mounting options: A bottom mount, B front mount | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber (standard) | Piston speed: 50-500 mm/s | Ambient/fluid temperature: -10 to +70 C | Auto switch: band-mount D-C73K (reed) / D-C73TN (solid state), magnet built in | Options: F female rod end, XC16 non-freezing
TCM3RKA25 Bore: 25 mm | Mounting: A bottom mount | Rod diameter: 10 mm non-rotating rod (rod thread M8x1.25) | Port: Rc(PT)1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200 mm | Max stroke: 200 mm | Acting: Double, single rod | Rod non-rotating accuracy: +/-0.8 deg | Mounting options: A bottom mount, B front mount | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber (standard) | Piston speed: 50-500 mm/s | Ambient/fluid temperature: -10 to +70 C | Auto switch: band-mount D-C73K (reed) / D-C73TN (solid state), magnet built in | Options: F female rod end, XC16 non-freezing
TCM3RKA32 Bore: 32 mm | Mounting: A bottom mount | Rod diameter: 12 mm non-rotating rod (rod thread M10x1.25) | Port: Rc(PT)1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200 mm | Max stroke: 200 mm | Acting: Double, single rod | Rod non-rotating accuracy: +/-0.5 deg | Mounting options: A bottom mount, B front mount | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber (standard) | Piston speed: 50-500 mm/s | Ambient/fluid temperature: -10 to +70 C | Auto switch: band-mount D-C73K (reed) / D-C73TN (solid state), magnet built in | Options: F female rod end, XC16 non-freezing
TCM3RKA40 Bore: 40 mm | Mounting: A bottom mount | Rod diameter: 16 mm non-rotating rod (rod thread M14x1.5) | Port: Rc(PT)1/4 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double, single rod | Rod non-rotating accuracy: +/-0.5 deg | Mounting options: A bottom mount, B front mount | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber (standard) | Piston speed: 50-500 mm/s | Ambient/fluid temperature: -10 to +70 C | Auto switch: band-mount D-C73K (reed) / D-C73TN (solid state), magnet built in | Options: F female rod end, XC16 non-freezing
TCM3RKB20 Bore: 20 mm | Mounting: B front mount | Rod diameter: 10 mm non-rotating rod (rod thread M8x1.25) | Port: Rc(PT)1/8 | Standard strokes: 25, 50, 75, 100, 125, 150 mm | Max stroke: 150 mm | Acting: Double, single rod | Rod non-rotating accuracy: +/-0.8 deg | Mounting options: A bottom mount, B front mount | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber (standard) | Piston speed: 50-500 mm/s | Ambient/fluid temperature: -10 to +70 C | Auto switch: band-mount D-C73K (reed) / D-C73TN (solid state), magnet built in | Options: F female rod end, XC16 non-freezing
TCM3RKB25 Bore: 25 mm | Mounting: B front mount | Rod diameter: 10 mm non-rotating rod (rod thread M8x1.25) | Port: Rc(PT)1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200 mm | Max stroke: 200 mm | Acting: Double, single rod | Rod non-rotating accuracy: +/-0.8 deg | Mounting options: A bottom mount, B front mount | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber (standard) | Piston speed: 50-500 mm/s | Ambient/fluid temperature: -10 to +70 C | Auto switch: band-mount D-C73K (reed) / D-C73TN (solid state), magnet built in | Options: F female rod end, XC16 non-freezing
TCM3RKB32 Bore: 32 mm | Mounting: B front mount | Rod diameter: 12 mm non-rotating rod (rod thread M10x1.25) | Port: Rc(PT)1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200 mm | Max stroke: 200 mm | Acting: Double, single rod | Rod non-rotating accuracy: +/-0.5 deg | Mounting options: A bottom mount, B front mount | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber (standard) | Piston speed: 50-500 mm/s | Ambient/fluid temperature: -10 to +70 C | Auto switch: band-mount D-C73K (reed) / D-C73TN (solid state), magnet built in | Options: F female rod end, XC16 non-freezing
TCM3RKB40 Bore: 40 mm | Mounting: B front mount | Rod diameter: 16 mm non-rotating rod (rod thread M14x1.5) | Port: Rc(PT)1/4 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double, single rod | Rod non-rotating accuracy: +/-0.5 deg | Mounting options: A bottom mount, B front mount | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber (standard) | Piston speed: 50-500 mm/s | Ambient/fluid temperature: -10 to +70 C | Auto switch: band-mount D-C73K (reed) / D-C73TN (solid state), magnet built in | Options: F female rod end, XC16 non-freezing
Pneumatic CylindersTPC Mechatronics
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics TCM3RK Series Non-Rotating Direct Mount Compact Air Cylinder (Bore 20-40 mm)

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (8)

TCM3RKA20, TCM3RKA25, TCM3RKA32, TCM3RKA40, TCM3RKB20, TCM3RKB25, TCM3RKB32, TCM3RKB40

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TCM3RKA20Bore: 20 mm | Mounting: A bottom mount | Rod diameter: 10 mm non-rotating rod (rod thread M8x1.25) | Port: Rc(PT)1/8 | Standard strokes: 25, 50, 75, 100, 125, 150 mm | Max stroke: 150 mm | Acting: Double, single rod | Rod non-rotating accuracy: +/-0.8 deg | Mounting options: A bottom mount, B front mount | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber (standard) | Piston speed: 50-500 mm/s | Ambient/fluid temperature: -10 to +70 C | Auto switch: band-mount D-C73K (reed) / D-C73TN (solid state), magnet built in | Options: F female rod end, XC16 non-freezing
TCM3RKA25Bore: 25 mm | Mounting: A bottom mount | Rod diameter: 10 mm non-rotating rod (rod thread M8x1.25) | Port: Rc(PT)1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200 mm | Max stroke: 200 mm | Acting: Double, single rod | Rod non-rotating accuracy: +/-0.8 deg | Mounting options: A bottom mount, B front mount | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber (standard) | Piston speed: 50-500 mm/s | Ambient/fluid temperature: -10 to +70 C | Auto switch: band-mount D-C73K (reed) / D-C73TN (solid state), magnet built in | Options: F female rod end, XC16 non-freezing
TCM3RKA32Bore: 32 mm | Mounting: A bottom mount | Rod diameter: 12 mm non-rotating rod (rod thread M10x1.25) | Port: Rc(PT)1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200 mm | Max stroke: 200 mm | Acting: Double, single rod | Rod non-rotating accuracy: +/-0.5 deg | Mounting options: A bottom mount, B front mount | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber (standard) | Piston speed: 50-500 mm/s | Ambient/fluid temperature: -10 to +70 C | Auto switch: band-mount D-C73K (reed) / D-C73TN (solid state), magnet built in | Options: F female rod end, XC16 non-freezing
TCM3RKA40Bore: 40 mm | Mounting: A bottom mount | Rod diameter: 16 mm non-rotating rod (rod thread M14x1.5) | Port: Rc(PT)1/4 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double, single rod | Rod non-rotating accuracy: +/-0.5 deg | Mounting options: A bottom mount, B front mount | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber (standard) | Piston speed: 50-500 mm/s | Ambient/fluid temperature: -10 to +70 C | Auto switch: band-mount D-C73K (reed) / D-C73TN (solid state), magnet built in | Options: F female rod end, XC16 non-freezing
TCM3RKB20Bore: 20 mm | Mounting: B front mount | Rod diameter: 10 mm non-rotating rod (rod thread M8x1.25) | Port: Rc(PT)1/8 | Standard strokes: 25, 50, 75, 100, 125, 150 mm | Max stroke: 150 mm | Acting: Double, single rod | Rod non-rotating accuracy: +/-0.8 deg | Mounting options: A bottom mount, B front mount | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber (standard) | Piston speed: 50-500 mm/s | Ambient/fluid temperature: -10 to +70 C | Auto switch: band-mount D-C73K (reed) / D-C73TN (solid state), magnet built in | Options: F female rod end, XC16 non-freezing
TCM3RKB25Bore: 25 mm | Mounting: B front mount | Rod diameter: 10 mm non-rotating rod (rod thread M8x1.25) | Port: Rc(PT)1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200 mm | Max stroke: 200 mm | Acting: Double, single rod | Rod non-rotating accuracy: +/-0.8 deg | Mounting options: A bottom mount, B front mount | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber (standard) | Piston speed: 50-500 mm/s | Ambient/fluid temperature: -10 to +70 C | Auto switch: band-mount D-C73K (reed) / D-C73TN (solid state), magnet built in | Options: F female rod end, XC16 non-freezing
TCM3RKB32Bore: 32 mm | Mounting: B front mount | Rod diameter: 12 mm non-rotating rod (rod thread M10x1.25) | Port: Rc(PT)1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200 mm | Max stroke: 200 mm | Acting: Double, single rod | Rod non-rotating accuracy: +/-0.5 deg | Mounting options: A bottom mount, B front mount | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber (standard) | Piston speed: 50-500 mm/s | Ambient/fluid temperature: -10 to +70 C | Auto switch: band-mount D-C73K (reed) / D-C73TN (solid state), magnet built in | Options: F female rod end, XC16 non-freezing
TCM3RKB40Bore: 40 mm | Mounting: B front mount | Rod diameter: 16 mm non-rotating rod (rod thread M14x1.5) | Port: Rc(PT)1/4 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double, single rod | Rod non-rotating accuracy: +/-0.5 deg | Mounting options: A bottom mount, B front mount | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber (standard) | Piston speed: 50-500 mm/s | Ambient/fluid temperature: -10 to +70 C | Auto switch: band-mount D-C73K (reed) / D-C73TN (solid state), magnet built in | Options: F female rod end, XC16 non-freezing
