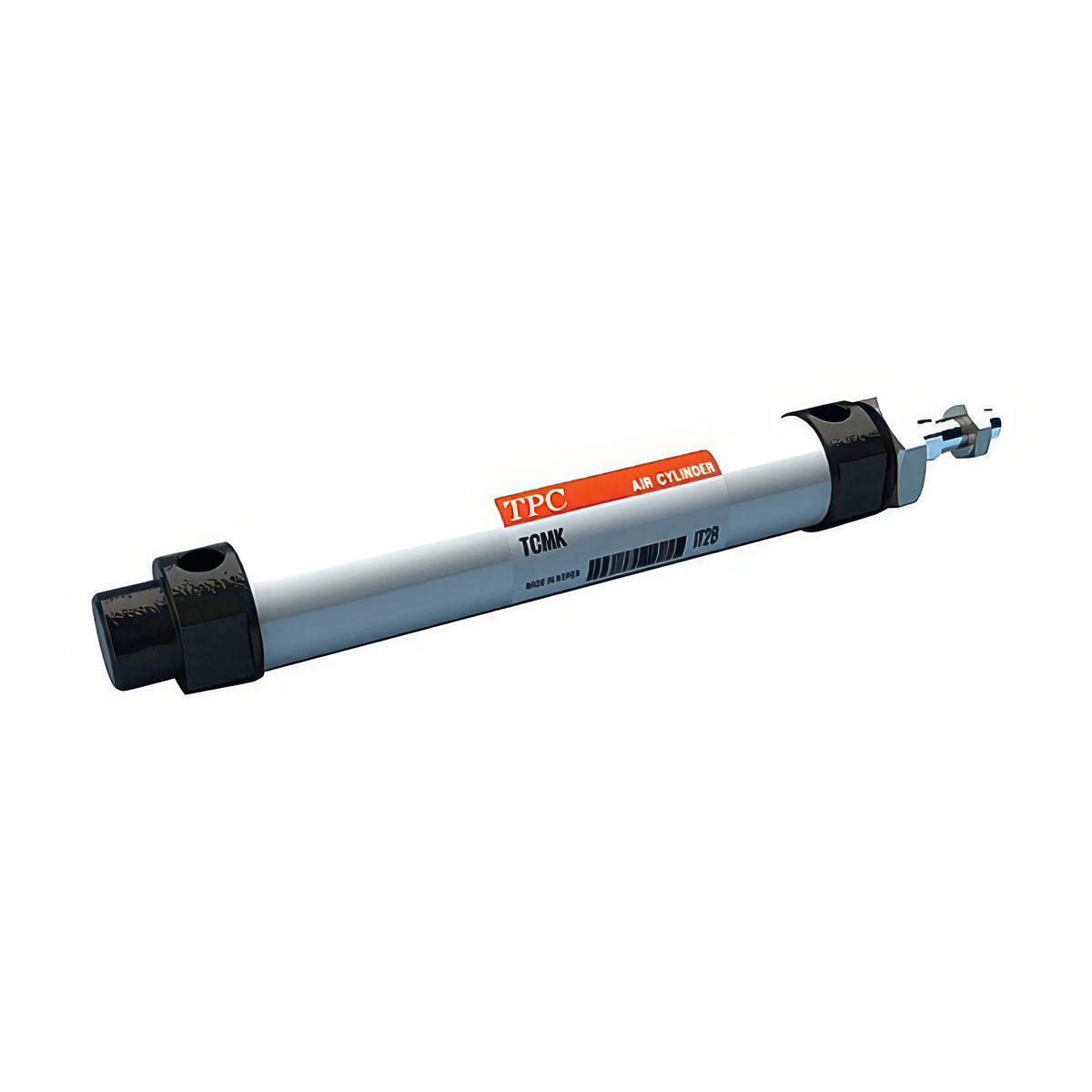

TPC Mechatronics TCMK Rod Non-Rotating Compact Cylinder, Bore 20-40 mm

TPC Mechatronics TCMK Rod Non-Rotating Compact Cylinder, Bore 20-40 mm

The TCMK series is a compact pneumatic cylinder with a non-rotating piston rod, in bores of 20, 25, 30 and 40 mm.

Key features

  • It offers high rod anti-rotation accuracy of +/-0.8 deg (20-30 mm) and +/-0.5 deg (40 mm)
  • Outer dimensions and mounting brackets are the same as the TCM standard cylinder, and it can run without lubrication
  • Bellows and D-C73K auto switches are available; the TCDMK prefix denotes the auto-switch-ready model
  • Codes are base model numbers (series, mounting, bore); stroke and options are added when ordering

Specifications

Stroke range up to 300 mm (20-300 mm with bellows)
Max stroke 300 mm
Acting Double (single-acting spring return also available)
Mounting options B basic, L axial foot, F rod flange, G head flange, C single clevis, D double clevis, T head trunnion, U rod trunnion
Operating pressure 0.05-1.0 MPa double acting (0.18 MPa min single acting)
Proof pressure 1.5 MPa
Piston speed 50-500 mm/s
Cushion none or rubber
Lubrication not required
TCMKB20 Bore: 20 mm | Non-rotating rod width across flats (KA): 8 mm | Port: Rc(PT) 1/8 | Stroke range: up to 300 mm (20-300 mm with bellows) | Max stroke: 300 mm | Acting: Double (single-acting spring return also available) | Mounting options: B basic, L axial foot, F rod flange, G head flange, C single clevis, D double clevis, T head trunnion, U rod trunnion | Rod non-rotation accuracy: +/-0.8 deg | Operating pressure: 0.05-1.0 MPa double acting (0.18 MPa min single acting) | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: none or rubber | Lubrication: not required | Auto switch: none (TCDMK prefix for auto-switch type)
TCMKB25 Bore: 25 mm | Non-rotating rod width across flats (KA): 10 mm | Port: Rc(PT) 1/8 | Stroke range: up to 300 mm (20-300 mm with bellows) | Max stroke: 300 mm | Acting: Double (single-acting spring return also available) | Mounting options: B basic, L axial foot, F rod flange, G head flange, C single clevis, D double clevis, T head trunnion, U rod trunnion | Rod non-rotation accuracy: +/-0.8 deg | Operating pressure: 0.05-1.0 MPa double acting (0.18 MPa min single acting) | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: none or rubber | Lubrication: not required | Auto switch: none (TCDMK prefix for auto-switch type)
TCMKB30 Bore: 30 mm | Non-rotating rod width across flats (KA): 10 mm | Port: Rc(PT) 1/8 | Stroke range: up to 300 mm (20-300 mm with bellows) | Max stroke: 300 mm | Acting: Double (single-acting spring return also available) | Mounting options: B basic, L axial foot, F rod flange, G head flange, C single clevis, D double clevis, T head trunnion, U rod trunnion | Rod non-rotation accuracy: +/-0.8 deg | Operating pressure: 0.05-1.0 MPa double acting (0.18 MPa min single acting) | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: none or rubber | Lubrication: not required | Auto switch: none (TCDMK prefix for auto-switch type)
TCMKB40 Bore: 40 mm | Non-rotating rod width across flats (KA): 14 mm | Port: Rc(PT) 1/4 | Stroke range: up to 300 mm (20-300 mm with bellows) | Max stroke: 300 mm | Acting: Double (single-acting spring return also available) | Mounting options: B basic, L axial foot, F rod flange, G head flange, C single clevis, D double clevis, T head trunnion, U rod trunnion | Rod non-rotation accuracy: +/-0.5 deg | Operating pressure: 0.05-1.0 MPa double acting (0.18 MPa min single acting) | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: none or rubber | Lubrication: not required | Auto switch: none (TCDMK prefix for auto-switch type)
TCDMKB20 Bore: 20 mm | Non-rotating rod width across flats (KA): 8 mm | Port: Rc(PT) 1/8 | Stroke range: up to 300 mm (20-300 mm with bellows) | Max stroke: 300 mm | Acting: Double (single-acting spring return also available) | Mounting options: B basic, L axial foot, F rod flange, G head flange, C single clevis, D double clevis, T head trunnion, U rod trunnion | Rod non-rotation accuracy: +/-0.8 deg | Operating pressure: 0.05-1.0 MPa double acting (0.18 MPa min single acting) | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: none or rubber | Lubrication: not required | Auto switch: TCD prefix = auto-switch-ready (D-C73K)
TCDMKB25 Bore: 25 mm | Non-rotating rod width across flats (KA): 10 mm | Port: Rc(PT) 1/8 | Stroke range: up to 300 mm (20-300 mm with bellows) | Max stroke: 300 mm | Acting: Double (single-acting spring return also available) | Mounting options: B basic, L axial foot, F rod flange, G head flange, C single clevis, D double clevis, T head trunnion, U rod trunnion | Rod non-rotation accuracy: +/-0.8 deg | Operating pressure: 0.05-1.0 MPa double acting (0.18 MPa min single acting) | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: none or rubber | Lubrication: not required | Auto switch: TCD prefix = auto-switch-ready (D-C73K)
TCDMKB30 Bore: 30 mm | Non-rotating rod width across flats (KA): 10 mm | Port: Rc(PT) 1/8 | Stroke range: up to 300 mm (20-300 mm with bellows) | Max stroke: 300 mm | Acting: Double (single-acting spring return also available) | Mounting options: B basic, L axial foot, F rod flange, G head flange, C single clevis, D double clevis, T head trunnion, U rod trunnion | Rod non-rotation accuracy: +/-0.8 deg | Operating pressure: 0.05-1.0 MPa double acting (0.18 MPa min single acting) | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: none or rubber | Lubrication: not required | Auto switch: TCD prefix = auto-switch-ready (D-C73K)
TCDMKB40 Bore: 40 mm | Non-rotating rod width across flats (KA): 14 mm | Port: Rc(PT) 1/4 | Stroke range: up to 300 mm (20-300 mm with bellows) | Max stroke: 300 mm | Acting: Double (single-acting spring return also available) | Mounting options: B basic, L axial foot, F rod flange, G head flange, C single clevis, D double clevis, T head trunnion, U rod trunnion | Rod non-rotation accuracy: +/-0.5 deg | Operating pressure: 0.05-1.0 MPa double acting (0.18 MPa min single acting) | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: none or rubber | Lubrication: not required | Auto switch: TCD prefix = auto-switch-ready (D-C73K)
Pneumatic CylindersTPC Mechatronics
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics TCMK Rod Non-Rotating Compact Cylinder, Bore 20-40 mm

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (8)

TCMKB20, TCMKB25, TCMKB30, TCMKB40, TCDMKB20, TCDMKB25, TCDMKB30, TCDMKB40

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TCMKB20Bore: 20 mm | Non-rotating rod width across flats (KA): 8 mm | Port: Rc(PT) 1/8 | Stroke range: up to 300 mm (20-300 mm with bellows) | Max stroke: 300 mm | Acting: Double (single-acting spring return also available) | Mounting options: B basic, L axial foot, F rod flange, G head flange, C single clevis, D double clevis, T head trunnion, U rod trunnion | Rod non-rotation accuracy: +/-0.8 deg | Operating pressure: 0.05-1.0 MPa double acting (0.18 MPa min single acting) | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: none or rubber | Lubrication: not required | Auto switch: none (TCDMK prefix for auto-switch type)
TCMKB25Bore: 25 mm | Non-rotating rod width across flats (KA): 10 mm | Port: Rc(PT) 1/8 | Stroke range: up to 300 mm (20-300 mm with bellows) | Max stroke: 300 mm | Acting: Double (single-acting spring return also available) | Mounting options: B basic, L axial foot, F rod flange, G head flange, C single clevis, D double clevis, T head trunnion, U rod trunnion | Rod non-rotation accuracy: +/-0.8 deg | Operating pressure: 0.05-1.0 MPa double acting (0.18 MPa min single acting) | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: none or rubber | Lubrication: not required | Auto switch: none (TCDMK prefix for auto-switch type)
TCMKB30Bore: 30 mm | Non-rotating rod width across flats (KA): 10 mm | Port: Rc(PT) 1/8 | Stroke range: up to 300 mm (20-300 mm with bellows) | Max stroke: 300 mm | Acting: Double (single-acting spring return also available) | Mounting options: B basic, L axial foot, F rod flange, G head flange, C single clevis, D double clevis, T head trunnion, U rod trunnion | Rod non-rotation accuracy: +/-0.8 deg | Operating pressure: 0.05-1.0 MPa double acting (0.18 MPa min single acting) | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: none or rubber | Lubrication: not required | Auto switch: none (TCDMK prefix for auto-switch type)
TCMKB40Bore: 40 mm | Non-rotating rod width across flats (KA): 14 mm | Port: Rc(PT) 1/4 | Stroke range: up to 300 mm (20-300 mm with bellows) | Max stroke: 300 mm | Acting: Double (single-acting spring return also available) | Mounting options: B basic, L axial foot, F rod flange, G head flange, C single clevis, D double clevis, T head trunnion, U rod trunnion | Rod non-rotation accuracy: +/-0.5 deg | Operating pressure: 0.05-1.0 MPa double acting (0.18 MPa min single acting) | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: none or rubber | Lubrication: not required | Auto switch: none (TCDMK prefix for auto-switch type)
TCDMKB20Bore: 20 mm | Non-rotating rod width across flats (KA): 8 mm | Port: Rc(PT) 1/8 | Stroke range: up to 300 mm (20-300 mm with bellows) | Max stroke: 300 mm | Acting: Double (single-acting spring return also available) | Mounting options: B basic, L axial foot, F rod flange, G head flange, C single clevis, D double clevis, T head trunnion, U rod trunnion | Rod non-rotation accuracy: +/-0.8 deg | Operating pressure: 0.05-1.0 MPa double acting (0.18 MPa min single acting) | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: none or rubber | Lubrication: not required | Auto switch: TCD prefix = auto-switch-ready (D-C73K)
TCDMKB25Bore: 25 mm | Non-rotating rod width across flats (KA): 10 mm | Port: Rc(PT) 1/8 | Stroke range: up to 300 mm (20-300 mm with bellows) | Max stroke: 300 mm | Acting: Double (single-acting spring return also available) | Mounting options: B basic, L axial foot, F rod flange, G head flange, C single clevis, D double clevis, T head trunnion, U rod trunnion | Rod non-rotation accuracy: +/-0.8 deg | Operating pressure: 0.05-1.0 MPa double acting (0.18 MPa min single acting) | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: none or rubber | Lubrication: not required | Auto switch: TCD prefix = auto-switch-ready (D-C73K)
TCDMKB30Bore: 30 mm | Non-rotating rod width across flats (KA): 10 mm | Port: Rc(PT) 1/8 | Stroke range: up to 300 mm (20-300 mm with bellows) | Max stroke: 300 mm | Acting: Double (single-acting spring return also available) | Mounting options: B basic, L axial foot, F rod flange, G head flange, C single clevis, D double clevis, T head trunnion, U rod trunnion | Rod non-rotation accuracy: +/-0.8 deg | Operating pressure: 0.05-1.0 MPa double acting (0.18 MPa min single acting) | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: none or rubber | Lubrication: not required | Auto switch: TCD prefix = auto-switch-ready (D-C73K)
TCDMKB40Bore: 40 mm | Non-rotating rod width across flats (KA): 14 mm | Port: Rc(PT) 1/4 | Stroke range: up to 300 mm (20-300 mm with bellows) | Max stroke: 300 mm | Acting: Double (single-acting spring return also available) | Mounting options: B basic, L axial foot, F rod flange, G head flange, C single clevis, D double clevis, T head trunnion, U rod trunnion | Rod non-rotation accuracy: +/-0.5 deg | Operating pressure: 0.05-1.0 MPa double acting (0.18 MPa min single acting) | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: none or rubber | Lubrication: not required | Auto switch: TCD prefix = auto-switch-ready (D-C73K)
