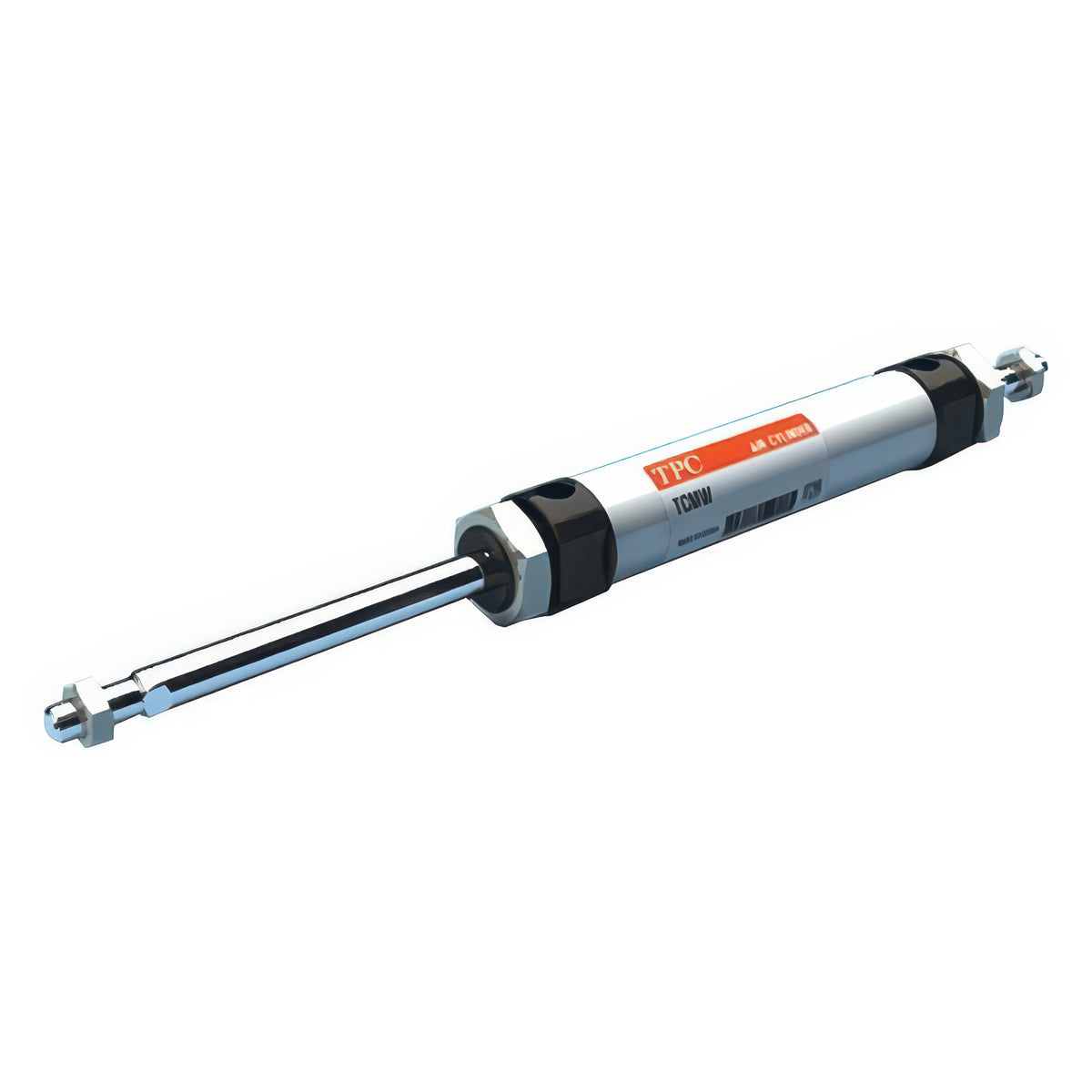

TPC Mechatronics TCMW Double Rod Compact Cylinder, Bore 20-40 mm

TPC Mechatronics TCMW Double Rod Compact Cylinder, Bore 20-40 mm

The TCMW series is a double-rod (through-rod) version of the TCM compact pneumatic cylinder, in bores of 20, 25, 30 and 40 mm.

Key features

  • The piston rod extends from both ends, giving equal force and speed in both directions
  • It shares the dimensions of the standard cylinder and is available in lubricated, non-lube (N) and low-hydraulic (H) types
  • Rubber or air cushions and one-side or both-side bellows can be specified
  • The TCDMW prefix denotes the auto-switch-ready model
  • Codes are base model numbers (series, mounting, bore); stroke and options are added when ordering

Specifications

Standard strokes 25, 50, 75, 100, 125, 150, 200, 250, 300 mm
Max stroke 300 mm
Acting Double, double rod
Mounting options B basic, L foot, F flange, T head trunnion, U rod trunnion
Type lubricated (standard), N non-lube, H low-hydraulic
Cushion none (standard), C rubber, A air (non-lube basic type only)
Bellows J/K one side, JJ/KK both sides
Other specifications same as TCM standard
TCMWB20 Bore: 20 mm | Rod diameter: 10 mm (both ends) | Rod end thread: M8x1.25 | Port: Rc(PT) 1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double, double rod | Mounting options: B basic, L foot, F flange, T head trunnion, U rod trunnion | Type: lubricated (standard), N non-lube, H low-hydraulic | Cushion: none (standard), C rubber, A air (non-lube basic type only) | Bellows: J/K one side, JJ/KK both sides | Other specifications: same as TCM standard | Auto switch: none (TCDMW prefix for auto-switch type)
TCMWB25 Bore: 25 mm | Rod diameter: 12 mm (both ends) | Rod end thread: M10x1.25 | Port: Rc(PT) 1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double, double rod | Mounting options: B basic, L foot, F flange, T head trunnion, U rod trunnion | Type: lubricated (standard), N non-lube, H low-hydraulic | Cushion: none (standard), C rubber, A air (non-lube basic type only) | Bellows: J/K one side, JJ/KK both sides | Other specifications: same as TCM standard | Auto switch: none (TCDMW prefix for auto-switch type)
TCMWB30 Bore: 30 mm | Rod diameter: 12 mm (both ends) | Rod end thread: M10x1.25 | Port: Rc(PT) 1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double, double rod | Mounting options: B basic, L foot, F flange, T head trunnion, U rod trunnion | Type: lubricated (standard), N non-lube, H low-hydraulic | Cushion: none (standard), C rubber, A air (non-lube basic type only) | Bellows: J/K one side, JJ/KK both sides | Other specifications: same as TCM standard | Auto switch: none (TCDMW prefix for auto-switch type)
TCMWB40 Bore: 40 mm | Rod diameter: 16 mm (both ends) | Rod end thread: M14x1.5 | Port: Rc(PT) 1/4 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double, double rod | Mounting options: B basic, L foot, F flange, T head trunnion, U rod trunnion | Type: lubricated (standard), N non-lube, H low-hydraulic | Cushion: none (standard), C rubber, A air (non-lube basic type only) | Bellows: J/K one side, JJ/KK both sides | Other specifications: same as TCM standard | Auto switch: none (TCDMW prefix for auto-switch type)
TCDMWB20 Bore: 20 mm | Rod diameter: 10 mm (both ends) | Rod end thread: M8x1.25 | Port: Rc(PT) 1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double, double rod | Mounting options: B basic, L foot, F flange, T head trunnion, U rod trunnion | Type: lubricated (standard), N non-lube, H low-hydraulic | Cushion: none (standard), C rubber, A air (non-lube basic type only) | Bellows: J/K one side, JJ/KK both sides | Other specifications: same as TCM standard | Auto switch: TCD prefix = auto-switch-ready (D-C73K)
TCDMWB25 Bore: 25 mm | Rod diameter: 12 mm (both ends) | Rod end thread: M10x1.25 | Port: Rc(PT) 1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double, double rod | Mounting options: B basic, L foot, F flange, T head trunnion, U rod trunnion | Type: lubricated (standard), N non-lube, H low-hydraulic | Cushion: none (standard), C rubber, A air (non-lube basic type only) | Bellows: J/K one side, JJ/KK both sides | Other specifications: same as TCM standard | Auto switch: TCD prefix = auto-switch-ready (D-C73K)
TCDMWB30 Bore: 30 mm | Rod diameter: 12 mm (both ends) | Rod end thread: M10x1.25 | Port: Rc(PT) 1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double, double rod | Mounting options: B basic, L foot, F flange, T head trunnion, U rod trunnion | Type: lubricated (standard), N non-lube, H low-hydraulic | Cushion: none (standard), C rubber, A air (non-lube basic type only) | Bellows: J/K one side, JJ/KK both sides | Other specifications: same as TCM standard | Auto switch: TCD prefix = auto-switch-ready (D-C73K)
TCDMWB40 Bore: 40 mm | Rod diameter: 16 mm (both ends) | Rod end thread: M14x1.5 | Port: Rc(PT) 1/4 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double, double rod | Mounting options: B basic, L foot, F flange, T head trunnion, U rod trunnion | Type: lubricated (standard), N non-lube, H low-hydraulic | Cushion: none (standard), C rubber, A air (non-lube basic type only) | Bellows: J/K one side, JJ/KK both sides | Other specifications: same as TCM standard | Auto switch: TCD prefix = auto-switch-ready (D-C73K)
Pneumatic CylindersTPC Mechatronics
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics TCMW Double Rod Compact Cylinder, Bore 20-40 mm

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (8)

TCMWB20, TCMWB25, TCMWB30, TCMWB40, TCDMWB20, TCDMWB25, TCDMWB30, TCDMWB40

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TCMWB20Bore: 20 mm | Rod diameter: 10 mm (both ends) | Rod end thread: M8x1.25 | Port: Rc(PT) 1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double, double rod | Mounting options: B basic, L foot, F flange, T head trunnion, U rod trunnion | Type: lubricated (standard), N non-lube, H low-hydraulic | Cushion: none (standard), C rubber, A air (non-lube basic type only) | Bellows: J/K one side, JJ/KK both sides | Other specifications: same as TCM standard | Auto switch: none (TCDMW prefix for auto-switch type)
TCMWB25Bore: 25 mm | Rod diameter: 12 mm (both ends) | Rod end thread: M10x1.25 | Port: Rc(PT) 1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double, double rod | Mounting options: B basic, L foot, F flange, T head trunnion, U rod trunnion | Type: lubricated (standard), N non-lube, H low-hydraulic | Cushion: none (standard), C rubber, A air (non-lube basic type only) | Bellows: J/K one side, JJ/KK both sides | Other specifications: same as TCM standard | Auto switch: none (TCDMW prefix for auto-switch type)
TCMWB30Bore: 30 mm | Rod diameter: 12 mm (both ends) | Rod end thread: M10x1.25 | Port: Rc(PT) 1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double, double rod | Mounting options: B basic, L foot, F flange, T head trunnion, U rod trunnion | Type: lubricated (standard), N non-lube, H low-hydraulic | Cushion: none (standard), C rubber, A air (non-lube basic type only) | Bellows: J/K one side, JJ/KK both sides | Other specifications: same as TCM standard | Auto switch: none (TCDMW prefix for auto-switch type)
TCMWB40Bore: 40 mm | Rod diameter: 16 mm (both ends) | Rod end thread: M14x1.5 | Port: Rc(PT) 1/4 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double, double rod | Mounting options: B basic, L foot, F flange, T head trunnion, U rod trunnion | Type: lubricated (standard), N non-lube, H low-hydraulic | Cushion: none (standard), C rubber, A air (non-lube basic type only) | Bellows: J/K one side, JJ/KK both sides | Other specifications: same as TCM standard | Auto switch: none (TCDMW prefix for auto-switch type)
TCDMWB20Bore: 20 mm | Rod diameter: 10 mm (both ends) | Rod end thread: M8x1.25 | Port: Rc(PT) 1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double, double rod | Mounting options: B basic, L foot, F flange, T head trunnion, U rod trunnion | Type: lubricated (standard), N non-lube, H low-hydraulic | Cushion: none (standard), C rubber, A air (non-lube basic type only) | Bellows: J/K one side, JJ/KK both sides | Other specifications: same as TCM standard | Auto switch: TCD prefix = auto-switch-ready (D-C73K)
TCDMWB25Bore: 25 mm | Rod diameter: 12 mm (both ends) | Rod end thread: M10x1.25 | Port: Rc(PT) 1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double, double rod | Mounting options: B basic, L foot, F flange, T head trunnion, U rod trunnion | Type: lubricated (standard), N non-lube, H low-hydraulic | Cushion: none (standard), C rubber, A air (non-lube basic type only) | Bellows: J/K one side, JJ/KK both sides | Other specifications: same as TCM standard | Auto switch: TCD prefix = auto-switch-ready (D-C73K)
TCDMWB30Bore: 30 mm | Rod diameter: 12 mm (both ends) | Rod end thread: M10x1.25 | Port: Rc(PT) 1/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double, double rod | Mounting options: B basic, L foot, F flange, T head trunnion, U rod trunnion | Type: lubricated (standard), N non-lube, H low-hydraulic | Cushion: none (standard), C rubber, A air (non-lube basic type only) | Bellows: J/K one side, JJ/KK both sides | Other specifications: same as TCM standard | Auto switch: TCD prefix = auto-switch-ready (D-C73K)
TCDMWB40Bore: 40 mm | Rod diameter: 16 mm (both ends) | Rod end thread: M14x1.5 | Port: Rc(PT) 1/4 | Standard strokes: 25, 50, 75, 100, 125, 150, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double, double rod | Mounting options: B basic, L foot, F flange, T head trunnion, U rod trunnion | Type: lubricated (standard), N non-lube, H low-hydraulic | Cushion: none (standard), C rubber, A air (non-lube basic type only) | Bellows: J/K one side, JJ/KK both sides | Other specifications: same as TCM standard | Auto switch: TCD prefix = auto-switch-ready (D-C73K)
