TPC Mechatronics TCP1 Series Double-Acting Mini Cylinder, Bores 10 and 16 mm

TPC Mechatronics TCP1 Series Double-Acting Mini Cylinder, Bores 10 and 16 mm

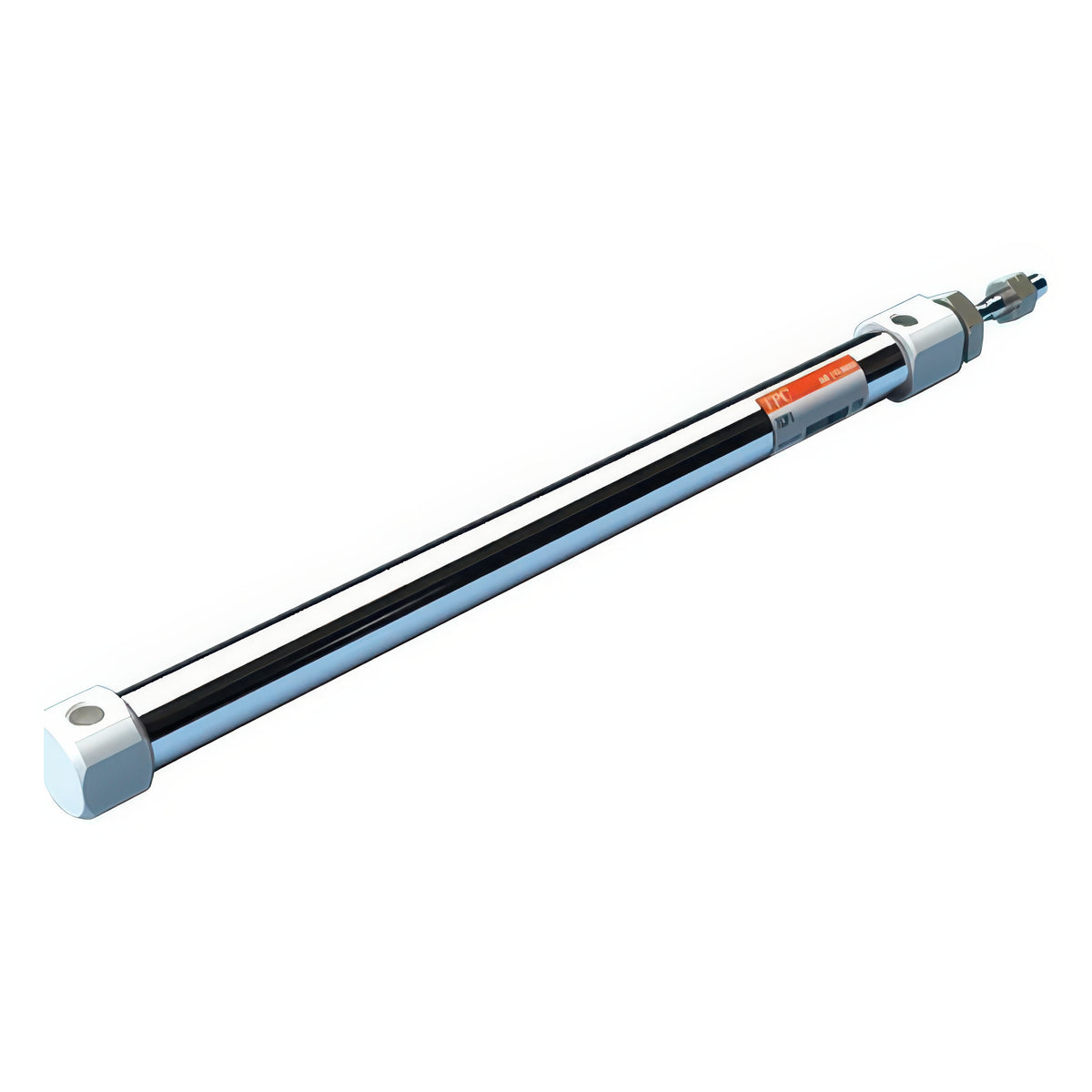

The TCP1 series is a double-acting single-rod mini pneumatic cylinder with a stainless steel tube, here in bores 10 and 16 mm.

Key features

  • A magnet and rubber cushion are built in as standard, and band-mounted D-C73K reed auto switches can be fitted
  • Mounting styles are basic (B), axial foot (L), rod flange (F) and double clevis integrated with the cover (D)
  • The head-cover port is at 90 degrees to the axis as standard, with an axial port option (R)
  • No lubrication is required
  • Bore 6 mm models are listed separately

Specifications

Port M5x0.8
Acting Double, single rod
Operating pressure 0.15-0.7 MPa (proof 1.05 MPa)
Piston speed 50-750 mm/s
Cushion Rubber cushion (standard)
Magnet built in
Lubrication Not required
Ambient/fluid temperature 5-60 C
TCP1B10 Bore: 10 mm | Rod diameter: 4 mm | Rod end thread: M4x0.7 | Mounting thread: M8x1.0 | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 75, 100, 125, 150 mm | Mounting: B basic | Acting: Double, single rod | Operating pressure: 0.15-0.7 MPa (proof 1.05 MPa) | Piston speed: 50-750 mm/s | Cushion: Rubber cushion (standard) | Magnet: built in | Lubrication: Not required | Ambient/fluid temperature: 5-60 C
TCP1B16 Bore: 16 mm | Rod diameter: 5 mm | Rod end thread: M5x0.8 | Mounting thread: M10x1.0 | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 75, 100, 125, 150, 175, 200 mm | Mounting: B basic | Acting: Double, single rod | Operating pressure: 0.15-0.7 MPa (proof 1.05 MPa) | Piston speed: 50-750 mm/s | Cushion: Rubber cushion (standard) | Magnet: built in | Lubrication: Not required | Ambient/fluid temperature: 5-60 C
TCP1L10 Bore: 10 mm | Rod diameter: 4 mm | Rod end thread: M4x0.7 | Mounting thread: M8x1.0 | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 75, 100, 125, 150 mm | Mounting: L axial foot | Acting: Double, single rod | Operating pressure: 0.15-0.7 MPa (proof 1.05 MPa) | Piston speed: 50-750 mm/s | Cushion: Rubber cushion (standard) | Magnet: built in | Lubrication: Not required | Ambient/fluid temperature: 5-60 C
TCP1L16 Bore: 16 mm | Rod diameter: 5 mm | Rod end thread: M5x0.8 | Mounting thread: M10x1.0 | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 75, 100, 125, 150, 175, 200 mm | Mounting: L axial foot | Acting: Double, single rod | Operating pressure: 0.15-0.7 MPa (proof 1.05 MPa) | Piston speed: 50-750 mm/s | Cushion: Rubber cushion (standard) | Magnet: built in | Lubrication: Not required | Ambient/fluid temperature: 5-60 C
TCP1F10 Bore: 10 mm | Rod diameter: 4 mm | Rod end thread: M4x0.7 | Mounting thread: M8x1.0 | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 75, 100, 125, 150 mm | Mounting: F rod flange | Acting: Double, single rod | Operating pressure: 0.15-0.7 MPa (proof 1.05 MPa) | Piston speed: 50-750 mm/s | Cushion: Rubber cushion (standard) | Magnet: built in | Lubrication: Not required | Ambient/fluid temperature: 5-60 C
TCP1F16 Bore: 16 mm | Rod diameter: 5 mm | Rod end thread: M5x0.8 | Mounting thread: M10x1.0 | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 75, 100, 125, 150, 175, 200 mm | Mounting: F rod flange | Acting: Double, single rod | Operating pressure: 0.15-0.7 MPa (proof 1.05 MPa) | Piston speed: 50-750 mm/s | Cushion: Rubber cushion (standard) | Magnet: built in | Lubrication: Not required | Ambient/fluid temperature: 5-60 C
TCP1D10 Bore: 10 mm | Rod diameter: 4 mm | Rod end thread: M4x0.7 | Mounting thread: M8x1.0 | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 75, 100, 125, 150 mm | Mounting: D double clevis (cover integrated) | Acting: Double, single rod | Operating pressure: 0.15-0.7 MPa (proof 1.05 MPa) | Piston speed: 50-750 mm/s | Cushion: Rubber cushion (standard) | Magnet: built in | Lubrication: Not required | Ambient/fluid temperature: 5-60 C
TCP1D16 Bore: 16 mm | Rod diameter: 5 mm | Rod end thread: M5x0.8 | Mounting thread: M10x1.0 | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 75, 100, 125, 150, 175, 200 mm | Mounting: D double clevis (cover integrated) | Acting: Double, single rod | Operating pressure: 0.15-0.7 MPa (proof 1.05 MPa) | Piston speed: 50-750 mm/s | Cushion: Rubber cushion (standard) | Magnet: built in | Lubrication: Not required | Ambient/fluid temperature: 5-60 C
Pneumatic CylindersTPC Mechatronics
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics TCP1 Series Double-Acting Mini Cylinder, Bores 10 and 16 mm

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (8)

TCP1B10, TCP1B16, TCP1L10, TCP1L16, TCP1F10, TCP1F16, TCP1D10, TCP1D16

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TCP1B10Bore: 10 mm | Rod diameter: 4 mm | Rod end thread: M4x0.7 | Mounting thread: M8x1.0 | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 75, 100, 125, 150 mm | Mounting: B basic | Acting: Double, single rod | Operating pressure: 0.15-0.7 MPa (proof 1.05 MPa) | Piston speed: 50-750 mm/s | Cushion: Rubber cushion (standard) | Magnet: built in | Lubrication: Not required | Ambient/fluid temperature: 5-60 C
TCP1B16Bore: 16 mm | Rod diameter: 5 mm | Rod end thread: M5x0.8 | Mounting thread: M10x1.0 | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 75, 100, 125, 150, 175, 200 mm | Mounting: B basic | Acting: Double, single rod | Operating pressure: 0.15-0.7 MPa (proof 1.05 MPa) | Piston speed: 50-750 mm/s | Cushion: Rubber cushion (standard) | Magnet: built in | Lubrication: Not required | Ambient/fluid temperature: 5-60 C
TCP1L10Bore: 10 mm | Rod diameter: 4 mm | Rod end thread: M4x0.7 | Mounting thread: M8x1.0 | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 75, 100, 125, 150 mm | Mounting: L axial foot | Acting: Double, single rod | Operating pressure: 0.15-0.7 MPa (proof 1.05 MPa) | Piston speed: 50-750 mm/s | Cushion: Rubber cushion (standard) | Magnet: built in | Lubrication: Not required | Ambient/fluid temperature: 5-60 C
TCP1L16Bore: 16 mm | Rod diameter: 5 mm | Rod end thread: M5x0.8 | Mounting thread: M10x1.0 | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 75, 100, 125, 150, 175, 200 mm | Mounting: L axial foot | Acting: Double, single rod | Operating pressure: 0.15-0.7 MPa (proof 1.05 MPa) | Piston speed: 50-750 mm/s | Cushion: Rubber cushion (standard) | Magnet: built in | Lubrication: Not required | Ambient/fluid temperature: 5-60 C
TCP1F10Bore: 10 mm | Rod diameter: 4 mm | Rod end thread: M4x0.7 | Mounting thread: M8x1.0 | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 75, 100, 125, 150 mm | Mounting: F rod flange | Acting: Double, single rod | Operating pressure: 0.15-0.7 MPa (proof 1.05 MPa) | Piston speed: 50-750 mm/s | Cushion: Rubber cushion (standard) | Magnet: built in | Lubrication: Not required | Ambient/fluid temperature: 5-60 C
TCP1F16Bore: 16 mm | Rod diameter: 5 mm | Rod end thread: M5x0.8 | Mounting thread: M10x1.0 | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 75, 100, 125, 150, 175, 200 mm | Mounting: F rod flange | Acting: Double, single rod | Operating pressure: 0.15-0.7 MPa (proof 1.05 MPa) | Piston speed: 50-750 mm/s | Cushion: Rubber cushion (standard) | Magnet: built in | Lubrication: Not required | Ambient/fluid temperature: 5-60 C
TCP1D10Bore: 10 mm | Rod diameter: 4 mm | Rod end thread: M4x0.7 | Mounting thread: M8x1.0 | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 75, 100, 125, 150 mm | Mounting: D double clevis (cover integrated) | Acting: Double, single rod | Operating pressure: 0.15-0.7 MPa (proof 1.05 MPa) | Piston speed: 50-750 mm/s | Cushion: Rubber cushion (standard) | Magnet: built in | Lubrication: Not required | Ambient/fluid temperature: 5-60 C
TCP1D16Bore: 16 mm | Rod diameter: 5 mm | Rod end thread: M5x0.8 | Mounting thread: M10x1.0 | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 75, 100, 125, 150, 175, 200 mm | Mounting: D double clevis (cover integrated) | Acting: Double, single rod | Operating pressure: 0.15-0.7 MPa (proof 1.05 MPa) | Piston speed: 50-750 mm/s | Cushion: Rubber cushion (standard) | Magnet: built in | Lubrication: Not required | Ambient/fluid temperature: 5-60 C

Need a different model, or a part not listed here? Send us your parts list →
