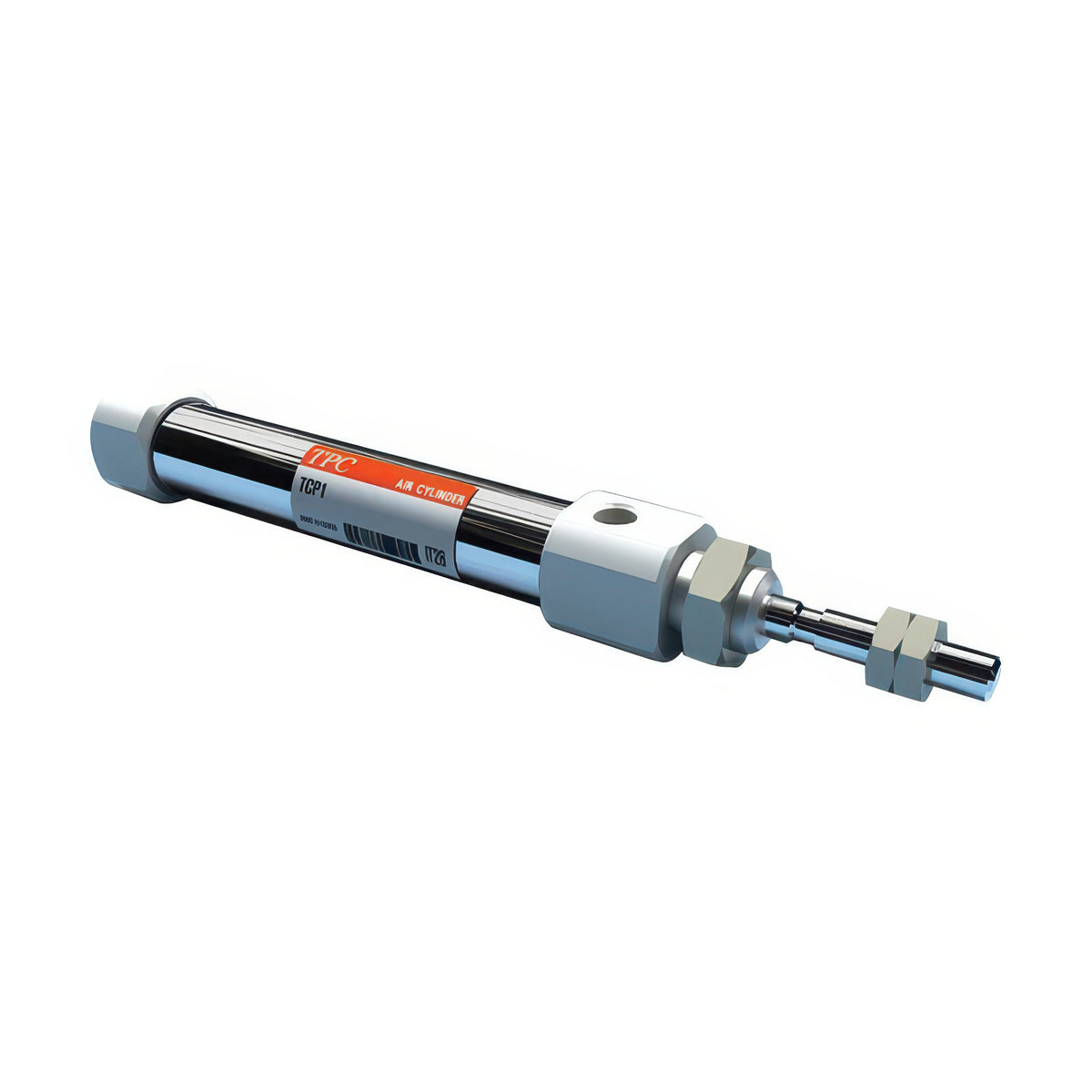

TPC Mechatronics TCP1 Series Single-Acting Mini Cylinder, Bore 4 mm

TPC Mechatronics TCP1 Series Single-Acting Mini Cylinder, Bore 4 mm

The TCP1 single-acting series is a stainless-tube mini pneumatic cylinder with spring return.

Key features

  • The bore 4 mm model TCP1B4 is a single-acting push (S) type in the basic mount only, with strokes of 5, 10, 15 and 20 mm
  • Air pressure extends the rod and the built-in spring retracts it, so only one air line is needed
  • It has no magnet or rubber cushion and cannot take auto switches; larger bores 6, 10 and 16 mm add a magnet and rubber cushion
  • No lubrication is required

Specifications

Bore 4 mm
Body outer diameter 5 mm
Rod end thread M2
Mounting thread M4
Port hose barb 3.4 mm
Standard strokes 5, 10, 15, 20 mm
Max stroke 20 mm
Acting Single, spring return (S push type only)
Mounting options B basic only
Operating pressure 0.3-0.7 MPa (proof 1.05 MPa)
Piston speed 50-500 mm/s
Cushion None
TCP1B4 Bore: 4 mm | Body outer diameter: 5 mm | Rod end thread: M2 | Mounting thread: M4 | Port: hose barb 3.4 mm | Standard strokes: 5, 10, 15, 20 mm | Max stroke: 20 mm | Acting: Single, spring return (S push type only) | Mounting options: B basic only | Operating pressure: 0.3-0.7 MPa (proof 1.05 MPa) | Piston speed: 50-500 mm/s | Cushion: None | Magnet: none | Lubrication: Not required | Ambient/fluid temperature: 5-60 C
Pneumatic CylindersTPC Mechatronics
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics TCP1 Series Single-Acting Mini Cylinder, Bore 4 mm

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (1)

TCP1B4

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TCP1B4Bore: 4 mm | Body outer diameter: 5 mm | Rod end thread: M2 | Mounting thread: M4 | Port: hose barb 3.4 mm | Standard strokes: 5, 10, 15, 20 mm | Max stroke: 20 mm | Acting: Single, spring return (S push type only) | Mounting options: B basic only | Operating pressure: 0.3-0.7 MPa (proof 1.05 MPa) | Piston speed: 50-500 mm/s | Cushion: None | Magnet: none | Lubrication: Not required | Ambient/fluid temperature: 5-60 C
