TPC Mechatronics TCP1W Series Round-Body Mini Pneumatic Cylinder (Double Acting, Double Rod)

TPC Mechatronics TCP1W Series Round-Body Mini Pneumatic Cylinder (Double Acting, Double Rod)

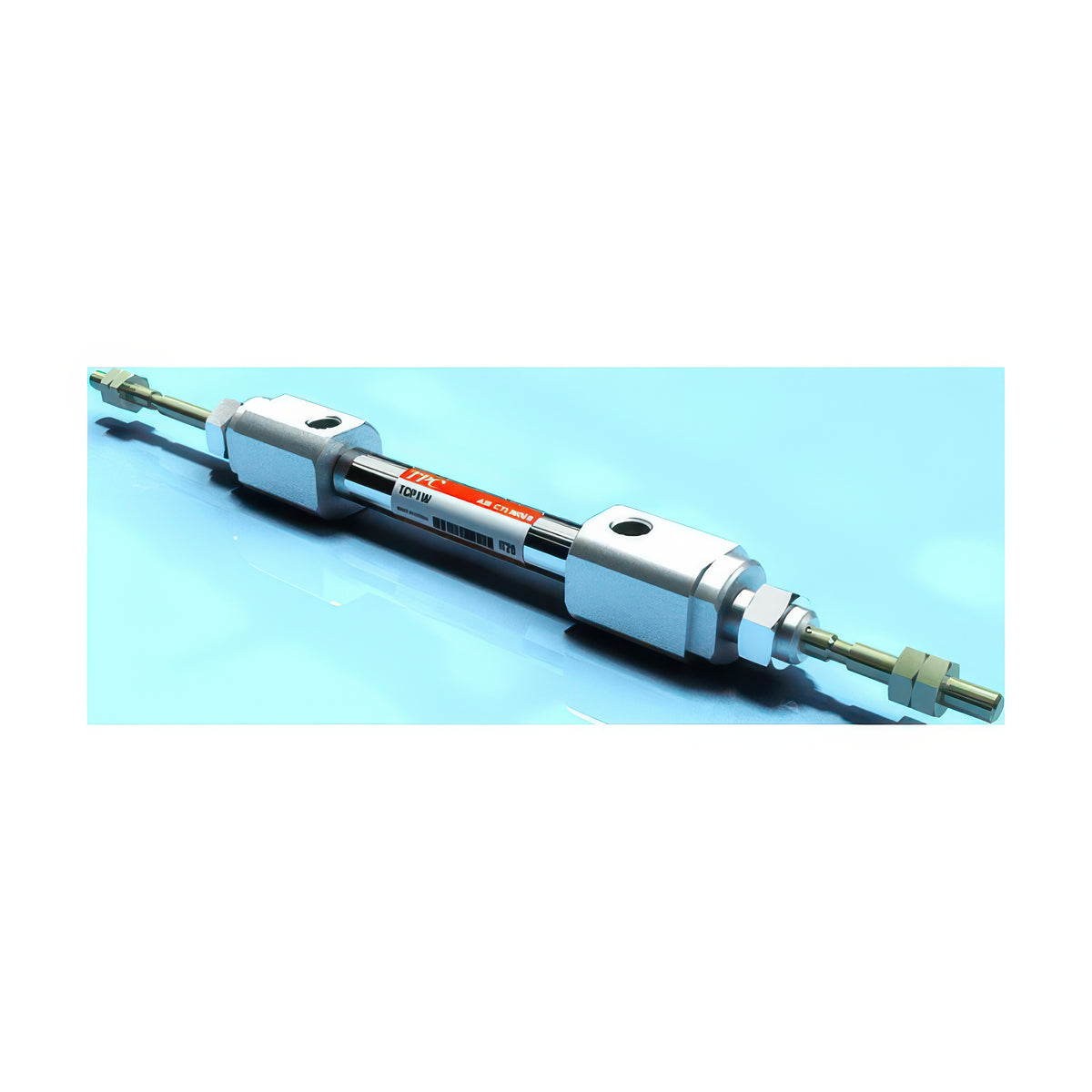

The TCP1W series is a double-rod version of the TCP1 round-body mini pneumatic cylinder, with a piston rod on both sides of the piston, in bore sizes 6, 10 and 16 mm.

Key features

  • Tube and covers are assembled by caulking, and a magnet and rubber cushions are built in as standard
  • Mounting styles are basic, axial foot and rod-side flange, and D-C73K reed auto switches mount with a band bracket
  • It operates up to 0.7 MPa at 50 to 750 mm/s, needs no lubrication and is rated for 5 to 60 C

Specifications

Bore 6 mm
Rod dia. 3 mm
Rod thread M3x0.5
Mounting thread M6x1.0
Acting Double, double rod
Min. operating pressure 0.15 MPa
Standard strokes 10-60 mm
Port size M5x0.8
Proof pressure 1.05 MPa
Max. operating pressure 0.7 MPa
Ambient/fluid temperature 5-60 C
Piston speed 50-750 mm/s
TCP1WB6 Mounting: Basic | Bore: 6 mm | Rod dia.: 3 mm | Rod thread: M3x0.5 | Mounting thread: M6x1.0 | Acting: Double, double rod | Min. operating pressure: 0.15 MPa | Standard strokes: 10-60 mm | Port size: M5x0.8 | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Ambient/fluid temperature: 5-60 C | Piston speed: 50-750 mm/s | Cushion: Rubber cushion | Lubrication: Not required | Magnet: Built-in | Mass: 27 g base + 3 g per 15 mm stroke
TCP1WL6 Mounting: Foot | Bore: 6 mm | Rod dia.: 3 mm | Rod thread: M3x0.5 | Mounting thread: M6x1.0 | Acting: Double, double rod | Min. operating pressure: 0.15 MPa | Standard strokes: 10-60 mm | Port size: M5x0.8 | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Ambient/fluid temperature: 5-60 C | Piston speed: 50-750 mm/s | Cushion: Rubber cushion | Lubrication: Not required | Magnet: Built-in | Foot bracket mass: 14 g
TCP1WF6 Mounting: Rod-side flange | Bore: 6 mm | Rod dia.: 3 mm | Rod thread: M3x0.5 | Mounting thread: M6x1.0 | Acting: Double, double rod | Min. operating pressure: 0.15 MPa | Standard strokes: 10-60 mm | Port size: M5x0.8 | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Ambient/fluid temperature: 5-60 C | Piston speed: 50-750 mm/s | Cushion: Rubber cushion | Lubrication: Not required | Magnet: Built-in | Flange bracket mass: 5 g
