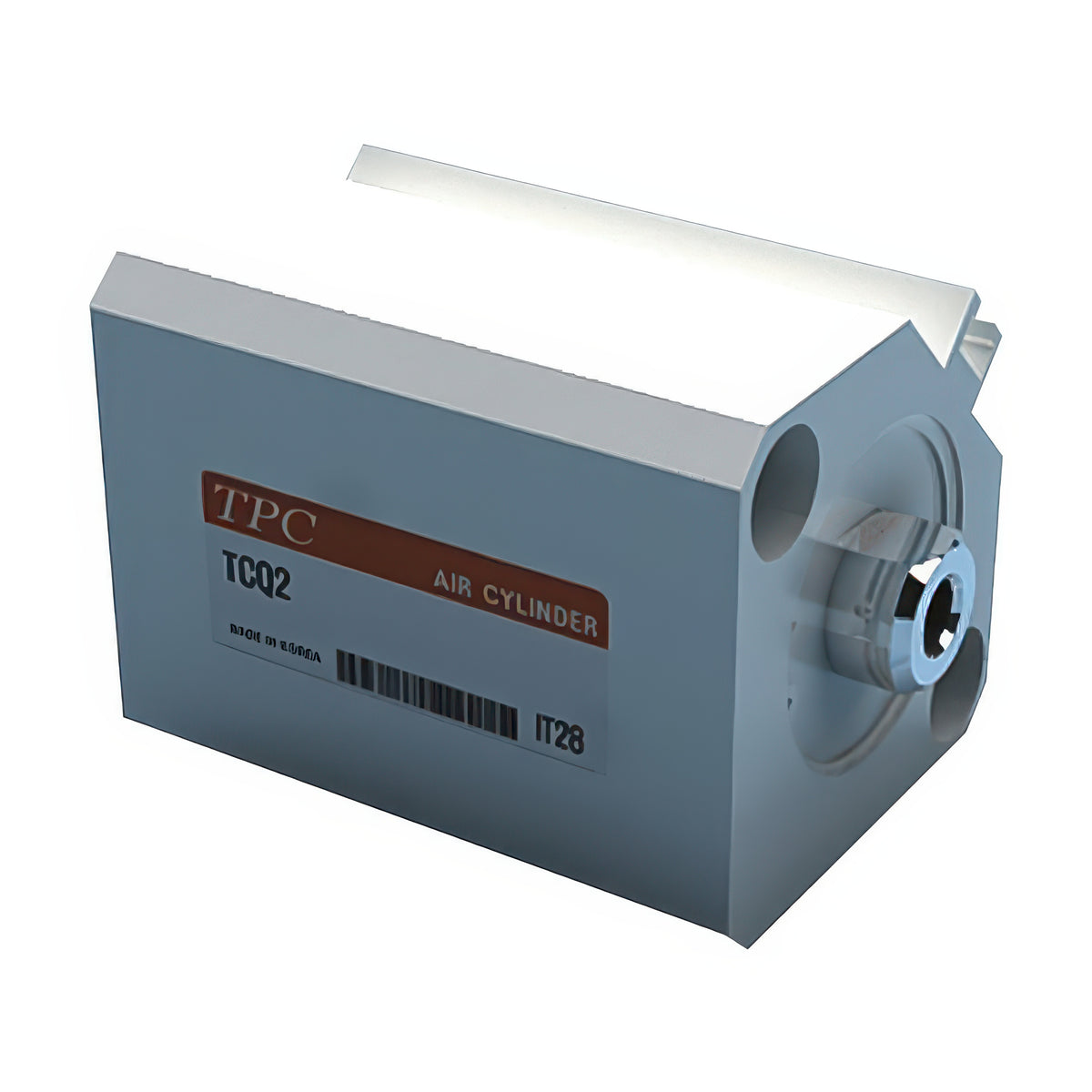

TPC Mechatronics TCQ2 Thin Cylinder, Single-Acting (Bore 20 mm)

TPC Mechatronics TCQ2 Thin Cylinder, Single-Acting (Bore 20 mm)

The TCQ2 single-acting series is a space-saving thin air cylinder with a 20 mm bore and 5 or 10 mm stroke.

Key features

  • S models are spring-return (normally retracted) and T models are spring-extend (normally extended)
  • Standard mounting is through-hole (B) or both-end tapped (A), with clevis, flange and foot brackets available
  • The TCDQ2 version has a built-in magnet for D-A73K reed auto switches
  • A male rod end and head-side spigot are available as options

Specifications

Bore 20 mm
Rod diameter 10 mm
Rod end female thread M5x0.8 (M male thread option)
Port M5x0.8
Operating pressure max 1.0 MPa (proof 1.5 MPa)
Cushion none
Fluid temperature -10 to 70 C (no freezing)
Piston speed 50-500 mm/s
TCQ2B20-5S Bore: 20 mm | Rod diameter: 10 mm | Rod end: female thread M5x0.8 (M male thread option) | Port: M5x0.8 | Stroke: 5 mm (standard strokes 5, 10 mm) | Acting: Single-acting, spring return (extend type, normally retracted); spring force 16 N start / 6 N end | Mounting: B through-hole (standard); D double clevis, F rod flange, G head flange, L foot (on both-end tapped body) | Basic type without magnet | Operating pressure: max 1.0 MPa (proof 1.5 MPa) | Cushion: none | Fluid temperature: -10 to 70 C (no freezing) | Piston speed: 50-500 mm/s
TCQ2B20-10S Bore: 20 mm | Rod diameter: 10 mm | Rod end: female thread M5x0.8 (M male thread option) | Port: M5x0.8 | Stroke: 10 mm (standard strokes 5, 10 mm) | Acting: Single-acting, spring return (extend type, normally retracted); spring force 16 N start / 6 N end | Mounting: B through-hole (standard); D double clevis, F rod flange, G head flange, L foot (on both-end tapped body) | Basic type without magnet | Operating pressure: max 1.0 MPa (proof 1.5 MPa) | Cushion: none | Fluid temperature: -10 to 70 C (no freezing) | Piston speed: 50-500 mm/s
TCQ2B20-5T Bore: 20 mm | Rod diameter: 10 mm | Rod end: female thread M5x0.8 (M male thread option) | Port: M5x0.8 | Stroke: 5 mm (standard strokes 5, 10 mm) | Acting: Single-acting, spring extend (retract type, normally extended); spring force 24 N start / 15 N end | Mounting: B through-hole (standard); D double clevis, F rod flange, G head flange, L foot (on both-end tapped body) | Basic type without magnet | Operating pressure: max 1.0 MPa (proof 1.5 MPa) | Cushion: none | Fluid temperature: -10 to 70 C (no freezing) | Piston speed: 50-500 mm/s
TCQ2B20-10T Bore: 20 mm | Rod diameter: 10 mm | Rod end: female thread M5x0.8 (M male thread option) | Port: M5x0.8 | Stroke: 10 mm (standard strokes 5, 10 mm) | Acting: Single-acting, spring extend (retract type, normally extended); spring force 24 N start / 15 N end | Mounting: B through-hole (standard); D double clevis, F rod flange, G head flange, L foot (on both-end tapped body) | Basic type without magnet | Operating pressure: max 1.0 MPa (proof 1.5 MPa) | Cushion: none | Fluid temperature: -10 to 70 C (no freezing) | Piston speed: 50-500 mm/s
TCQ2A20-5S Bore: 20 mm | Rod diameter: 10 mm | Rod end: female thread M5x0.8 (M male thread option) | Port: M5x0.8 | Stroke: 5 mm (standard strokes 5, 10 mm) | Acting: Single-acting, spring return (extend type, normally retracted); spring force 16 N start / 6 N end | Mounting: A both-end tapped; D double clevis, F rod flange, G head flange, L foot (on both-end tapped body) | Basic type without magnet | Operating pressure: max 1.0 MPa (proof 1.5 MPa) | Cushion: none | Fluid temperature: -10 to 70 C (no freezing) | Piston speed: 50-500 mm/s
TCQ2A20-10S Bore: 20 mm | Rod diameter: 10 mm | Rod end: female thread M5x0.8 (M male thread option) | Port: M5x0.8 | Stroke: 10 mm (standard strokes 5, 10 mm) | Acting: Single-acting, spring return (extend type, normally retracted); spring force 16 N start / 6 N end | Mounting: A both-end tapped; D double clevis, F rod flange, G head flange, L foot (on both-end tapped body) | Basic type without magnet | Operating pressure: max 1.0 MPa (proof 1.5 MPa) | Cushion: none | Fluid temperature: -10 to 70 C (no freezing) | Piston speed: 50-500 mm/s
TCQ2A20-5T Bore: 20 mm | Rod diameter: 10 mm | Rod end: female thread M5x0.8 (M male thread option) | Port: M5x0.8 | Stroke: 5 mm (standard strokes 5, 10 mm) | Acting: Single-acting, spring extend (retract type, normally extended); spring force 24 N start / 15 N end | Mounting: A both-end tapped; D double clevis, F rod flange, G head flange, L foot (on both-end tapped body) | Basic type without magnet | Operating pressure: max 1.0 MPa (proof 1.5 MPa) | Cushion: none | Fluid temperature: -10 to 70 C (no freezing) | Piston speed: 50-500 mm/s
TCQ2A20-10T Bore: 20 mm | Rod diameter: 10 mm | Rod end: female thread M5x0.8 (M male thread option) | Port: M5x0.8 | Stroke: 10 mm (standard strokes 5, 10 mm) | Acting: Single-acting, spring extend (retract type, normally extended); spring force 24 N start / 15 N end | Mounting: A both-end tapped; D double clevis, F rod flange, G head flange, L foot (on both-end tapped body) | Basic type without magnet | Operating pressure: max 1.0 MPa (proof 1.5 MPa) | Cushion: none | Fluid temperature: -10 to 70 C (no freezing) | Piston speed: 50-500 mm/s
TCDQ2B20-5S Bore: 20 mm | Rod diameter: 10 mm | Rod end: female thread M5x0.8 (M male thread option) | Port: M5x0.8 | Stroke: 5 mm (standard strokes 5, 10 mm) | Acting: Single-acting, spring return (extend type, normally retracted); spring force 16 N start / 6 N end | Mounting: B through-hole (standard); D double clevis, F rod flange, G head flange, L foot (on both-end tapped body) | Built-in magnet for auto switch (D-A73K) | Operating pressure: max 1.0 MPa (proof 1.5 MPa) | Cushion: none | Fluid temperature: -10 to 70 C (no freezing) | Piston speed: 50-500 mm/s
TCDQ2B20-10S Bore: 20 mm | Rod diameter: 10 mm | Rod end: female thread M5x0.8 (M male thread option) | Port: M5x0.8 | Stroke: 10 mm (standard strokes 5, 10 mm) | Acting: Single-acting, spring return (extend type, normally retracted); spring force 16 N start / 6 N end | Mounting: B through-hole (standard); D double clevis, F rod flange, G head flange, L foot (on both-end tapped body) | Built-in magnet for auto switch (D-A73K) | Operating pressure: max 1.0 MPa (proof 1.5 MPa) | Cushion: none | Fluid temperature: -10 to 70 C (no freezing) | Piston speed: 50-500 mm/s
TCDQ2B20-5T Bore: 20 mm | Rod diameter: 10 mm | Rod end: female thread M5x0.8 (M male thread option) | Port: M5x0.8 | Stroke: 5 mm (standard strokes 5, 10 mm) | Acting: Single-acting, spring extend (retract type, normally extended); spring force 24 N start / 15 N end | Mounting: B through-hole (standard); D double clevis, F rod flange, G head flange, L foot (on both-end tapped body) | Built-in magnet for auto switch (D-A73K) | Operating pressure: max 1.0 MPa (proof 1.5 MPa) | Cushion: none | Fluid temperature: -10 to 70 C (no freezing) | Piston speed: 50-500 mm/s
TCDQ2B20-10T Bore: 20 mm | Rod diameter: 10 mm | Rod end: female thread M5x0.8 (M male thread option) | Port: M5x0.8 | Stroke: 10 mm (standard strokes 5, 10 mm) | Acting: Single-acting, spring extend (retract type, normally extended); spring force 24 N start / 15 N end | Mounting: B through-hole (standard); D double clevis, F rod flange, G head flange, L foot (on both-end tapped body) | Built-in magnet for auto switch (D-A73K) | Operating pressure: max 1.0 MPa (proof 1.5 MPa) | Cushion: none | Fluid temperature: -10 to 70 C (no freezing) | Piston speed: 50-500 mm/s
TCDQ2A20-5S Bore: 20 mm | Rod diameter: 10 mm | Rod end: female thread M5x0.8 (M male thread option) | Port: M5x0.8 | Stroke: 5 mm (standard strokes 5, 10 mm) | Acting: Single-acting, spring return (extend type, normally retracted); spring force 16 N start / 6 N end | Mounting: A both-end tapped; D double clevis, F rod flange, G head flange, L foot (on both-end tapped body) | Built-in magnet for auto switch (D-A73K) | Operating pressure: max 1.0 MPa (proof 1.5 MPa) | Cushion: none | Fluid temperature: -10 to 70 C (no freezing) | Piston speed: 50-500 mm/s
TCDQ2A20-10S Bore: 20 mm | Rod diameter: 10 mm | Rod end: female thread M5x0.8 (M male thread option) | Port: M5x0.8 | Stroke: 10 mm (standard strokes 5, 10 mm) | Acting: Single-acting, spring return (extend type, normally retracted); spring force 16 N start / 6 N end | Mounting: A both-end tapped; D double clevis, F rod flange, G head flange, L foot (on both-end tapped body) | Built-in magnet for auto switch (D-A73K) | Operating pressure: max 1.0 MPa (proof 1.5 MPa) | Cushion: none | Fluid temperature: -10 to 70 C (no freezing) | Piston speed: 50-500 mm/s
TCDQ2A20-5T Bore: 20 mm | Rod diameter: 10 mm | Rod end: female thread M5x0.8 (M male thread option) | Port: M5x0.8 | Stroke: 5 mm (standard strokes 5, 10 mm) | Acting: Single-acting, spring extend (retract type, normally extended); spring force 24 N start / 15 N end | Mounting: A both-end tapped; D double clevis, F rod flange, G head flange, L foot (on both-end tapped body) | Built-in magnet for auto switch (D-A73K) | Operating pressure: max 1.0 MPa (proof 1.5 MPa) | Cushion: none | Fluid temperature: -10 to 70 C (no freezing) | Piston speed: 50-500 mm/s
TCDQ2A20-10T Bore: 20 mm | Rod diameter: 10 mm | Rod end: female thread M5x0.8 (M male thread option) | Port: M5x0.8 | Stroke: 10 mm (standard strokes 5, 10 mm) | Acting: Single-acting, spring extend (retract type, normally extended); spring force 24 N start / 15 N end | Mounting: A both-end tapped; D double clevis, F rod flange, G head flange, L foot (on both-end tapped body) | Built-in magnet for auto switch (D-A73K) | Operating pressure: max 1.0 MPa (proof 1.5 MPa) | Cushion: none | Fluid temperature: -10 to 70 C (no freezing) | Piston speed: 50-500 mm/s
