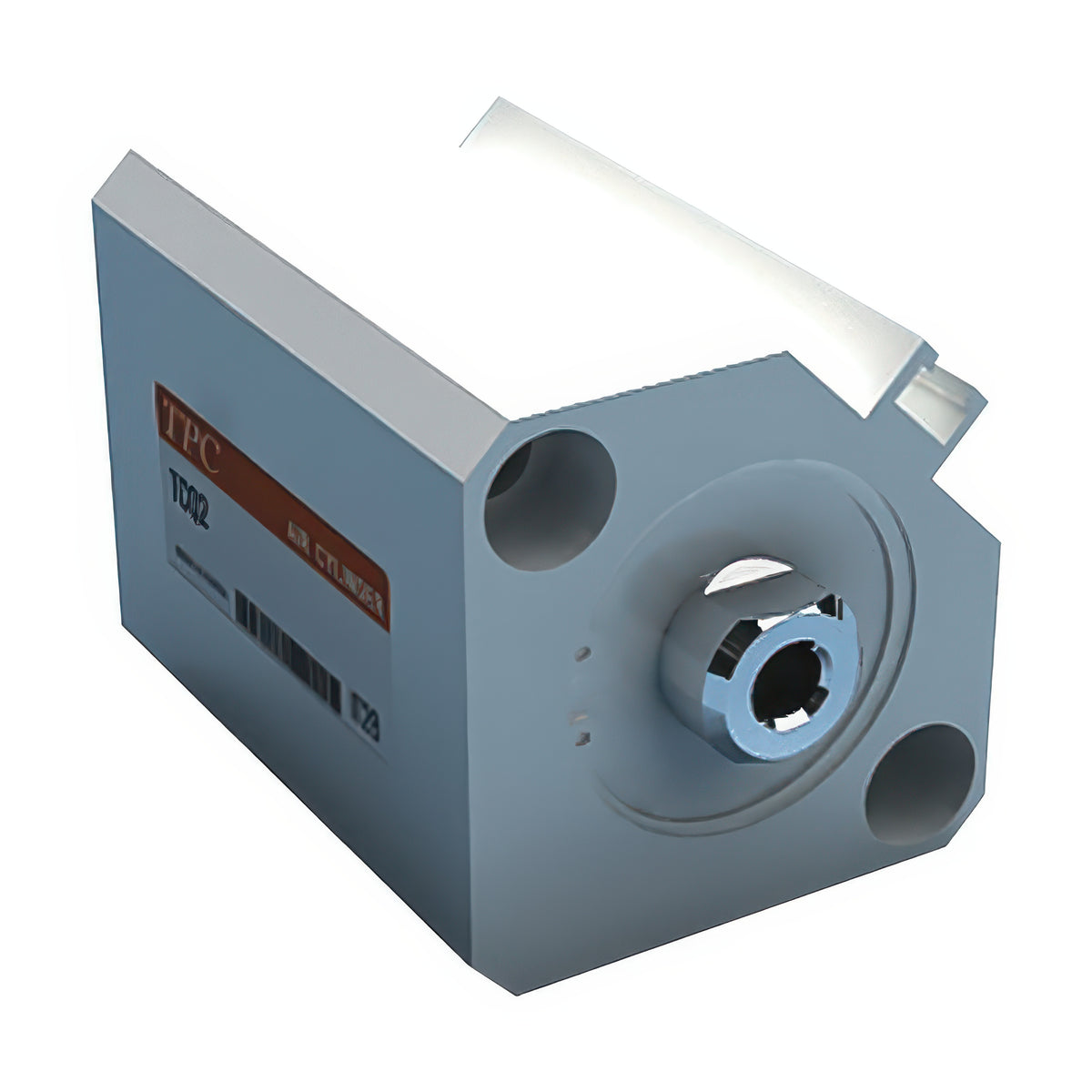

TPC Mechatronics TCQ2 Thin Cylinder, Double-Acting Single Rod (Bore 12-25 mm)

TPC Mechatronics TCQ2 Thin Cylinder, Double-Acting Single Rod (Bore 12-25 mm)

The TCQ2 series is an ultra-thin, double-acting single-rod compact air cylinder for bores 12 to 25 mm.

Key features

  • Its short body saves space and allows compact machine design
  • Standard mounting is through-hole (B) or both-end tapped (A), with clevis, rod flange, head flange and foot brackets available
  • The TCDQ2 version has a built-in magnet for D-A73K reed auto switches
  • Options include rubber cushion, male rod end and head-side spigot; intermediate strokes are made with internal spacers

Specifications

Port M5x0.8
Acting Double, single rod
Fluid temperature 5-60 C
Piston speed 50-500 mm/s
TCQ2B12 Bore: 12 mm | Rod diameter: 6 mm | Rod end: female thread M3x0.5 (M male thread option) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30 mm | Max stroke: 30 mm | Acting: Double, single rod | Mounting: B through-hole (standard); D double clevis, F rod flange, G head flange, L foot (on both-end tapped body) | Basic type without magnet | Operating pressure: 0.07-1.0 MPa (proof 1.5 MPa) | Cushion: None (rubber cushion option not offered for this bore per type table) | Fluid temperature: 5-60 C | Piston speed: 50-500 mm/s
TCQ2B16 Bore: 16 mm | Rod diameter: 8 mm | Rod end: female thread M4x0.7 (M male thread option) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30 mm | Max stroke: 30 mm | Acting: Double, single rod | Mounting: B through-hole (standard); D double clevis, F rod flange, G head flange, L foot (on both-end tapped body) | Basic type without magnet | Operating pressure: 0.07-1.0 MPa (proof 1.5 MPa) | Cushion: None (rubber cushion option not offered for this bore per type table) | Fluid temperature: 5-60 C | Piston speed: 50-500 mm/s
TCQ2B20 Bore: 20 mm | Rod diameter: 10 mm | Rod end: female thread M5x0.8 (M male thread option) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm (51 mm and over with long-stroke add-on TC180) | Acting: Double, single rod | Mounting: B through-hole (standard); D double clevis, F rod flange, G head flange, L foot (on both-end tapped body) | Basic type without magnet | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: None (rubber cushion option not offered for this bore per type table) | Fluid temperature: 5-60 C | Piston speed: 50-500 mm/s
TCQ2B25 Bore: 25 mm | Rod diameter: 12 mm | Rod end: female thread M6x1.0 (M male thread option) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm (51 mm and over with long-stroke add-on TC335) | Acting: Double, single rod | Mounting: B through-hole (standard); D double clevis, F rod flange, G head flange, L foot (on both-end tapped body) | Basic type without magnet | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: None standard; rubber cushion option (C) | Fluid temperature: 5-60 C | Piston speed: 50-500 mm/s
TCQ2A12 Bore: 12 mm | Rod diameter: 6 mm | Rod end: female thread M3x0.5 (M male thread option) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30 mm | Max stroke: 30 mm | Acting: Double, single rod | Mounting: A both-end tapped; D double clevis, F rod flange, G head flange, L foot (on both-end tapped body) | Basic type without magnet | Operating pressure: 0.07-1.0 MPa (proof 1.5 MPa) | Cushion: None (rubber cushion option not offered for this bore per type table) | Fluid temperature: 5-60 C | Piston speed: 50-500 mm/s
TCQ2A16 Bore: 16 mm | Rod diameter: 8 mm | Rod end: female thread M4x0.7 (M male thread option) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30 mm | Max stroke: 30 mm | Acting: Double, single rod | Mounting: A both-end tapped; D double clevis, F rod flange, G head flange, L foot (on both-end tapped body) | Basic type without magnet | Operating pressure: 0.07-1.0 MPa (proof 1.5 MPa) | Cushion: None (rubber cushion option not offered for this bore per type table) | Fluid temperature: 5-60 C | Piston speed: 50-500 mm/s
TCQ2A20 Bore: 20 mm | Rod diameter: 10 mm | Rod end: female thread M5x0.8 (M male thread option) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm (51 mm and over with long-stroke add-on TC180) | Acting: Double, single rod | Mounting: A both-end tapped; D double clevis, F rod flange, G head flange, L foot (on both-end tapped body) | Basic type without magnet | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: None (rubber cushion option not offered for this bore per type table) | Fluid temperature: 5-60 C | Piston speed: 50-500 mm/s
TCQ2A25 Bore: 25 mm | Rod diameter: 12 mm | Rod end: female thread M6x1.0 (M male thread option) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm (51 mm and over with long-stroke add-on TC335) | Acting: Double, single rod | Mounting: A both-end tapped; D double clevis, F rod flange, G head flange, L foot (on both-end tapped body) | Basic type without magnet | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: None standard; rubber cushion option (C) | Fluid temperature: 5-60 C | Piston speed: 50-500 mm/s
TCDQ2B12 Bore: 12 mm | Rod diameter: 6 mm | Rod end: female thread M3x0.5 (M male thread option) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30 mm | Max stroke: 30 mm | Acting: Double, single rod | Mounting: B through-hole (standard); D double clevis, F rod flange, G head flange, L foot (on both-end tapped body) | Built-in magnet for auto switch (D-A73K) | Operating pressure: 0.07-1.0 MPa (proof 1.5 MPa) | Cushion: None (rubber cushion option not offered for this bore per type table) | Fluid temperature: 5-60 C | Piston speed: 50-500 mm/s
TCDQ2B16 Bore: 16 mm | Rod diameter: 8 mm | Rod end: female thread M4x0.7 (M male thread option) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30 mm | Max stroke: 30 mm | Acting: Double, single rod | Mounting: B through-hole (standard); D double clevis, F rod flange, G head flange, L foot (on both-end tapped body) | Built-in magnet for auto switch (D-A73K) | Operating pressure: 0.07-1.0 MPa (proof 1.5 MPa) | Cushion: None (rubber cushion option not offered for this bore per type table) | Fluid temperature: 5-60 C | Piston speed: 50-500 mm/s
TCDQ2B20 Bore: 20 mm | Rod diameter: 10 mm | Rod end: female thread M5x0.8 (M male thread option) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm (51 mm and over with long-stroke add-on TC180) | Acting: Double, single rod | Mounting: B through-hole (standard); D double clevis, F rod flange, G head flange, L foot (on both-end tapped body) | Built-in magnet for auto switch (D-A73K) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: None (rubber cushion option not offered for this bore per type table) | Fluid temperature: 5-60 C | Piston speed: 50-500 mm/s
TCDQ2B25 Bore: 25 mm | Rod diameter: 12 mm | Rod end: female thread M6x1.0 (M male thread option) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm (51 mm and over with long-stroke add-on TC335) | Acting: Double, single rod | Mounting: B through-hole (standard); D double clevis, F rod flange, G head flange, L foot (on both-end tapped body) | Built-in magnet for auto switch (D-A73K) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: None standard; rubber cushion option (C) | Fluid temperature: 5-60 C | Piston speed: 50-500 mm/s
TCDQ2A12 Bore: 12 mm | Rod diameter: 6 mm | Rod end: female thread M3x0.5 (M male thread option) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30 mm | Max stroke: 30 mm | Acting: Double, single rod | Mounting: A both-end tapped; D double clevis, F rod flange, G head flange, L foot (on both-end tapped body) | Built-in magnet for auto switch (D-A73K) | Operating pressure: 0.07-1.0 MPa (proof 1.5 MPa) | Cushion: None (rubber cushion option not offered for this bore per type table) | Fluid temperature: 5-60 C | Piston speed: 50-500 mm/s
TCDQ2A16 Bore: 16 mm | Rod diameter: 8 mm | Rod end: female thread M4x0.7 (M male thread option) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30 mm | Max stroke: 30 mm | Acting: Double, single rod | Mounting: A both-end tapped; D double clevis, F rod flange, G head flange, L foot (on both-end tapped body) | Built-in magnet for auto switch (D-A73K) | Operating pressure: 0.07-1.0 MPa (proof 1.5 MPa) | Cushion: None (rubber cushion option not offered for this bore per type table) | Fluid temperature: 5-60 C | Piston speed: 50-500 mm/s
TCDQ2A20 Bore: 20 mm | Rod diameter: 10 mm | Rod end: female thread M5x0.8 (M male thread option) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm (51 mm and over with long-stroke add-on TC180) | Acting: Double, single rod | Mounting: A both-end tapped; D double clevis, F rod flange, G head flange, L foot (on both-end tapped body) | Built-in magnet for auto switch (D-A73K) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: None (rubber cushion option not offered for this bore per type table) | Fluid temperature: 5-60 C | Piston speed: 50-500 mm/s
TCDQ2A25 Bore: 25 mm | Rod diameter: 12 mm | Rod end: female thread M6x1.0 (M male thread option) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm (51 mm and over with long-stroke add-on TC335) | Acting: Double, single rod | Mounting: A both-end tapped; D double clevis, F rod flange, G head flange, L foot (on both-end tapped body) | Built-in magnet for auto switch (D-A73K) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: None standard; rubber cushion option (C) | Fluid temperature: 5-60 C | Piston speed: 50-500 mm/s
Pneumatic CylindersTPC Mechatronics
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics TCQ2 Thin Cylinder, Double-Acting Single Rod (Bore 12-25 mm)

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (16)

TCQ2B12, TCQ2B16, TCQ2B20, TCQ2B25, TCQ2A12, TCQ2A16, TCQ2A20, TCQ2A25, TCDQ2B12, TCDQ2B16 + 6 more — see full table ↓

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TCQ2B12Bore: 12 mm | Rod diameter: 6 mm | Rod end: female thread M3x0.5 (M male thread option) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30 mm | Max stroke: 30 mm | Acting: Double, single rod | Mounting: B through-hole (standard); D double clevis, F rod flange, G head flange, L foot (on both-end tapped body) | Basic type without magnet | Operating pressure: 0.07-1.0 MPa (proof 1.5 MPa) | Cushion: None (rubber cushion option not offered for this bore per type table) | Fluid temperature: 5-60 C | Piston speed: 50-500 mm/s
TCQ2B16Bore: 16 mm | Rod diameter: 8 mm | Rod end: female thread M4x0.7 (M male thread option) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30 mm | Max stroke: 30 mm | Acting: Double, single rod | Mounting: B through-hole (standard); D double clevis, F rod flange, G head flange, L foot (on both-end tapped body) | Basic type without magnet | Operating pressure: 0.07-1.0 MPa (proof 1.5 MPa) | Cushion: None (rubber cushion option not offered for this bore per type table) | Fluid temperature: 5-60 C | Piston speed: 50-500 mm/s
TCQ2B20Bore: 20 mm | Rod diameter: 10 mm | Rod end: female thread M5x0.8 (M male thread option) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm (51 mm and over with long-stroke add-on TC180) | Acting: Double, single rod | Mounting: B through-hole (standard); D double clevis, F rod flange, G head flange, L foot (on both-end tapped body) | Basic type without magnet | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: None (rubber cushion option not offered for this bore per type table) | Fluid temperature: 5-60 C | Piston speed: 50-500 mm/s
TCQ2B25Bore: 25 mm | Rod diameter: 12 mm | Rod end: female thread M6x1.0 (M male thread option) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm (51 mm and over with long-stroke add-on TC335) | Acting: Double, single rod | Mounting: B through-hole (standard); D double clevis, F rod flange, G head flange, L foot (on both-end tapped body) | Basic type without magnet | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: None standard; rubber cushion option (C) | Fluid temperature: 5-60 C | Piston speed: 50-500 mm/s
TCQ2A12Bore: 12 mm | Rod diameter: 6 mm | Rod end: female thread M3x0.5 (M male thread option) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30 mm | Max stroke: 30 mm | Acting: Double, single rod | Mounting: A both-end tapped; D double clevis, F rod flange, G head flange, L foot (on both-end tapped body) | Basic type without magnet | Operating pressure: 0.07-1.0 MPa (proof 1.5 MPa) | Cushion: None (rubber cushion option not offered for this bore per type table) | Fluid temperature: 5-60 C | Piston speed: 50-500 mm/s
TCQ2A16Bore: 16 mm | Rod diameter: 8 mm | Rod end: female thread M4x0.7 (M male thread option) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30 mm | Max stroke: 30 mm | Acting: Double, single rod | Mounting: A both-end tapped; D double clevis, F rod flange, G head flange, L foot (on both-end tapped body) | Basic type without magnet | Operating pressure: 0.07-1.0 MPa (proof 1.5 MPa) | Cushion: None (rubber cushion option not offered for this bore per type table) | Fluid temperature: 5-60 C | Piston speed: 50-500 mm/s
TCQ2A20Bore: 20 mm | Rod diameter: 10 mm | Rod end: female thread M5x0.8 (M male thread option) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm (51 mm and over with long-stroke add-on TC180) | Acting: Double, single rod | Mounting: A both-end tapped; D double clevis, F rod flange, G head flange, L foot (on both-end tapped body) | Basic type without magnet | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: None (rubber cushion option not offered for this bore per type table) | Fluid temperature: 5-60 C | Piston speed: 50-500 mm/s
TCQ2A25Bore: 25 mm | Rod diameter: 12 mm | Rod end: female thread M6x1.0 (M male thread option) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm (51 mm and over with long-stroke add-on TC335) | Acting: Double, single rod | Mounting: A both-end tapped; D double clevis, F rod flange, G head flange, L foot (on both-end tapped body) | Basic type without magnet | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: None standard; rubber cushion option (C) | Fluid temperature: 5-60 C | Piston speed: 50-500 mm/s
TCDQ2B12Bore: 12 mm | Rod diameter: 6 mm | Rod end: female thread M3x0.5 (M male thread option) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30 mm | Max stroke: 30 mm | Acting: Double, single rod | Mounting: B through-hole (standard); D double clevis, F rod flange, G head flange, L foot (on both-end tapped body) | Built-in magnet for auto switch (D-A73K) | Operating pressure: 0.07-1.0 MPa (proof 1.5 MPa) | Cushion: None (rubber cushion option not offered for this bore per type table) | Fluid temperature: 5-60 C | Piston speed: 50-500 mm/s
TCDQ2B16Bore: 16 mm | Rod diameter: 8 mm | Rod end: female thread M4x0.7 (M male thread option) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30 mm | Max stroke: 30 mm | Acting: Double, single rod | Mounting: B through-hole (standard); D double clevis, F rod flange, G head flange, L foot (on both-end tapped body) | Built-in magnet for auto switch (D-A73K) | Operating pressure: 0.07-1.0 MPa (proof 1.5 MPa) | Cushion: None (rubber cushion option not offered for this bore per type table) | Fluid temperature: 5-60 C | Piston speed: 50-500 mm/s
TCDQ2B20Bore: 20 mm | Rod diameter: 10 mm | Rod end: female thread M5x0.8 (M male thread option) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm (51 mm and over with long-stroke add-on TC180) | Acting: Double, single rod | Mounting: B through-hole (standard); D double clevis, F rod flange, G head flange, L foot (on both-end tapped body) | Built-in magnet for auto switch (D-A73K) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: None (rubber cushion option not offered for this bore per type table) | Fluid temperature: 5-60 C | Piston speed: 50-500 mm/s
TCDQ2B25Bore: 25 mm | Rod diameter: 12 mm | Rod end: female thread M6x1.0 (M male thread option) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm (51 mm and over with long-stroke add-on TC335) | Acting: Double, single rod | Mounting: B through-hole (standard); D double clevis, F rod flange, G head flange, L foot (on both-end tapped body) | Built-in magnet for auto switch (D-A73K) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: None standard; rubber cushion option (C) | Fluid temperature: 5-60 C | Piston speed: 50-500 mm/s
TCDQ2A12Bore: 12 mm | Rod diameter: 6 mm | Rod end: female thread M3x0.5 (M male thread option) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30 mm | Max stroke: 30 mm | Acting: Double, single rod | Mounting: A both-end tapped; D double clevis, F rod flange, G head flange, L foot (on both-end tapped body) | Built-in magnet for auto switch (D-A73K) | Operating pressure: 0.07-1.0 MPa (proof 1.5 MPa) | Cushion: None (rubber cushion option not offered for this bore per type table) | Fluid temperature: 5-60 C | Piston speed: 50-500 mm/s
TCDQ2A16Bore: 16 mm | Rod diameter: 8 mm | Rod end: female thread M4x0.7 (M male thread option) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30 mm | Max stroke: 30 mm | Acting: Double, single rod | Mounting: A both-end tapped; D double clevis, F rod flange, G head flange, L foot (on both-end tapped body) | Built-in magnet for auto switch (D-A73K) | Operating pressure: 0.07-1.0 MPa (proof 1.5 MPa) | Cushion: None (rubber cushion option not offered for this bore per type table) | Fluid temperature: 5-60 C | Piston speed: 50-500 mm/s
TCDQ2A20Bore: 20 mm | Rod diameter: 10 mm | Rod end: female thread M5x0.8 (M male thread option) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm (51 mm and over with long-stroke add-on TC180) | Acting: Double, single rod | Mounting: A both-end tapped; D double clevis, F rod flange, G head flange, L foot (on both-end tapped body) | Built-in magnet for auto switch (D-A73K) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: None (rubber cushion option not offered for this bore per type table) | Fluid temperature: 5-60 C | Piston speed: 50-500 mm/s
TCDQ2A25Bore: 25 mm | Rod diameter: 12 mm | Rod end: female thread M6x1.0 (M male thread option) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm (51 mm and over with long-stroke add-on TC335) | Acting: Double, single rod | Mounting: A both-end tapped; D double clevis, F rod flange, G head flange, L foot (on both-end tapped body) | Built-in magnet for auto switch (D-A73K) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: None standard; rubber cushion option (C) | Fluid temperature: 5-60 C | Piston speed: 50-500 mm/s
