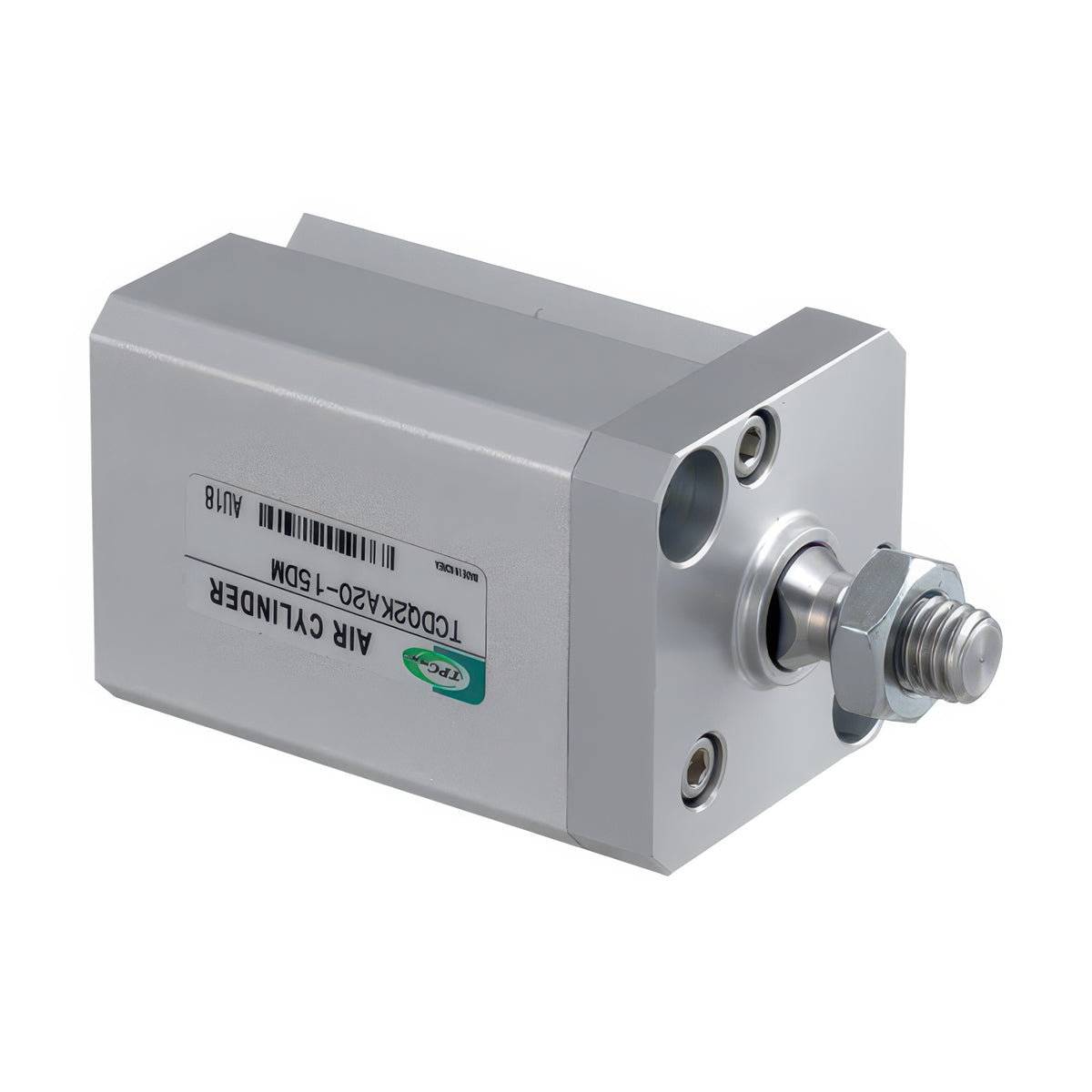

TPC Mechatronics TCQ2K Non-Rotating Rod Thin Cylinder (Bore 20-25 mm)

TPC Mechatronics TCQ2K Non-Rotating Rod Thin Cylinder (Bore 20-25 mm)

The TCQ2K series is a double-acting thin air cylinder with a non-rotating piston rod for 20 and 25 mm bores.

Key features

  • A flat-sided rod and bushing hold rod rotation to +/-1 degree, so tooling stays aligned without a separate guide
  • Mounting is through-hole (B) or both-end tapped (A)
  • The TCDQ2K version has a built-in magnet for D-A73K reed auto switches
  • Male rod end and head-side spigot are available as options

Specifications

Non-rotating accuracy +/-1 deg
Port M5x0.8
Standard strokes 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 mm
Max stroke 50 mm
Acting Double, single rod
Operating pressure 0.05-1.0 MPa (proof 1.5 MPa)
Cushion none
Fluid temperature -10 to 70 C (no freezing)
Piston speed 50-500 mm/s
TCQ2KB20 Bore: 20 mm | Rod diameter: 10 mm, non-rotating (flat) rod | Rod end: female thread M5x0.8 (M male thread option) | Non-rotating accuracy: +/-1 deg | Allowable rotation torque: 2.0 kgf-cm | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 mm | Max stroke: 50 mm | Acting: Double, single rod | Mounting: B through-hole (standard) | Basic type without magnet | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none | Fluid temperature: -10 to 70 C (no freezing) | Piston speed: 50-500 mm/s
TCQ2KB25 Bore: 25 mm | Rod diameter: 12 mm, non-rotating (flat) rod | Rod end: female thread M6x1.0 (M male thread option) | Non-rotating accuracy: +/-1 deg | Allowable rotation torque: 2.5 kgf-cm | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 mm | Max stroke: 50 mm | Acting: Double, single rod | Mounting: B through-hole (standard) | Basic type without magnet | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none | Fluid temperature: -10 to 70 C (no freezing) | Piston speed: 50-500 mm/s
TCQ2KA20 Bore: 20 mm | Rod diameter: 10 mm, non-rotating (flat) rod | Rod end: female thread M5x0.8 (M male thread option) | Non-rotating accuracy: +/-1 deg | Allowable rotation torque: 2.0 kgf-cm | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 mm | Max stroke: 50 mm | Acting: Double, single rod | Mounting: A both-end tapped | Basic type without magnet | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none | Fluid temperature: -10 to 70 C (no freezing) | Piston speed: 50-500 mm/s
TCQ2KA25 Bore: 25 mm | Rod diameter: 12 mm, non-rotating (flat) rod | Rod end: female thread M6x1.0 (M male thread option) | Non-rotating accuracy: +/-1 deg | Allowable rotation torque: 2.5 kgf-cm | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 mm | Max stroke: 50 mm | Acting: Double, single rod | Mounting: A both-end tapped | Basic type without magnet | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none | Fluid temperature: -10 to 70 C (no freezing) | Piston speed: 50-500 mm/s
TCDQ2KB20 Bore: 20 mm | Rod diameter: 10 mm, non-rotating (flat) rod | Rod end: female thread M5x0.8 (M male thread option) | Non-rotating accuracy: +/-1 deg | Allowable rotation torque: 2.0 kgf-cm | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 mm | Max stroke: 50 mm | Acting: Double, single rod | Mounting: B through-hole (standard) | Built-in magnet for auto switch (D-A73K) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none | Fluid temperature: -10 to 70 C (no freezing) | Piston speed: 50-500 mm/s
TCDQ2KB25 Bore: 25 mm | Rod diameter: 12 mm, non-rotating (flat) rod | Rod end: female thread M6x1.0 (M male thread option) | Non-rotating accuracy: +/-1 deg | Allowable rotation torque: 2.5 kgf-cm | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 mm | Max stroke: 50 mm | Acting: Double, single rod | Mounting: B through-hole (standard) | Built-in magnet for auto switch (D-A73K) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none | Fluid temperature: -10 to 70 C (no freezing) | Piston speed: 50-500 mm/s
TCDQ2KA20 Bore: 20 mm | Rod diameter: 10 mm, non-rotating (flat) rod | Rod end: female thread M5x0.8 (M male thread option) | Non-rotating accuracy: +/-1 deg | Allowable rotation torque: 2.0 kgf-cm | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 mm | Max stroke: 50 mm | Acting: Double, single rod | Mounting: A both-end tapped | Built-in magnet for auto switch (D-A73K) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none | Fluid temperature: -10 to 70 C (no freezing) | Piston speed: 50-500 mm/s
TCDQ2KA25 Bore: 25 mm | Rod diameter: 12 mm, non-rotating (flat) rod | Rod end: female thread M6x1.0 (M male thread option) | Non-rotating accuracy: +/-1 deg | Allowable rotation torque: 2.5 kgf-cm | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 mm | Max stroke: 50 mm | Acting: Double, single rod | Mounting: A both-end tapped | Built-in magnet for auto switch (D-A73K) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none | Fluid temperature: -10 to 70 C (no freezing) | Piston speed: 50-500 mm/s
