TPC Mechatronics TCRLB Rodless Cylinder (External roller guide)

TPC Mechatronics TCRLB Rodless Cylinder (External roller guide)

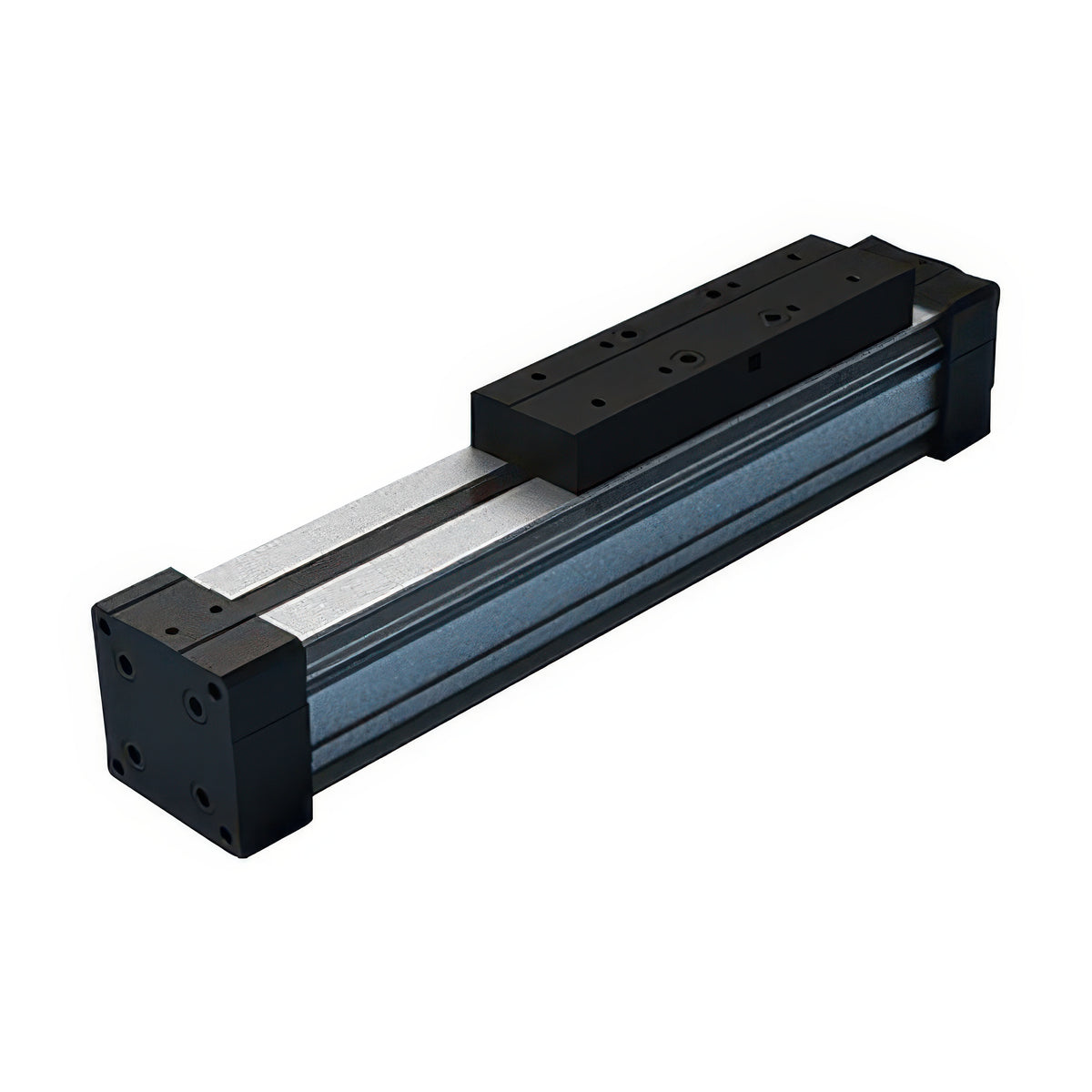

The TCRLB is a magnet-equipped slotted rodless pneumatic cylinder with an external roller guide system, available in bores 16 to 80 mm.

Key features

  • Strokes are built to order in 1 mm steps up to 5000 mm, giving long travel in a compact installation length
  • Adjustable air cushions are provided at both ends and piston speeds up to 2000 mm/s are supported
  • The series is designed for long life and easy maintenance
  • Foot mounts, center supports, carriage brackets and swinging bridges are available as options

Specifications

Guide B = external roller guide
Stroke made to order in 1 mm steps, max 5000 mm
Acting Double
Magnet built in
Options F foot mount, C center support, UF/UR carriage bracket, S swinging bridge
TCRLB16 Bore: 16 mm | Guide: B = external roller guide | Port: M5 | Stroke: made to order in 1 mm steps, max 5000 mm | Acting: Double | Operating pressure: 0.15-1 MPa | Speed: 150-2000 mm/s | Cushion: adjustable air cushion, cushion length 12 mm | Theoretical force at 0.5 MPa: 100 N | Weight: 0.18 kg at 0 mm stroke + 0.001 kg per mm | Magnet: built in | Options: F foot mount, C center support, UF/UR carriage bracket, S swinging bridge
TCRLB20 Bore: 20 mm | Guide: B = external roller guide | Port: G1/8 | Stroke: made to order in 1 mm steps, max 5000 mm | Acting: Double | Operating pressure: 0.1-1 MPa | Speed: 150-2000 mm/s | Cushion: adjustable air cushion, cushion length 26 mm | Theoretical force at 0.5 MPa: 157 N | Weight: 0.6 kg at 0 mm stroke + 0.0015 kg per mm | Magnet: built in | Options: F foot mount, C center support, UF/UR carriage bracket, S swinging bridge
TCRLB25 Bore: 25 mm | Guide: B = external roller guide | Port: G1/8 | Stroke: made to order in 1 mm steps, max 5000 mm | Acting: Double | Operating pressure: 0.1-1 MPa | Speed: 100-2000 mm/s | Cushion: adjustable air cushion, cushion length 26 mm | Theoretical force at 0.5 MPa: 245 N | Weight: 0.9 kg at 0 mm stroke + 0.002 kg per mm | Magnet: built in | Options: F foot mount, C center support, UF/UR carriage bracket, S swinging bridge
TCRLB32 Bore: 32 mm | Guide: B = external roller guide | Port: G1/4 | Stroke: made to order in 1 mm steps, max 5000 mm | Acting: Double | Operating pressure: 0.1-1 MPa | Speed: 100-2000 mm/s | Cushion: adjustable air cushion, cushion length 35 mm | Theoretical force at 0.5 MPa: 402 N | Weight: 1.7 kg at 0 mm stroke + 0.0035 kg per mm | Magnet: built in | Options: F foot mount, C center support, UF/UR carriage bracket, S swinging bridge
TCRLB40 Bore: 40 mm | Guide: B = external roller guide | Port: G1/4 | Stroke: made to order in 1 mm steps, max 5000 mm | Acting: Double | Operating pressure: 0.1-1 MPa | Speed: 100-2000 mm/s | Cushion: adjustable air cushion, cushion length 50 mm | Theoretical force at 0.5 MPa: 628 N | Weight: 2.9 kg at 0 mm stroke + 0.005 kg per mm | Magnet: built in | Options: F foot mount, C center support, UF/UR carriage bracket, S swinging bridge
TCRLB50 Bore: 50 mm | Guide: B = external roller guide | Port: G3/8 | Stroke: made to order in 1 mm steps, max 5000 mm | Acting: Double | Operating pressure: 0.1-1 MPa | Speed: 100-2000 mm/s | Cushion: adjustable air cushion, cushion length 60 mm | Theoretical force at 0.5 MPa: 982 N | Weight: 4.9 kg at 0 mm stroke + 0.0075 kg per mm | Magnet: built in | Options: F foot mount, C center support, UF/UR carriage bracket, S swinging bridge
TCRLB63 Bore: 63 mm | Guide: B = external roller guide | Port: G1/2 | Stroke: made to order in 1 mm steps, max 5000 mm | Acting: Double | Operating pressure: 0.1-1 MPa | Speed: 100-2000 mm/s | Cushion: adjustable air cushion, cushion length 70 mm | Theoretical force at 0.5 MPa: 1558 N | Weight: 7.7 kg at 0 mm stroke + 0.01 kg per mm | Magnet: built in | Options: F foot mount, C center support, UF/UR carriage bracket, S swinging bridge
TCRLB80 Bore: 80 mm | Guide: B = external roller guide | Port: G1/2 | Stroke: made to order in 1 mm steps, max 5000 mm | Acting: Double | Operating pressure: 0.1-1 MPa | Speed: 100-2000 mm/s | Cushion: adjustable air cushion, cushion length 75 mm | Theoretical force at 0.5 MPa: 2512 N | Weight: 13.4 kg at 0 mm stroke + 0.015 kg per mm | Magnet: built in | Options: F foot mount, C center support, UF/UR carriage bracket, S swinging bridge
