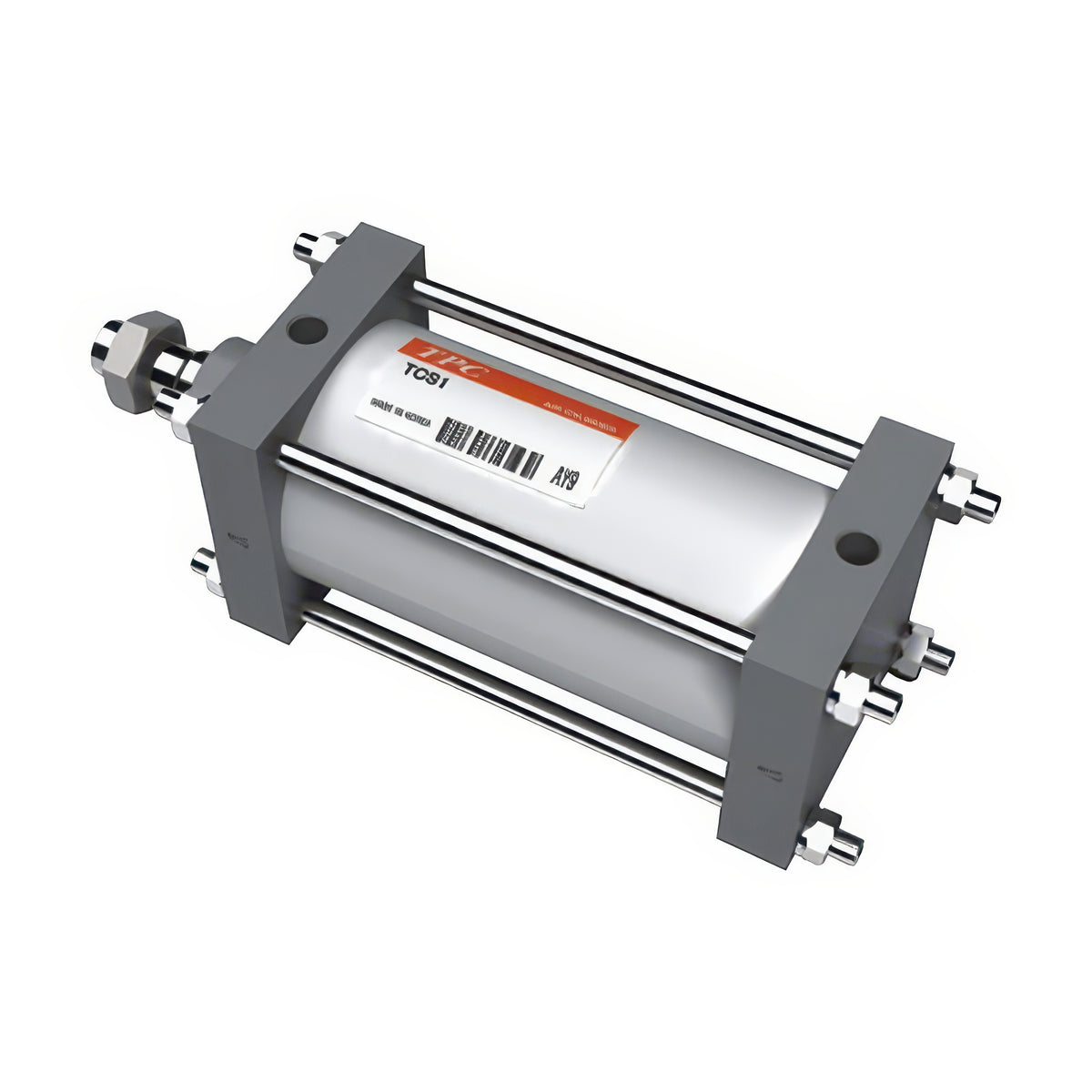

TPC Mechatronics TCS1 Series Large-Bore Pneumatic Cylinder (Double Acting, Basic Mount)

TPC Mechatronics TCS1 Series Large-Bore Pneumatic Cylinder (Double Acting, Basic Mount)

The TCS1 series is a large-bore double-acting tie-rod pneumatic cylinder with steel covers, in bores 125 to 300 mm.

Key features

  • Aluminium tubes are used for bores 125 to 200 mm and steel tubes (F) for bores up to 300 mm; bores 250 and 300 mm are steel-tube only
  • Codes are composed for the basic mount, non-lube (N) type; TCDS1 codes add a built-in magnet for auto switches (aluminium tube only)
  • A wide range of mounting brackets is available, and compact auto switches can be fitted on bores 125 to 200 mm
  • The large construction gives high durability and performance

Specifications

Acting Double
Type N non-lube
Cover steel
Mounting options B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion
Operating pressure 0.05-1.0 MPa (proof 1.6 MPa)
Piston speed 50-500 mm/s
Cushion Air cushion both ends (R/H/N options)
Ambient/fluid temperature 5-60 C
TCS1BN125 Bore: 125 mm | Rod diameter: 36 mm | Rod end thread: M30x1.5 | Port: Rc1/2 | Stroke range: 30-1000 mm | Acting: Double | Type: N non-lube | Tube: aluminium tube | Cover: steel | Magnet: without auto switch magnet | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion | Operating pressure: 0.05-1.0 MPa (proof 1.6 MPa) | Piston speed: 50-500 mm/s | Cushion: Air cushion both ends (R/H/N options) | Ambient/fluid temperature: 5-60 C
TCDS1BN125 Bore: 125 mm | Rod diameter: 36 mm | Rod end thread: M30x1.5 | Port: Rc1/2 | Stroke range: 30-1000 mm | Acting: Double | Type: N non-lube | Tube: aluminium tube | Cover: steel | Magnet: with built-in magnet (auto switch ready) | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion | Operating pressure: 0.05-1.0 MPa (proof 1.6 MPa) | Piston speed: 50-500 mm/s | Cushion: Air cushion both ends (R/H/N options) | Ambient/fluid temperature: 5-60 C
TCS1BN140 Bore: 140 mm | Rod diameter: 36 mm | Rod end thread: M30x1.5 | Port: Rc1/2 | Stroke range: 30-1000 mm | Acting: Double | Type: N non-lube | Tube: aluminium tube | Cover: steel | Magnet: without auto switch magnet | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion | Operating pressure: 0.05-1.0 MPa (proof 1.6 MPa) | Piston speed: 50-500 mm/s | Cushion: Air cushion both ends (R/H/N options) | Ambient/fluid temperature: 5-60 C
TCDS1BN140 Bore: 140 mm | Rod diameter: 36 mm | Rod end thread: M30x1.5 | Port: Rc1/2 | Stroke range: 30-1000 mm | Acting: Double | Type: N non-lube | Tube: aluminium tube | Cover: steel | Magnet: with built-in magnet (auto switch ready) | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion | Operating pressure: 0.05-1.0 MPa (proof 1.6 MPa) | Piston speed: 50-500 mm/s | Cushion: Air cushion both ends (R/H/N options) | Ambient/fluid temperature: 5-60 C
TCS1BN160 Bore: 160 mm | Rod diameter: 40 mm | Rod end thread: M36x1.5 | Port: Rc3/4 | Stroke range: 30-1200 mm | Acting: Double | Type: N non-lube | Tube: aluminium tube | Cover: steel | Magnet: without auto switch magnet | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion | Operating pressure: 0.05-1.0 MPa (proof 1.6 MPa) | Piston speed: 50-500 mm/s | Cushion: Air cushion both ends (R/H/N options) | Ambient/fluid temperature: 5-60 C
TCDS1BN160 Bore: 160 mm | Rod diameter: 40 mm | Rod end thread: M36x1.5 | Port: Rc3/4 | Stroke range: 30-1200 mm | Acting: Double | Type: N non-lube | Tube: aluminium tube | Cover: steel | Magnet: with built-in magnet (auto switch ready) | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion | Operating pressure: 0.05-1.0 MPa (proof 1.6 MPa) | Piston speed: 50-500 mm/s | Cushion: Air cushion both ends (R/H/N options) | Ambient/fluid temperature: 5-60 C
TCS1BN180 Bore: 180 mm | Rod diameter: 45 mm | Rod end thread: M40x1.5 | Port: Rc3/4 | Stroke range: 30-1200 mm | Acting: Double | Type: N non-lube | Tube: aluminium tube | Cover: steel | Magnet: without auto switch magnet | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion | Operating pressure: 0.05-1.0 MPa (proof 1.6 MPa) | Piston speed: 50-500 mm/s | Cushion: Air cushion both ends (R/H/N options) | Ambient/fluid temperature: 5-60 C
TCDS1BN180 Bore: 180 mm | Rod diameter: 45 mm | Rod end thread: M40x1.5 | Port: Rc3/4 | Stroke range: 30-1200 mm | Acting: Double | Type: N non-lube | Tube: aluminium tube | Cover: steel | Magnet: with built-in magnet (auto switch ready) | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion | Operating pressure: 0.05-1.0 MPa (proof 1.6 MPa) | Piston speed: 50-500 mm/s | Cushion: Air cushion both ends (R/H/N options) | Ambient/fluid temperature: 5-60 C
TCS1BN200 Bore: 200 mm | Rod diameter: 50 mm | Rod end thread: M45x1.5 | Port: Rc3/4 | Stroke range: 30-1200 mm | Acting: Double | Type: N non-lube | Tube: aluminium tube | Cover: steel | Magnet: without auto switch magnet | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion | Operating pressure: 0.05-1.0 MPa (proof 1.6 MPa) | Piston speed: 50-500 mm/s | Cushion: Air cushion both ends (R/H/N options) | Ambient/fluid temperature: 5-60 C
TCDS1BN200 Bore: 200 mm | Rod diameter: 50 mm | Rod end thread: M45x1.5 | Port: Rc3/4 | Stroke range: 30-1200 mm | Acting: Double | Type: N non-lube | Tube: aluminium tube | Cover: steel | Magnet: with built-in magnet (auto switch ready) | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion | Operating pressure: 0.05-1.0 MPa (proof 1.6 MPa) | Piston speed: 50-500 mm/s | Cushion: Air cushion both ends (R/H/N options) | Ambient/fluid temperature: 5-60 C
TCS1BFN250 Bore: 250 mm | Rod diameter: 60 mm | Rod end thread: M56x2 | Port: Rc1 | Stroke range: 30-1200 mm | Acting: Double | Type: N non-lube | Tube: steel tube (F; aluminium tube not available) | Cover: steel | Magnet: without auto switch magnet | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion | Operating pressure: 0.05-1.0 MPa (proof 1.6 MPa) | Piston speed: 50-500 mm/s | Cushion: Air cushion both ends (R/H/N options) | Ambient/fluid temperature: 5-60 C
TCS1BFN300 Bore: 300 mm | Rod diameter: 70 mm | Rod end thread: M64x2 | Port: Rc1 | Stroke range: 30-1200 mm | Acting: Double | Type: N non-lube | Tube: steel tube (F; aluminium tube not available) | Cover: steel | Magnet: without auto switch magnet | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion | Operating pressure: 0.05-1.0 MPa (proof 1.6 MPa) | Piston speed: 50-500 mm/s | Cushion: Air cushion both ends (R/H/N options) | Ambient/fluid temperature: 5-60 C
Pneumatic CylindersTPC Mechatronics
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics TCS1 Series Large-Bore Pneumatic Cylinder (Double Acting, Basic Mount)

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (12)

TCS1BN125, TCDS1BN125, TCS1BN140, TCDS1BN140, TCS1BN160, TCDS1BN160, TCS1BN180, TCDS1BN180, TCS1BN200, TCDS1BN200 + 2 more — see full table ↓

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TCS1BN125Bore: 125 mm | Rod diameter: 36 mm | Rod end thread: M30x1.5 | Port: Rc1/2 | Stroke range: 30-1000 mm | Acting: Double | Type: N non-lube | Tube: aluminium tube | Cover: steel | Magnet: without auto switch magnet | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion | Operating pressure: 0.05-1.0 MPa (proof 1.6 MPa) | Piston speed: 50-500 mm/s | Cushion: Air cushion both ends (R/H/N options) | Ambient/fluid temperature: 5-60 C
TCDS1BN125Bore: 125 mm | Rod diameter: 36 mm | Rod end thread: M30x1.5 | Port: Rc1/2 | Stroke range: 30-1000 mm | Acting: Double | Type: N non-lube | Tube: aluminium tube | Cover: steel | Magnet: with built-in magnet (auto switch ready) | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion | Operating pressure: 0.05-1.0 MPa (proof 1.6 MPa) | Piston speed: 50-500 mm/s | Cushion: Air cushion both ends (R/H/N options) | Ambient/fluid temperature: 5-60 C
TCS1BN140Bore: 140 mm | Rod diameter: 36 mm | Rod end thread: M30x1.5 | Port: Rc1/2 | Stroke range: 30-1000 mm | Acting: Double | Type: N non-lube | Tube: aluminium tube | Cover: steel | Magnet: without auto switch magnet | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion | Operating pressure: 0.05-1.0 MPa (proof 1.6 MPa) | Piston speed: 50-500 mm/s | Cushion: Air cushion both ends (R/H/N options) | Ambient/fluid temperature: 5-60 C
TCDS1BN140Bore: 140 mm | Rod diameter: 36 mm | Rod end thread: M30x1.5 | Port: Rc1/2 | Stroke range: 30-1000 mm | Acting: Double | Type: N non-lube | Tube: aluminium tube | Cover: steel | Magnet: with built-in magnet (auto switch ready) | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion | Operating pressure: 0.05-1.0 MPa (proof 1.6 MPa) | Piston speed: 50-500 mm/s | Cushion: Air cushion both ends (R/H/N options) | Ambient/fluid temperature: 5-60 C
TCS1BN160Bore: 160 mm | Rod diameter: 40 mm | Rod end thread: M36x1.5 | Port: Rc3/4 | Stroke range: 30-1200 mm | Acting: Double | Type: N non-lube | Tube: aluminium tube | Cover: steel | Magnet: without auto switch magnet | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion | Operating pressure: 0.05-1.0 MPa (proof 1.6 MPa) | Piston speed: 50-500 mm/s | Cushion: Air cushion both ends (R/H/N options) | Ambient/fluid temperature: 5-60 C
TCDS1BN160Bore: 160 mm | Rod diameter: 40 mm | Rod end thread: M36x1.5 | Port: Rc3/4 | Stroke range: 30-1200 mm | Acting: Double | Type: N non-lube | Tube: aluminium tube | Cover: steel | Magnet: with built-in magnet (auto switch ready) | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion | Operating pressure: 0.05-1.0 MPa (proof 1.6 MPa) | Piston speed: 50-500 mm/s | Cushion: Air cushion both ends (R/H/N options) | Ambient/fluid temperature: 5-60 C
TCS1BN180Bore: 180 mm | Rod diameter: 45 mm | Rod end thread: M40x1.5 | Port: Rc3/4 | Stroke range: 30-1200 mm | Acting: Double | Type: N non-lube | Tube: aluminium tube | Cover: steel | Magnet: without auto switch magnet | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion | Operating pressure: 0.05-1.0 MPa (proof 1.6 MPa) | Piston speed: 50-500 mm/s | Cushion: Air cushion both ends (R/H/N options) | Ambient/fluid temperature: 5-60 C
TCDS1BN180Bore: 180 mm | Rod diameter: 45 mm | Rod end thread: M40x1.5 | Port: Rc3/4 | Stroke range: 30-1200 mm | Acting: Double | Type: N non-lube | Tube: aluminium tube | Cover: steel | Magnet: with built-in magnet (auto switch ready) | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion | Operating pressure: 0.05-1.0 MPa (proof 1.6 MPa) | Piston speed: 50-500 mm/s | Cushion: Air cushion both ends (R/H/N options) | Ambient/fluid temperature: 5-60 C
TCS1BN200Bore: 200 mm | Rod diameter: 50 mm | Rod end thread: M45x1.5 | Port: Rc3/4 | Stroke range: 30-1200 mm | Acting: Double | Type: N non-lube | Tube: aluminium tube | Cover: steel | Magnet: without auto switch magnet | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion | Operating pressure: 0.05-1.0 MPa (proof 1.6 MPa) | Piston speed: 50-500 mm/s | Cushion: Air cushion both ends (R/H/N options) | Ambient/fluid temperature: 5-60 C
TCDS1BN200Bore: 200 mm | Rod diameter: 50 mm | Rod end thread: M45x1.5 | Port: Rc3/4 | Stroke range: 30-1200 mm | Acting: Double | Type: N non-lube | Tube: aluminium tube | Cover: steel | Magnet: with built-in magnet (auto switch ready) | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion | Operating pressure: 0.05-1.0 MPa (proof 1.6 MPa) | Piston speed: 50-500 mm/s | Cushion: Air cushion both ends (R/H/N options) | Ambient/fluid temperature: 5-60 C
TCS1BFN250Bore: 250 mm | Rod diameter: 60 mm | Rod end thread: M56x2 | Port: Rc1 | Stroke range: 30-1200 mm | Acting: Double | Type: N non-lube | Tube: steel tube (F; aluminium tube not available) | Cover: steel | Magnet: without auto switch magnet | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion | Operating pressure: 0.05-1.0 MPa (proof 1.6 MPa) | Piston speed: 50-500 mm/s | Cushion: Air cushion both ends (R/H/N options) | Ambient/fluid temperature: 5-60 C
TCS1BFN300Bore: 300 mm | Rod diameter: 70 mm | Rod end thread: M64x2 | Port: Rc1 | Stroke range: 30-1200 mm | Acting: Double | Type: N non-lube | Tube: steel tube (F; aluminium tube not available) | Cover: steel | Magnet: without auto switch magnet | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion | Operating pressure: 0.05-1.0 MPa (proof 1.6 MPa) | Piston speed: 50-500 mm/s | Cushion: Air cushion both ends (R/H/N options) | Ambient/fluid temperature: 5-60 C
