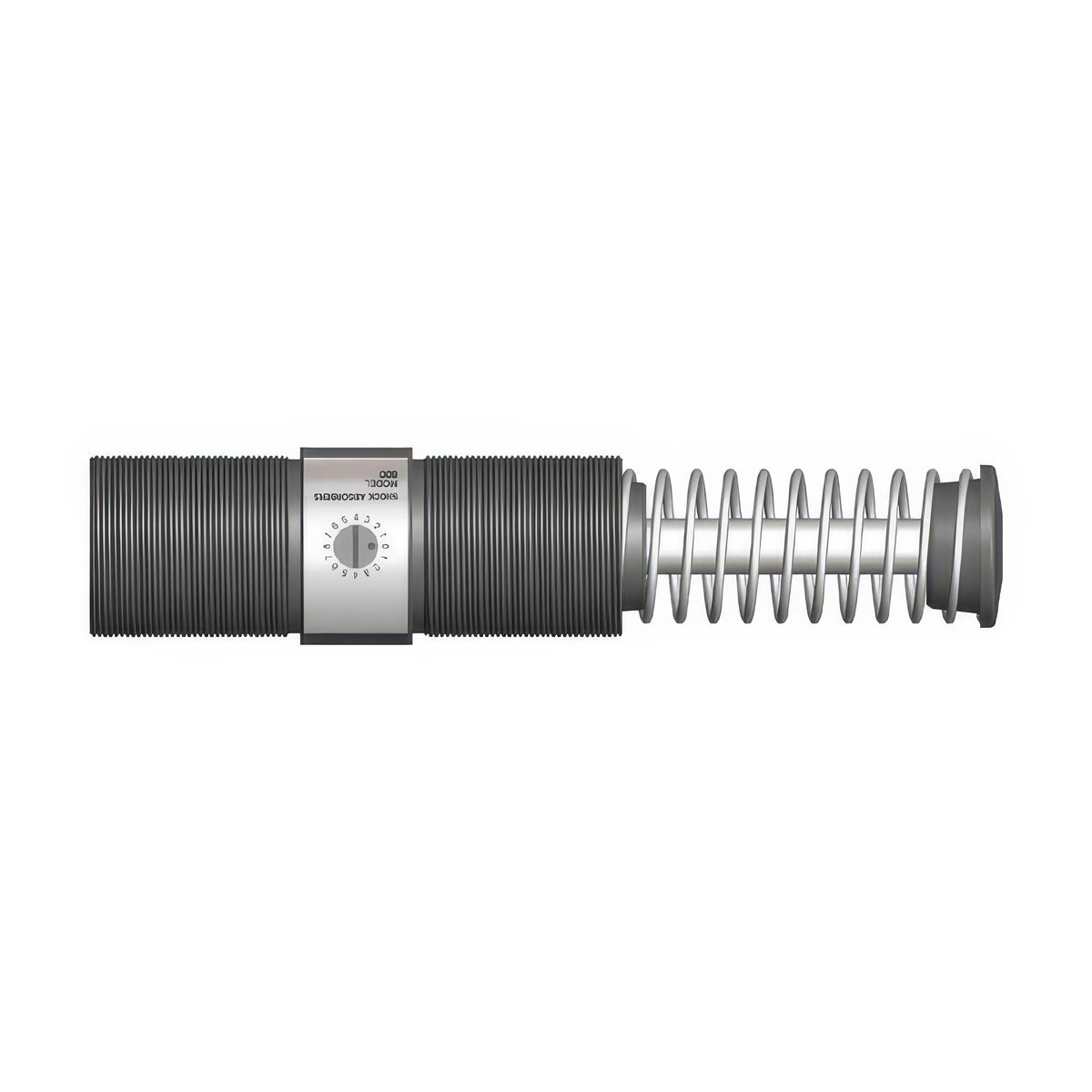

TPC Mechatronics TDC Series Heavy-Duty Adjustable Shock Absorber

TPC Mechatronics TDC Series Heavy-Duty Adjustable Shock Absorber

The TDC series is a large-bore adjustable hydraulic shock absorber for heavy loads, available in M42, M64 and M85 thread sizes with strokes from 25 to 165 mm.

Key features

  • Damping is finely adjusted in 8 steps with a dial to suit impact speed, and a larger piston area more than doubles energy capacity versus earlier designs
  • The fully threaded body allows easy, accurate mounting and dissipates heat, and the body surface is nickel-plated or black-treated
  • Standard speed range is 0.3 to 3.5 m/s and temperature range is -10 to 80 C (special version -40 to 120 C)
  • Options include stop collar, urethane cap, square flange, rod clevis, end clevis and clamp mount; two lock collars are supplied as standard

Specifications

Type Adjustable (heavy duty)
TDC42-25 Type: Adjustable (heavy duty) | Thread: M42 x 1.5 | Stroke: 25 mm | Max. energy per cycle: 250 Nm | Max. energy per hour: 125,000 Nm/h | Effective weight: 36-3,600 kg | Recoil force: 28 N extended, 56 N compressed | Overall length: 145 mm | Mass: 1.25 kg
TDC42-50 Type: Adjustable (heavy duty) | Thread: M42 x 1.5 | Stroke: 50 mm | Max. energy per cycle: 500 Nm | Max. energy per hour: 166,000 Nm/h | Effective weight: 45-6,150 kg | Recoil force: 38 N extended, 86 N compressed | Overall length: 195 mm | Mass: 1.4 kg
TDC42-75 Type: Adjustable (heavy duty) | Thread: M42 x 1.5 | Stroke: 75 mm | Max. energy per cycle: 750 Nm | Max. energy per hour: 200,000 Nm/h | Effective weight: 54-9,500 kg | Recoil force: 32 N extended, 88 N compressed | Overall length: 245 mm | Mass: 1.6 kg
TDC64-50 Type: Adjustable (heavy duty) | Thread: M64 x 2.0 | Stroke: 50 mm | Max. energy per cycle: 1,300 Nm | Max. energy per hour: 270,000 Nm/h | Effective weight: 82-12,600 kg | Recoil force: 65 N extended, 148 N compressed | Overall length: 225 mm | Mass: 3.7 kg
TDC64-100 Type: Adjustable (heavy duty) | Thread: M64 x 2.0 | Stroke: 100 mm | Max. energy per cycle: 2,600 Nm | Max. energy per hour: 360,000 Nm/h | Effective weight: 115-17,000 kg | Recoil force: 45 N extended, 157 N compressed | Overall length: 327 mm | Mass: 4.5 kg
TDC64-150 Type: Adjustable (heavy duty) | Thread: M64 x 2.0 | Stroke: 150 mm | Max. energy per cycle: 3,900 Nm | Max. energy per hour: 420,000 Nm/h | Effective weight: 140-22,000 kg | Recoil force: 47 N extended, 199 N compressed | Overall length: 455 mm | Mass: 5.3 kg
TDC85-50 Type: Adjustable (heavy duty) | Thread: M85 x 2.0 | Stroke: 50 mm | Max. energy per cycle: 2,300 Nm | Max. energy per hour: 370,000 Nm/h | Effective weight: 200-37,000 kg | Recoil force: 148 N extended, 315 N compressed | Overall length: 245 mm | Mass: 6.4 kg
TDC85-90 Type: Adjustable (heavy duty) | Thread: M85 x 2.0 | Stroke: 90 mm | Max. energy per cycle: 4,000 Nm | Max. energy per hour: 650,000 Nm/h | Effective weight: 230-40,000 kg | Recoil force: 121 N extended, 365 N compressed | Overall length: 325 mm | Mass: 7.6 kg
TDC85-125 Type: Adjustable (heavy duty) | Thread: M85 x 2.0 | Stroke: 125 mm | Max. energy per cycle: 5,700 Nm | Max. energy per hour: 930,000 Nm/h | Effective weight: 300-43,000 kg | Recoil force: 114 N extended, 365 N compressed | Overall length: 400 mm | Mass: 8.6 kg
TDC85-165 Type: Adjustable (heavy duty) | Thread: M85 x 2.0 | Stroke: 165 mm | Max. energy per cycle: 7,300 Nm | Max. energy per hour: 1,210,000 Nm/h | Effective weight: 360-45,000 kg | Recoil force: 98 N extended, 429 N compressed | Overall length: 494 mm | Mass: 9.8 kg
Shock AbsorbersTPC Mechatronics
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics TDC Series Heavy-Duty Adjustable Shock Absorber

Brand TPC Mechatronics·Shock Absorbers

Available part numbers (10)

TDC42-25, TDC42-50, TDC42-75, TDC64-50, TDC64-100, TDC64-150, TDC85-50, TDC85-90, TDC85-125, TDC85-165
