TPC Mechatronics TGM2 Series Guided Pneumatic Cylinder (Bush Type, with Guide Unit)

TPC Mechatronics TGM2 Series Guided Pneumatic Cylinder (Bush Type, with Guide Unit)

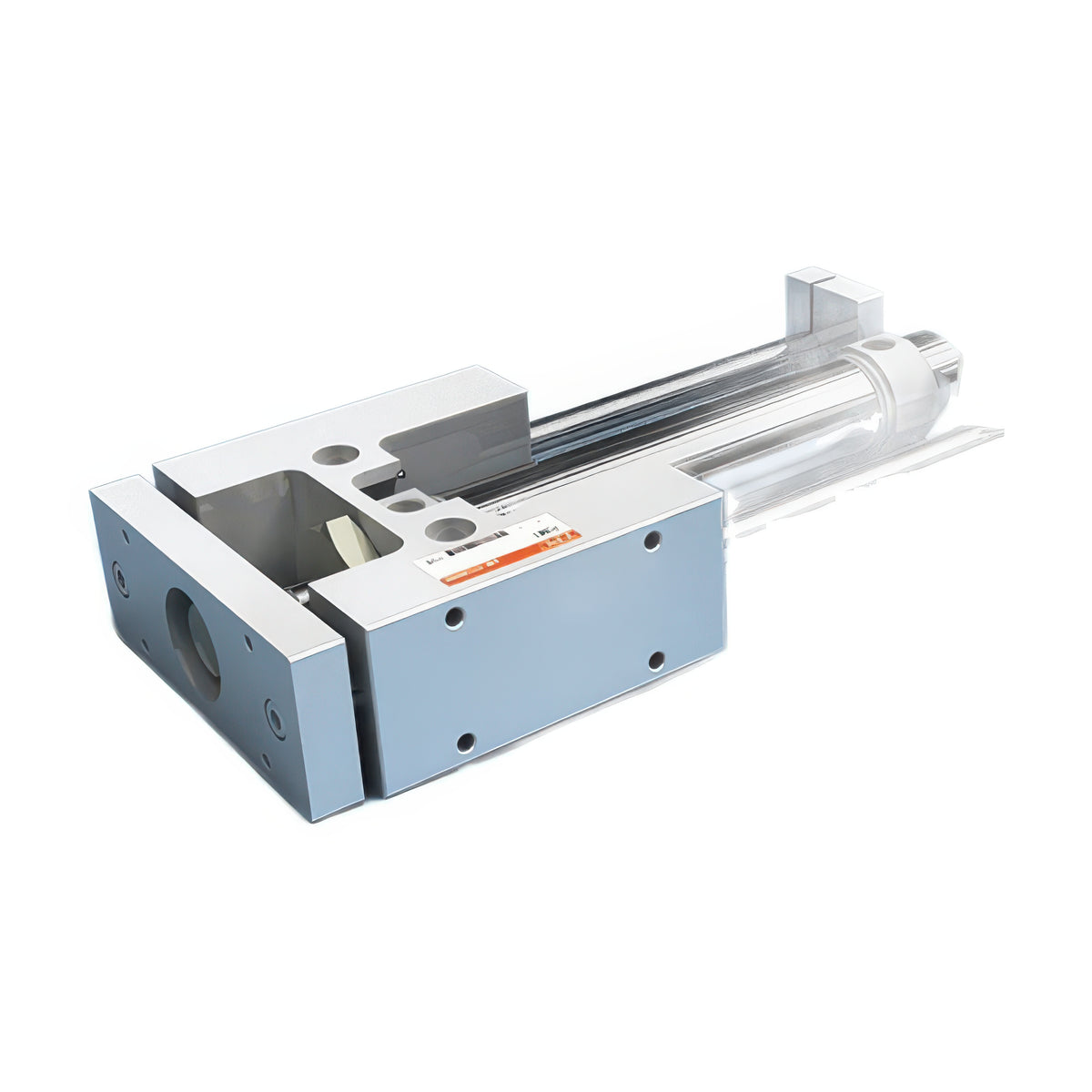

The TGM2 series is a guided pneumatic cylinder that combines a TCM2 compact cylinder with an aluminum guide unit carrying two hard-chrome-plated guide rods.

Key features

  • It is offered in bore sizes 20, 25, 32 and 40 mm with standard strokes from 25 mm up to 300, 400 or 500 mm depending on bore
  • The guide unit uses bush-type bearings made of advanced oil-free bearing material for smooth, precise motion and good resistance to lateral loads
  • Rubber cushioning is standard and an air cushion is available as an option
  • Band-mounted reed auto switches (C73K type) can be fitted, and a secondary-battery (2B) specification is available

Specifications

Type Guided cylinder (TCM2 cylinder + guide unit)
Bearing Bush (slide)
Mounting Basic
Cushion Rubber (air cushion option A)
Stroke suffix ordered separately
TGM2BB20 Bore: 20 mm | Type: Guided cylinder (TCM2 cylinder + guide unit) | Bearing: Bush (slide) | Mounting: Basic | Standard strokes: 25-300 mm (25, 50, 75, 100, 125, 150, 200, 250, 300) | Guide rod dia: 10 mm (x2) | Cylinder mounting thread: M20x1.5 | Overall length: 116.5 mm + stroke | Cushion: Rubber (air cushion option A) | Stroke suffix: ordered separately
TGM2BB25 Bore: 25 mm | Type: Guided cylinder (TCM2 cylinder + guide unit) | Bearing: Bush (slide) | Mounting: Basic | Standard strokes: 25-300 mm (25, 50, 75, 100, 125, 150, 200, 250, 300) | Guide rod dia: 12 mm (x2) | Cylinder mounting thread: M26x1.5 | Overall length: 121 mm + stroke | Cushion: Rubber (air cushion option A) | Stroke suffix: ordered separately
TGM2BB32 Bore: 32 mm | Type: Guided cylinder (TCM2 cylinder + guide unit) | Bearing: Bush (slide) | Mounting: Basic | Standard strokes: 25-400 mm (25, 50, 75, 100, 125, 150, 200, 250, 300, 350, 400) | Guide rod dia: 14 mm (x2) | Cylinder mounting thread: M26x1.5 | Overall length: 123 mm + stroke | Cushion: Rubber (air cushion option A) | Stroke suffix: ordered separately
TGM2BB40 Bore: 40 mm | Type: Guided cylinder (TCM2 cylinder + guide unit) | Bearing: Bush (slide) | Mounting: Basic | Standard strokes: 25-500 mm (25, 50, 75, 100, 125, 150, 200, 250, 300, 350, 400, 450, 500) | Guide rod dia: 16 mm (x2) | Cylinder mounting thread: M32x2.0 | Overall length: 155 mm + stroke | Cushion: Rubber (air cushion option A) | Stroke suffix: ordered separately
