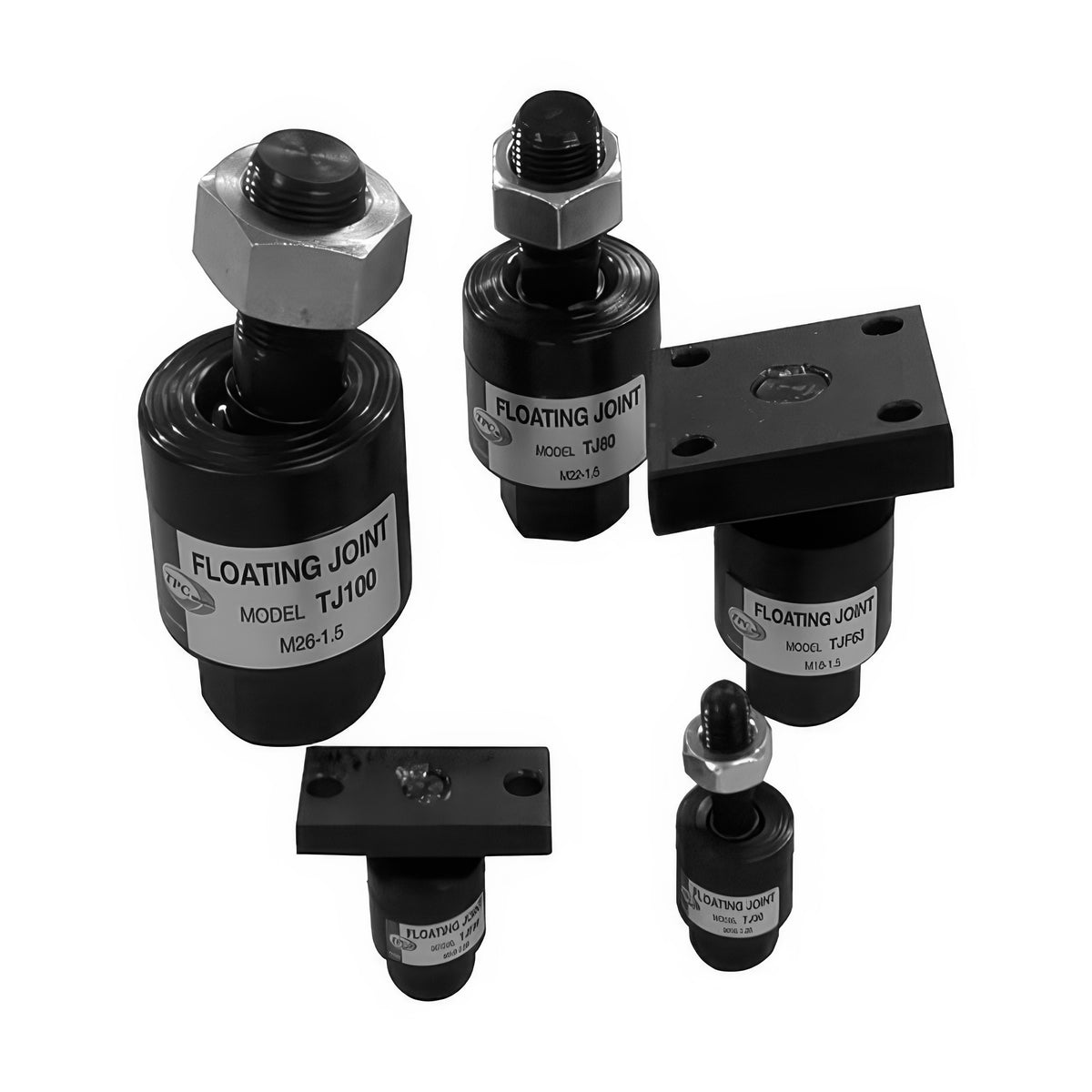

TPC Mechatronics TJ Series Floating Joint (Standard Type)
TPC Mechatronics TJ Series Floating Joint (Standard Type)
The TJ series is a floating joint that connects a cylinder rod to the driven load and absorbs eccentricity and parallelism errors between the two axes.
Key features
- It removes the need for precise centering and high-accuracy machining, shortens installation time and suits compact, high-load push-pull applications
- A dust cover gives long life and internal heat treatment provides high durability with no axial play in use
- Sizes fit cylinders from 10 to 160 mm bore with rod threads M4 to M36, allowable eccentricity 0.5 to 3 mm and swing angle of plus or minus 5 degrees
- Rated for air cylinders up to 1.0 MPa and hydraulic cylinders up to 3.5 MPa
Specifications
| Type | Standard (thread both ends) |
|---|---|
| Swing angle | +/-5 deg |
| TJ10 | Type: Standard (thread both ends) | Applicable cylinder bore: 10 mm | Thread: M4 x 0.7 | Overall length: 26 mm | Allowable eccentricity: 0.5 mm | Swing angle: +/-5 deg | Max. operating load (tension/compression): 0.054 kN | |
| TJ16 | Type: Standard (thread both ends) | Applicable cylinder bore: 16 mm | Thread: M5 x 0.8 | Overall length: 34 mm | Allowable eccentricity: 0.5 mm | Swing angle: +/-5 deg | Max. operating load (tension/compression): 0.123 kN | |
| TJ20 | Type: Standard (thread both ends) | Applicable cylinder bore: 20 mm | Thread: M8 x 1.25 | Overall length: 45 mm | Allowable eccentricity: 0.5 mm | Swing angle: +/-5 deg | Max. operating load (tension/compression): 1.1 kN | |
| TJ30 | Type: Standard (thread both ends) | Applicable cylinder bore: 25, 30 mm | Thread: M10 x 1.25 | Overall length: 47 mm | Allowable eccentricity: 0.5 mm | Swing angle: +/-5 deg | Max. operating load (tension/compression): 2.5 kN | |
| TJ40 | Type: Standard (thread both ends) | Applicable cylinder bore: 40 mm | Thread: M14 x 1.5 | Overall length: 62 mm | Allowable eccentricity: 0.75 mm | Swing angle: +/-5 deg | Max. operating load (tension/compression): 6.0 kN | |
| TJ63 | Type: Standard (thread both ends) | Applicable cylinder bore: 50, 63 mm | Thread: M18 x 1.5 | Overall length: 75 mm | Allowable eccentricity: 1 mm | Swing angle: +/-5 deg | Max. operating load (tension/compression): 11 kN | |
| TJ80 | Type: Standard (thread both ends) | Applicable cylinder bore: 80 mm | Thread: M22 x 1.5 | Overall length: 89 mm | Allowable eccentricity: 1.25 mm | Swing angle: +/-5 deg | Max. operating load (tension/compression): 18 kN | |
| TJ100 | Type: Standard (thread both ends) | Applicable cylinder bore: 100 mm | Thread: M26 x 1.5 | Overall length: 110 mm | Allowable eccentricity: 2 mm | Swing angle: +/-5 deg | Max. operating load (tension/compression): 28 kN | |
| TJ125 | Type: Standard (thread both ends) | Applicable cylinder bore: 125, 140 mm | Thread: M30 x 1.5 | Overall length: 153 mm | Allowable eccentricity: 2.5 mm | Swing angle: +/-5 deg | Max. operating load (tension/compression): 54 kN | |
| TJ160 | Type: Standard (thread both ends) | Applicable cylinder bore: 160 mm | Thread: M36 x 1.5 | Overall length: 179 mm | Allowable eccentricity: 3 mm | Swing angle: +/-5 deg | Max. operating load (tension/compression): 71 kN |
Cylinder AccessoriesTPC Mechatronics
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
TPC Mechatronics TJ Series Floating Joint (Standard Type)
Available part numbers (10)
TJ10, TJ16, TJ20, TJ30, TJ40, TJ63, TJ80, TJ100, TJ125, TJ160
How to order
Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
TPC Mechatronics
Cylinder Accessories
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| TJ10 | Type: Standard (thread both ends) | Applicable cylinder bore: 10 mm | Thread: M4 x 0.7 | Overall length: 26 mm | Allowable eccentricity: 0.5 mm | Swing angle: +/-5 deg | Max. operating load (tension/compression): 0.054 kN | ||
| TJ16 | Type: Standard (thread both ends) | Applicable cylinder bore: 16 mm | Thread: M5 x 0.8 | Overall length: 34 mm | Allowable eccentricity: 0.5 mm | Swing angle: +/-5 deg | Max. operating load (tension/compression): 0.123 kN | ||
| TJ20 | Type: Standard (thread both ends) | Applicable cylinder bore: 20 mm | Thread: M8 x 1.25 | Overall length: 45 mm | Allowable eccentricity: 0.5 mm | Swing angle: +/-5 deg | Max. operating load (tension/compression): 1.1 kN | ||
| TJ30 | Type: Standard (thread both ends) | Applicable cylinder bore: 25, 30 mm | Thread: M10 x 1.25 | Overall length: 47 mm | Allowable eccentricity: 0.5 mm | Swing angle: +/-5 deg | Max. operating load (tension/compression): 2.5 kN | ||
| TJ40 | Type: Standard (thread both ends) | Applicable cylinder bore: 40 mm | Thread: M14 x 1.5 | Overall length: 62 mm | Allowable eccentricity: 0.75 mm | Swing angle: +/-5 deg | Max. operating load (tension/compression): 6.0 kN | ||
| TJ63 | Type: Standard (thread both ends) | Applicable cylinder bore: 50, 63 mm | Thread: M18 x 1.5 | Overall length: 75 mm | Allowable eccentricity: 1 mm | Swing angle: +/-5 deg | Max. operating load (tension/compression): 11 kN | ||
| TJ80 | Type: Standard (thread both ends) | Applicable cylinder bore: 80 mm | Thread: M22 x 1.5 | Overall length: 89 mm | Allowable eccentricity: 1.25 mm | Swing angle: +/-5 deg | Max. operating load (tension/compression): 18 kN | ||
| TJ100 | Type: Standard (thread both ends) | Applicable cylinder bore: 100 mm | Thread: M26 x 1.5 | Overall length: 110 mm | Allowable eccentricity: 2 mm | Swing angle: +/-5 deg | Max. operating load (tension/compression): 28 kN | ||
| TJ125 | Type: Standard (thread both ends) | Applicable cylinder bore: 125, 140 mm | Thread: M30 x 1.5 | Overall length: 153 mm | Allowable eccentricity: 2.5 mm | Swing angle: +/-5 deg | Max. operating load (tension/compression): 54 kN | ||
| TJ160 | Type: Standard (thread both ends) | Applicable cylinder bore: 160 mm | Thread: M36 x 1.5 | Overall length: 179 mm | Allowable eccentricity: 3 mm | Swing angle: +/-5 deg | Max. operating load (tension/compression): 71 kN |
