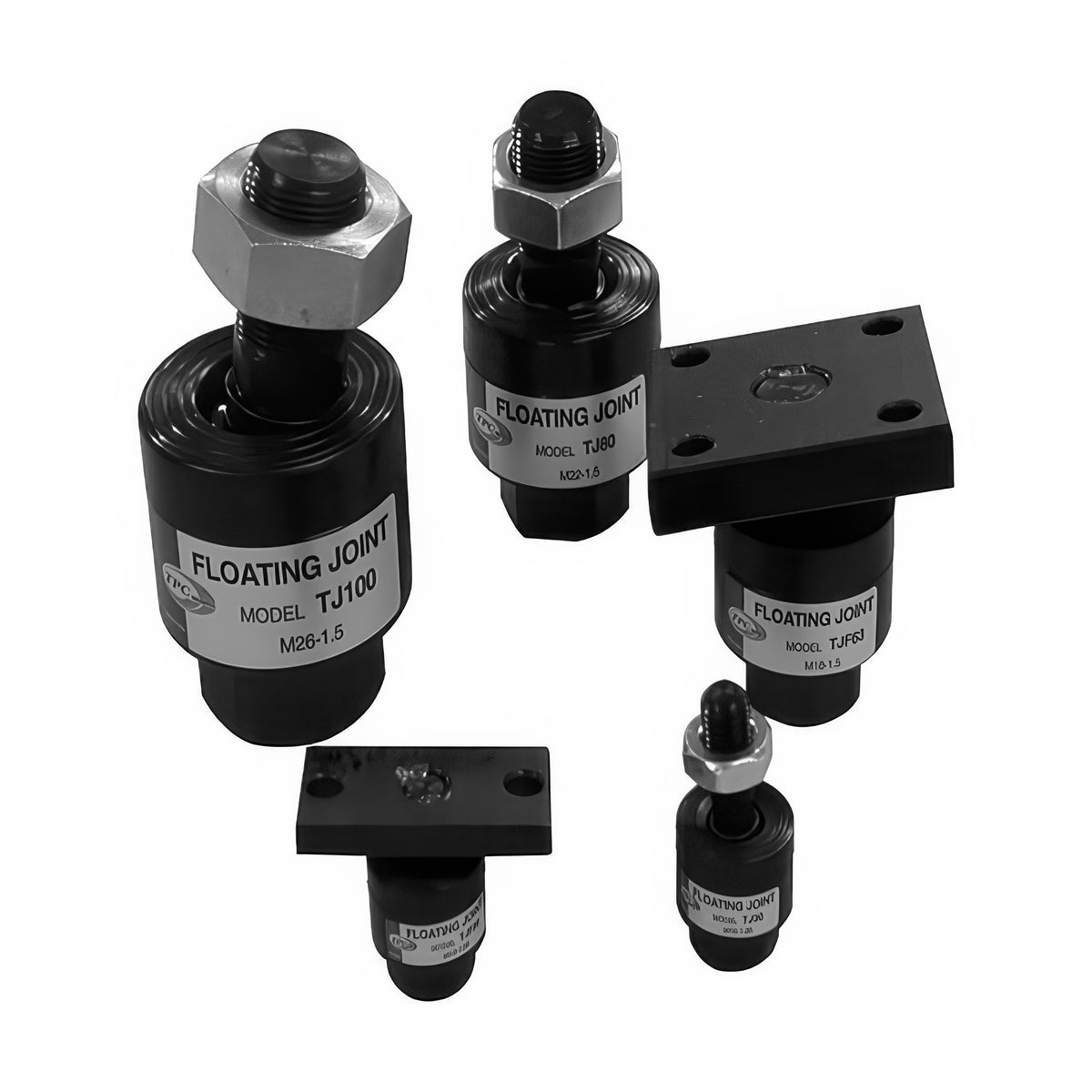

TPC Mechatronics TJF Series Floating Joint (Flange Type)
TPC Mechatronics TJF Series Floating Joint (Flange Type)
The TJF series is a flange-mount floating joint that connects a cylinder rod to the driven load while absorbing eccentricity and parallelism errors.
Key features
- The flange allows the joint to be bolted directly to the workpiece, removing the need for precise centering and shortening installation time
- Sizes TJF20 to TJF40 use a two-hole flange and TJF63 to TJF160 a four-hole square flange, covering cylinders from 20 to 160 mm bore with M8 to M36 rod threads
- Allowable eccentricity is 0.5 to 3 mm with a swing angle of plus or minus 5 degrees, for air cylinders up to 1.0 MPa and hydraulic cylinders up to 3.5 MPa
Specifications
| Type | Flange |
|---|---|
| Swing angle | +/-5 deg |
| TJF20 | Type: Flange | Applicable cylinder bore: 20 mm | Thread: M8 x 1.25 | Overall length: 33 mm | Allowable eccentricity: 0.5 mm | Swing angle: +/-5 deg | Max. operating load (tension/compression): 1.1 kN | |
| TJF30 | Type: Flange | Applicable cylinder bore: 25, 30 mm | Thread: M10 x 1.25 | Overall length: 36 mm | Allowable eccentricity: 0.5 mm | Swing angle: +/-5 deg | Max. operating load (tension/compression): 2.5 kN | |
| TJF40 | Type: Flange | Applicable cylinder bore: 40 mm | Thread: M14 x 1.5 | Overall length: 50 mm | Allowable eccentricity: 0.75 mm | Swing angle: +/-5 deg | Max. operating load (tension/compression): 4.4 kN | |
| TJF63 | Type: Flange | Applicable cylinder bore: 50, 63 mm | Thread: M18 x 1.5 | Overall length: 62 mm | Allowable eccentricity: 1 mm | Swing angle: +/-5 deg | Max. operating load (tension/compression): 11 kN | |
| TJF80 | Type: Flange | Applicable cylinder bore: 80 mm | Thread: M22 x 1.5 | Overall length: 76.5 mm | Allowable eccentricity: 1.25 mm | Swing angle: +/-5 deg | Max. operating load (tension/compression): 18 kN | |
| TJF100 | Type: Flange | Applicable cylinder bore: 100 mm | Thread: M26 x 1.5 | Overall length: 94 mm | Allowable eccentricity: 2 mm | Swing angle: +/-5 deg | Max. operating load (tension/compression): 28 kN | |
| TJF125 | Type: Flange | Applicable cylinder bore: 125, 140 mm | Thread: M30 x 1.5 | Overall length: 132 mm | Allowable eccentricity: 2.5 mm | Swing angle: +/-5 deg | Max. operating load (tension/compression): 36 kN | |
| TJF160 | Type: Flange | Applicable cylinder bore: 160 mm | Thread: M36 x 1.5 | Overall length: 154 mm | Allowable eccentricity: 3 mm | Swing angle: +/-5 deg | Max. operating load (tension/compression): 55 kN |
Cylinder AccessoriesTPC Mechatronics
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
TPC Mechatronics TJF Series Floating Joint (Flange Type)
Available part numbers (8)
TJF20, TJF30, TJF40, TJF63, TJF80, TJF100, TJF125, TJF160
How to order
Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
TPC Mechatronics
Cylinder Accessories
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| TJF20 | Type: Flange | Applicable cylinder bore: 20 mm | Thread: M8 x 1.25 | Overall length: 33 mm | Allowable eccentricity: 0.5 mm | Swing angle: +/-5 deg | Max. operating load (tension/compression): 1.1 kN | ||
| TJF30 | Type: Flange | Applicable cylinder bore: 25, 30 mm | Thread: M10 x 1.25 | Overall length: 36 mm | Allowable eccentricity: 0.5 mm | Swing angle: +/-5 deg | Max. operating load (tension/compression): 2.5 kN | ||
| TJF40 | Type: Flange | Applicable cylinder bore: 40 mm | Thread: M14 x 1.5 | Overall length: 50 mm | Allowable eccentricity: 0.75 mm | Swing angle: +/-5 deg | Max. operating load (tension/compression): 4.4 kN | ||
| TJF63 | Type: Flange | Applicable cylinder bore: 50, 63 mm | Thread: M18 x 1.5 | Overall length: 62 mm | Allowable eccentricity: 1 mm | Swing angle: +/-5 deg | Max. operating load (tension/compression): 11 kN | ||
| TJF80 | Type: Flange | Applicable cylinder bore: 80 mm | Thread: M22 x 1.5 | Overall length: 76.5 mm | Allowable eccentricity: 1.25 mm | Swing angle: +/-5 deg | Max. operating load (tension/compression): 18 kN | ||
| TJF100 | Type: Flange | Applicable cylinder bore: 100 mm | Thread: M26 x 1.5 | Overall length: 94 mm | Allowable eccentricity: 2 mm | Swing angle: +/-5 deg | Max. operating load (tension/compression): 28 kN | ||
| TJF125 | Type: Flange | Applicable cylinder bore: 125, 140 mm | Thread: M30 x 1.5 | Overall length: 132 mm | Allowable eccentricity: 2.5 mm | Swing angle: +/-5 deg | Max. operating load (tension/compression): 36 kN | ||
| TJF160 | Type: Flange | Applicable cylinder bore: 160 mm | Thread: M36 x 1.5 | Overall length: 154 mm | Allowable eccentricity: 3 mm | Swing angle: +/-5 deg | Max. operating load (tension/compression): 55 kN |
