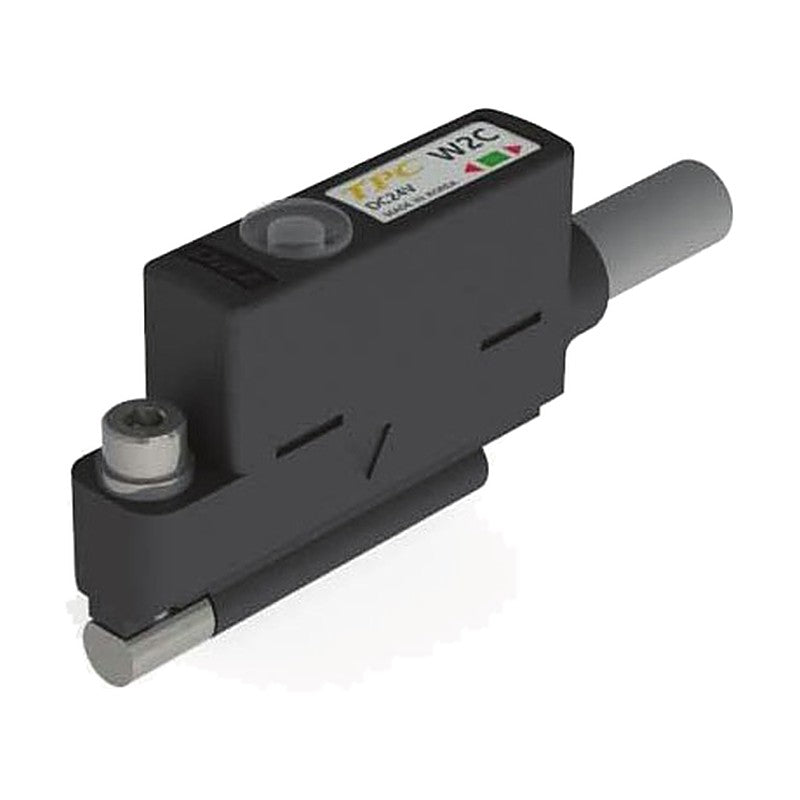

TPC Mechatronics W2C Series Auto Switch (Strong Magnetic Field Type, Solid-State 2-Wire, Tube Mount)
TPC Mechatronics W2C Series Auto Switch (Strong Magnetic Field Type, Solid-State 2-Wire, Tube Mount)
The W2C is a compact solid-state 2-wire (non-polar) auto switch that mounts directly on the cylinder tube via a metal rail, with a flame-retardant plastic body and oil-resistant flame-retardant vinyl cable.
Key features
- A two-color red/green/red LED and a magnetic sensor position mark aid setting, and a spatter cover can be fitted
- Rated DC24V, 2-40 mA, 5 V max voltage drop at 40 mA, 0.7 mA max leakage, IP67, ambient temperature -10 to 70 C
- Applicable cylinders include AQ2 (40-100 mm bore), NP, NBP, NGQ, NST1, NST2, AST, NSK, APR, AMRBR, ASL and NR series
Specifications
| Contact | Solid-state, 2-wire non-polar |
|---|---|
| Load voltage | DC24V +/-15% |
| Load current | 2-40 mA |
| Operating range | 3-6 mm |
| W2CL | Contact: Solid-state, 2-wire non-polar | Load voltage: DC24V +/-15% | Load current: 2-40 mA | Operating range: 3-6 mm | Lead wire: 3 m | |
| W2CZ | Contact: Solid-state, 2-wire non-polar | Load voltage: DC24V +/-15% | Load current: 2-40 mA | Operating range: 3-6 mm | Lead wire: 5 m |
Auto SwitchesTPC Mechatronics
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
TPC Mechatronics W2C Series Auto Switch (Strong Magnetic Field Type, Solid-State 2-Wire, Tube Mount)
Available part numbers (2)
W2CL, W2CZ
How to order
Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
TPC Mechatronics
Auto Switches
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| W2CL | Contact: Solid-state, 2-wire non-polar | Load voltage: DC24V +/-15% | Load current: 2-40 mA | Operating range: 3-6 mm | Lead wire: 3 m | ||
| W2CZ | Contact: Solid-state, 2-wire non-polar | Load voltage: DC24V +/-15% | Load current: 2-40 mA | Operating range: 3-6 mm | Lead wire: 5 m |
