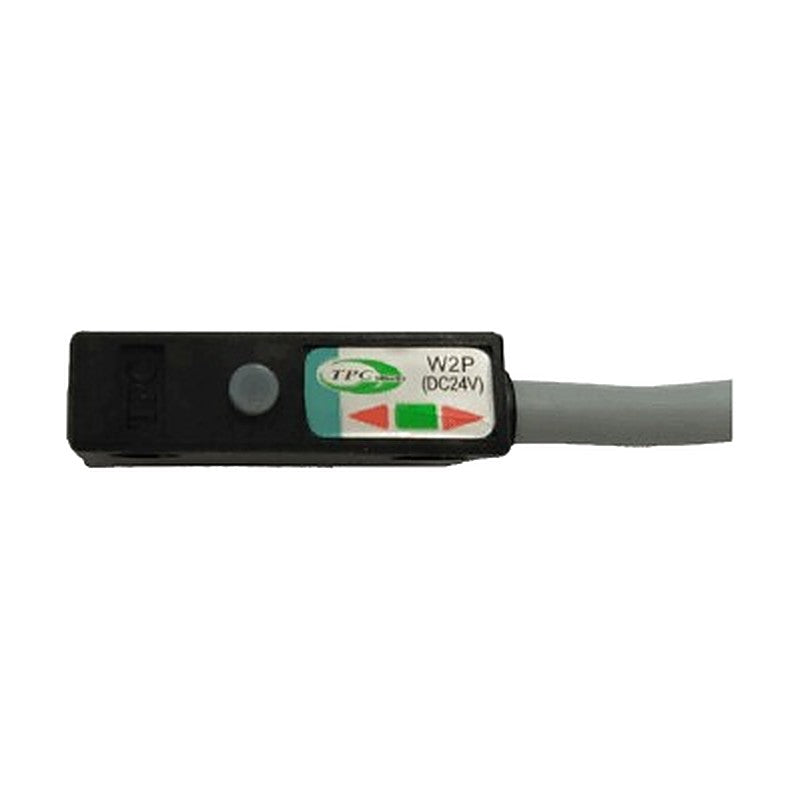

TPC Mechatronics W2P / WS1 Series Auto Switch (Strong Magnetic Field Type, Solid-State 2-Wire)

TPC Mechatronics W2P / WS1 Series Auto Switch (Strong Magnetic Field Type, Solid-State 2-Wire)

The W2P and WS1 are grommet-type solid-state 2-wire (non-polar) auto switches for strong-magnet cylinders, usable near single-phase AC welders.

Key features

  • The W2P has a long operating range and the WS1 a short operating range
  • A two-color red/green/red LED indicates the optimum detection position
  • Rated DC24V, 2-40 mA, 5 V max internal voltage drop, 0.6 mA leakage, IP67, ambient temperature -10 to 80 C
  • Not suitable for DC inverter, arc or capacitor welders

Specifications

Contact Solid-state, 2-wire non-polar
Load voltage DC24V +/-15%
Load current 2-40 mA
Max sensitivity position 16 mm
W2PL Contact: Solid-state, 2-wire non-polar | Load voltage: DC24V +/-15% | Load current: 2-40 mA | Max sensitivity position: 16 mm | Operating range: 8-10 mm | Lead wire: 3 m
W2PZ Contact: Solid-state, 2-wire non-polar | Load voltage: DC24V +/-15% | Load current: 2-40 mA | Max sensitivity position: 16 mm | Operating range: 8-10 mm | Lead wire: 5 m
WS1L Contact: Solid-state, 2-wire non-polar | Load voltage: DC24V +/-15% | Load current: 2-40 mA | Max sensitivity position: 16 mm | Operating range: 3.5-6 mm | Lead wire: 3 m
WS1Z Contact: Solid-state, 2-wire non-polar | Load voltage: DC24V +/-15% | Load current: 2-40 mA | Max sensitivity position: 16 mm | Operating range: 3.5-6 mm | Lead wire: 5 m
Auto SwitchesTPC Mechatronics
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics W2P / WS1 Series Auto Switch (Strong Magnetic Field Type, Solid-State 2-Wire)

Brand TPC Mechatronics·Auto Switches

Available part numbers (4)

W2PL, W2PZ, WS1L, WS1Z

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
W2PLContact: Solid-state, 2-wire non-polar | Load voltage: DC24V +/-15% | Load current: 2-40 mA | Max sensitivity position: 16 mm | Operating range: 8-10 mm | Lead wire: 3 m
W2PZContact: Solid-state, 2-wire non-polar | Load voltage: DC24V +/-15% | Load current: 2-40 mA | Max sensitivity position: 16 mm | Operating range: 8-10 mm | Lead wire: 5 m
WS1LContact: Solid-state, 2-wire non-polar | Load voltage: DC24V +/-15% | Load current: 2-40 mA | Max sensitivity position: 16 mm | Operating range: 3.5-6 mm | Lead wire: 3 m
WS1ZContact: Solid-state, 2-wire non-polar | Load voltage: DC24V +/-15% | Load current: 2-40 mA | Max sensitivity position: 16 mm | Operating range: 3.5-6 mm | Lead wire: 5 m
