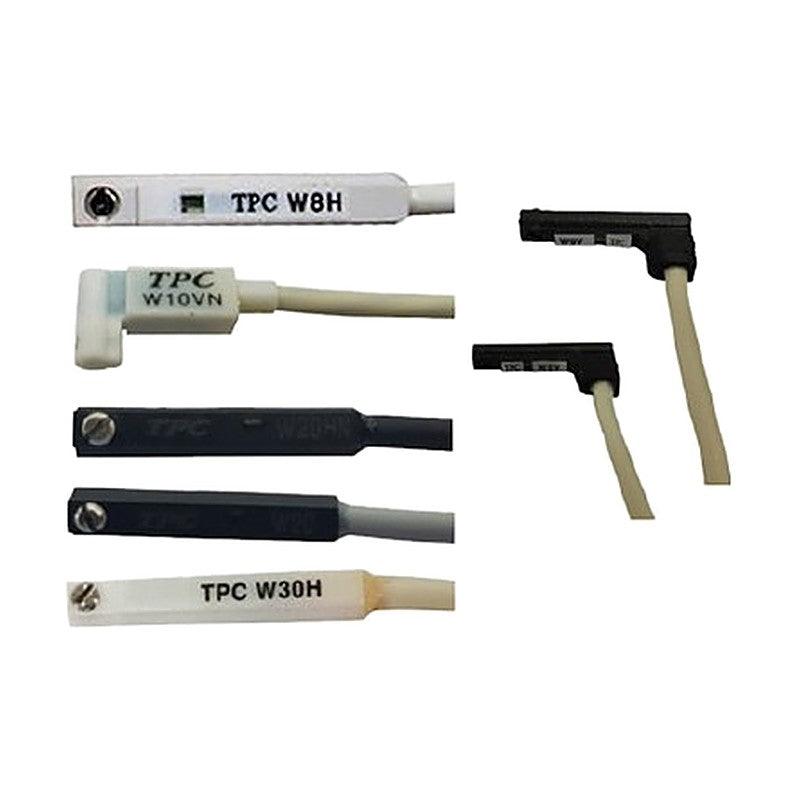

TPC Mechatronics W9 / W10 / W20 Series Compact Auto Switch (Direct Mount, Solid-State 2-Wire)

TPC Mechatronics W9 / W10 / W20 Series Compact Auto Switch (Direct Mount, Solid-State 2-Wire)

The W9, W10 and W20 are compact 4 mm diameter solid-state auto switches fixed directly in the cylinder switch groove with an M2.5 screw (0.05-0.1 Nm tightening torque).

Key features

  • The W9 is available with horizontal (H) or vertical (V) lead wire, the W10V is an ultra-compact 10 mm vertical-lead type, and the W20H is a horizontal-lead type with two-color indication
  • Rated DC24V with operating time 1.2 ms or less
  • Standard lead wire is 1 m (2-wire); 3-wire NPN/PNP output and 3 m lead wire versions are specified at order

Specifications

Contact Solid-state, 2-wire
Load voltage DC24V
W9H Contact: Solid-state, 2-wire | Lead wire direction: Horizontal | Load voltage: DC24V | Load current: 2.5-40 mA | Internal voltage drop: 4 V max | Leakage current: 0.6 mA max | Indicator: Green LED when ON | Max sensitivity position: 6.5 mm | Sensing range: 4-7 mm
W9V Contact: Solid-state, 2-wire | Lead wire direction: Vertical | Load voltage: DC24V | Load current: 2.5-40 mA | Internal voltage drop: 4 V max | Leakage current: 0.6 mA max | Indicator: Green LED when ON | Max sensitivity position: 6.5 mm | Sensing range: 4-7 mm
W10V Contact: Solid-state, 2-wire | Lead wire direction: Vertical | Load voltage: DC24V | Load current: 5-40 mA | Internal voltage drop: 4.5 V max | Leakage current: 0.9 mA max | Indicator: Red LED when ON | Max sensitivity position: 7 mm | Sensing range: 4-7 mm
W20H Contact: Solid-state, 2-wire | Lead wire direction: Horizontal | Load voltage: DC24V | Load current: 80 mA max | Internal voltage drop: 4 V max | Leakage current: 1 mA max | Indicator: Green LED when ON | Max sensitivity position: 6 mm | Sensing range: 4.5-5.5 mm
