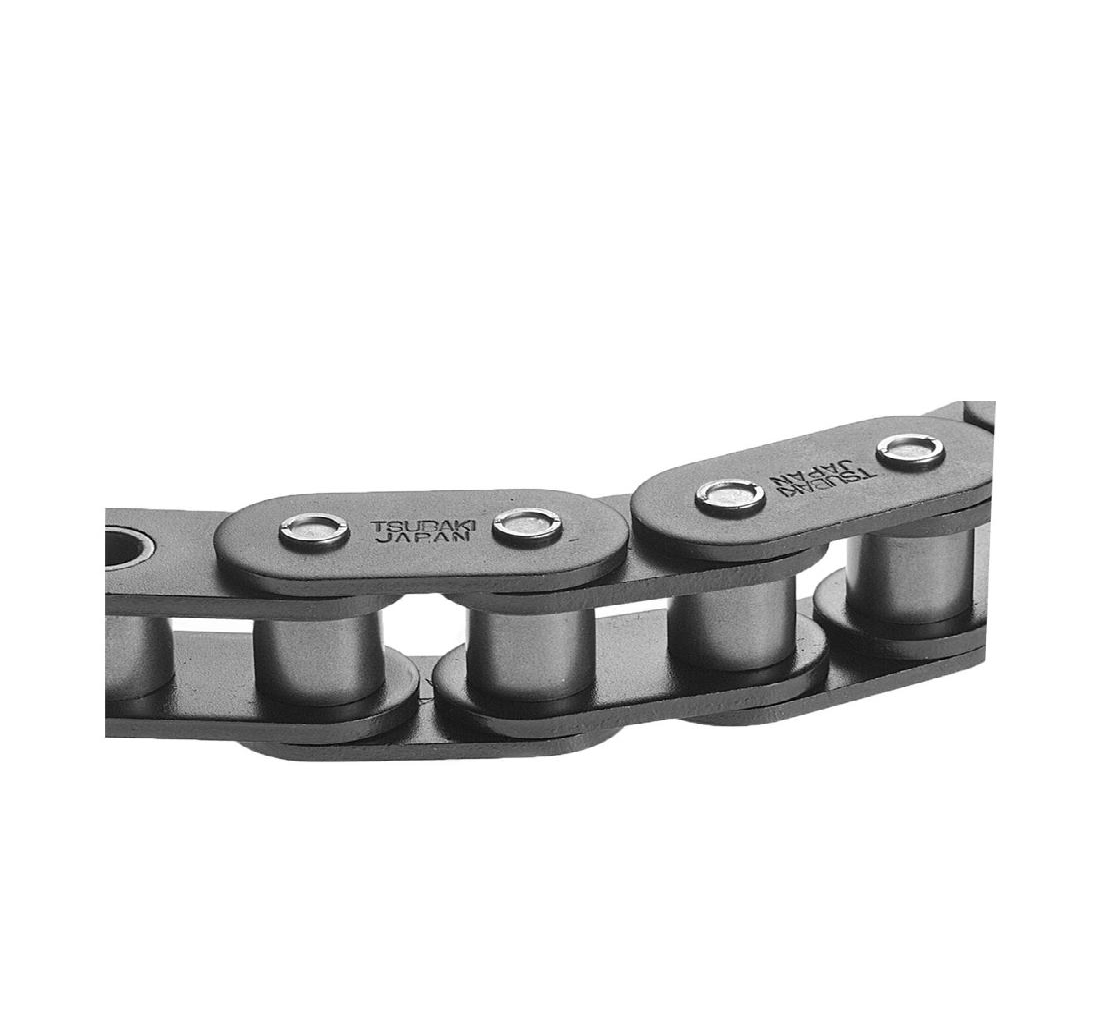

Tsubaki RF2050S-LMC Lambda Double Pitch Chain (S-Roller (Small))

Tsubaki RF2050S-LMC Lambda Double Pitch Chain (S-Roller (Small))

Tsubaki Lambda Double Pitch Chain (LMC) — double pitch conveyor chain with special sintered bushings for oil-free, maintenance-free operation.

Key features

  • Wear life 2x longer than standard double pitch chain
  • Flat plates with Lambda attachment mounting
  • Oil-free / long-life / clean operation
  • Pitch is 2x standard A-series roller chain; flat plate design for attachment-based conveying

Specifications

Series RF2050S-LMC
Pitch 31.75 mm
Roller Diameter 10.16 mm
Inner Width 9.40 mm
Roller Type S-Roller (Small)
Lubrication Oil-Free (Lambda Sintered Bushing)
Wear Life 2x vs Standard Double Pitch Chain
Plate Flat (attachment-ready)
Standard ISO 1275 / JIS B1803
Application Oil-free long-life conveying, clean environments, food processing
RF2050S-LMC-U Series: RF2050S-LMC | Pitch: 31.75 mm | Roller Diameter: 10.16 mm | Inner Width: 9.40 mm | Roller Type: S-Roller (Small) | Lubrication: Oil-Free (Lambda Sintered Bushing) | Wear Life: 2x vs Standard Double Pitch Chain | Plate: Flat (attachment-ready) | Standard: ISO 1275 / JIS B1803 | Application: Oil-free long-life conveying, clean environments, food processing | Link Type: Standard (Unit Link)
RF2050S-LMC-OL Series: RF2050S-LMC | Pitch: 31.75 mm | Roller Diameter: 10.16 mm | Inner Width: 9.40 mm | Roller Type: S-Roller (Small) | Lubrication: Oil-Free (Lambda Sintered Bushing) | Wear Life: 2x vs Standard Double Pitch Chain | Plate: Flat (attachment-ready) | Standard: ISO 1275 / JIS B1803 | Application: Oil-free long-life conveying, clean environments, food processing | Link Type: Offset Link
Roller ChainsTsubaki
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Tsubaki RF2050S-LMC Lambda Double Pitch Chain (S-Roller (Small))

Brand Tsubaki·Roller Chains

Available part numbers (2)

RF2050S-LMC-U, RF2050S-LMC-OL

How to order

Send the Tsubaki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RF2050S-LMC-USeries: RF2050S-LMC | Pitch: 31.75 mm | Roller Diameter: 10.16 mm | Inner Width: 9.40 mm | Roller Type: S-Roller (Small) | Lubrication: Oil-Free (Lambda Sintered Bushing) | Wear Life: 2x vs Standard Double Pitch Chain | Plate: Flat (attachment-ready) | Standard: ISO 1275 / JIS B1803 | Application: Oil-free long-life conveying, clean environments, food processing | Link Type: Standard (Unit Link)
RF2050S-LMC-OLSeries: RF2050S-LMC | Pitch: 31.75 mm | Roller Diameter: 10.16 mm | Inner Width: 9.40 mm | Roller Type: S-Roller (Small) | Lubrication: Oil-Free (Lambda Sintered Bushing) | Wear Life: 2x vs Standard Double Pitch Chain | Plate: Flat (attachment-ready) | Standard: ISO 1275 / JIS B1803 | Application: Oil-free long-life conveying, clean environments, food processing | Link Type: Offset Link
