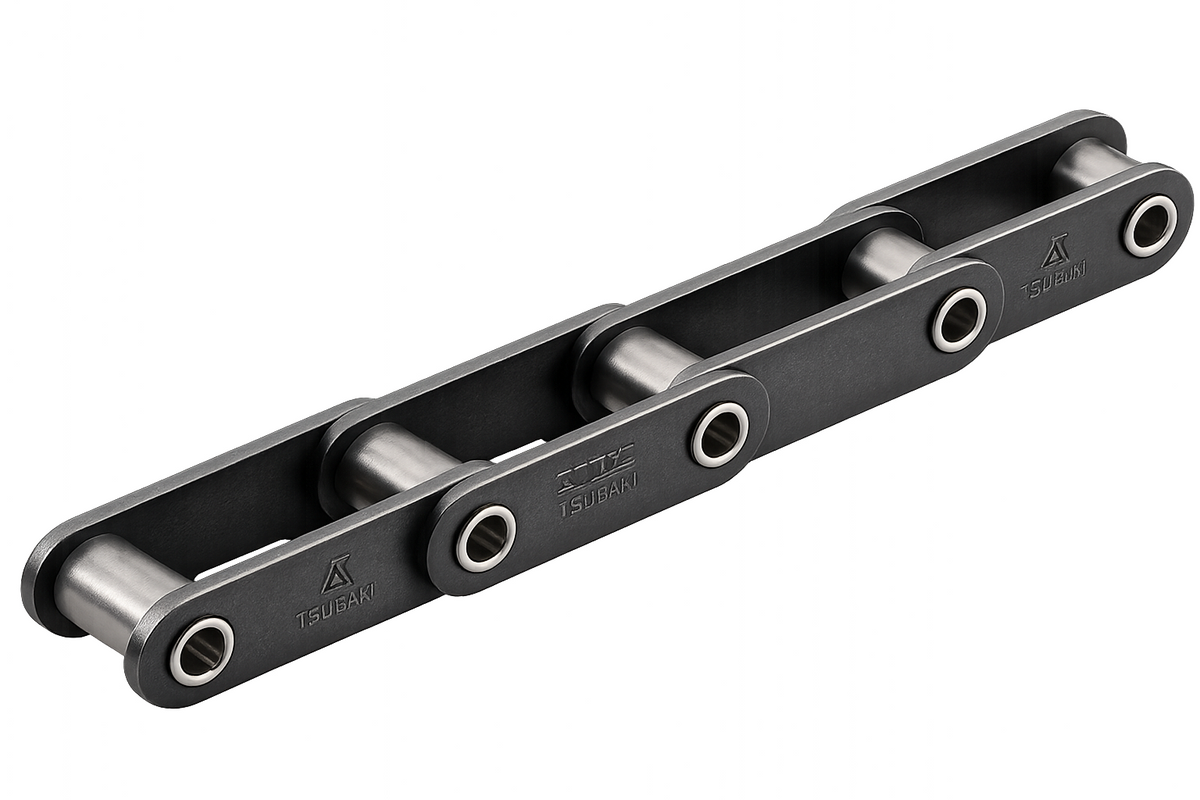

Tsubaki RF2060-LMC-HP Lambda Hollow Pin Double Pitch Chain

Tsubaki RF2060-LMC-HP Lambda Hollow Pin Double Pitch Chain

Tsubaki Lambda Hollow Pin Double Pitch Chain (LMC-HP) — double pitch chain with hollow pins for versatile attachment mounting through the pin bore.

Key features

  • Special sintered bushings for oil-free, maintenance-free operation
  • Wear life 2x longer than standard double pitch chain
  • Hollow pin allows cross-rod, finger, or custom attachment mounting
  • Oil-free / long-life / clean operation

Specifications

Series RF2060-LMC-HP
Pitch 38.10 mm
Roller Diameter 11.91 mm
Inner Width 12.57 mm
Pin Type Hollow Pin (attachment through-bore mounting)
Lubrication Oil-Free (Lambda Sintered Bushing)
Wear Life 2x vs Standard Double Pitch Chain
Standard ISO 1275 / JIS B1803
Application Versatile attachment conveying, cross-rod mounting, oil-free clean environments
RF2060S-HP-U Standard (Unit Link) — S-Roller (Small) | Series: RF2060-LMC-HP | Pitch: 38.10 mm | Roller Diameter: 11.91 mm | Inner Width: 12.57 mm | Pin Type: Hollow Pin (attachment through-bore mounting) | Lubrication: Oil-Free (Lambda Sintered Bushing) | Wear Life: 2x vs Standard Double Pitch Chain | Standard: ISO 1275 / JIS B1803 | Application: Versatile attachment conveying, cross-rod mounting, oil-free clean environments | Roller Type: S-Roller (Small)
RF2060R-HP-U Standard (Unit Link) — R-Roller (Standard) | Series: RF2060-LMC-HP | Pitch: 38.10 mm | Roller Diameter: 11.91 mm | Inner Width: 12.57 mm | Pin Type: Hollow Pin (attachment through-bore mounting) | Lubrication: Oil-Free (Lambda Sintered Bushing) | Wear Life: 2x vs Standard Double Pitch Chain | Standard: ISO 1275 / JIS B1803 | Application: Versatile attachment conveying, cross-rod mounting, oil-free clean environments | Roller Type: R-Roller (Standard)
Roller ChainsTsubaki
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Tsubaki RF2060-LMC-HP Lambda Hollow Pin Double Pitch Chain

Brand Tsubaki·Roller Chains

Available part numbers (2)

RF2060S-HP-U, RF2060R-HP-U

How to order

Send the Tsubaki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RF2060S-HP-UStandard (Unit Link) — S-Roller (Small) | Series: RF2060-LMC-HP | Pitch: 38.10 mm | Roller Diameter: 11.91 mm | Inner Width: 12.57 mm | Pin Type: Hollow Pin (attachment through-bore mounting) | Lubrication: Oil-Free (Lambda Sintered Bushing) | Wear Life: 2x vs Standard Double Pitch Chain | Standard: ISO 1275 / JIS B1803 | Application: Versatile attachment conveying, cross-rod mounting, oil-free clean environments | Roller Type: S-Roller (Small)
RF2060R-HP-UStandard (Unit Link) — R-Roller (Standard) | Series: RF2060-LMC-HP | Pitch: 38.10 mm | Roller Diameter: 11.91 mm | Inner Width: 12.57 mm | Pin Type: Hollow Pin (attachment through-bore mounting) | Lubrication: Oil-Free (Lambda Sintered Bushing) | Wear Life: 2x vs Standard Double Pitch Chain | Standard: ISO 1275 / JIS B1803 | Application: Versatile attachment conveying, cross-rod mounting, oil-free clean environments | Roller Type: R-Roller (Standard)
