• Tsubaki RF50 Flat-Plate Roller Conveyor Chain
1 1

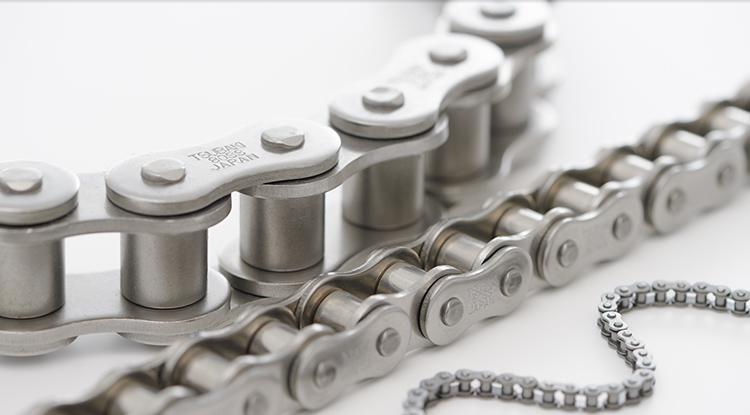

Tsubaki RF50 Flat-Plate Roller Conveyor Chain

Tsubaki RF50 Flat-Plate Roller Conveyor Chain

Tsubaki RF Roller Chain — flat-plate version of the RS attachment chain.

Key features

  • Plates are flat (no offset), allowing items to be placed and conveyed directly on the plate surface
  • Suitable for direct-load conveying applications where product sits on the chain itself

Specifications

Series RF50
Pitch 15.875 mm
Roller Diameter 10.16 mm
Inner Width 9.40 mm
Plate Type Flat (direct-load surface)
Base RS50 attachment chain with flat plates
Application Direct-load conveying, product-on-chain transport, flat-surface accumulation conveyors
RF50-U Series: RF50 | Pitch: 15.875 mm | Roller Diameter: 10.16 mm | Inner Width: 9.40 mm | Plate Type: Flat (direct-load surface) | Base: RS50 attachment chain with flat plates | Application: Direct-load conveying, product-on-chain transport, flat-surface accumulation conveyors | Link Type: Standard (Unit Link)
RF50-JL Series: RF50 | Pitch: 15.875 mm | Roller Diameter: 10.16 mm | Inner Width: 9.40 mm | Plate Type: Flat (direct-load surface) | Base: RS50 attachment chain with flat plates | Application: Direct-load conveying, product-on-chain transport, flat-surface accumulation conveyors | Link Type: Connecting Link (Joint Link)
Roller ChainsTsubaki
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Tsubaki RF50 Flat-Plate Roller Conveyor Chain

Brand Tsubaki·Roller Chains

Available part numbers (2)

RF50-U, RF50-JL

How to order

Send the Tsubaki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RF50-USeries: RF50 | Pitch: 15.875 mm | Roller Diameter: 10.16 mm | Inner Width: 9.40 mm | Plate Type: Flat (direct-load surface) | Base: RS50 attachment chain with flat plates | Application: Direct-load conveying, product-on-chain transport, flat-surface accumulation conveyors | Link Type: Standard (Unit Link)
RF50-JLSeries: RF50 | Pitch: 15.875 mm | Roller Diameter: 10.16 mm | Inner Width: 9.40 mm | Plate Type: Flat (direct-load surface) | Base: RS50 attachment chain with flat plates | Application: Direct-load conveying, product-on-chain transport, flat-surface accumulation conveyors | Link Type: Connecting Link (Joint Link)
