• Tsubaki RF60 Flat-Plate Roller Conveyor Chain
1 1

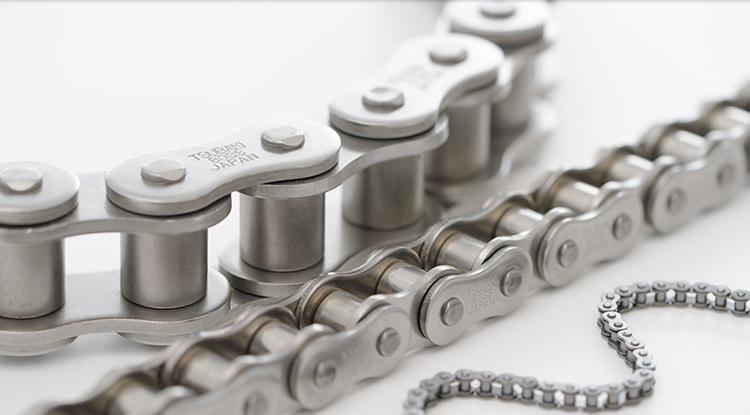

Tsubaki RF60 Flat-Plate Roller Conveyor Chain

Tsubaki RF60 Flat-Plate Roller Conveyor Chain

Tsubaki RF Roller Chain — flat-plate version of the RS attachment chain.

Key features

  • Plates are flat (no offset), allowing items to be placed and conveyed directly on the plate surface
  • Suitable for direct-load conveying applications where product sits on the chain itself

Specifications

Series RF60
Pitch 19.05 mm
Roller Diameter 11.91 mm
Inner Width 12.57 mm
Plate Type Flat (direct-load surface)
Base RS60 attachment chain with flat plates
Application Direct-load conveying, product-on-chain transport, flat-surface accumulation conveyors
RF60-U Series: RF60 | Pitch: 19.05 mm | Roller Diameter: 11.91 mm | Inner Width: 12.57 mm | Plate Type: Flat (direct-load surface) | Base: RS60 attachment chain with flat plates | Application: Direct-load conveying, product-on-chain transport, flat-surface accumulation conveyors | Link Type: Standard (Unit Link)
RF60-JL Series: RF60 | Pitch: 19.05 mm | Roller Diameter: 11.91 mm | Inner Width: 12.57 mm | Plate Type: Flat (direct-load surface) | Base: RS60 attachment chain with flat plates | Application: Direct-load conveying, product-on-chain transport, flat-surface accumulation conveyors | Link Type: Connecting Link (Joint Link)
Roller ChainsTsubaki
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Tsubaki RF60 Flat-Plate Roller Conveyor Chain

Brand Tsubaki·Roller Chains

Available part numbers (2)

RF60-U, RF60-JL

How to order

Send the Tsubaki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RF60-USeries: RF60 | Pitch: 19.05 mm | Roller Diameter: 11.91 mm | Inner Width: 12.57 mm | Plate Type: Flat (direct-load surface) | Base: RS60 attachment chain with flat plates | Application: Direct-load conveying, product-on-chain transport, flat-surface accumulation conveyors | Link Type: Standard (Unit Link)
RF60-JLSeries: RF60 | Pitch: 19.05 mm | Roller Diameter: 11.91 mm | Inner Width: 12.57 mm | Plate Type: Flat (direct-load surface) | Base: RS60 attachment chain with flat plates | Application: Direct-load conveying, product-on-chain transport, flat-surface accumulation conveyors | Link Type: Connecting Link (Joint Link)
