• Tsubaki RS40-SS-1 Stainless Drive Chain (SS Grade, Single Strand)
1 1

Tsubaki RS40-SS-1 Stainless Drive Chain (SS Grade, Single Strand)

Tsubaki RS40-SS-1 Stainless Drive Chain (SS Grade, Single Strand)

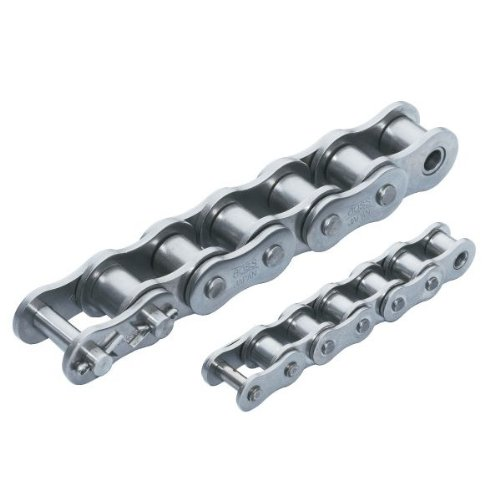

Tsubaki Stainless Drive Chain SS Grade — SUS304 stainless steel roller chain.

Key features

  • Superior corrosion resistance vs standard RS and RS coating chains
  • Suitable for underwater, acidic, alkaline, and other corrosive environments, as well as low and high temperature special conditions
  • Available in single and double strand

Specifications

Series RS40-SS
Pitch 12.70 mm
Roller Diameter 7.92 mm
Inner Width 7.85 mm
Strands 1
Grade SS
Material SUS304 Stainless Steel
Corrosion Resistance Superior (vs RS & RS Coating)
Application Corrosive environments, underwater, acidic/alkaline, food processing, special temperature conditions
RS40-SS-1-U Series: RS40-SS | Pitch: 12.70 mm | Roller Diameter: 7.92 mm | Inner Width: 7.85 mm | Strands: 1 | Grade: SS | Material: SUS304 Stainless Steel | Corrosion Resistance: Superior (vs RS & RS Coating) | Application: Corrosive environments, underwater, acidic/alkaline, food processing, special temperature conditions | Link Type: Standard (Unit Link)
RS40-SS-1-JL Series: RS40-SS | Pitch: 12.70 mm | Roller Diameter: 7.92 mm | Inner Width: 7.85 mm | Strands: 1 | Grade: SS | Material: SUS304 Stainless Steel | Corrosion Resistance: Superior (vs RS & RS Coating) | Application: Corrosive environments, underwater, acidic/alkaline, food processing, special temperature conditions | Link Type: Connecting Link (Joint Link)
RS40-SS-1-OL Series: RS40-SS | Pitch: 12.70 mm | Roller Diameter: 7.92 mm | Inner Width: 7.85 mm | Strands: 1 | Grade: SS | Material: SUS304 Stainless Steel | Corrosion Resistance: Superior (vs RS & RS Coating) | Application: Corrosive environments, underwater, acidic/alkaline, food processing, special temperature conditions | Link Type: Offset Link
Roller ChainsTsubaki
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Tsubaki RS40-SS-1 Stainless Drive Chain (SS Grade, Single Strand)

Brand Tsubaki·Roller Chains

Available part numbers (3)

RS40-SS-1-U, RS40-SS-1-JL, RS40-SS-1-OL

How to order

Send the Tsubaki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RS40-SS-1-USeries: RS40-SS | Pitch: 12.70 mm | Roller Diameter: 7.92 mm | Inner Width: 7.85 mm | Strands: 1 | Grade: SS | Material: SUS304 Stainless Steel | Corrosion Resistance: Superior (vs RS & RS Coating) | Application: Corrosive environments, underwater, acidic/alkaline, food processing, special temperature conditions | Link Type: Standard (Unit Link)
RS40-SS-1-JLSeries: RS40-SS | Pitch: 12.70 mm | Roller Diameter: 7.92 mm | Inner Width: 7.85 mm | Strands: 1 | Grade: SS | Material: SUS304 Stainless Steel | Corrosion Resistance: Superior (vs RS & RS Coating) | Application: Corrosive environments, underwater, acidic/alkaline, food processing, special temperature conditions | Link Type: Connecting Link (Joint Link)
RS40-SS-1-OLSeries: RS40-SS | Pitch: 12.70 mm | Roller Diameter: 7.92 mm | Inner Width: 7.85 mm | Strands: 1 | Grade: SS | Material: SUS304 Stainless Steel | Corrosion Resistance: Superior (vs RS & RS Coating) | Application: Corrosive environments, underwater, acidic/alkaline, food processing, special temperature conditions | Link Type: Offset Link
