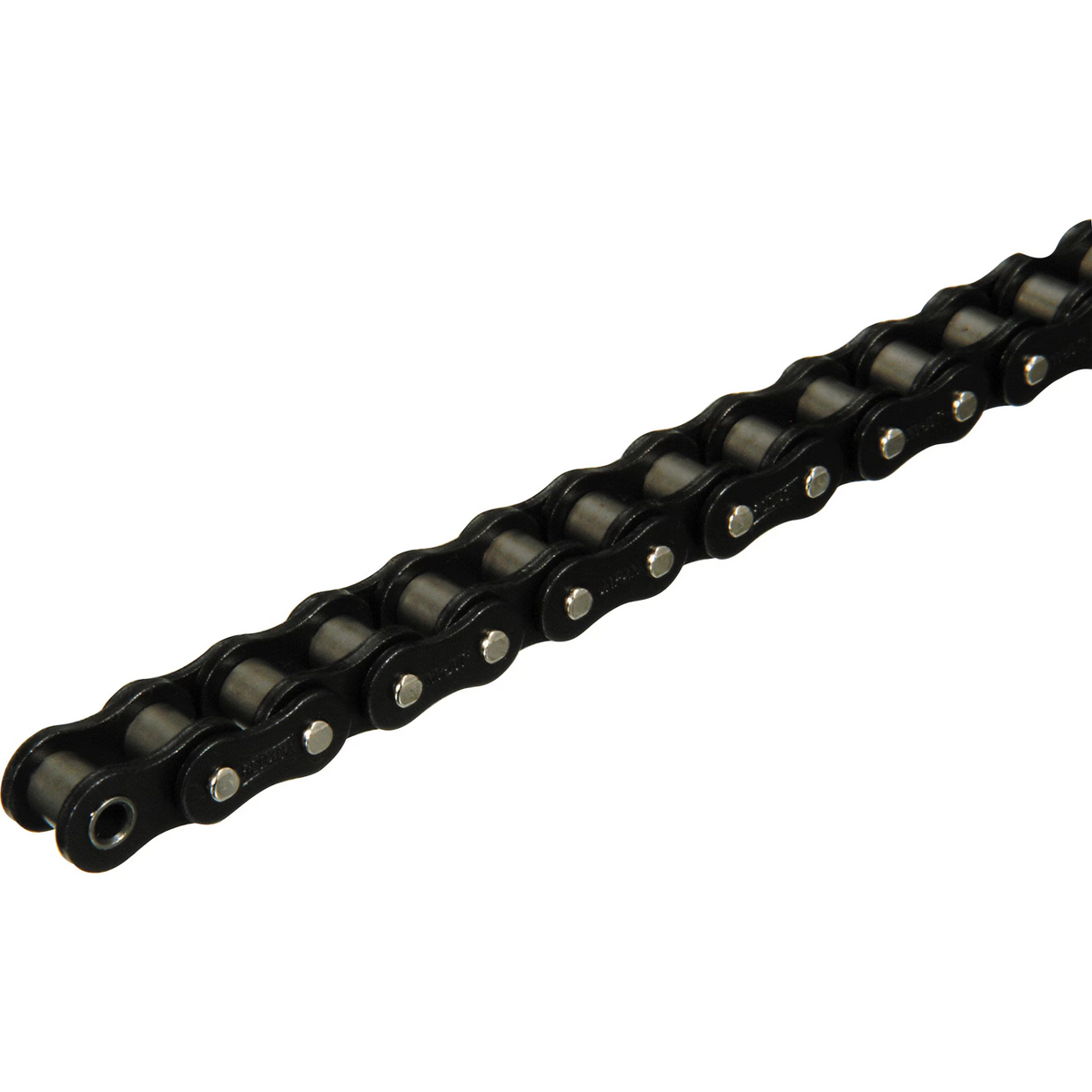

Tsubaki RS50-3 G8 Drive Chain Roller Chain (Triple Strand)

Tsubaki RS50-3 G8 Drive Chain Roller Chain (Triple Strand)

Tsubaki G8 General-Purpose Drive Chain — ISO 'A' series roller chain for wide-range power transmission from low-speed heavy-load to high-speed applications.

Key features

  • Anti-friction lubricant sealed in sintered bushings achieves 1.2x wear life vs G7-EX
  • Transmission efficiency improved 33% over previous generation
  • Available in single, double, and triple strand; multiple connecting link types
  • RS35 and smaller: same dimensions as conventional chain
  • Compatible with standard ISO/JIS sprockets

Specifications

Series RS50-3
Pitch 15.875 mm
Roller Diameter 10.16 mm
Inner Width 9.40 mm
Strands 3
Standard ISO 'A' / JIS B 1801
Generation G8
Lubrication Anti-Friction Sealed (Sintered Bushing)
Wear Life 1.2x vs G7-EX
Efficiency Gain +33% vs Previous Gen
Application General power transmission, conveyor, industrial machinery
RS50-3-RP-U Series: RS50-3 | Pitch: 15.875 mm | Roller Diameter: 10.16 mm | Inner Width: 9.40 mm | Strands: 3 | Standard: ISO 'A' / JIS B 1801 | Generation: G8 | Lubrication: Anti-Friction Sealed (Sintered Bushing) | Wear Life: 1.2x vs G7-EX | Efficiency Gain: +33% vs Previous Gen | Application: General power transmission, conveyor, industrial machinery | Link Type: Standard (Unit Link)
RS50-3-JL Series: RS50-3 | Pitch: 15.875 mm | Roller Diameter: 10.16 mm | Inner Width: 9.40 mm | Strands: 3 | Standard: ISO 'A' / JIS B 1801 | Generation: G8 | Lubrication: Anti-Friction Sealed (Sintered Bushing) | Wear Life: 1.2x vs G7-EX | Efficiency Gain: +33% vs Previous Gen | Application: General power transmission, conveyor, industrial machinery | Link Type: Connecting Link (Joint Link)
RS50-3-OL Series: RS50-3 | Pitch: 15.875 mm | Roller Diameter: 10.16 mm | Inner Width: 9.40 mm | Strands: 3 | Standard: ISO 'A' / JIS B 1801 | Generation: G8 | Lubrication: Anti-Friction Sealed (Sintered Bushing) | Wear Life: 1.2x vs G7-EX | Efficiency Gain: +33% vs Previous Gen | Application: General power transmission, conveyor, industrial machinery | Link Type: Offset Link
Roller ChainsTsubaki
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Tsubaki RS50-3 G8 Drive Chain Roller Chain (Triple Strand)

Brand Tsubaki·Roller Chains

Available part numbers (3)

RS50-3-RP-U, RS50-3-JL, RS50-3-OL

How to order

Send the Tsubaki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RS50-3-RP-USeries: RS50-3 | Pitch: 15.875 mm | Roller Diameter: 10.16 mm | Inner Width: 9.40 mm | Strands: 3 | Standard: ISO 'A' / JIS B 1801 | Generation: G8 | Lubrication: Anti-Friction Sealed (Sintered Bushing) | Wear Life: 1.2x vs G7-EX | Efficiency Gain: +33% vs Previous Gen | Application: General power transmission, conveyor, industrial machinery | Link Type: Standard (Unit Link)
RS50-3-JLSeries: RS50-3 | Pitch: 15.875 mm | Roller Diameter: 10.16 mm | Inner Width: 9.40 mm | Strands: 3 | Standard: ISO 'A' / JIS B 1801 | Generation: G8 | Lubrication: Anti-Friction Sealed (Sintered Bushing) | Wear Life: 1.2x vs G7-EX | Efficiency Gain: +33% vs Previous Gen | Application: General power transmission, conveyor, industrial machinery | Link Type: Connecting Link (Joint Link)
RS50-3-OLSeries: RS50-3 | Pitch: 15.875 mm | Roller Diameter: 10.16 mm | Inner Width: 9.40 mm | Strands: 3 | Standard: ISO 'A' / JIS B 1801 | Generation: G8 | Lubrication: Anti-Friction Sealed (Sintered Bushing) | Wear Life: 1.2x vs G7-EX | Efficiency Gain: +33% vs Previous Gen | Application: General power transmission, conveyor, industrial machinery | Link Type: Offset Link
