• Tsubaki RS50 Attachment Conveyor Chain (RS Type)
1 1

Tsubaki RS50 Attachment Conveyor Chain (RS Type)

Tsubaki RS50 Attachment Conveyor Chain (RS Type)

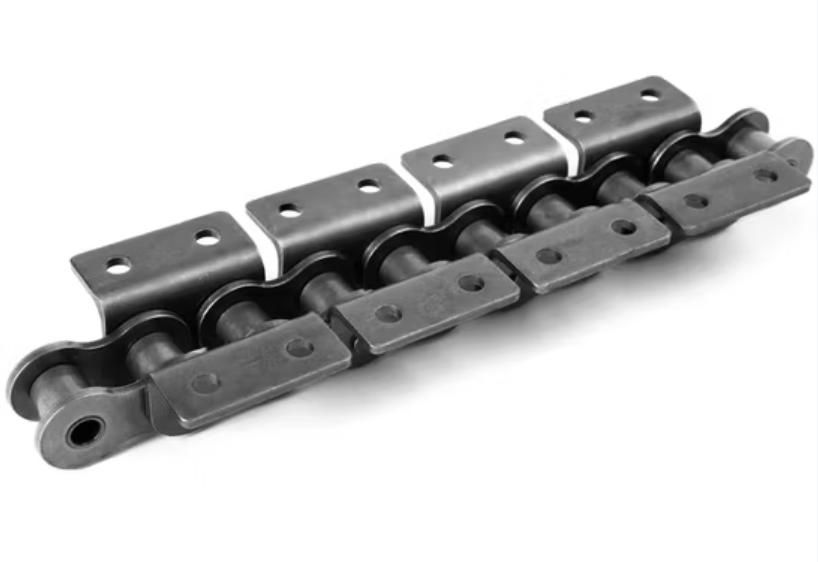

Tsubaki RS Attachment Chain — standard RS roller chain (drive type) with attachments on flat plates.

Key features

  • Small pitch allows conveying small items at short pitch intervals
  • Ideal for short-distance conveying applications
  • Available with LA (bent lug) and LK (straight lug) attachments at 1-link or 2-link spacing

Specifications

Series RS50
Pitch 15.875 mm
Roller Diameter 10.16 mm
Inner Width 9.40 mm
Strands 1
Attachment LA (Bent Lug) or LK (Straight Lug)
Spacing 1-link or 2-link intervals
Standard JIS B 1801
Application Short-distance conveying, small-item transport, short-pitch accumulation conveyors
RS50-1LA1-U Unit Link — 1× LA (Bent Lug) Grade LA1 | Series: RS50 | Pitch: 15.875 mm | Roller Diameter: 10.16 mm | Inner Width: 9.40 mm | Strands: 1 | Attachment: LA (Bent Lug) or LK (Straight Lug) | Spacing: 1-link or 2-link intervals | Standard: JIS B 1801 | Application: Short-distance conveying, small-item transport, short-pitch accumulation conveyors | Attachment Config: 1× LA (Bent Lug) Grade LA1
RS50-2LA1-U Unit Link — 2× LA (Bent Lug) Grade LA1 | Series: RS50 | Pitch: 15.875 mm | Roller Diameter: 10.16 mm | Inner Width: 9.40 mm | Strands: 1 | Attachment: LA (Bent Lug) or LK (Straight Lug) | Spacing: 1-link or 2-link intervals | Standard: JIS B 1801 | Application: Short-distance conveying, small-item transport, short-pitch accumulation conveyors | Attachment Config: 2× LA (Bent Lug) Grade LA1
RS50-1LK1-U Unit Link — 1× LK (Straight Lug) Grade LK1 | Series: RS50 | Pitch: 15.875 mm | Roller Diameter: 10.16 mm | Inner Width: 9.40 mm | Strands: 1 | Attachment: LA (Bent Lug) or LK (Straight Lug) | Spacing: 1-link or 2-link intervals | Standard: JIS B 1801 | Application: Short-distance conveying, small-item transport, short-pitch accumulation conveyors | Attachment Config: 1× LK (Straight Lug) Grade LK1
RS50-2LK1-U Unit Link — 2× LK (Straight Lug) Grade LK1 | Series: RS50 | Pitch: 15.875 mm | Roller Diameter: 10.16 mm | Inner Width: 9.40 mm | Strands: 1 | Attachment: LA (Bent Lug) or LK (Straight Lug) | Spacing: 1-link or 2-link intervals | Standard: JIS B 1801 | Application: Short-distance conveying, small-item transport, short-pitch accumulation conveyors | Attachment Config: 2× LK (Straight Lug) Grade LK1
Roller ChainsTsubaki
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Tsubaki RS50 Attachment Conveyor Chain (RS Type)

Brand Tsubaki·Roller Chains

Available part numbers (4)

RS50-1LA1-U, RS50-2LA1-U, RS50-1LK1-U, RS50-2LK1-U

How to order

Send the Tsubaki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RS50-1LA1-UUnit Link — 1× LA (Bent Lug) Grade LA1 | Series: RS50 | Pitch: 15.875 mm | Roller Diameter: 10.16 mm | Inner Width: 9.40 mm | Strands: 1 | Attachment: LA (Bent Lug) or LK (Straight Lug) | Spacing: 1-link or 2-link intervals | Standard: JIS B 1801 | Application: Short-distance conveying, small-item transport, short-pitch accumulation conveyors | Attachment Config: 1× LA (Bent Lug) Grade LA1
RS50-2LA1-UUnit Link — 2× LA (Bent Lug) Grade LA1 | Series: RS50 | Pitch: 15.875 mm | Roller Diameter: 10.16 mm | Inner Width: 9.40 mm | Strands: 1 | Attachment: LA (Bent Lug) or LK (Straight Lug) | Spacing: 1-link or 2-link intervals | Standard: JIS B 1801 | Application: Short-distance conveying, small-item transport, short-pitch accumulation conveyors | Attachment Config: 2× LA (Bent Lug) Grade LA1
RS50-1LK1-UUnit Link — 1× LK (Straight Lug) Grade LK1 | Series: RS50 | Pitch: 15.875 mm | Roller Diameter: 10.16 mm | Inner Width: 9.40 mm | Strands: 1 | Attachment: LA (Bent Lug) or LK (Straight Lug) | Spacing: 1-link or 2-link intervals | Standard: JIS B 1801 | Application: Short-distance conveying, small-item transport, short-pitch accumulation conveyors | Attachment Config: 1× LK (Straight Lug) Grade LK1
RS50-2LK1-UUnit Link — 2× LK (Straight Lug) Grade LK1 | Series: RS50 | Pitch: 15.875 mm | Roller Diameter: 10.16 mm | Inner Width: 9.40 mm | Strands: 1 | Attachment: LA (Bent Lug) or LK (Straight Lug) | Spacing: 1-link or 2-link intervals | Standard: JIS B 1801 | Application: Short-distance conveying, small-item transport, short-pitch accumulation conveyors | Attachment Config: 2× LK (Straight Lug) Grade LK1
