• Tsubaki RS60-LMC-HP Lambda Hollow Pin RS Conveyor Chain
1 1

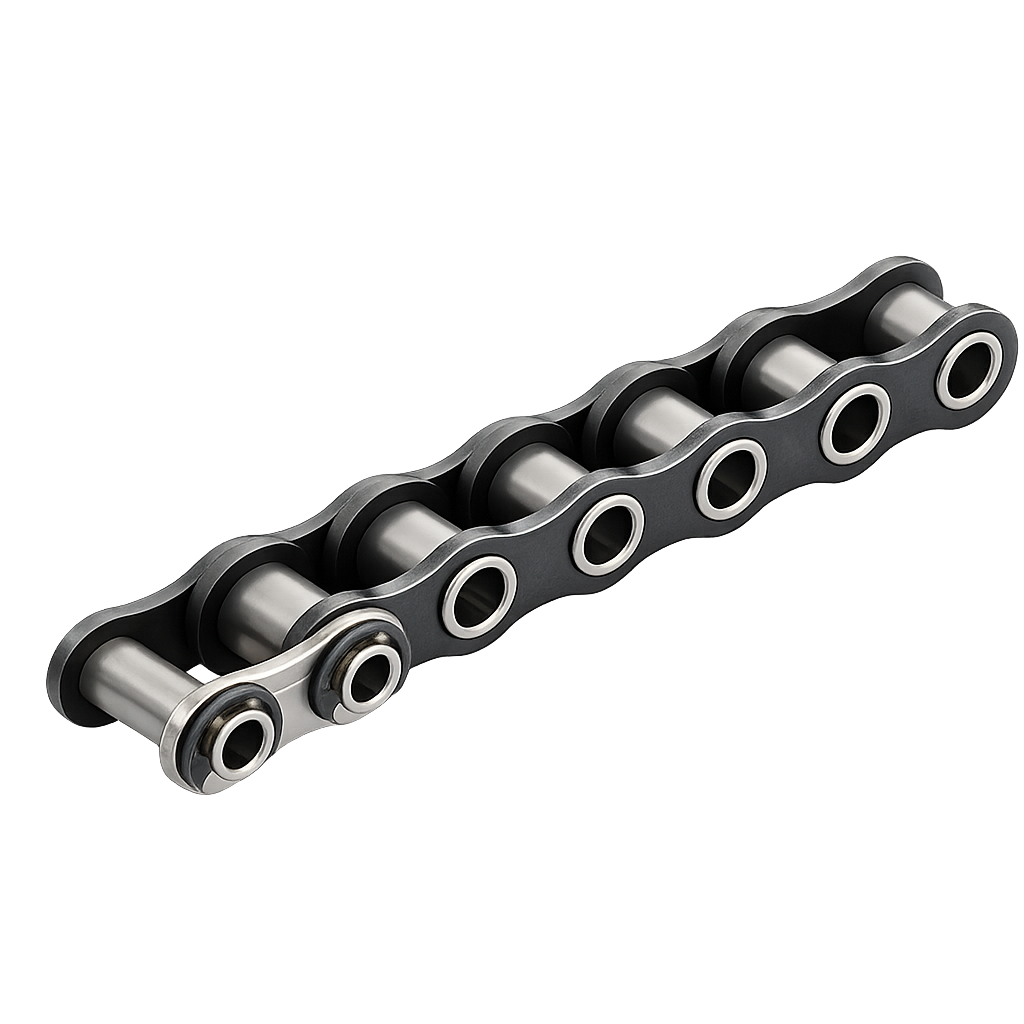

Tsubaki RS60-LMC-HP Lambda Hollow Pin RS Conveyor Chain

Tsubaki RS60-LMC-HP Lambda Hollow Pin RS Conveyor Chain

Tsubaki Lambda Hollow Pin RS Chain (LMC-HP) — RS-type attachment conveyor chain with hollow pins for versatile attachment mounting through the pin bore.

Key features

  • Special sintered bushings for oil-free, maintenance-free operation
  • Wear life 2x longer than standard RS attachment chain
  • Suitable for clean, oil-free conveying with cross-rod or custom attachments

Specifications

Series RS60-LMC-HP
Pitch 19.05 mm
Roller Diameter 11.91 mm
Inner Width 12.57 mm
Pin Type Hollow Pin (through-bore attachment mounting)
Lubrication Oil-Free (Lambda Sintered Bushing)
Wear Life 2x vs Standard RS Attachment Chain
Base RS60 roller chain flat plates
Standard JIS B 1801
Application Oil-free conveying with cross-rod/custom attachments, clean rooms, food processing
RS60-HP-U Series: RS60-LMC-HP | Pitch: 19.05 mm | Roller Diameter: 11.91 mm | Inner Width: 12.57 mm | Pin Type: Hollow Pin (through-bore attachment mounting) | Lubrication: Oil-Free (Lambda Sintered Bushing) | Wear Life: 2x vs Standard RS Attachment Chain | Base: RS60 roller chain flat plates | Standard: JIS B 1801 | Application: Oil-free conveying with cross-rod/custom attachments, clean rooms, food processing | Link Type: Standard (Unit Link)
RS60-HP-JL Series: RS60-LMC-HP | Pitch: 19.05 mm | Roller Diameter: 11.91 mm | Inner Width: 12.57 mm | Pin Type: Hollow Pin (through-bore attachment mounting) | Lubrication: Oil-Free (Lambda Sintered Bushing) | Wear Life: 2x vs Standard RS Attachment Chain | Base: RS60 roller chain flat plates | Standard: JIS B 1801 | Application: Oil-free conveying with cross-rod/custom attachments, clean rooms, food processing | Link Type: Connecting Link (Joint Link)
Roller ChainsTsubaki
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Tsubaki RS60-LMC-HP Lambda Hollow Pin RS Conveyor Chain

Brand Tsubaki·Roller Chains

Available part numbers (2)

RS60-HP-U, RS60-HP-JL

How to order

Send the Tsubaki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RS60-HP-USeries: RS60-LMC-HP | Pitch: 19.05 mm | Roller Diameter: 11.91 mm | Inner Width: 12.57 mm | Pin Type: Hollow Pin (through-bore attachment mounting) | Lubrication: Oil-Free (Lambda Sintered Bushing) | Wear Life: 2x vs Standard RS Attachment Chain | Base: RS60 roller chain flat plates | Standard: JIS B 1801 | Application: Oil-free conveying with cross-rod/custom attachments, clean rooms, food processing | Link Type: Standard (Unit Link)
RS60-HP-JLSeries: RS60-LMC-HP | Pitch: 19.05 mm | Roller Diameter: 11.91 mm | Inner Width: 12.57 mm | Pin Type: Hollow Pin (through-bore attachment mounting) | Lubrication: Oil-Free (Lambda Sintered Bushing) | Wear Life: 2x vs Standard RS Attachment Chain | Base: RS60 roller chain flat plates | Standard: JIS B 1801 | Application: Oil-free conveying with cross-rod/custom attachments, clean rooms, food processing | Link Type: Connecting Link (Joint Link)
