• Tsubaki RS60-LMC Lambda Attachment RS Conveyor Chain
1 1

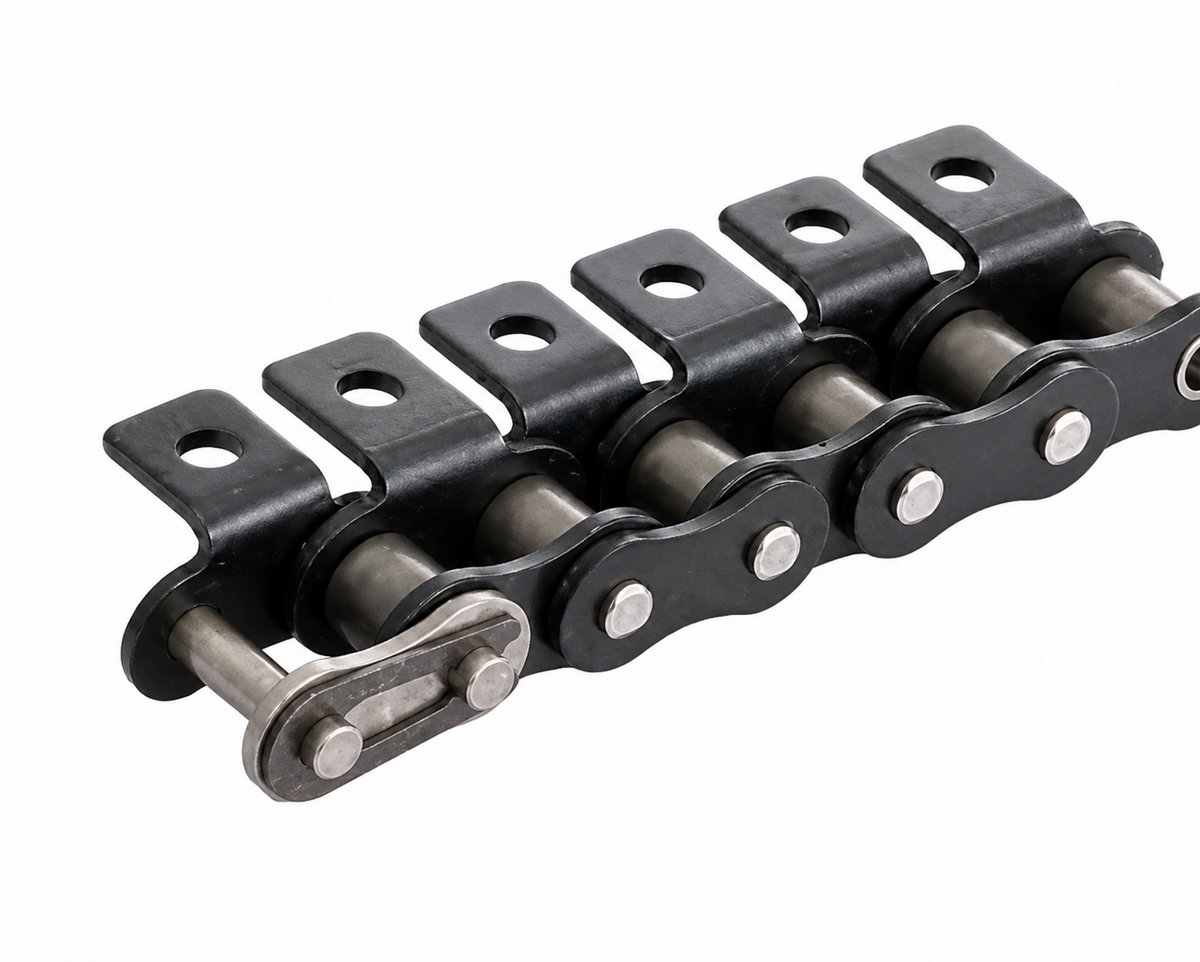

Tsubaki RS60-LMC Lambda Attachment RS Conveyor Chain

Tsubaki RS60-LMC Lambda Attachment RS Conveyor Chain

Tsubaki Lambda Attachment RS Chain (LMC) — RS-type attachment conveyor chain with special sintered bushings for oil-free, maintenance-free operation.

Key features

  • Wear life 2x longer than standard RS attachment chain
  • RS roller chain (drive type) flat plates with Lambda attachment mounting
  • Suitable for clean, oil-free conveying environments requiring long service life

Specifications

Series RS60-LMC
Pitch 19.05 mm
Roller Diameter 11.91 mm
Inner Width 12.57 mm
Strands 1
Lubrication Oil-Free (Lambda Sintered Bushing)
Wear Life 2x vs Standard RS Attachment Chain
Base RS60 roller chain with flat attachment plates
Standard JIS B 1801
Application Oil-free long-life attachment conveying, clean rooms, food processing
RS60-LMC-U Series: RS60-LMC | Pitch: 19.05 mm | Roller Diameter: 11.91 mm | Inner Width: 12.57 mm | Strands: 1 | Lubrication: Oil-Free (Lambda Sintered Bushing) | Wear Life: 2x vs Standard RS Attachment Chain | Base: RS60 roller chain with flat attachment plates | Standard: JIS B 1801 | Application: Oil-free long-life attachment conveying, clean rooms, food processing | Link Type: Standard (Unit Link)
RS60-LMC-JL Series: RS60-LMC | Pitch: 19.05 mm | Roller Diameter: 11.91 mm | Inner Width: 12.57 mm | Strands: 1 | Lubrication: Oil-Free (Lambda Sintered Bushing) | Wear Life: 2x vs Standard RS Attachment Chain | Base: RS60 roller chain with flat attachment plates | Standard: JIS B 1801 | Application: Oil-free long-life attachment conveying, clean rooms, food processing | Link Type: Connecting Link (Joint Link)
RS60-LMC-OL Series: RS60-LMC | Pitch: 19.05 mm | Roller Diameter: 11.91 mm | Inner Width: 12.57 mm | Strands: 1 | Lubrication: Oil-Free (Lambda Sintered Bushing) | Wear Life: 2x vs Standard RS Attachment Chain | Base: RS60 roller chain with flat attachment plates | Standard: JIS B 1801 | Application: Oil-free long-life attachment conveying, clean rooms, food processing | Link Type: Offset Link
Roller ChainsTsubaki
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Tsubaki RS60-LMC Lambda Attachment RS Conveyor Chain

Brand Tsubaki·Roller Chains

Available part numbers (3)

RS60-LMC-U, RS60-LMC-JL, RS60-LMC-OL

How to order

Send the Tsubaki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RS60-LMC-USeries: RS60-LMC | Pitch: 19.05 mm | Roller Diameter: 11.91 mm | Inner Width: 12.57 mm | Strands: 1 | Lubrication: Oil-Free (Lambda Sintered Bushing) | Wear Life: 2x vs Standard RS Attachment Chain | Base: RS60 roller chain with flat attachment plates | Standard: JIS B 1801 | Application: Oil-free long-life attachment conveying, clean rooms, food processing | Link Type: Standard (Unit Link)
RS60-LMC-JLSeries: RS60-LMC | Pitch: 19.05 mm | Roller Diameter: 11.91 mm | Inner Width: 12.57 mm | Strands: 1 | Lubrication: Oil-Free (Lambda Sintered Bushing) | Wear Life: 2x vs Standard RS Attachment Chain | Base: RS60 roller chain with flat attachment plates | Standard: JIS B 1801 | Application: Oil-free long-life attachment conveying, clean rooms, food processing | Link Type: Connecting Link (Joint Link)
RS60-LMC-OLSeries: RS60-LMC | Pitch: 19.05 mm | Roller Diameter: 11.91 mm | Inner Width: 12.57 mm | Strands: 1 | Lubrication: Oil-Free (Lambda Sintered Bushing) | Wear Life: 2x vs Standard RS Attachment Chain | Base: RS60 roller chain with flat attachment plates | Standard: JIS B 1801 | Application: Oil-free long-life attachment conveying, clean rooms, food processing | Link Type: Offset Link
