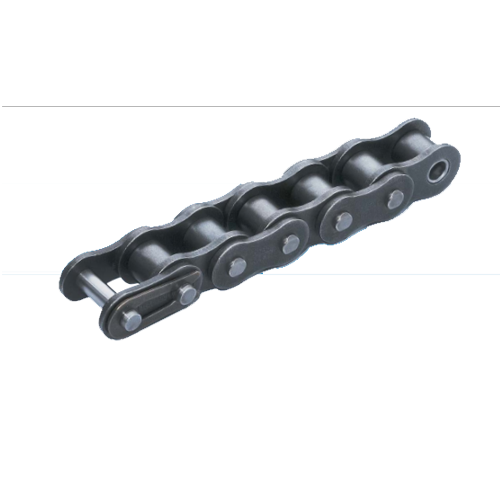

Tsubaki RS60-LMD-NP-1 Lambda Coating Chain Roller Chain

Tsubaki RS60-LMD-NP-1 Lambda Coating Chain Roller Chain

Tsubaki Lambda Coating Chain — Lambda Chain with nickel-plated (NP) coating on plates and rollers for enhanced corrosion resistance and wear life.

Key features

  • Special sintered bushings impregnated with lubricant for oil-free, maintenance-free operation
  • Service life up to 2x longer than standard chain due to improved bushing material and lubricant formulation
  • Suitable for food machinery, beverage lines, clean rooms, and corrosive environments
  • Compatible with standard RS roller chain sprockets
  • Note: pin length is longer than standard RS chain — verify clearance before installation

Specifications

Series RS60-LMD-NP
Pitch 19.05 mm
Roller Diameter 11.91 mm
Inner Width 12.57 mm
Strands 1
Coating Nickel-Plated (NP) — Plates & Rollers
Lubrication Oil-Free (Sintered Bushing)
Wear Life 2x vs Standard Lambda Chain
Standard RS (JIS B 1801)
Compatible Sprocket Standard RS60
Application Food machinery, beverage lines, clean rooms, corrosive environments
RS60-LMD-NP-1-U Series: RS60-LMD-NP | Pitch: 19.05 mm | Roller Diameter: 11.91 mm | Inner Width: 12.57 mm | Strands: 1 | Link Type: Standard (Unit Link) | Coating: Nickel-Plated (NP) — Plates & Rollers | Lubrication: Oil-Free (Sintered Bushing) | Wear Life: 2x vs Standard Lambda Chain | Standard: RS (JIS B 1801) | Compatible Sprocket: Standard RS60 | Application: Food machinery, beverage lines, clean rooms, corrosive environments
RS60-LMD-NP-1-JL Series: RS60-LMD-NP | Pitch: 19.05 mm | Roller Diameter: 11.91 mm | Inner Width: 12.57 mm | Strands: 1 | Link Type: Connecting Link (Joint Link) | Coating: Nickel-Plated (NP) — Plates & Rollers | Lubrication: Oil-Free (Sintered Bushing) | Wear Life: 2x vs Standard Lambda Chain | Standard: RS (JIS B 1801) | Compatible Sprocket: Standard RS60 | Application: Food machinery, beverage lines, clean rooms, corrosive environments
RS60-LMD-NP-1-OL Series: RS60-LMD-NP | Pitch: 19.05 mm | Roller Diameter: 11.91 mm | Inner Width: 12.57 mm | Strands: 1 | Link Type: Offset Link | Coating: Nickel-Plated (NP) — Plates & Rollers | Lubrication: Oil-Free (Sintered Bushing) | Wear Life: 2x vs Standard Lambda Chain | Standard: RS (JIS B 1801) | Compatible Sprocket: Standard RS60 | Application: Food machinery, beverage lines, clean rooms, corrosive environments
Roller ChainsTsubaki
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Tsubaki RS60-LMD-NP-1 Lambda Coating Chain Roller Chain

Brand Tsubaki·Roller Chains

Available part numbers (3)

RS60-LMD-NP-1-U, RS60-LMD-NP-1-JL, RS60-LMD-NP-1-OL

How to order

Send the Tsubaki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
