• UDT 520-7680 Shackle Forged Shackle (FBC)
1 1

UDT 520-7680 Shackle Forged Shackle (FBC)

UDT 520-7680 Shackle Forged Shackle (FBC)

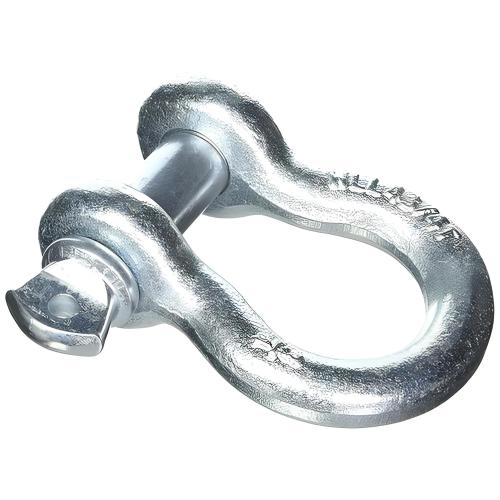

UDT 520-7680 Forged Shackle (FBC) is a heavy-duty forged shackle designed for secure load connection and rigging applications, sourced direct from Korea.

Key features

  • Forged shackles of this type are widely used in lifting, towing, and load-securing operations across construction, marine, and industrial environments where reliable connections under tension are critical
520-7680 6.4mm (1/4') | Spec: 1/4 | Weight: 0.05 | L: 4.85 | Safe Working Load: 0.50 | A: 11.90 | C: 28.70 | D: 6.35 | E: 19.80 | F: 15.50 | G: 32.50 | P: 6.35 | M: 35.10 | H: 45.20 | B: 7.85
520-7699 7.9mm (5/16') | Spec: 5/16 | Weight: 0.09 | L: 5.60 | Safe Working Load: 0.75 | A: 13.50 | C: 31.00 | D: 7.85 | E: 21.30 | F: 19.10 | G: 37.30 | P: 6.35 | M: 42.20 | H: 53.00 | B: 9.65
520-7705 9.5mm (3/8') | Spec: 3/8 | Weight: 0.14 | L: 6.35 | Safe Working Load: 1.00 | A: 16.80 | C: 36.60 | D: 9.65 | E: 26.20 | F: 23.10 | G: 45.20 | P: 9.65 | M: 51.50 | H: 63.00 | B: 11.20
520-7714 13mm (1/2') | Spec: 1/2 | Weight: 0.32 | L: 9.65 | Safe Working Load: 2.00 | A: 20.60 | C: 47.80 | D: 12.70 | E: 33.30 | F: 30.20 | G: 58.50 | P: 12.70 | M: 68.50 | H: 83.50 | B: 16.00
520-7723 16mm (5/8') | Spec: 5/8 | Weight: 0.61 | L: 11.20 | Safe Working Load: 3.25 | A: 26.90 | C: 60.50 | D: 16.00 | E: 42.90 | F: 38.10 | G: 74.50 | P: 17.50 | M: 85.00 | H: 106.00 | B: 19.10
520-7732 19mm (3/4') | Spec: 3/4 | Weight: 1.03 | L: 12.70 | Safe Working Load: 4.75 | A: 31.80 | C: 71.50 | D: 19.10 | E: 51.00 | F: 46.00 | G: 89.00 | P: 20.60 | M: 101.00 | H: 126.00 | B: 22.40
520-7741 22mm (7/8') | Spec: 7/8 | Weight: 1.52 | L: 12.70 | Safe Working Load: 6.50 | A: 36.60 | C: 84.00 | D: 22.40 | E: 58.00 | F: 53.00 | G: 102.00 | P: 24.60 | M: 114.00 | H: 148.00 | B: 25.40
520-7750 25mm (1') | Spec: 1 | Weight: 2.25 | L: 14.20 | Safe Working Load: 8.50 | A: 42.90 | C: 95.50 | D: 25.40 | E: 68.50 | F: 60.50 | G: 119.00 | P: 26.90 | M: 129.00 | H: 167.00 | B: 28.70
Chains & WiresUDT
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

UDT 520-7680 Shackle Forged Shackle (FBC)

Brand UDT·Chains & Wires

Available part numbers (8)

520-7680, 520-7699, 520-7705, 520-7714, 520-7723, 520-7732, 520-7741, 520-7750

How to order

Send the UDT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
520-76806.4mm (1/4') | Spec: 1/4 | Weight: 0.05 | L: 4.85 | Safe Working Load: 0.50 | A: 11.90 | C: 28.70 | D: 6.35 | E: 19.80 | F: 15.50 | G: 32.50 | P: 6.35 | M: 35.10 | H: 45.20 | B: 7.85
520-76997.9mm (5/16') | Spec: 5/16 | Weight: 0.09 | L: 5.60 | Safe Working Load: 0.75 | A: 13.50 | C: 31.00 | D: 7.85 | E: 21.30 | F: 19.10 | G: 37.30 | P: 6.35 | M: 42.20 | H: 53.00 | B: 9.65
520-77059.5mm (3/8') | Spec: 3/8 | Weight: 0.14 | L: 6.35 | Safe Working Load: 1.00 | A: 16.80 | C: 36.60 | D: 9.65 | E: 26.20 | F: 23.10 | G: 45.20 | P: 9.65 | M: 51.50 | H: 63.00 | B: 11.20
520-771413mm (1/2') | Spec: 1/2 | Weight: 0.32 | L: 9.65 | Safe Working Load: 2.00 | A: 20.60 | C: 47.80 | D: 12.70 | E: 33.30 | F: 30.20 | G: 58.50 | P: 12.70 | M: 68.50 | H: 83.50 | B: 16.00
520-772316mm (5/8') | Spec: 5/8 | Weight: 0.61 | L: 11.20 | Safe Working Load: 3.25 | A: 26.90 | C: 60.50 | D: 16.00 | E: 42.90 | F: 38.10 | G: 74.50 | P: 17.50 | M: 85.00 | H: 106.00 | B: 19.10
520-773219mm (3/4') | Spec: 3/4 | Weight: 1.03 | L: 12.70 | Safe Working Load: 4.75 | A: 31.80 | C: 71.50 | D: 19.10 | E: 51.00 | F: 46.00 | G: 89.00 | P: 20.60 | M: 101.00 | H: 126.00 | B: 22.40
520-774122mm (7/8') | Spec: 7/8 | Weight: 1.52 | L: 12.70 | Safe Working Load: 6.50 | A: 36.60 | C: 84.00 | D: 22.40 | E: 58.00 | F: 53.00 | G: 102.00 | P: 24.60 | M: 114.00 | H: 148.00 | B: 25.40
520-775025mm (1') | Spec: 1 | Weight: 2.25 | L: 14.20 | Safe Working Load: 8.50 | A: 42.90 | C: 95.50 | D: 25.40 | E: 68.50 | F: 60.50 | G: 119.00 | P: 26.90 | M: 129.00 | H: 167.00 | B: 28.70
