• UDT 520-7769 Shackle Turnbuckle Eye
1 1

UDT 520-7769 Shackle Turnbuckle Eye

UDT 520-7769 Shackle Turnbuckle Eye

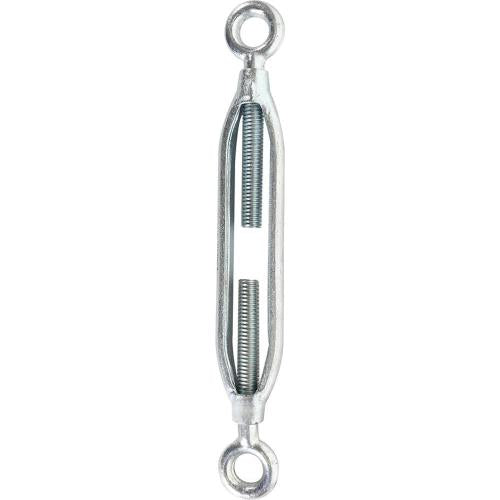

The UDT 520-7769 Shackle Turnbuckle Eye is a rigging hardware component designed to provide adjustable tension and secure load connection points, sourced direct from Korea.

Key features

  • Commonly used in lifting, lashing, and load-securing applications, this type of fitting allows workers in construction, marine, and industrial settings to fine-tune cable or chain tension with reliable mechanical control
520-7769 13mm (1/2') | Spec: 1/2 | Weight: 0.50 | A: 200 | C: 18 | Shape: Eye Type | F: 20 | B: 164 | Allowable Tensile Load: 2.00
520-7778 16mm (5/8') | Spec: 5/8 | Weight: 0.85 | A: 250 | C: 21 | Shape: Eye Type | F: 22 | B: 202 | Allowable Tensile Load: 3.00
520-7787 19mm (3/4') | Spec: 3/4 | Weight: 1.45 | A: 300 | C: 25 | Shape: Eye Type | F: 28 | B: 250 | Allowable Tensile Load: 4.00
520-7796 22mm (7/8') | Spec: 7/8 | Weight: 2.10 | A: 325 | C: 28 | Shape: Eye Type | F: 33 | B: 269 | Allowable Tensile Load: 5.00
520-7802 25mm (1') | Spec: 1 | Weight: 2.90 | A: 350 | C: 32 | Shape: Eye Type | F: 35 | B: 285 | Allowable Tensile Load: 6.00
520-7811 13mm (1/2') | Spec: 1/2 | Weight: 0.50 | A: 200 | C: 18 | Shape: Hook Type | E: 16 | B: 164 | Allowable Tensile Load: 0.35
520-7820 16mm (5/8') | Spec: 5/8 | Weight: 0.85 | A: 250 | C: 21 | Shape: Hook Type | E: 19 | B: 202 | Allowable Tensile Load: 0.70
520-7839 19mm (3/4') | Spec: 3/4 | Weight: 1.45 | A: 300 | C: 25 | Shape: Hook Type | E: 20 | B: 250 | Allowable Tensile Load: 1.00
520-7848 22mm (7/8') | Spec: 7/8 | Weight: 2.10 | A: 325 | C: 28 | Shape: Hook Type | E: 21 | B: 269 | Allowable Tensile Load: 1.50
520-7857 25mm (1') | Spec: 1 | Weight: 2.90 | A: 350 | C: 32 | Shape: Hook Type | E: 26 | B: 285 | Allowable Tensile Load: 2.00
Chains & WiresUDT
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

UDT 520-7769 Shackle Turnbuckle Eye

Brand UDT·Chains & Wires

Available part numbers (10)

520-7769, 520-7778, 520-7787, 520-7796, 520-7802, 520-7811, 520-7820, 520-7839, 520-7848, 520-7857

How to order

Send the UDT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
520-776913mm (1/2') | Spec: 1/2 | Weight: 0.50 | A: 200 | C: 18 | Shape: Eye Type | F: 20 | B: 164 | Allowable Tensile Load: 2.00
520-777816mm (5/8') | Spec: 5/8 | Weight: 0.85 | A: 250 | C: 21 | Shape: Eye Type | F: 22 | B: 202 | Allowable Tensile Load: 3.00
520-778719mm (3/4') | Spec: 3/4 | Weight: 1.45 | A: 300 | C: 25 | Shape: Eye Type | F: 28 | B: 250 | Allowable Tensile Load: 4.00
520-779622mm (7/8') | Spec: 7/8 | Weight: 2.10 | A: 325 | C: 28 | Shape: Eye Type | F: 33 | B: 269 | Allowable Tensile Load: 5.00
520-780225mm (1') | Spec: 1 | Weight: 2.90 | A: 350 | C: 32 | Shape: Eye Type | F: 35 | B: 285 | Allowable Tensile Load: 6.00
520-781113mm (1/2') | Spec: 1/2 | Weight: 0.50 | A: 200 | C: 18 | Shape: Hook Type | E: 16 | B: 164 | Allowable Tensile Load: 0.35
520-782016mm (5/8') | Spec: 5/8 | Weight: 0.85 | A: 250 | C: 21 | Shape: Hook Type | E: 19 | B: 202 | Allowable Tensile Load: 0.70
520-783919mm (3/4') | Spec: 3/4 | Weight: 1.45 | A: 300 | C: 25 | Shape: Hook Type | E: 20 | B: 250 | Allowable Tensile Load: 1.00
520-784822mm (7/8') | Spec: 7/8 | Weight: 2.10 | A: 325 | C: 28 | Shape: Hook Type | E: 21 | B: 269 | Allowable Tensile Load: 1.50
520-785725mm (1') | Spec: 1 | Weight: 2.90 | A: 350 | C: 32 | Shape: Hook Type | E: 26 | B: 285 | Allowable Tensile Load: 2.00
