• UDT 520-8102 Shackle General Chain (Electroplated)
1 1

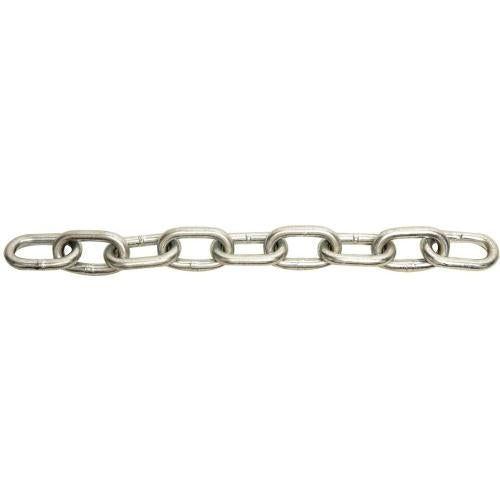

UDT 520-8102 Shackle General Chain (Electroplated)

UDT 520-8102 Shackle General Chain (Electroplated)

UDT 520-8102 Shackle General Chain (Electroplated) is a electroplated shackle-style chain designed for secure load connection and lifting applications, sourced direct from Korea.

Key features

  • General chains of this type are widely used across construction, rigging, and material handling operations where a reliable link between equipment and loads is required
520-8102 3mm (1 Roll=30M) | Spec: 3 | Weight: 0.15 | L: 20 | Safe Working Load: 0.4 | Length: 30 | D: 3 | Total Weight: 4.50 | W: 11
520-8111 4mm (1 Roll = 30M) | Spec: 4 | Weight: 0.26 | L: 22 | Safe Working Load: 0.7 | Length: 30 | D: 4 | Total Weight: 7.80 | W: 16
520-8120 5mm (1 Roll=30M) | Spec: 5 | Weight: 0.41 | L: 24 | Safe Working Load: 1.1 | Length: 30 | D: 5 | Total Weight: 12.30 | W: 18
520-8139 6mm (1 Roll=30M) | Spec: 6 | Weight: 0.60 | L: 27 | Safe Working Load: 1.6 | Length: 30 | D: 6 | Total Weight: 18.00 | W: 20
520-8148 7mm (1 Roll=25M) | Spec: 7 | Weight: 0.81 | L: 31 | Safe Working Load: 2.2 | Length: 25 | D: 7 | Total Weight: 20.25 | W: 26
520-8157 8mm (1 Roll=20M) | Spec: 8 | Weight: 1.00 | L: 35 | Safe Working Load: 2.8 | Length: 20 | D: 8 | Total Weight: 20.00 | W: 30
520-8166 9mm (1 Roll=15M) | Spec: 9 | Weight: 1.50 | L: 39 | Safe Working Load: 3.6 | Length: 15 | D: 9 | Total Weight: 45.00 | W: 33
Chains & WiresUDT
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

UDT 520-8102 Shackle General Chain (Electroplated)

Brand UDT·Chains & Wires

Available part numbers (7)

520-8102, 520-8111, 520-8120, 520-8139, 520-8148, 520-8157, 520-8166

How to order

Send the UDT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
520-81023mm (1 Roll=30M) | Spec: 3 | Weight: 0.15 | L: 20 | Safe Working Load: 0.4 | Length: 30 | D: 3 | Total Weight: 4.50 | W: 11
520-81114mm (1 Roll = 30M) | Spec: 4 | Weight: 0.26 | L: 22 | Safe Working Load: 0.7 | Length: 30 | D: 4 | Total Weight: 7.80 | W: 16
520-81205mm (1 Roll=30M) | Spec: 5 | Weight: 0.41 | L: 24 | Safe Working Load: 1.1 | Length: 30 | D: 5 | Total Weight: 12.30 | W: 18
520-81396mm (1 Roll=30M) | Spec: 6 | Weight: 0.60 | L: 27 | Safe Working Load: 1.6 | Length: 30 | D: 6 | Total Weight: 18.00 | W: 20
520-81487mm (1 Roll=25M) | Spec: 7 | Weight: 0.81 | L: 31 | Safe Working Load: 2.2 | Length: 25 | D: 7 | Total Weight: 20.25 | W: 26
520-81578mm (1 Roll=20M) | Spec: 8 | Weight: 1.00 | L: 35 | Safe Working Load: 2.8 | Length: 20 | D: 8 | Total Weight: 20.00 | W: 30
520-81669mm (1 Roll=15M) | Spec: 9 | Weight: 1.50 | L: 39 | Safe Working Load: 3.6 | Length: 15 | D: 9 | Total Weight: 45.00 | W: 33
