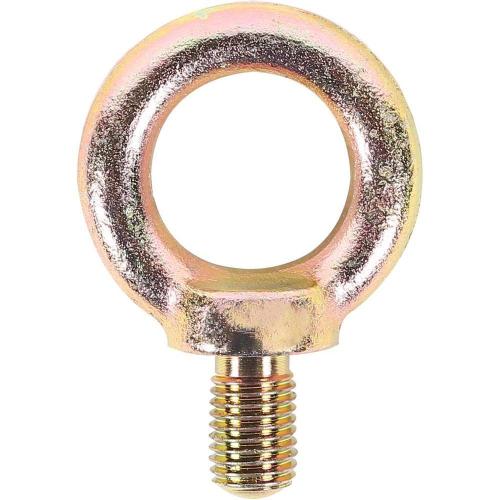

UDT 520-8272 Shackle Eye Bolt

UDT 520-8272 Shackle Eye Bolt

UDT 520-8272 Shackle Eye Bolt is a rigging connector designed to join lifting chains, wire ropes, and load-bearing assemblies, sourced direct from Korea.

Key features

  • Commonly used in industrial lifting, marine, and construction applications, this type of hardware provides a secure anchor point for attaching hooks, slings, or shackles to fixed structures or machinery

Specifications

Shape mm
520-8272 6mm | Spec: 6 | Weight: 0.03 | Safe Working Load: 0.06 | A: 25 | C: 5 | Shape: mm | D: 13 | I: 14 | h: 27 | T: 6 | B: 15
520-8281 8mm | Spec: 8 | Weight: 0.03 | Safe Working Load: 0.08 | A: 33 | C: 6 | Shape: mm | D: 16 | I: 15 | h: 17 | T: 6 | H: 33 | B: 20
520-8290 10mm | Spec: 10 | Weight: 0.06 | Safe Working Load: 0.15 | A: 41 | C: 8 | Shape: mm | D: 20 | I: 18 | h: 21 | T: 7 | H: 42 | B: 25
520-8306 12mm | Spec: 12 | Weight: 0.13 | Safe Working Load: 0.22 | A: 50 | C: 10 | Shape: mm | D: 25 | I: 22 | h: 26 | T: 9 | H: 51 | B: 30
520-8315 14mm | Spec: 14 | Weight: 0.22 | Safe Working Load: 0.33 | A: 60 | C: 12 | Shape: mm | D: 30 | I: 26 | h: 30 | T: 11 | H: 60 | B: 35
520-8324 16mm | Spec: 16 | Weight: 0.24 | Safe Working Load: 0.45 | A: 63 | C: 14 | Shape: mm | D: 35 | I: 27 | h: 30 | T: 12 | H: 60 | B: 35
520-8333 18mm | Spec: 18 | Weight: 0.39 | Safe Working Load: 0.54 | A: 72 | C: 16 | Shape: mm | D: 30 | I: 30 | h: 35 | T: 13 | H: 71 | B: 40
520-8342 20mm | Spec: 20 | Weight: 0.39 | Safe Working Load: 0.63 | A: 72 | C: 16 | Shape: mm | D: 30 | I: 30 | h: 35 | T: 13 | H: 71 | B: 40
520-8351 22mm | Spec: 22 | Weight: 0.44 | Safe Working Load: 0.88 | A: 81 | C: 18 | Shape: mm | D: 45 | I: 35 | h: 40 | T: 14 | H: 90 | B: 45
520-8360 24mm | Spec: 24 | Weight: 0.78 | Safe Working Load: 0.95 | A: 90 | C: 20 | Shape: mm | D: 50 | I: 38 | h: 45 | T: 16 | H: 90 | B: 50
520-8379 30mm | Spec: 30 | Weight: 1.40 | Safe Working Load: 1.50 | A: 110 | C: 25 | Shape: mm | D: 60 | I: 45 | h: 55 | T: 18 | H: 110 | B: 60
Chains & WiresUDT
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

UDT 520-8272 Shackle Eye Bolt

Brand UDT·Chains & Wires

Available part numbers (11)

520-8272, 520-8281, 520-8290, 520-8306, 520-8315, 520-8324, 520-8333, 520-8342, 520-8351, 520-8360 + 1 more — see full table ↓

How to order

Send the UDT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
520-82726mm | Spec: 6 | Weight: 0.03 | Safe Working Load: 0.06 | A: 25 | C: 5 | Shape: mm | D: 13 | I: 14 | h: 27 | T: 6 | B: 15
520-82818mm | Spec: 8 | Weight: 0.03 | Safe Working Load: 0.08 | A: 33 | C: 6 | Shape: mm | D: 16 | I: 15 | h: 17 | T: 6 | H: 33 | B: 20
520-829010mm | Spec: 10 | Weight: 0.06 | Safe Working Load: 0.15 | A: 41 | C: 8 | Shape: mm | D: 20 | I: 18 | h: 21 | T: 7 | H: 42 | B: 25
520-830612mm | Spec: 12 | Weight: 0.13 | Safe Working Load: 0.22 | A: 50 | C: 10 | Shape: mm | D: 25 | I: 22 | h: 26 | T: 9 | H: 51 | B: 30
520-831514mm | Spec: 14 | Weight: 0.22 | Safe Working Load: 0.33 | A: 60 | C: 12 | Shape: mm | D: 30 | I: 26 | h: 30 | T: 11 | H: 60 | B: 35
520-832416mm | Spec: 16 | Weight: 0.24 | Safe Working Load: 0.45 | A: 63 | C: 14 | Shape: mm | D: 35 | I: 27 | h: 30 | T: 12 | H: 60 | B: 35
520-833318mm | Spec: 18 | Weight: 0.39 | Safe Working Load: 0.54 | A: 72 | C: 16 | Shape: mm | D: 30 | I: 30 | h: 35 | T: 13 | H: 71 | B: 40
520-834220mm | Spec: 20 | Weight: 0.39 | Safe Working Load: 0.63 | A: 72 | C: 16 | Shape: mm | D: 30 | I: 30 | h: 35 | T: 13 | H: 71 | B: 40
520-835122mm | Spec: 22 | Weight: 0.44 | Safe Working Load: 0.88 | A: 81 | C: 18 | Shape: mm | D: 45 | I: 35 | h: 40 | T: 14 | H: 90 | B: 45
520-836024mm | Spec: 24 | Weight: 0.78 | Safe Working Load: 0.95 | A: 90 | C: 20 | Shape: mm | D: 50 | I: 38 | h: 45 | T: 16 | H: 90 | B: 50
520-837930mm | Spec: 30 | Weight: 1.40 | Safe Working Load: 1.50 | A: 110 | C: 25 | Shape: mm | D: 60 | I: 45 | h: 55 | T: 18 | H: 110 | B: 60
