• UDT 520-8388 Shackle Eye Bolt
1 1

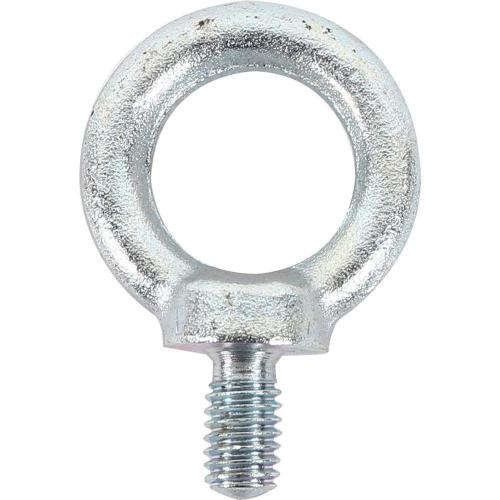

UDT 520-8388 Shackle Eye Bolt

UDT 520-8388 Shackle Eye Bolt

The UDT 520-8388 Shackle Eye Bolt is a lifting and rigging hardware component designed to connect chains, hooks, and slings to loads or anchor points, sourced direct from Korea.

Key features

  • Widely used in construction, marine, and heavy industrial environments, shackle eye bolts provide a secure attachment point for overhead lifting, load securing, and towing applications

Specifications

Shape inch
520-8388 5/16 | Spec: 5/16 | Weight: 0.03 | Safe Working Load: 0.08 | A: 33 | C: 6 | Shape: inch | D: 16 | I: 15 | h: 17 | T: 6 | H: 33 | B: 20
520-8397 3/8 | Spec: 3/8 | Weight: 0.06 | Safe Working Load: 0.15 | A: 41 | C: 8 | Shape: inch | D: 20 | I: 18 | h: 21 | T: 7 | H: 42 | B: 25
520-8403 1/2 | Spec: 1/2 | Weight: 0.13 | Safe Working Load: 0.22 | A: 50 | C: 10 | Shape: inch | D: 25 | I: 22 | h: 26 | T: 9 | H: 51 | B: 30
520-8412 5/8 | Spec: 5/8 | Weight: 0.24 | Safe Working Load: 0.45 | A: 63 | C: 14 | Shape: inch | D: 35 | I: 27 | h: 30 | T: 12 | H: 60 | B: 35
520-8421 3/4 | Spec: 3/4 | Weight: 0.39 | Safe Working Load: 0.63 | A: 72 | C: 16 | Shape: inch | D: 30 | I: 30 | h: 35 | T: 13 | H: 71 | B: 40
520-8430 7/8 | Spec: 7/8 | Weight: 0.44 | Safe Working Load: 0.88 | A: 81 | C: 18 | Shape: inch | D: 45 | I: 35 | h: 40 | T: 14 | H: 90 | B: 45
520-8449 1 | Spec: 1 | Weight: 0.78 | Safe Working Load: 0.95 | A: 90 | C: 20 | Shape: inch | D: 45 | I: 38 | h: 45 | T: 16 | H: 90 | B: 50
Chains & WiresUDT
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

UDT 520-8388 Shackle Eye Bolt

Brand UDT·Chains & Wires

Available part numbers (7)

520-8388, 520-8397, 520-8403, 520-8412, 520-8421, 520-8430, 520-8449

How to order

Send the UDT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
520-83885/16 | Spec: 5/16 | Weight: 0.03 | Safe Working Load: 0.08 | A: 33 | C: 6 | Shape: inch | D: 16 | I: 15 | h: 17 | T: 6 | H: 33 | B: 20
520-83973/8 | Spec: 3/8 | Weight: 0.06 | Safe Working Load: 0.15 | A: 41 | C: 8 | Shape: inch | D: 20 | I: 18 | h: 21 | T: 7 | H: 42 | B: 25
520-84031/2 | Spec: 1/2 | Weight: 0.13 | Safe Working Load: 0.22 | A: 50 | C: 10 | Shape: inch | D: 25 | I: 22 | h: 26 | T: 9 | H: 51 | B: 30
520-84125/8 | Spec: 5/8 | Weight: 0.24 | Safe Working Load: 0.45 | A: 63 | C: 14 | Shape: inch | D: 35 | I: 27 | h: 30 | T: 12 | H: 60 | B: 35
520-84213/4 | Spec: 3/4 | Weight: 0.39 | Safe Working Load: 0.63 | A: 72 | C: 16 | Shape: inch | D: 30 | I: 30 | h: 35 | T: 13 | H: 71 | B: 40
520-84307/8 | Spec: 7/8 | Weight: 0.44 | Safe Working Load: 0.88 | A: 81 | C: 18 | Shape: inch | D: 45 | I: 35 | h: 40 | T: 14 | H: 90 | B: 45
520-84491 | Spec: 1 | Weight: 0.78 | Safe Working Load: 0.95 | A: 90 | C: 20 | Shape: inch | D: 45 | I: 38 | h: 45 | T: 16 | H: 90 | B: 50
