• UDT 520-8528 Shackle Eye Nut
1 1

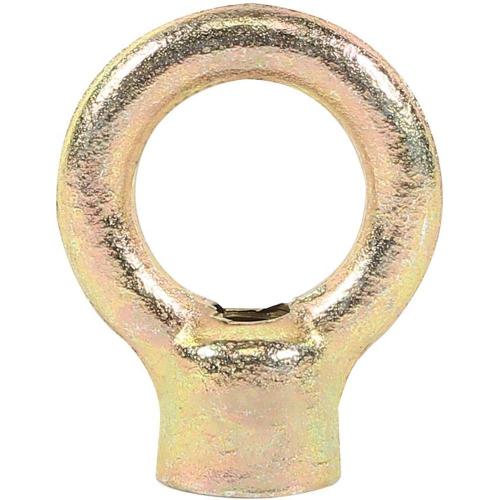

UDT 520-8528 Shackle Eye Nut

UDT 520-8528 Shackle Eye Nut

UDT 520-8528 Shackle Eye Nut is a threaded lifting hardware component designed to provide a secure attachment point for hooks, shackles, and rigging systems, sourced direct from Korea.

Key features

  • Commonly used in overhead lifting, material handling, and industrial rigging setups, this type of eye nut allows for the safe connection of chains, wire ropes, and load-bearing hardware across construction, shipbuilding, and heavy manufacturing environments

Specifications

Shape mm
520-8528 8mm | Spec: 8 | Weight: 0.03 | Safe Working Load: 0.08 | A: 33 | C: 6 | Shape: mm | D: 16 | H: 39 | B: 20
520-8537 10mm | Spec: 10 | Weight: 0.06 | Safe Working Load: 0.15 | A: 41 | C: 8 | Shape: mm | D: 20 | H: 49 | B: 25
520-8546 12mm | Spec: 12 | Weight: 0.12 | Safe Working Load: 0.22 | A: 50 | C: 10 | Shape: mm | D: 25 | H: 61 | B: 30
520-8555 14mm | Spec: 14 | Weight: 0.22 | Safe Working Load: 0.32 | A: 59 | C: 12 | Shape: mm | D: 36 | H: 71 | B: 35
520-8564 16mm | Spec: 16 | Weight: 0.22 | Safe Working Load: 0.45 | A: 60 | C: 13 | Shape: mm | D: 30 | H: 72 | B: 35
520-8573 20mm | Spec: 20 | Weight: 0.39 | Safe Working Load: 0.63 | A: 72 | C: 16 | Shape: mm | D: 30 | H: 86 | B: 40
520-8582 22mm | Spec: 22 | Weight: 0.60 | Safe Working Load: 0.88 | A: 81 | C: 18 | Shape: mm | D: 40 | H: 98 | B: 45
520-8591 24mm | Spec: 24 | Weight: 0.81 | Safe Working Load: 0.95 | A: 90 | C: 20 | Shape: mm | D: 45 | H: 111 | B: 50
Chains & WiresUDT
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

UDT 520-8528 Shackle Eye Nut

Brand UDT·Chains & Wires

Available part numbers (8)

520-8528, 520-8537, 520-8546, 520-8555, 520-8564, 520-8573, 520-8582, 520-8591

How to order

Send the UDT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
520-85288mm | Spec: 8 | Weight: 0.03 | Safe Working Load: 0.08 | A: 33 | C: 6 | Shape: mm | D: 16 | H: 39 | B: 20
520-853710mm | Spec: 10 | Weight: 0.06 | Safe Working Load: 0.15 | A: 41 | C: 8 | Shape: mm | D: 20 | H: 49 | B: 25
520-854612mm | Spec: 12 | Weight: 0.12 | Safe Working Load: 0.22 | A: 50 | C: 10 | Shape: mm | D: 25 | H: 61 | B: 30
520-855514mm | Spec: 14 | Weight: 0.22 | Safe Working Load: 0.32 | A: 59 | C: 12 | Shape: mm | D: 36 | H: 71 | B: 35
520-856416mm | Spec: 16 | Weight: 0.22 | Safe Working Load: 0.45 | A: 60 | C: 13 | Shape: mm | D: 30 | H: 72 | B: 35
520-857320mm | Spec: 20 | Weight: 0.39 | Safe Working Load: 0.63 | A: 72 | C: 16 | Shape: mm | D: 30 | H: 86 | B: 40
520-858222mm | Spec: 22 | Weight: 0.60 | Safe Working Load: 0.88 | A: 81 | C: 18 | Shape: mm | D: 40 | H: 98 | B: 45
520-859124mm | Spec: 24 | Weight: 0.81 | Safe Working Load: 0.95 | A: 90 | C: 20 | Shape: mm | D: 45 | H: 111 | B: 50

Need a different model, or a part not listed here? Send us your parts list →
