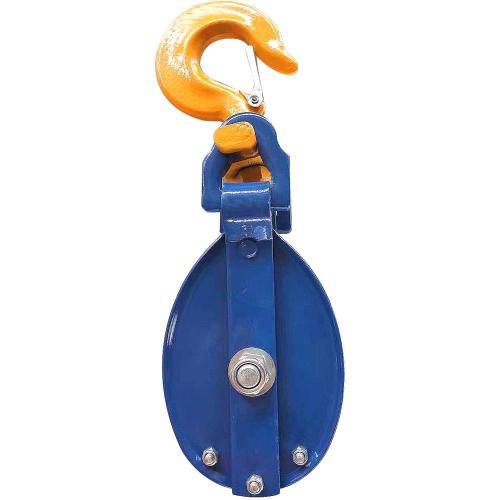

UDT 520-8607 Shackle Long Shackle (Pulley Open/Close Type)

UDT 520-8607 Shackle Long Shackle (Pulley Open/Close Type)

UDT 520-8607 Long Shackle in a pulley open/close configuration delivers secure load connection and release for rigging and lifting applications, sourced direct from Korea.

Key features

  • This type of shackle is commonly used in overhead lifting, block-and-tackle rigging, and material handling setups where a quick-connect pin mechanism is needed to attach wire rope, chain, or pulley blocks safely
520-8607 75mm (3') | Spec: 3 | Weight: 2.40 | Safe Working Load: 1.00 | A: 265 | C: 67 | D: 16 | E: 24 | F: 48 | G: 26 | B: 92
520-8616 100mm (4') | Spec: 4 | Weight: 3.40 | Safe Working Load: 2.00 | A: 320 | C: 90 | D: 20 | E: 28 | F: 49 | G: 29 | B: 110
520-8625 125mm (5') | Spec: 5 | Weight: 4.60 | Safe Working Load: 2.00 | A: 395 | C: 118 | D: 26 | E: 32 | F: 57 | G: 33 | B: 137
Chains & WiresUDT
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

UDT 520-8607 Shackle Long Shackle (Pulley Open/Close Type)

Brand UDT·Chains & Wires

Available part numbers (3)

520-8607, 520-8616, 520-8625

How to order

Send the UDT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
520-860775mm (3') | Spec: 3 | Weight: 2.40 | Safe Working Load: 1.00 | A: 265 | C: 67 | D: 16 | E: 24 | F: 48 | G: 26 | B: 92
520-8616100mm (4') | Spec: 4 | Weight: 3.40 | Safe Working Load: 2.00 | A: 320 | C: 90 | D: 20 | E: 28 | F: 49 | G: 29 | B: 110
520-8625125mm (5') | Spec: 5 | Weight: 4.60 | Safe Working Load: 2.00 | A: 395 | C: 118 | D: 26 | E: 32 | F: 57 | G: 33 | B: 137
