• UDT 521-6545 Shackle Eye Bolt
1 1

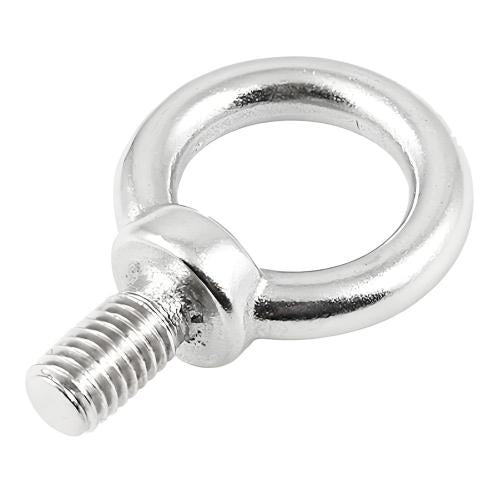

UDT 521-6545 Shackle Eye Bolt

UDT 521-6545 Shackle Eye Bolt

The UDT 521-6545 Shackle Eye Bolt is a heavy-duty lifting and rigging attachment sourced direct from Korea.

Key features

  • Shackle eye bolts are commonly used in industrial lifting, load securing, and rigging applications where a reliable anchor point is needed to connect chains, wire ropes, or slings

Specifications

Shape mm
521-6545 6mm (Stainless Steel) | Spec: 6 | Weight: 0.01 | A: 6 | C: 26.5 | Shape: mm | D: 17 | E: 5 | I: 14 | H: 25 | B: 12
521-6554 8mm (Stainless Steel) | Spec: 8 | Weight: 0.02 | A: 8 | C: 31.4 | Shape: mm | D: 20 | E: 6 | I: 15 | H: 32 | B: 15
521-6563 10mm Stainless Steel | Spec: 10 | Weight: 0.05 | A: 10 | C: 39.0 | Shape: mm | D: 25 | E: 7 | I: 18 | H: 40 | B: 19
521-6572 12mm Stainless Steel | Spec: 12 | Weight: 0.05 | A: 12 | C: 48.0 | Shape: mm | D: 30 | E: 9 | I: 21 | H: 48 | B: 23
521-6581 16mm Stainless Steel | Spec: 16 | Weight: 0.17 | A: 16 | C: 58.0 | Shape: mm | D: 36 | E: 11 | I: 28 | H: 60 | B: 28
521-6590 20mm (Stainless) | Spec: 20 | Weight: 0.29 | A: 20 | C: 70.0 | Shape: mm | D: 40 | E: 15 | I: 31 | H: 70 | B: 32
Chains & WiresUDT
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

UDT 521-6545 Shackle Eye Bolt

Brand UDT·Chains & Wires

Available part numbers (6)

521-6545, 521-6554, 521-6563, 521-6572, 521-6581, 521-6590

How to order

Send the UDT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
521-65456mm (Stainless Steel) | Spec: 6 | Weight: 0.01 | A: 6 | C: 26.5 | Shape: mm | D: 17 | E: 5 | I: 14 | H: 25 | B: 12
521-65548mm (Stainless Steel) | Spec: 8 | Weight: 0.02 | A: 8 | C: 31.4 | Shape: mm | D: 20 | E: 6 | I: 15 | H: 32 | B: 15
521-656310mm Stainless Steel | Spec: 10 | Weight: 0.05 | A: 10 | C: 39.0 | Shape: mm | D: 25 | E: 7 | I: 18 | H: 40 | B: 19
521-657212mm Stainless Steel | Spec: 12 | Weight: 0.05 | A: 12 | C: 48.0 | Shape: mm | D: 30 | E: 9 | I: 21 | H: 48 | B: 23
521-658116mm Stainless Steel | Spec: 16 | Weight: 0.17 | A: 16 | C: 58.0 | Shape: mm | D: 36 | E: 11 | I: 28 | H: 60 | B: 28
521-659020mm (Stainless) | Spec: 20 | Weight: 0.29 | A: 20 | C: 70.0 | Shape: mm | D: 40 | E: 15 | I: 31 | H: 70 | B: 32

Need a different model, or a part not listed here? Send us your parts list →
