UDT 521-6785 Shackle Wire Rope Clip

UDT 521-6785 Shackle Wire Rope Clip

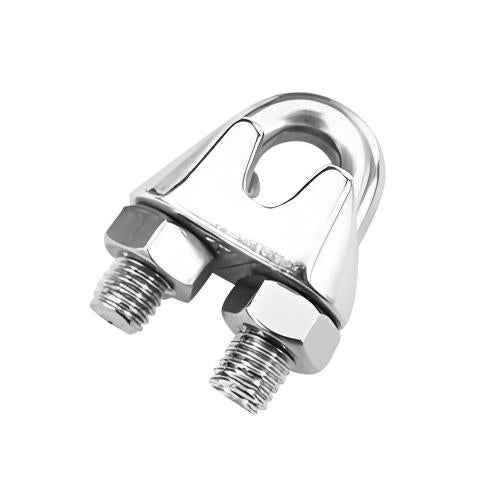

The UDT 521-6785 Shackle Wire Rope Clip is a securing hardware component designed to fasten and anchor wire rope ends reliably, sourced direct from Korea.

Key features

  • Wire rope clips of this type are widely used in rigging, lifting, and tie-down applications across construction, marine, and industrial maintenance environments where a dependable cable termination is essential
521-6785 3.2mm (1/8") Stainless Steel | Spec: 1/8 | Weight: 0.02 | A: 22 | D: 3/16 | G: 20 | H: 11 | B: 13 | W: 11.0
521-6794 4.8mm (3/16") Stainless | Spec: 3/16 | Weight: 0.03 | A: 26 | D: 1/4 | G: 24 | H: 13 | B: 15 | W: 14.5
521-6800 6.4mm (1/4") Stainless | Spec: 1/4 | Weight: 0.06 | A: 32 | D: 5/16 | G: 32 | H: 15 | B: 18 | W: 17.0
521-6819 7.9mm (5/16') - Stainless Steel | Spec: 5/16 | Weight: 0.06 | A: 35 | D: 5/16 | G: 34 | H: 16 | B: 18 | W: 18.5
521-6828 9.5mm (3/8') Stainless Steel | Spec: 3/8 | Weight: 0.12 | A: 41 | D: 3/8 | G: 42 | H: 22 | B: 20 | W: 22.5
521-6837 13mm (1/2") Stainless Steel | Spec: 1/2 | Weight: 0.19 | A: 49 | D: 7/16 | G: 54 | H: 23 | B: 25 | W: 27.0
521-6846 16mm (5/8') - Stainless Steel | Spec: 5/8 | Weight: 0.23 | A: 58 | D: 1/2 | G: 60 | H: 28 | B: 26 | W: 33.0
Chains & WiresUDT
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

UDT 521-6785 Shackle Wire Rope Clip

Brand UDT·Chains & Wires

Available part numbers (7)

521-6785, 521-6794, 521-6800, 521-6819, 521-6828, 521-6837, 521-6846

How to order

Send the UDT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
521-67853.2mm (1/8") Stainless Steel | Spec: 1/8 | Weight: 0.02 | A: 22 | D: 3/16 | G: 20 | H: 11 | B: 13 | W: 11.0
521-67944.8mm (3/16") Stainless | Spec: 3/16 | Weight: 0.03 | A: 26 | D: 1/4 | G: 24 | H: 13 | B: 15 | W: 14.5
521-68006.4mm (1/4") Stainless | Spec: 1/4 | Weight: 0.06 | A: 32 | D: 5/16 | G: 32 | H: 15 | B: 18 | W: 17.0
521-68197.9mm (5/16') - Stainless Steel | Spec: 5/16 | Weight: 0.06 | A: 35 | D: 5/16 | G: 34 | H: 16 | B: 18 | W: 18.5
521-68289.5mm (3/8') Stainless Steel | Spec: 3/8 | Weight: 0.12 | A: 41 | D: 3/8 | G: 42 | H: 22 | B: 20 | W: 22.5
521-683713mm (1/2") Stainless Steel | Spec: 1/2 | Weight: 0.19 | A: 49 | D: 7/16 | G: 54 | H: 23 | B: 25 | W: 27.0
521-684616mm (5/8') - Stainless Steel | Spec: 5/8 | Weight: 0.23 | A: 58 | D: 1/2 | G: 60 | H: 28 | B: 26 | W: 33.0
