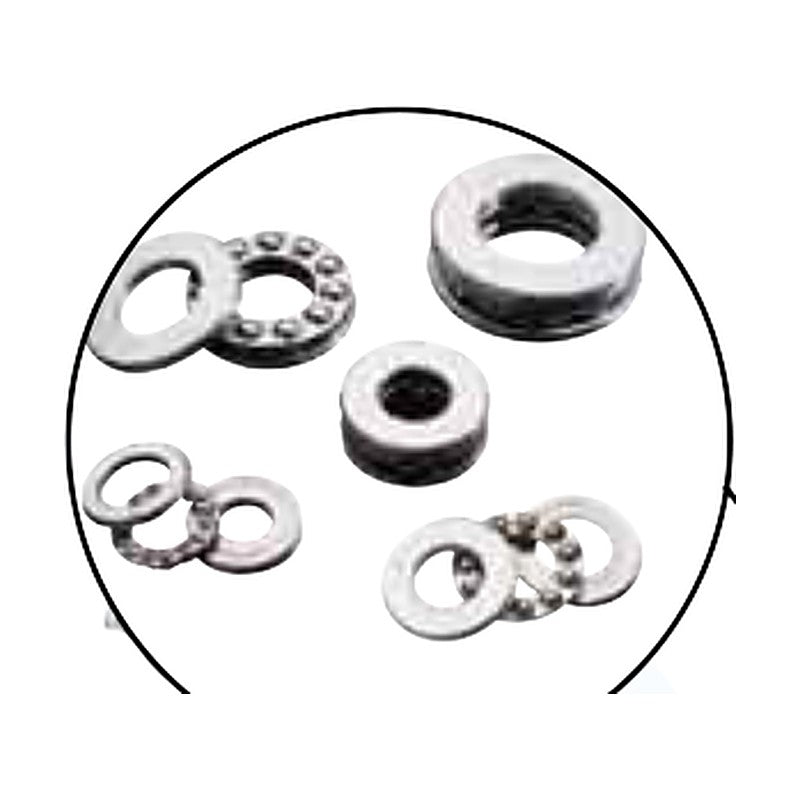

WBC 511/512/513/514 Single Direction Thrust Ball Bearings (10-560 mm)

WBC 511/512/513/514 Single Direction Thrust Ball Bearings (10-560 mm)

WBC single direction thrust ball bearings with flat seats in the 511, 512, 513 and 514 series, carrying axial loads in one direction at low and medium speeds.

Key features

  • Shaft washer, housing washer and ball-and-cage assembly
  • Flat seat design (A) for axial loads in one direction
  • Bore 10 mm to 560 mm; X suffix on larger sizes as catalogued
  • Dynamic and static load ratings in kgf with grease and oil speed limits
  • Made in Korea by Wonil Bearing Industry

Specifications

Brand WBC
Manufacturer Wonil Bearing Industry Co., Ltd.
Bearing type Thrust ball bearing
Load ratings kgf (as catalogued)
Units mm
Direction Single
Seat Flat (A)
Source WBC (Wonil Bearing) Thrust Bearing General Catalogue, p. 14-23
51100 d: 10 mm | D: 24 mm | T: 9 mm | C: 1,030 kgf | Co: 1,180 kgf | n oil: 10,000 rpm
51200 d: 10 mm | D: 26 mm | T: 11 mm | C: 1,300 kgf | Co: 1,440 kgf | n oil: 9,000 rpm
51101 d: 12 mm | D: 26 mm | T: 9 mm | C: 1,060 kgf | Co: 1,300 kgf | n oil: 10,000 rpm
51201 d: 12 mm | D: 28 mm | T: 11 mm | C: 1,350 kgf | Co: 1,600 kgf | n oil: 8,500 rpm
51102 d: 15 mm | D: 28 mm | T: 9 mm | C: 1,080 kgf | Co: 1,410 kgf | n oil: 9,500 rpm
51202 d: 15 mm | D: 32 mm | T: 12 mm | C: 1,710 kgf | Co: 2,100 kgf | n oil: 7,500 rpm
51103 d: 17 mm | D: 30 mm | T: 9 mm | C: 1,170 kgf | Co: 1,650 kgf | n oil: 9,500 rpm
51203 d: 17 mm | D: 35 mm | T: 12 mm | C: 1,760 kgf | Co: 2,300 kgf | n oil: 7,500 rpm
51104 d: 20 mm | D: 35 mm | T: 10 mm | C: 1,540 kgf | Co: 2,250 kgf | n oil: 8,000 rpm
51204 d: 20 mm | D: 40 mm | T: 14 mm | C: 2,290 kgf | Co: 3,200 kgf | n oil: 6,000 rpm
51105 d: 25 mm | D: 42 mm | T: 11 mm | C: 2,010 kgf | Co: 3,150 kgf | n oil: 6,700 rpm
51205 d: 25 mm | D: 47 mm | T: 15 mm | C: 2,860 kgf | Co: 4,250 kgf | n oil: 5,600 rpm
51305 d: 25 mm | D: 52 mm | T: 18 mm | C: 3,650 kgf | Co: 5,200 kgf | n oil: 4,800 rpm
51405 d: 25 mm | D: 60 mm | T: 24 mm | C: 5,700 kgf | Co: 7,550 kgf | n oil: 4,000 rpm
51106 d: 30 mm | D: 47 mm | T: 11 mm | C: 2,100 kgf | Co: 3,550 kgf | n oil: 6,500 rpm
51206 d: 30 mm | D: 52 mm | T: 16 mm | C: 3,000 kgf | Co: 4,900 kgf | n oil: 5,300 rpm
51306 d: 30 mm | D: 60 mm | T: 21 mm | C: 4,400 kgf | Co: 6,650 kgf | n oil: 4,200 rpm
51406 d: 30 mm | D: 70 mm | T: 28 mm | C: 7,450 kgf | Co: 10,600 kgf | n oil: 3,400 rpm
51107 d: 35 mm | D: 52 mm | T: 12 mm | C: 2,250 kgf | Co: 4,200 kgf | n oil: 6,000 rpm
51207 d: 35 mm | D: 62 mm | T: 18 mm | C: 4,050 kgf | Co: 6,600 kgf | n oil: 4,500 rpm
51307 d: 35 mm | D: 68 mm | T: 24 mm | C: 5,700 kgf | Co: 8,850 kgf | n oil: 3,700 rpm
51407 d: 35 mm | D: 80 mm | T: 32 mm | C: 8,950 kgf | Co: 13,100 kgf | n oil: 3,000 rpm
51108 d: 40 mm | D: 60 mm | T: 13 mm | C: 2,770 kgf | Co: 5,300 kgf | n oil: 5,300 rpm
51208 d: 40 mm | D: 68 mm | T: 19 mm | C: 4,850 kgf | Co: 8,300 kgf | n oil: 4,200 rpm
51308 d: 40 mm | D: 78 mm | T: 26 mm | C: 7,100 kgf | Co: 11,400 kgf | n oil: 3,300 rpm
51408 d: 40 mm | D: 90 mm | T: 36 mm | C: 10,500 kgf | Co: 15,800 kgf | n oil: 2,600 rpm
51109 d: 45 mm | D: 65 mm | T: 14 mm | C: 2,860 kgf | Co: 5,850 kgf | n oil: 5,000 rpm
51209 d: 45 mm | D: 73 mm | T: 20 mm | C: 4,900 kgf | Co: 8,850 kgf | n oil: 4,000 rpm
51309 d: 45 mm | D: 85 mm | T: 28 mm | C: 8,200 kgf | Co: 13,800 kgf | n oil: 3,000 rpm
51409 d: 45 mm | D: 100 mm | T: 39 mm | C: 13,000 kgf | Co: 20,700 kgf | n oil: 2,400 rpm
51110 d: 50 mm | D: 70 mm | T: 14 mm | C: 2,960 kgf | Co: 6,350 kgf | n oil: 4,800 rpm
51210 d: 50 mm | D: 78 mm | T: 22 mm | C: 5,000 kgf | Co: 9,400 kgf | n oil: 3,600 rpm
51310 d: 50 mm | D: 95 mm | T: 31 mm | C: 9,950 kgf | Co: 17,000 kgf | n oil: 2,800 rpm
51410 d: 50 mm | D: 110 mm | T: 43 mm | C: 15,000 kgf | Co: 24,300 kgf | n oil: 2,200 rpm
51111 d: 55 mm | D: 78 mm | T: 16 mm | C: 3,600 kgf | Co: 7,850 kgf | n oil: 4,300 rpm
51211 d: 55 mm | D: 90 mm | T: 25 mm | C: 7,150 kgf | Co: 13,400 kgf | n oil: 3,200 rpm
51311 d: 55 mm | D: 105 mm | T: 35 mm | C: 11,800 kgf | Co: 20,600 kgf | n oil: 2,400 rpm
51411 d: 55 mm | D: 120 mm | T: 48 mm | C: 18,500 kgf | Co: 29,500 kgf | n oil: 1,900 rpm
51112 d: 60 mm | D: 85 mm | T: 17 mm | C: 4,250 kgf | Co: 9,500 kgf | n oil: 4,000 rpm
51212 d: 60 mm | D: 95 mm | T: 26 mm | C: 7,300 kgf | Co: 14,200 kgf | n oil: 3,000 rpm
51312 d: 60 mm | D: 110 mm | T: 35 mm | C: 12,100 kgf | Co: 22,200 kgf | n oil: 2,400 rpm
51412 d: 60 mm | D: 130 mm | T: 51 mm | C: 20,600 kgf | Co: 33,500 kgf | n oil: 1,800 rpm
51113 d: 65 mm | D: 90 mm | T: 18 mm | C: 4,300 kgf | Co: 9,900 kgf | n oil: 3,800 rpm
51213 d: 65 mm | D: 100 mm | T: 27 mm | C: 7,700 kgf | Co: 15,900 kgf | n oil: 2,800 rpm
51313 d: 65 mm | D: 115 mm | T: 36 mm | C: 12,500 kgf | Co: 23,800 kgf | n oil: 2,300 rpm
51413 d: 65 mm | D: 140 mm | T: 56 mm | C: 23,800 kgf | Co: 41,500 kgf | n oil: 1,600 rpm
51114 d: 70 mm | D: 95 mm | T: 18 mm | C: 4,450 kgf | Co: 10,700 kgf | n oil: 3,600 rpm
51214 d: 70 mm | D: 105 mm | T: 27 mm | C: 7,550 kgf | Co: 15,900 kgf | n oil: 2,800 rpm
51314 d: 70 mm | D: 125 mm | T: 40 mm | C: 14,000 kgf | Co: 26,400 kgf | n oil: 2,000 rpm
51414 d: 70 mm | D: 150 mm | T: 60 mm | C: 25,700 kgf | Co: 46,500 kgf | n oil: 1,500 rpm
51115 d: 75 mm | D: 100 mm | T: 19 mm | C: 4,450 kgf | Co: 11,100 kgf | n oil: 3,400 rpm
51215 d: 75 mm | D: 110 mm | T: 27 mm | C: 7,950 kgf | Co: 17,600 kgf | n oil: 2,700 rpm
51315 d: 75 mm | D: 135 mm | T: 44 mm | C: 16,200 kgf | Co: 31,000 kgf | n oil: 1,900 rpm
51415 d: 75 mm | D: 160 mm | T: 65 mm | C: 25,900 kgf | Co: 47,500 kgf | n oil: 1,400 rpm
51116 d: 80 mm | D: 105 mm | T: 19 mm | C: 4,600 kgf | Co: 11,900 kgf | n oil: 3,300 rpm
51216 d: 80 mm | D: 115 mm | T: 28 mm | C: 8,050 kgf | Co: 18,400 kgf | n oil: 2,600 rpm
51316 d: 80 mm | D: 140 mm | T: 44 mm | C: 16,700 kgf | Co: 33,000 kgf | n oil: 1,800 rpm
51416 d: 80 mm | D: 170 mm | T: 68 mm | C: 27,800 kgf | Co: 52,500 kgf | n oil: 1,400 rpm
51117 d: 85 mm | D: 110 mm | T: 19 mm | C: 4,700 kgf | Co: 12,700 kgf | n oil: 3,200 rpm
51217 d: 85 mm | D: 125 mm | T: 31 mm | C: 9,800 kgf | Co: 22,300 kgf | n oil: 2,400 rpm
51317 d: 85 mm | D: 150 mm | T: 49 mm | C: 21,100 kgf | Co: 41,000 kgf | n oil: 1,700 rpm
51417X d: 85 mm | D: 180 mm | T: 72 mm | C: 31,500 kgf | Co: 63,500 kgf | n oil: 1,300 rpm
51118 d: 90 mm | D: 120 mm | T: 22 mm | C: 6,150 kgf | Co: 16,000 kgf | n oil: 3,000 rpm
51218 d: 90 mm | D: 135 mm | T: 35 mm | C: 11,600 kgf | Co: 26,200 kgf | n oil: 2,200 rpm
51318 d: 90 mm | D: 155 mm | T: 50 mm | C: 21,900 kgf | Co: 44,000 kgf | n oil: 1,600 rpm
51418X d: 90 mm | D: 190 mm | T: 77 mm | C: 33,500 kgf | Co: 69,500 kgf | n oil: 1,200 rpm
51120 d: 100 mm | D: 135 mm | T: 25 mm | C: 8,750 kgf | Co: 22,600 kgf | n oil: 2,600 rpm
51220 d: 100 mm | D: 150 mm | T: 38 mm | C: 13,700 kgf | Co: 31,500 kgf | n oil: 1,900 rpm
51320 d: 100 mm | D: 170 mm | T: 55 mm | C: 24,300 kgf | Co: 50,500 kgf | n oil: 1,500 rpm
51420X d: 100 mm | D: 210 mm | T: 85 mm | C: 38,000 kgf | Co: 83,000 kgf | n oil: 1,100 rpm
51122 d: 110 mm | D: 145 mm | T: 25 mm | C: 8,950 kgf | Co: 23,500 kgf | n oil: 2,400 rpm
51222 d: 110 mm | D: 160 mm | T: 38 mm | C: 13,900 kgf | Co: 33,500 kgf | n oil: 1,900 rpm
51322X d: 110 mm | D: 190 mm | T: 63 mm | C: 28,800 kgf | Co: 63,500 kgf | n oil: 1,300 rpm
51422X d: 110 mm | D: 230 mm | T: 95 mm | C: 42,000 kgf | Co: 97,500 kgf | n oil: 950 rpm
51124 d: 120 mm | D: 155 mm | T: 25 mm | C: 9,150 kgf | Co: 26,000 kgf | n oil: 2,400 rpm
51224 d: 120 mm | D: 170 mm | T: 39 mm | C: 14,400 kgf | Co: 36,500 kgf | n oil: 1,800 rpm
51324X d: 120 mm | D: 210 mm | T: 70 mm | C: 33,500 kgf | Co: 78,500 kgf | n oil: 1,200 rpm
51424X d: 120 mm | D: 250 mm | T: 102 mm | C: 49,000 kgf | Co: 118,000 kgf | n oil: 850 rpm
51126 d: 130 mm | D: 170 mm | T: 30 mm | C: 10,700 kgf | Co: 28,600 kgf | n oil: 2,000 rpm
51226X d: 130 mm | D: 190 mm | T: 45 mm | C: 18,700 kgf | Co: 46,500 kgf | n oil: 1,600 rpm
51326X d: 130 mm | D: 225 mm | T: 75 mm | C: 35,500 kgf | Co: 86,500 kgf | n oil: 1,100 rpm
51426X d: 130 mm | D: 270 mm | T: 110 mm | C: 53,500 kgf | Co: 134,000 kgf | n oil: 800 rpm
51128X d: 140 mm | D: 180 mm | T: 31 mm | C: 11,000 kgf | Co: 31,000 kgf | n oil: 2,000 rpm
51228X d: 140 mm | D: 200 mm | T: 46 mm | C: 18,900 kgf | Co: 48,500 kgf | n oil: 1,500 rpm
51328X d: 140 mm | D: 240 mm | T: 80 mm | C: 37,500 kgf | Co: 95,000 kgf | n oil: 1,000 rpm
51428X d: 140 mm | D: 280 mm | T: 112 mm | C: 56,500 kgf | Co: 148,000 kgf | n oil: 750 rpm
51130X d: 150 mm | D: 190 mm | T: 31 mm | C: 11,200 kgf | Co: 33,000 kgf | n oil: 1,900 rpm
51230X d: 150 mm | D: 215 mm | T: 50 mm | C: 24,300 kgf | Co: 62,000 kgf | n oil: 1,400 rpm
51330X d: 150 mm | D: 250 mm | T: 80 mm | C: 39,000 kgf | Co: 101,000 kgf | n oil: 1,000 rpm
51430X d: 150 mm | D: 300 mm | T: 120 mm | C: 63,000 kgf | Co: 170,000 kgf | n oil: 710 rpm
51132X d: 160 mm | D: 200 mm | T: 31 mm | C: 11,500 kgf | Co: 35,000 kgf | n oil: 1,900 rpm
51232X d: 160 mm | D: 225 mm | T: 51 mm | C: 25,400 kgf | Co: 68,000 kgf | n oil: 1,300 rpm
51332X d: 160 mm | D: 270 mm | T: 87 mm | C: 48,500 kgf | Co: 124,000 kgf | n oil: 900 rpm
51432X d: 160 mm | D: 320 mm | T: 130 mm | C: 66,000 kgf | Co: 187,000 kgf | n oil: 670 rpm
51134X d: 170 mm | D: 215 mm | T: 34 mm | C: 13,800 kgf | Co: 42,000 kgf | n oil: 1,700 rpm
51234X d: 170 mm | D: 240 mm | T: 55 mm | C: 28,500 kgf | Co: 77,000 kgf | n oil: 1,200 rpm
51334X d: 170 mm | D: 280 mm | T: 87 mm | C: 47,500 kgf | Co: 133,000 kgf | n oil: 900 rpm
51434X d: 170 mm | D: 340 mm | T: 135 mm | C: 73,000 kgf | Co: 210,000 kgf | n oil: 630 rpm
51136X d: 180 mm | D: 225 mm | T: 34 mm | C: 13,800 kgf | Co: 44,500 kgf | n oil: 1,700 rpm
51236X d: 180 mm | D: 250 mm | T: 56 mm | C: 28,900 kgf | Co: 80,500 kgf | n oil: 1,200 rpm
51336X d: 180 mm | D: 300 mm | T: 95 mm | C: 49,000 kgf | Co: 142,000 kgf | n oil: 800 rpm
51436X d: 180 mm | D: 360 mm | T: 140 mm | C: 76,500 kgf | Co: 230,000 kgf | n oil: 600 rpm
51138X d: 190 mm | D: 240 mm | T: 37 mm | C: 17,500 kgf | Co: 52,500 kgf | n oil: 1,500 rpm
51238X d: 190 mm | D: 270 mm | T: 62 mm | C: 32,500 kgf | Co: 93,500 kgf | n oil: 1,100 rpm
51338X d: 190 mm | D: 320 mm | T: 105 mm | C: 56,000 kgf | Co: 165,000 kgf | n oil: 750 rpm
51140X d: 200 mm | D: 250 mm | T: 37 mm | C: 17,600 kgf | Co: 54,000 kgf | n oil: 1,500 rpm
51240X d: 200 mm | D: 280 mm | T: 62 mm | C: 32,500 kgf | Co: 93,500 kgf | n oil: 1,100 rpm
51340X d: 200 mm | D: 340 mm | T: 110 mm | C: 61,500 kgf | Co: 188,000 kgf | n oil: 710 rpm
51144X d: 220 mm | D: 270 mm | T: 37 mm | C: 18,200 kgf | Co: 58,500 kgf | n oil: 1,400 rpm
51244X d: 220 mm | D: 300 mm | T: 63 mm | C: 33,500 kgf | Co: 102,000 kgf | n oil: 1,000 rpm
51148X d: 240 mm | D: 300 mm | T: 45 mm | C: 23,400 kgf | Co: 77,500 kgf | n oil: 1,200 rpm
51248X d: 240 mm | D: 340 mm | T: 78 mm | C: 43,000 kgf | Co: 139,000 kgf | n oil: 850 rpm
51152X d: 260 mm | D: 320 mm | T: 45 mm | C: 23,800 kgf | Co: 84,000 kgf | n oil: 1,200 rpm
51252X d: 260 mm | D: 360 mm | T: 79 mm | C: 43,500 kgf | Co: 146,000 kgf | n oil: 800 rpm
51156X d: 280 mm | D: 350 mm | T: 53 mm | C: 32,000 kgf | Co: 111,000 kgf | n oil: 1,000 rpm
51256X d: 280 mm | D: 380 mm | T: 80 mm | C: 46,000 kgf | Co: 165,000 kgf | n oil: 800 rpm
51160X d: 300 mm | D: 380 mm | T: 62 mm | C: 36,500 kgf | Co: 132,000 kgf | n oil: 900 rpm
51260X d: 300 mm | D: 420 mm | T: 95 mm | C: 55,000 kgf | Co: 204,000 kgf | n oil: 670 rpm
51164X d: 320 mm | D: 400 mm | T: 63 mm | C: 37,500 kgf | Co: 140,000 kgf | n oil: 900 rpm
51264X d: 320 mm | D: 440 mm | T: 95 mm | C: 59,500 kgf | Co: 226,000 kgf | n oil: 670 rpm
51168X d: 340 mm | D: 420 mm | T: 64 mm | C: 38,500 kgf | Co: 148,000 kgf | n oil: 850 rpm
51268X d: 340 mm | D: 460 mm | T: 96 mm | C: 60,500 kgf | Co: 236,000 kgf | n oil: 650 rpm
51172X d: 360 mm | D: 440 mm | T: 65 mm | C: 39,000 kgf | Co: 157,000 kgf | n oil: 800 rpm
51272X d: 360 mm | D: 500 mm | T: 110 mm | C: 72,000 kgf | Co: 295,000 kgf | n oil: 560 rpm
51176X d: 380 mm | D: 460 mm | T: 65 mm | C: 43,800 kgf | Co: 228,400 kgf | n oil: 670 rpm
51180X d: 400 mm | D: 480 mm | T: 65 mm | C: 44,800 kgf | Co: 236,500 kgf | n oil: 670 rpm
51184X d: 420 mm | D: 500 mm | T: 65 mm | C: 44,800 kgf | Co: 249,800 kgf | n oil: 630 rpm
51188X d: 440 mm | D: 540 mm | T: 80 mm | C: 54,000 kgf | Co: 305,900 kgf | n oil: 560 rpm
51192X d: 460 mm | D: 560 mm | T: 80 mm | C: 54,000 kgf | Co: 316,100 kgf | n oil: 560 rpm
51196X d: 480 mm | D: 580 mm | T: 80 mm | C: 55,000 kgf | Co: 331,400 kgf | n oil: 530 rpm
511/500 d: 500 mm | D: 600 mm | T: 80 mm | C: 56,000 kgf | Co: 341,600 kgf | n oil: 530 rpm
511/530 d: 530 mm | D: 640 mm | T: 85 mm | C: 63,200 kgf | Co: 397,600 kgf | n oil: 480 rpm
511/560 d: 560 mm | D: 670 mm | T: 85 mm | C: 64,200 kgf | Co: 423,100 kgf | n oil: 480 rpm
Thrust BearingsWBC
133 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WBC 511/512/513/514 Single Direction Thrust Ball Bearings (10-560 mm)

Brand WBC·Thrust Bearings

Available part numbers (133)

51100, 51200, 51101, 51201, 51102, 51202, 51103, 51203, 51104, 51204 + 123 more — see full table ↓

How to order

Send the WBC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
51100d: 10 mm | D: 24 mm | T: 9 mm | C: 1,030 kgf | Co: 1,180 kgf | n oil: 10,000 rpm
51200d: 10 mm | D: 26 mm | T: 11 mm | C: 1,300 kgf | Co: 1,440 kgf | n oil: 9,000 rpm
51101d: 12 mm | D: 26 mm | T: 9 mm | C: 1,060 kgf | Co: 1,300 kgf | n oil: 10,000 rpm
51201d: 12 mm | D: 28 mm | T: 11 mm | C: 1,350 kgf | Co: 1,600 kgf | n oil: 8,500 rpm
51102d: 15 mm | D: 28 mm | T: 9 mm | C: 1,080 kgf | Co: 1,410 kgf | n oil: 9,500 rpm
51202d: 15 mm | D: 32 mm | T: 12 mm | C: 1,710 kgf | Co: 2,100 kgf | n oil: 7,500 rpm
51103d: 17 mm | D: 30 mm | T: 9 mm | C: 1,170 kgf | Co: 1,650 kgf | n oil: 9,500 rpm
51203d: 17 mm | D: 35 mm | T: 12 mm | C: 1,760 kgf | Co: 2,300 kgf | n oil: 7,500 rpm
51104d: 20 mm | D: 35 mm | T: 10 mm | C: 1,540 kgf | Co: 2,250 kgf | n oil: 8,000 rpm
51204d: 20 mm | D: 40 mm | T: 14 mm | C: 2,290 kgf | Co: 3,200 kgf | n oil: 6,000 rpm
51105d: 25 mm | D: 42 mm | T: 11 mm | C: 2,010 kgf | Co: 3,150 kgf | n oil: 6,700 rpm
51205d: 25 mm | D: 47 mm | T: 15 mm | C: 2,860 kgf | Co: 4,250 kgf | n oil: 5,600 rpm
51305d: 25 mm | D: 52 mm | T: 18 mm | C: 3,650 kgf | Co: 5,200 kgf | n oil: 4,800 rpm
51405d: 25 mm | D: 60 mm | T: 24 mm | C: 5,700 kgf | Co: 7,550 kgf | n oil: 4,000 rpm
51106d: 30 mm | D: 47 mm | T: 11 mm | C: 2,100 kgf | Co: 3,550 kgf | n oil: 6,500 rpm
51206d: 30 mm | D: 52 mm | T: 16 mm | C: 3,000 kgf | Co: 4,900 kgf | n oil: 5,300 rpm
51306d: 30 mm | D: 60 mm | T: 21 mm | C: 4,400 kgf | Co: 6,650 kgf | n oil: 4,200 rpm
51406d: 30 mm | D: 70 mm | T: 28 mm | C: 7,450 kgf | Co: 10,600 kgf | n oil: 3,400 rpm
51107d: 35 mm | D: 52 mm | T: 12 mm | C: 2,250 kgf | Co: 4,200 kgf | n oil: 6,000 rpm
51207d: 35 mm | D: 62 mm | T: 18 mm | C: 4,050 kgf | Co: 6,600 kgf | n oil: 4,500 rpm
51307d: 35 mm | D: 68 mm | T: 24 mm | C: 5,700 kgf | Co: 8,850 kgf | n oil: 3,700 rpm
51407d: 35 mm | D: 80 mm | T: 32 mm | C: 8,950 kgf | Co: 13,100 kgf | n oil: 3,000 rpm
51108d: 40 mm | D: 60 mm | T: 13 mm | C: 2,770 kgf | Co: 5,300 kgf | n oil: 5,300 rpm
51208d: 40 mm | D: 68 mm | T: 19 mm | C: 4,850 kgf | Co: 8,300 kgf | n oil: 4,200 rpm
51308d: 40 mm | D: 78 mm | T: 26 mm | C: 7,100 kgf | Co: 11,400 kgf | n oil: 3,300 rpm
51408d: 40 mm | D: 90 mm | T: 36 mm | C: 10,500 kgf | Co: 15,800 kgf | n oil: 2,600 rpm
51109d: 45 mm | D: 65 mm | T: 14 mm | C: 2,860 kgf | Co: 5,850 kgf | n oil: 5,000 rpm
51209d: 45 mm | D: 73 mm | T: 20 mm | C: 4,900 kgf | Co: 8,850 kgf | n oil: 4,000 rpm
51309d: 45 mm | D: 85 mm | T: 28 mm | C: 8,200 kgf | Co: 13,800 kgf | n oil: 3,000 rpm
51409d: 45 mm | D: 100 mm | T: 39 mm | C: 13,000 kgf | Co: 20,700 kgf | n oil: 2,400 rpm
51110d: 50 mm | D: 70 mm | T: 14 mm | C: 2,960 kgf | Co: 6,350 kgf | n oil: 4,800 rpm
51210d: 50 mm | D: 78 mm | T: 22 mm | C: 5,000 kgf | Co: 9,400 kgf | n oil: 3,600 rpm
51310d: 50 mm | D: 95 mm | T: 31 mm | C: 9,950 kgf | Co: 17,000 kgf | n oil: 2,800 rpm
51410d: 50 mm | D: 110 mm | T: 43 mm | C: 15,000 kgf | Co: 24,300 kgf | n oil: 2,200 rpm
51111d: 55 mm | D: 78 mm | T: 16 mm | C: 3,600 kgf | Co: 7,850 kgf | n oil: 4,300 rpm
51211d: 55 mm | D: 90 mm | T: 25 mm | C: 7,150 kgf | Co: 13,400 kgf | n oil: 3,200 rpm
51311d: 55 mm | D: 105 mm | T: 35 mm | C: 11,800 kgf | Co: 20,600 kgf | n oil: 2,400 rpm
51411d: 55 mm | D: 120 mm | T: 48 mm | C: 18,500 kgf | Co: 29,500 kgf | n oil: 1,900 rpm
51112d: 60 mm | D: 85 mm | T: 17 mm | C: 4,250 kgf | Co: 9,500 kgf | n oil: 4,000 rpm
51212d: 60 mm | D: 95 mm | T: 26 mm | C: 7,300 kgf | Co: 14,200 kgf | n oil: 3,000 rpm
51312d: 60 mm | D: 110 mm | T: 35 mm | C: 12,100 kgf | Co: 22,200 kgf | n oil: 2,400 rpm
51412d: 60 mm | D: 130 mm | T: 51 mm | C: 20,600 kgf | Co: 33,500 kgf | n oil: 1,800 rpm
51113d: 65 mm | D: 90 mm | T: 18 mm | C: 4,300 kgf | Co: 9,900 kgf | n oil: 3,800 rpm
51213d: 65 mm | D: 100 mm | T: 27 mm | C: 7,700 kgf | Co: 15,900 kgf | n oil: 2,800 rpm
51313d: 65 mm | D: 115 mm | T: 36 mm | C: 12,500 kgf | Co: 23,800 kgf | n oil: 2,300 rpm
51413d: 65 mm | D: 140 mm | T: 56 mm | C: 23,800 kgf | Co: 41,500 kgf | n oil: 1,600 rpm
51114d: 70 mm | D: 95 mm | T: 18 mm | C: 4,450 kgf | Co: 10,700 kgf | n oil: 3,600 rpm
51214d: 70 mm | D: 105 mm | T: 27 mm | C: 7,550 kgf | Co: 15,900 kgf | n oil: 2,800 rpm
51314d: 70 mm | D: 125 mm | T: 40 mm | C: 14,000 kgf | Co: 26,400 kgf | n oil: 2,000 rpm
51414d: 70 mm | D: 150 mm | T: 60 mm | C: 25,700 kgf | Co: 46,500 kgf | n oil: 1,500 rpm
51115d: 75 mm | D: 100 mm | T: 19 mm | C: 4,450 kgf | Co: 11,100 kgf | n oil: 3,400 rpm
51215d: 75 mm | D: 110 mm | T: 27 mm | C: 7,950 kgf | Co: 17,600 kgf | n oil: 2,700 rpm
51315d: 75 mm | D: 135 mm | T: 44 mm | C: 16,200 kgf | Co: 31,000 kgf | n oil: 1,900 rpm
51415d: 75 mm | D: 160 mm | T: 65 mm | C: 25,900 kgf | Co: 47,500 kgf | n oil: 1,400 rpm
51116d: 80 mm | D: 105 mm | T: 19 mm | C: 4,600 kgf | Co: 11,900 kgf | n oil: 3,300 rpm
51216d: 80 mm | D: 115 mm | T: 28 mm | C: 8,050 kgf | Co: 18,400 kgf | n oil: 2,600 rpm
51316d: 80 mm | D: 140 mm | T: 44 mm | C: 16,700 kgf | Co: 33,000 kgf | n oil: 1,800 rpm
51416d: 80 mm | D: 170 mm | T: 68 mm | C: 27,800 kgf | Co: 52,500 kgf | n oil: 1,400 rpm
51117d: 85 mm | D: 110 mm | T: 19 mm | C: 4,700 kgf | Co: 12,700 kgf | n oil: 3,200 rpm
51217d: 85 mm | D: 125 mm | T: 31 mm | C: 9,800 kgf | Co: 22,300 kgf | n oil: 2,400 rpm
51317d: 85 mm | D: 150 mm | T: 49 mm | C: 21,100 kgf | Co: 41,000 kgf | n oil: 1,700 rpm
51417Xd: 85 mm | D: 180 mm | T: 72 mm | C: 31,500 kgf | Co: 63,500 kgf | n oil: 1,300 rpm
51118d: 90 mm | D: 120 mm | T: 22 mm | C: 6,150 kgf | Co: 16,000 kgf | n oil: 3,000 rpm
51218d: 90 mm | D: 135 mm | T: 35 mm | C: 11,600 kgf | Co: 26,200 kgf | n oil: 2,200 rpm
51318d: 90 mm | D: 155 mm | T: 50 mm | C: 21,900 kgf | Co: 44,000 kgf | n oil: 1,600 rpm
51418Xd: 90 mm | D: 190 mm | T: 77 mm | C: 33,500 kgf | Co: 69,500 kgf | n oil: 1,200 rpm
51120d: 100 mm | D: 135 mm | T: 25 mm | C: 8,750 kgf | Co: 22,600 kgf | n oil: 2,600 rpm
51220d: 100 mm | D: 150 mm | T: 38 mm | C: 13,700 kgf | Co: 31,500 kgf | n oil: 1,900 rpm
51320d: 100 mm | D: 170 mm | T: 55 mm | C: 24,300 kgf | Co: 50,500 kgf | n oil: 1,500 rpm
51420Xd: 100 mm | D: 210 mm | T: 85 mm | C: 38,000 kgf | Co: 83,000 kgf | n oil: 1,100 rpm
51122d: 110 mm | D: 145 mm | T: 25 mm | C: 8,950 kgf | Co: 23,500 kgf | n oil: 2,400 rpm
51222d: 110 mm | D: 160 mm | T: 38 mm | C: 13,900 kgf | Co: 33,500 kgf | n oil: 1,900 rpm
51322Xd: 110 mm | D: 190 mm | T: 63 mm | C: 28,800 kgf | Co: 63,500 kgf | n oil: 1,300 rpm
51422Xd: 110 mm | D: 230 mm | T: 95 mm | C: 42,000 kgf | Co: 97,500 kgf | n oil: 950 rpm
51124d: 120 mm | D: 155 mm | T: 25 mm | C: 9,150 kgf | Co: 26,000 kgf | n oil: 2,400 rpm
51224d: 120 mm | D: 170 mm | T: 39 mm | C: 14,400 kgf | Co: 36,500 kgf | n oil: 1,800 rpm
51324Xd: 120 mm | D: 210 mm | T: 70 mm | C: 33,500 kgf | Co: 78,500 kgf | n oil: 1,200 rpm
51424Xd: 120 mm | D: 250 mm | T: 102 mm | C: 49,000 kgf | Co: 118,000 kgf | n oil: 850 rpm
51126d: 130 mm | D: 170 mm | T: 30 mm | C: 10,700 kgf | Co: 28,600 kgf | n oil: 2,000 rpm
51226Xd: 130 mm | D: 190 mm | T: 45 mm | C: 18,700 kgf | Co: 46,500 kgf | n oil: 1,600 rpm
51326Xd: 130 mm | D: 225 mm | T: 75 mm | C: 35,500 kgf | Co: 86,500 kgf | n oil: 1,100 rpm
51426Xd: 130 mm | D: 270 mm | T: 110 mm | C: 53,500 kgf | Co: 134,000 kgf | n oil: 800 rpm
51128Xd: 140 mm | D: 180 mm | T: 31 mm | C: 11,000 kgf | Co: 31,000 kgf | n oil: 2,000 rpm
51228Xd: 140 mm | D: 200 mm | T: 46 mm | C: 18,900 kgf | Co: 48,500 kgf | n oil: 1,500 rpm
51328Xd: 140 mm | D: 240 mm | T: 80 mm | C: 37,500 kgf | Co: 95,000 kgf | n oil: 1,000 rpm
51428Xd: 140 mm | D: 280 mm | T: 112 mm | C: 56,500 kgf | Co: 148,000 kgf | n oil: 750 rpm
51130Xd: 150 mm | D: 190 mm | T: 31 mm | C: 11,200 kgf | Co: 33,000 kgf | n oil: 1,900 rpm
51230Xd: 150 mm | D: 215 mm | T: 50 mm | C: 24,300 kgf | Co: 62,000 kgf | n oil: 1,400 rpm
51330Xd: 150 mm | D: 250 mm | T: 80 mm | C: 39,000 kgf | Co: 101,000 kgf | n oil: 1,000 rpm
51430Xd: 150 mm | D: 300 mm | T: 120 mm | C: 63,000 kgf | Co: 170,000 kgf | n oil: 710 rpm
51132Xd: 160 mm | D: 200 mm | T: 31 mm | C: 11,500 kgf | Co: 35,000 kgf | n oil: 1,900 rpm
51232Xd: 160 mm | D: 225 mm | T: 51 mm | C: 25,400 kgf | Co: 68,000 kgf | n oil: 1,300 rpm
51332Xd: 160 mm | D: 270 mm | T: 87 mm | C: 48,500 kgf | Co: 124,000 kgf | n oil: 900 rpm
51432Xd: 160 mm | D: 320 mm | T: 130 mm | C: 66,000 kgf | Co: 187,000 kgf | n oil: 670 rpm
51134Xd: 170 mm | D: 215 mm | T: 34 mm | C: 13,800 kgf | Co: 42,000 kgf | n oil: 1,700 rpm
51234Xd: 170 mm | D: 240 mm | T: 55 mm | C: 28,500 kgf | Co: 77,000 kgf | n oil: 1,200 rpm
51334Xd: 170 mm | D: 280 mm | T: 87 mm | C: 47,500 kgf | Co: 133,000 kgf | n oil: 900 rpm
51434Xd: 170 mm | D: 340 mm | T: 135 mm | C: 73,000 kgf | Co: 210,000 kgf | n oil: 630 rpm
51136Xd: 180 mm | D: 225 mm | T: 34 mm | C: 13,800 kgf | Co: 44,500 kgf | n oil: 1,700 rpm
51236Xd: 180 mm | D: 250 mm | T: 56 mm | C: 28,900 kgf | Co: 80,500 kgf | n oil: 1,200 rpm
51336Xd: 180 mm | D: 300 mm | T: 95 mm | C: 49,000 kgf | Co: 142,000 kgf | n oil: 800 rpm
51436Xd: 180 mm | D: 360 mm | T: 140 mm | C: 76,500 kgf | Co: 230,000 kgf | n oil: 600 rpm
51138Xd: 190 mm | D: 240 mm | T: 37 mm | C: 17,500 kgf | Co: 52,500 kgf | n oil: 1,500 rpm
51238Xd: 190 mm | D: 270 mm | T: 62 mm | C: 32,500 kgf | Co: 93,500 kgf | n oil: 1,100 rpm
51338Xd: 190 mm | D: 320 mm | T: 105 mm | C: 56,000 kgf | Co: 165,000 kgf | n oil: 750 rpm
51140Xd: 200 mm | D: 250 mm | T: 37 mm | C: 17,600 kgf | Co: 54,000 kgf | n oil: 1,500 rpm
51240Xd: 200 mm | D: 280 mm | T: 62 mm | C: 32,500 kgf | Co: 93,500 kgf | n oil: 1,100 rpm
51340Xd: 200 mm | D: 340 mm | T: 110 mm | C: 61,500 kgf | Co: 188,000 kgf | n oil: 710 rpm
51144Xd: 220 mm | D: 270 mm | T: 37 mm | C: 18,200 kgf | Co: 58,500 kgf | n oil: 1,400 rpm
51244Xd: 220 mm | D: 300 mm | T: 63 mm | C: 33,500 kgf | Co: 102,000 kgf | n oil: 1,000 rpm
51148Xd: 240 mm | D: 300 mm | T: 45 mm | C: 23,400 kgf | Co: 77,500 kgf | n oil: 1,200 rpm
51248Xd: 240 mm | D: 340 mm | T: 78 mm | C: 43,000 kgf | Co: 139,000 kgf | n oil: 850 rpm
51152Xd: 260 mm | D: 320 mm | T: 45 mm | C: 23,800 kgf | Co: 84,000 kgf | n oil: 1,200 rpm
51252Xd: 260 mm | D: 360 mm | T: 79 mm | C: 43,500 kgf | Co: 146,000 kgf | n oil: 800 rpm
51156Xd: 280 mm | D: 350 mm | T: 53 mm | C: 32,000 kgf | Co: 111,000 kgf | n oil: 1,000 rpm
51256Xd: 280 mm | D: 380 mm | T: 80 mm | C: 46,000 kgf | Co: 165,000 kgf | n oil: 800 rpm
51160Xd: 300 mm | D: 380 mm | T: 62 mm | C: 36,500 kgf | Co: 132,000 kgf | n oil: 900 rpm
51260Xd: 300 mm | D: 420 mm | T: 95 mm | C: 55,000 kgf | Co: 204,000 kgf | n oil: 670 rpm
51164Xd: 320 mm | D: 400 mm | T: 63 mm | C: 37,500 kgf | Co: 140,000 kgf | n oil: 900 rpm
51264Xd: 320 mm | D: 440 mm | T: 95 mm | C: 59,500 kgf | Co: 226,000 kgf | n oil: 670 rpm
51168Xd: 340 mm | D: 420 mm | T: 64 mm | C: 38,500 kgf | Co: 148,000 kgf | n oil: 850 rpm
51268Xd: 340 mm | D: 460 mm | T: 96 mm | C: 60,500 kgf | Co: 236,000 kgf | n oil: 650 rpm
51172Xd: 360 mm | D: 440 mm | T: 65 mm | C: 39,000 kgf | Co: 157,000 kgf | n oil: 800 rpm
51272Xd: 360 mm | D: 500 mm | T: 110 mm | C: 72,000 kgf | Co: 295,000 kgf | n oil: 560 rpm
51176Xd: 380 mm | D: 460 mm | T: 65 mm | C: 43,800 kgf | Co: 228,400 kgf | n oil: 670 rpm
51180Xd: 400 mm | D: 480 mm | T: 65 mm | C: 44,800 kgf | Co: 236,500 kgf | n oil: 670 rpm
51184Xd: 420 mm | D: 500 mm | T: 65 mm | C: 44,800 kgf | Co: 249,800 kgf | n oil: 630 rpm
51188Xd: 440 mm | D: 540 mm | T: 80 mm | C: 54,000 kgf | Co: 305,900 kgf | n oil: 560 rpm
51192Xd: 460 mm | D: 560 mm | T: 80 mm | C: 54,000 kgf | Co: 316,100 kgf | n oil: 560 rpm
51196Xd: 480 mm | D: 580 mm | T: 80 mm | C: 55,000 kgf | Co: 331,400 kgf | n oil: 530 rpm
511/500d: 500 mm | D: 600 mm | T: 80 mm | C: 56,000 kgf | Co: 341,600 kgf | n oil: 530 rpm
511/530d: 530 mm | D: 640 mm | T: 85 mm | C: 63,200 kgf | Co: 397,600 kgf | n oil: 480 rpm
511/560d: 560 mm | D: 670 mm | T: 85 mm | C: 64,200 kgf | Co: 423,100 kgf | n oil: 480 rpm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
